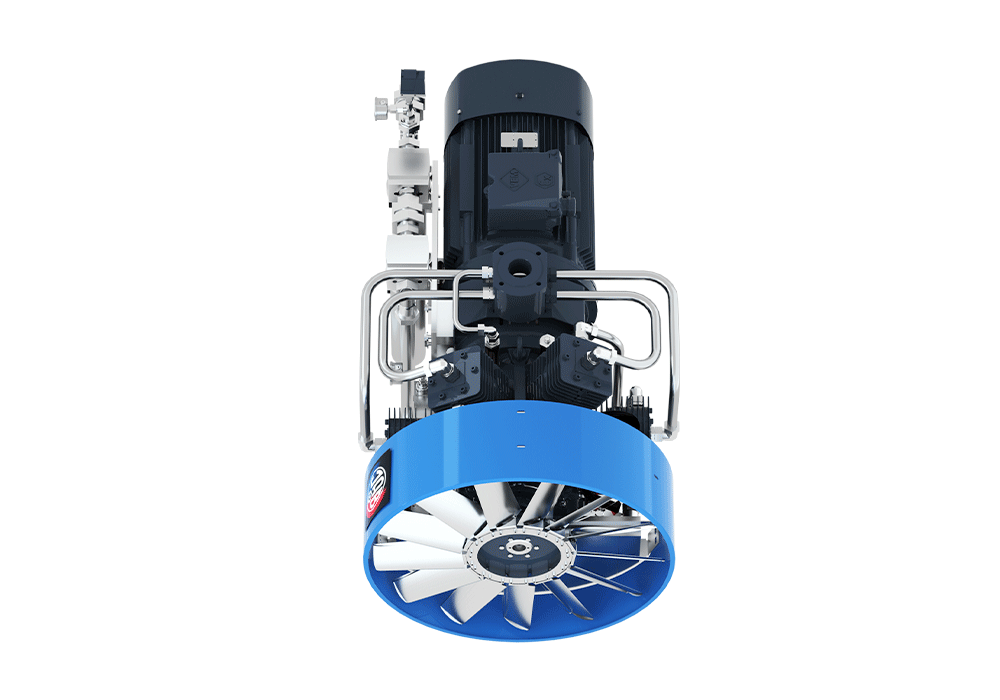

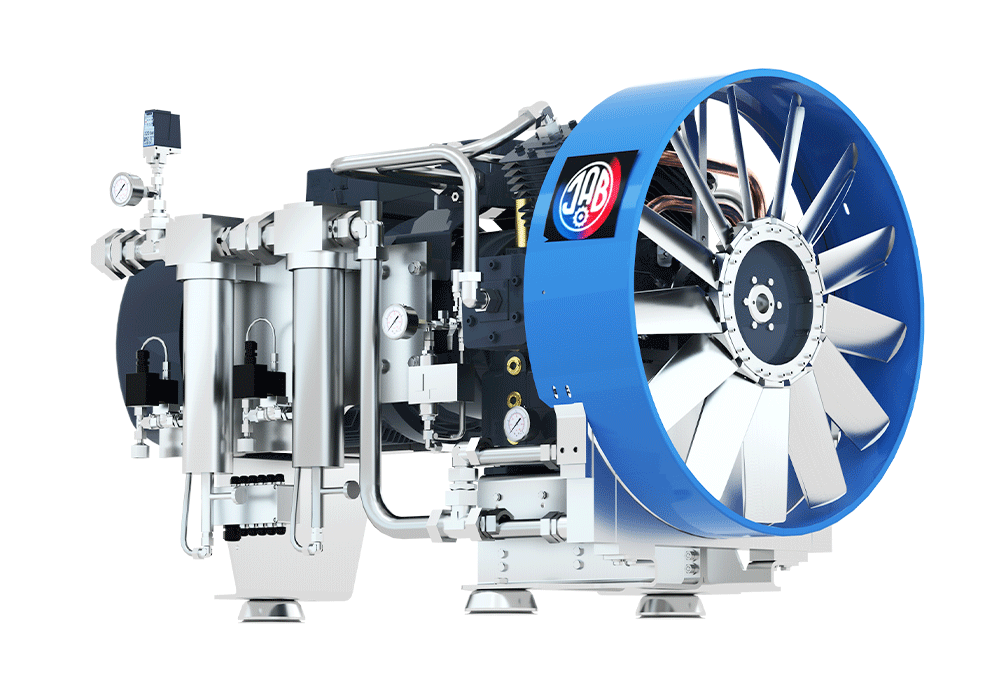

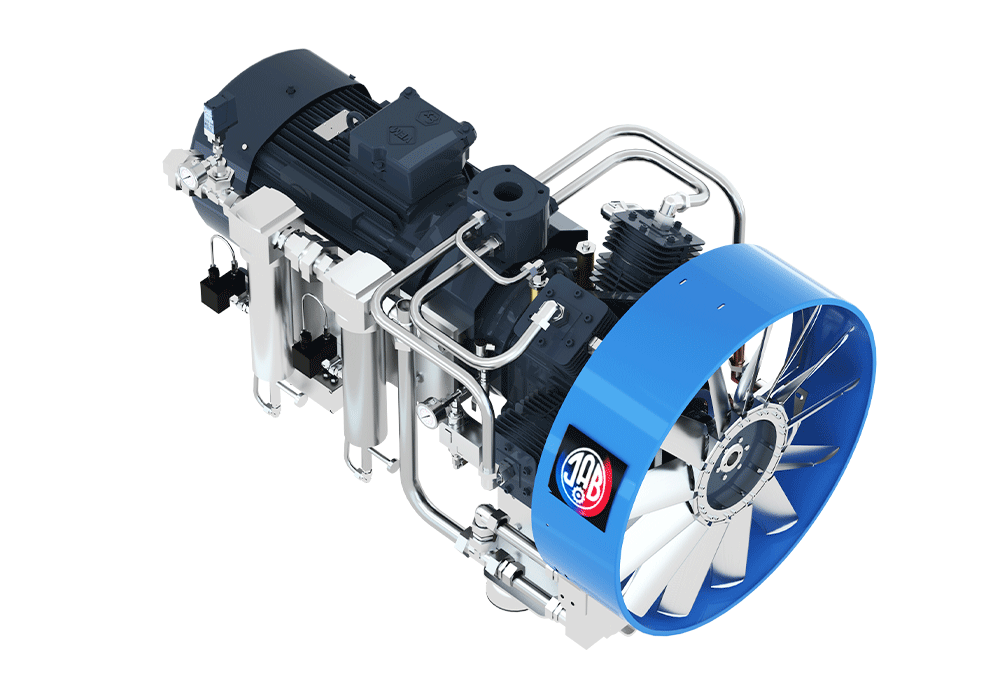

The J.A. Becker & Söhne V 5780-2/20 NG6 FU model is a state-of-the-art, single-stage natural gas compressor specifically designed for the highly efficient supply of gas distribution and processing tasks. This equipment is ideally suited for applications requiring reliable, high-performance pressure boosting, typically reaching an operating pressure of up to 20 bar. The compressor reflects the Becker philosophy: offering non-standard (NO 08/15) solutions that ensure a long service life and minimal maintenance requirements.
The V 5780-2/20 NG6 FU compressor features several outstanding characteristics that guarantee excellent operating parameters and economical use:
High-Efficiency Cooling: The advanced cooling system ensures optimal dissipation of heat generated during the compression process, which increases system efficiency and protects internal components from overheating. This contributes to a longer service life and stable performance.
Fully Automatic Discharge: The built-in, fully automated blow-off function optimizes operating cycles and facilitates handling, minimizing the need for manual intervention during pressure equalization.
Long Maintenance Intervals: As a result of the robust design and quality components, the compressor features extremely long maintenance intervals, significantly reducing downtime and operating costs.
Reliability: The quality assurance characteristic of Becker products guarantees continuous and trouble-free operation, even in critical infrastructures.
The performance and capabilities of the V 5780-2/20 NG6 FU model are defined by the following precise technical parameters:
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Model | V 5780-2/20 NG6 FU | – | Single-stage natural gas booster |
| Volumetric Flow Rate (Volumenstrom) | 220,0 | m³/h | Nominal Capacity |
| Volumetric Flow Rate (Volumenstrom) | 3.667 | l/min | Volumetric Flow Rate per Minute |
| Inlet Pressure (Inletdruck) | 6 | bar | Pre-pressure |
| Maximum Operating Pressure (Max. Betriebsdruck) | 20 | bar | The final pressure achievable by the system |
| Pressure Stages / Cylinder (Druckstufen/Zylinder) | 1 / 2 | – | Single-stage, two-cylinder design |
| Electric Motor Power | 22 | kW | Drive unit power |
| Rotational Speed (Rotationsgeschwindigkeit) | 1.000 | rpm | The rotational speed of the main shaft |
This compressor has been specifically optimized for natural gas (Erdgas) boosting. Its capability to increase the pressure from an inlet pressure of 6 bar to a final pressure of 20 bar makes it ideal for the following areas:
Gas Distribution Networks: Increasing the pressure of local distribution networks, ensuring stable supply at consumer points.
Natural Gas Storage Units: Setting the gas backfeed or pressure in storage facilities.
Industrial Processes: Industrial applications requiring precisely regulated, medium-pressure natural gas.
The V 5780-2/20 NG6 FU represents the engineering precision of J.A. Becker & Söhne, ensuring the equipment delivers first-class performance in every aspect. The robust construction and carefully designed mechanics guarantee long-term, reliable operation even in the most demanding industrial environments.
Detailed technical data sheets and brochures are available for this product for further information and a review of installation requirements.
