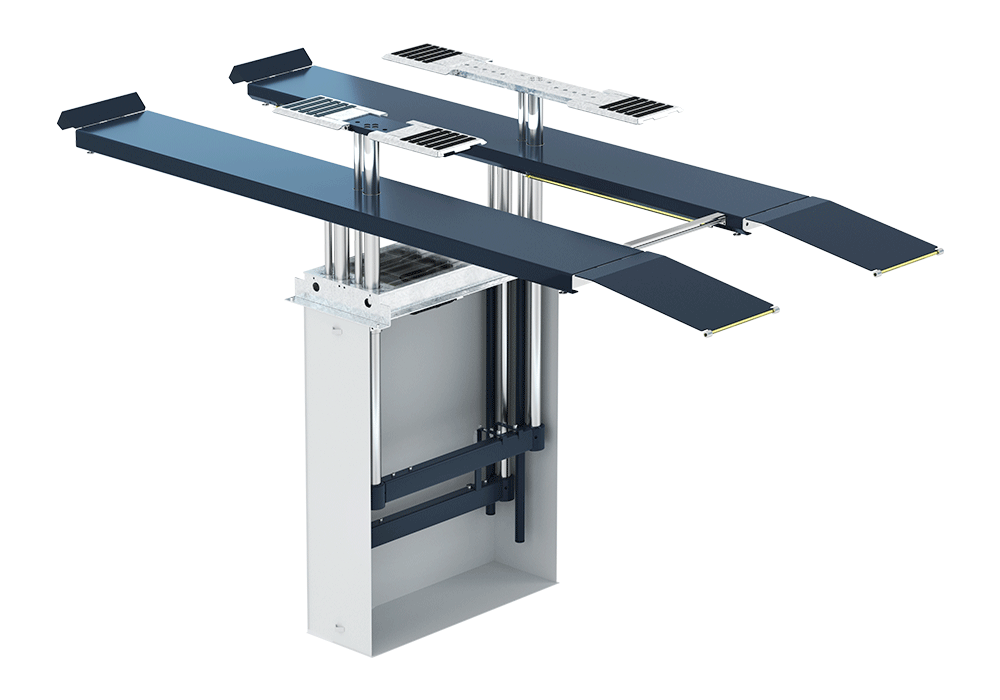

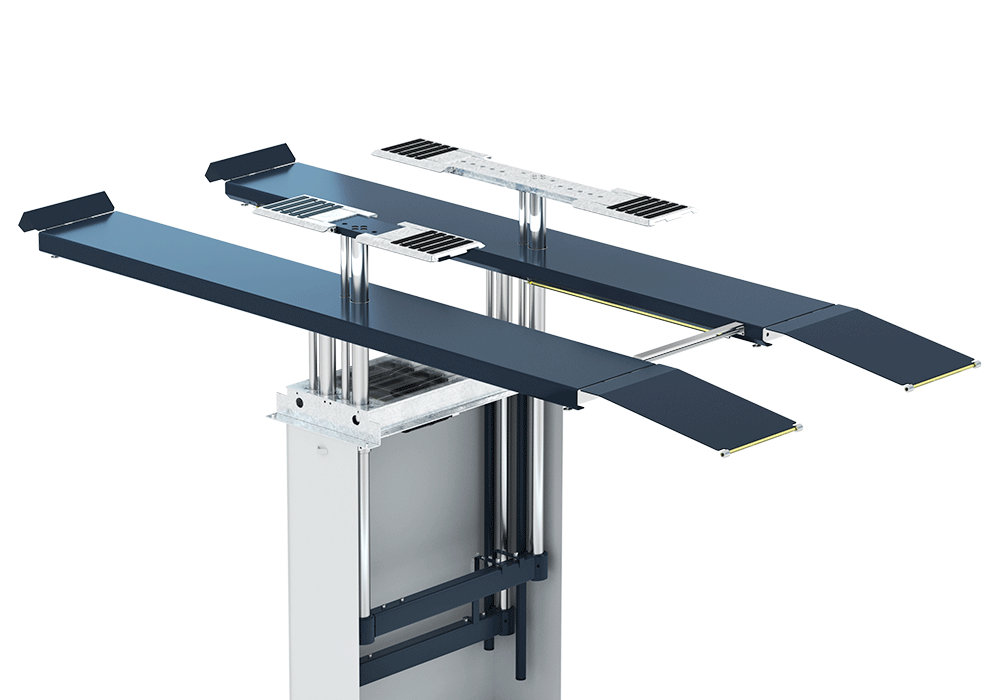

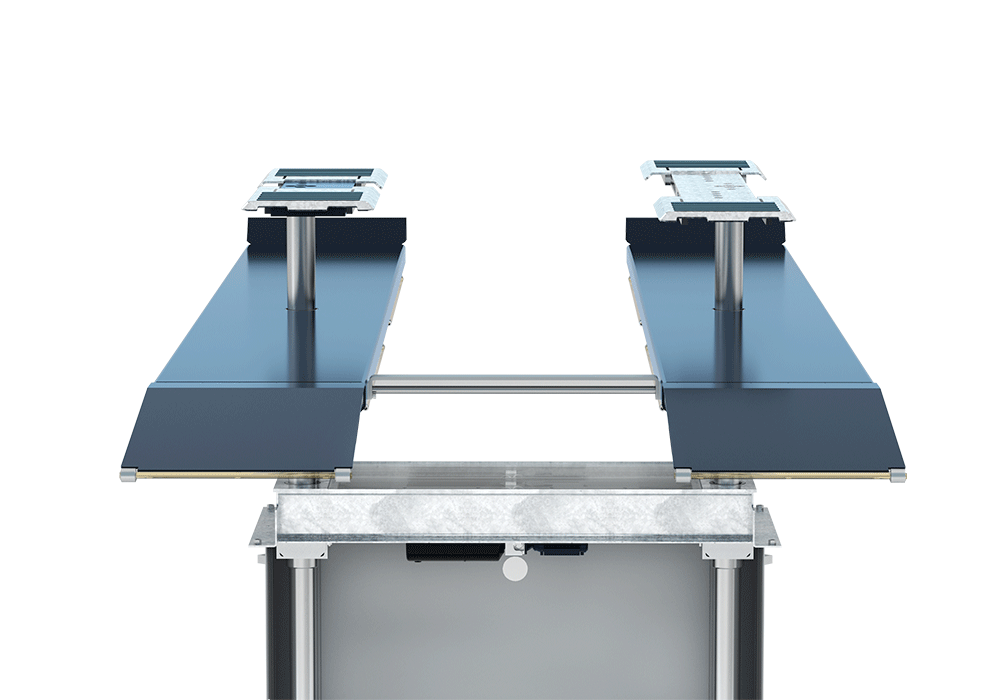

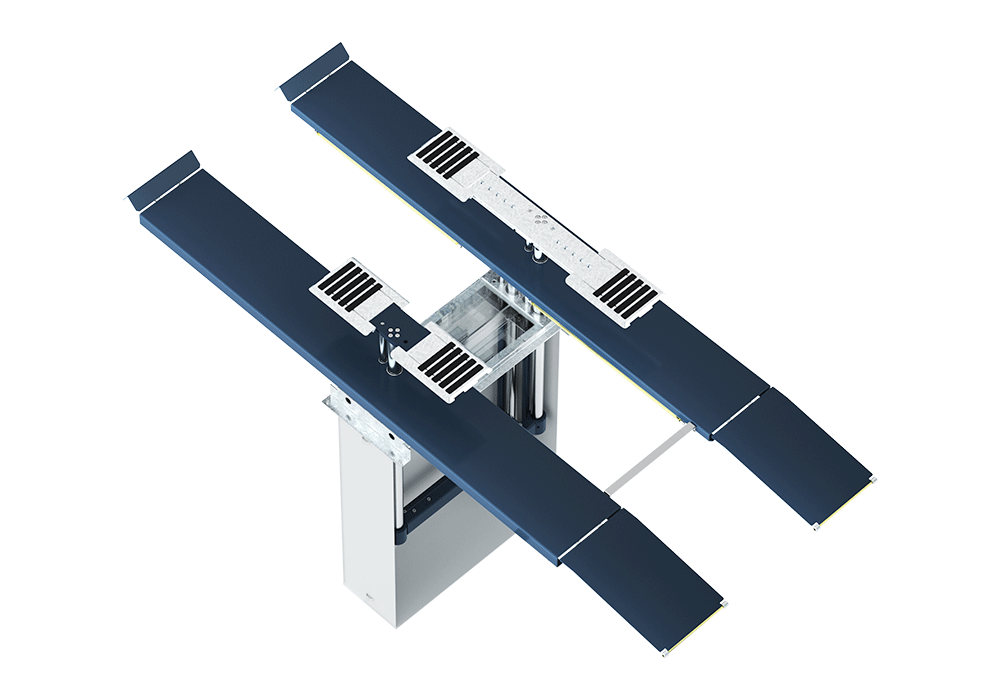

The J.A. Becker & Söhne TwinRam 350 AN is an outstanding quality two-post lift, designed specifically for the dialog reception This floor-mounted lift offers an ideal solution for servicing a vehicle fleet ranging from the smallest passenger cars to vans and light commercial vehicles, ensuring trouble-free driving on and maximum accessibility.
The TwinRam 350 AN reflects the J.A. Becker & Söhne philosophy of „Not 08/15 products,” combining robust design with user-friendly functions.
The TwinRam 350 AN lift features several outstanding characteristics that enhance safety, efficiency, and durability in the workshop environment:
Two separate lifting platforms: The independent lifting platforms allow for precise positioning and flexible use.
Full stroke anti-rotation system: An integrated safety mechanism ensures vehicle stability throughout the entire lifting and lowering process.
Force absorption via the base frame: All lifting forces are absorbed by the base frame, which minimizes stress on the building structures and increases the lifespan of the lift.
Easy access to the drive unit and components: The design has been optimized to facilitate maintenance, ensuring that the drive unit and all critical components are easily accessible.
Floor-mounted ramps: The 4400 x 650 mm floor-mounted ramps ensure easy driving on of the vehicles.
Anti-slip surface: The ramps and tracks are coated with non-slip plastic granules, which increases safety during driving on.
Integrated anti-roll devices: Anti-roll devices integrated into the front and rear runways provide an additional layer of safety.
The TwinRam 350 AN lift offers precise engineering solutions for the highest level of performance.
| Parameter | Value | Note |
|---|---|---|
| Load Capacity | 3,500 kg | Ideal for passenger cars and smaller vans. |
| Punch distance | 1,500 mm | The distance between the two posts. |
| Drive-up height | 150 mm | Extremely low approach height for easy access. |
| Installation Depth (Installation depth) | 2,350 mm | Depth of the part to be sunk into the floor. |
| Hydraulic oil capacity | 20 liter | The amount of oil required for the system to operate. |
| Connection power | 2 x 2 kw | Performance of two separate drive units. |
The TwinRam 350 AN is a two-post lift, which features flush, floor-mounted runways. This configuration allows the lift columns to be positioned beneath the vehicle, ensuring the entire vehicle chassis remains accessible during servicing. The flat girder bridge design functions as a post-lift, guaranteeing stable placement of the vehicles.
The dimensions of the runways (4400 mm length and 650 mm width) provide sufficient space for vehicles with wider wheelbases as well. The runway surfaces are coated with a special, non-slip plastic granulate which is critically important for safe entry and exit in wet or oily environments.
Safety is the primary concern with J.A. Becker & Söhne products. In the case of the TwinRam 350 AN, this is realized as follows:
Integrated Anti-Roll Devices: Mechanical safety elements built into the front and rear wheel carriers prevent the vehicle from moving or tilting during lifting, even if the hydraulic system were to suffer a pressure loss.
Anti-Tilt Device Throughout the Entire Path: An anti-tilt mechanism is essential for two-post lifts, ensuring the synchronized and stable movement of the platforms across the entire lifting height.
Base Frame Load Distribution: The entire structure is built upon a robust base frame that efficiently distributes all vertical and horizontal loads onto the floor, minimizing point loads.
The design places great emphasis on long-term operational capability. Easy access to the drive units and hydraulic components simplifies routine inspections and necessary maintenance tasks, thereby reducing downtime.
The TwinRam 350 AN is a premium, floor-mounted, two-post lift, making it an ideal choice for services where flexibility, high load capacity, and outstanding safety features are essential. The extremely low lifting height of 150 mm and the non-slip surfaces guarantee that you can work safely and efficiently with all types of vehicles. This model is synonymous with the engineering precision and quality of J.A. Becker & Söhne.
Detailed foundation installation drawings, dimension sheets, and car brochures are available for the product to facilitate installation and further information.
