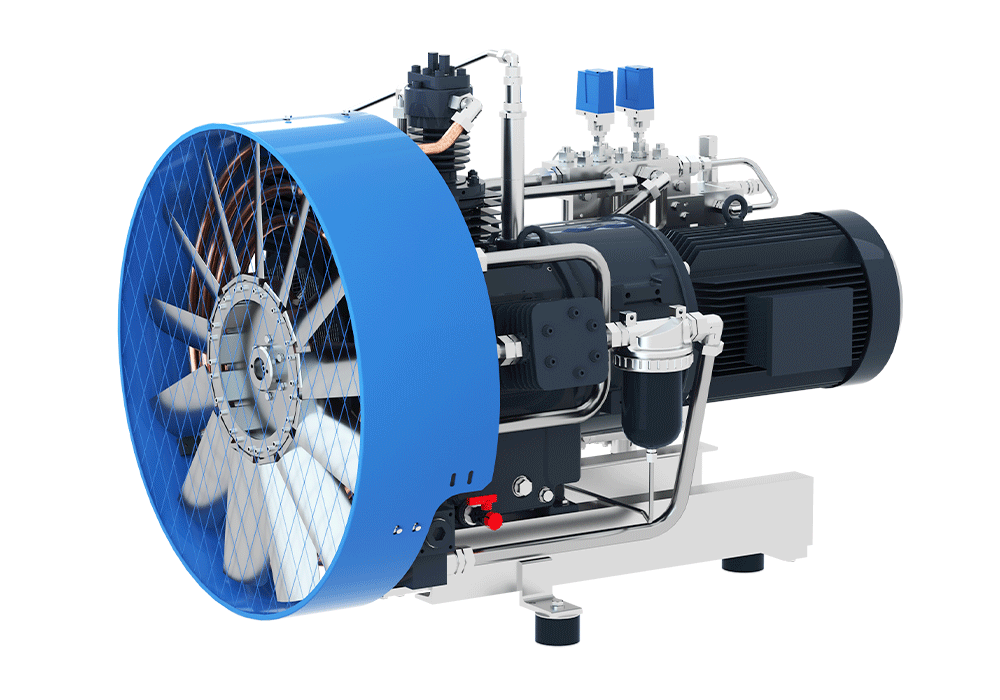

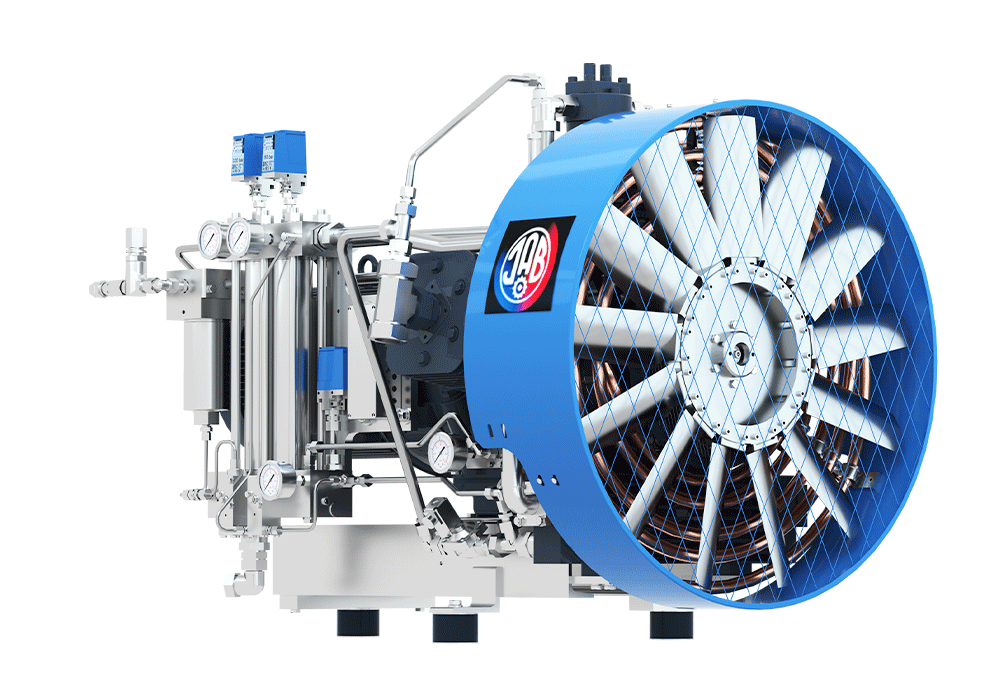

The SV 1400/60 NG is a flagship, three-stage natural gas compressor developed by J.A. Becker & Söhne to ensure the highest performance and reliability. This model is ideally suited for industrial applications requiring high-pressure natural gas transfer, achieving a maximum operating pressure of 60 bar. The unit offers a combination of efficiency, long service life, and automated operation.
The SV 1400/60 NG compressor is not a „standard product,” but a premium solution featuring several outstanding characteristics:
Excellent efficient cooling: The advanced cooling system ensures optimal operating temperature, which increases compressor lifespan and reduces energy consumption. Efficient heat dissipation is crucial during high-performance gas compression.
Fully automatic pressure discharge: The unit is capable of automatic pressure release, which facilitates maintenance and ensures safe shutdown. This feature significantly simplifies operation.
Long maintenance intervals: The robust construction and quality components guarantee less frequent service needs, thereby minimizing downtime and operating costs.
Outstanding quality in every respect: The commitment of Becker & Söhne to quality is evident in every single component, ensuring reliable and durable operation.
The performance and parameters of the SV 1400/60 NG compressor are detailed in the following table:
| Parameter | Value | Note |
|---|---|---|
| Inlet pressure | 0.02 / 0.3 bar | Two types of inlet range |
| Flow Rate (Suction) | 1.420 l/min | |
| Flow Rate (Suction) | 1.810 l/min | |
| Maximum Operating Pressure | 60 bar | For high-pressure applications |
| Compression Stages / Cylinder | 3 / 3 | Three-stage compression |
| Electric motor performance | 30 kW | |
| Rotational speed | 1,500 RPM |
This three-stage natural gas compressor can handle a volume flow rate of 85.2 – 108.6 m³/h at an operating pressure of 60 bar. The 30 kW electric motor drives the system at a speed of 1500 revolutions per minute, performing gas compression in three separate pressure stages. It is also capable of handling extremely low inlet pressures (as low as 0.02 bar), which provides flexibility under varying gas supply conditions.
Further detailed information about the product, including the complete technical datasheet and product brochure, is also available for download:
Technical Data Sheet Download: Detailed technical specifications for natural gas compressors.
Brochure Download: Comprehensive product information and application areas.
The SV 1400/60 NG is the ideal choice for all industrial users who need a reliable, high-performance, and efficient natural gas compressor to meet the highest pressure demands. The engineering precision of Becker & Söhne guarantees long-term, trouble-free operation.
