The J.A. Becker & Söhne DuoRam MR series offers the highest level of flexibility and reliability in vehicle lifts. This system is specifically designed to perfectly adapt to the most diverse installation conditions – including continuous installation into concrete pits. The DuoRam MR is not a „08/15” product; it is a premium, customizable lifting platform available in 1- and 2-piston designs with load capacities ranging from 3 tons up to 6.5 tons.
The DuoRam MR series is designed to provide maximum adaptability to the user, in contrast to fixed solutions.
Flexible Usability: The system is extremely versatile, allowing for the servicing of different types of vehicles.
Relocatability: The platforms can be relocated and repositioned at any time, which is ideal for environments requiring flexible workshop layouts.
Diverse Covering Solutions: Various (drivable) covering systems are available to match the workshop floor structure and operational requirements.
Custom Configuration: Every DuoRam MR product can be individually configured. Instead of standard solutions, you can collaborate with J.A. Becker & Söhne experts to develop the ideal solution for your specific requirements.
Outstanding Quality in Every Respect: The product family reflects the quality standards of J.A. Becker & Söhne, ensuring long service life and safe operation.

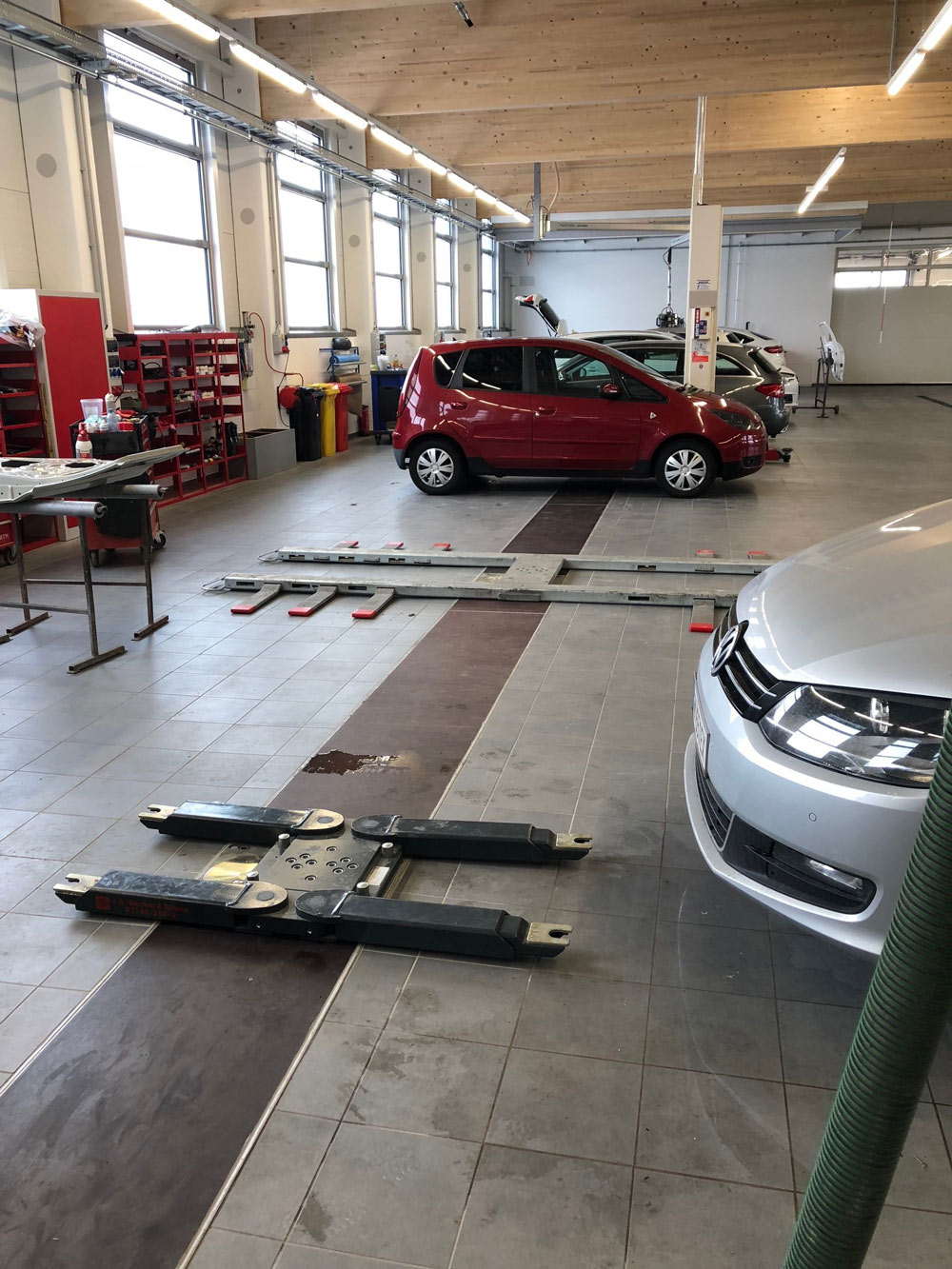

The DuoRam MR lifting platforms are ideal for sites where installation is subject to special conditions, such as existing, continuous concrete pits.
The system supports the following configurations:
1-piston lifts: With load capacities starting from 3 tons.
2-piston lifts: With load capacities ranging from 3 tons up to 6.5 tons.
This wide range makes it possible to satisfy almost any service requirement, from passenger cars to light commercial vehicles.
Since the DuoRam MR product family is customizable, the table below summarizes the technical parameters related to the basic or common configurations. Exact data depends on the final design.
| Parameter | Spezification | Note |
|---|---|---|
| Típus | DuoRam MR (Two-Arm, Recessable) | Single- or dual-piston design |
| Maximum Load Capacity (1 Piston) | 3.0 t – 3.5 t (Depending on configuration) | Optimized for passenger cars |
| Maximum Load Capacity (2 Piston) | 3.0 t – 6.5 t (Depending on configuration) | Also suitable for light commercial vehicles |
| Installation Environment | Continuous concrete pit | Ideal for retroactive installation |
| Cover System | Traversable options available | Can be made flush with the floor level |
| Relocatability | Possible | Provides high flexibility |
| Construction | Hydraulic drive | Reliable and powerful lifting |
DuoRam MR platforms don't just lift; they optimize workflows.
1. Space Saving and Floor Integration:
Thanks to the recessible design, when the lift is not in use, the platform completely disappears into the floor. This is a critical advantage in workshops where free movement and flexible space utilization are essential. Walkable covering options ensure that the service area remains unobstructed when the lift is not in use.
2. Installation Flexibility:
The system is particularly advantageous in existing buildings or locations where installing traditional, permanently fixed lifts would be difficult. Installing the DuoRam MR into a pit causes minimal disruption to the existing infrastructure.
3. Maintenance Convenience:
The reliability of the hydraulic system and the modular structure minimize downtime. During system design, great emphasis was placed on easy access to maintenance points.
4. Safety and Reliability:
J.A. Becker & Söhne products undergo strict quality control. The DuoRam MR is built in accordance with the highest safety regulations, ensuring the protection of operators and the vehicles being serviced.
The philosophy of the DuoRam MR series is to meet unique requirements. Since workshops and service tasks vary, standard solutions are often insufficient.
Please contact us to find the configuration best suited to your requirements together. Our experts will help you select the appropriate load capacity, the placement of the hydraulic unit, and the most optimal cover solution adapted to your workshop's floor structure.
This product represents the pinnacle of J.A. Becker & Söhne lifting technology, combining German engineering precision with maximum operational flexibility.
