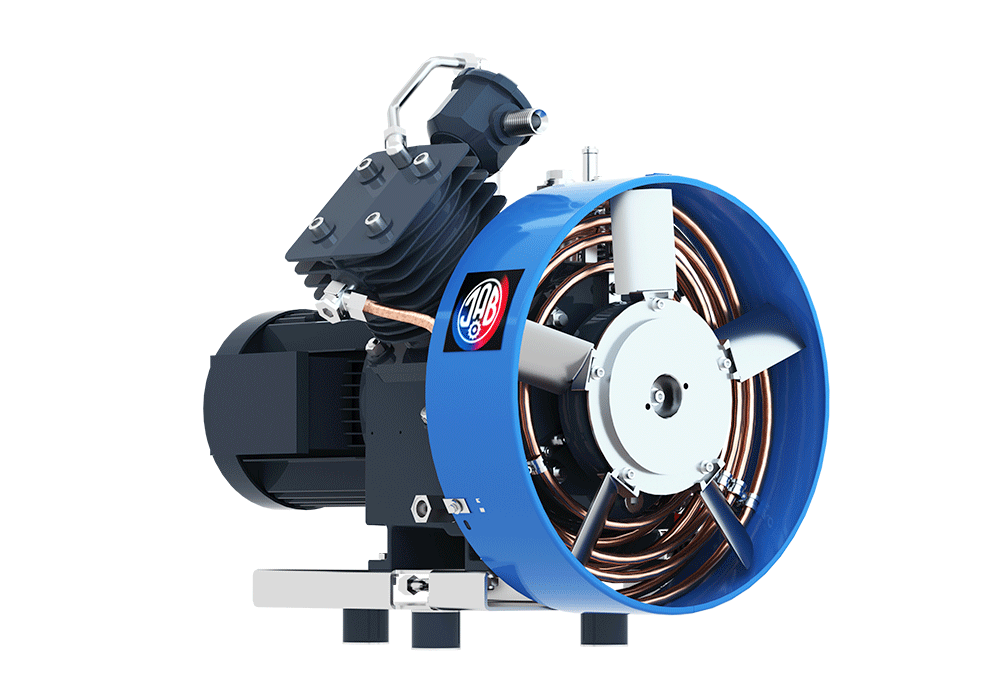

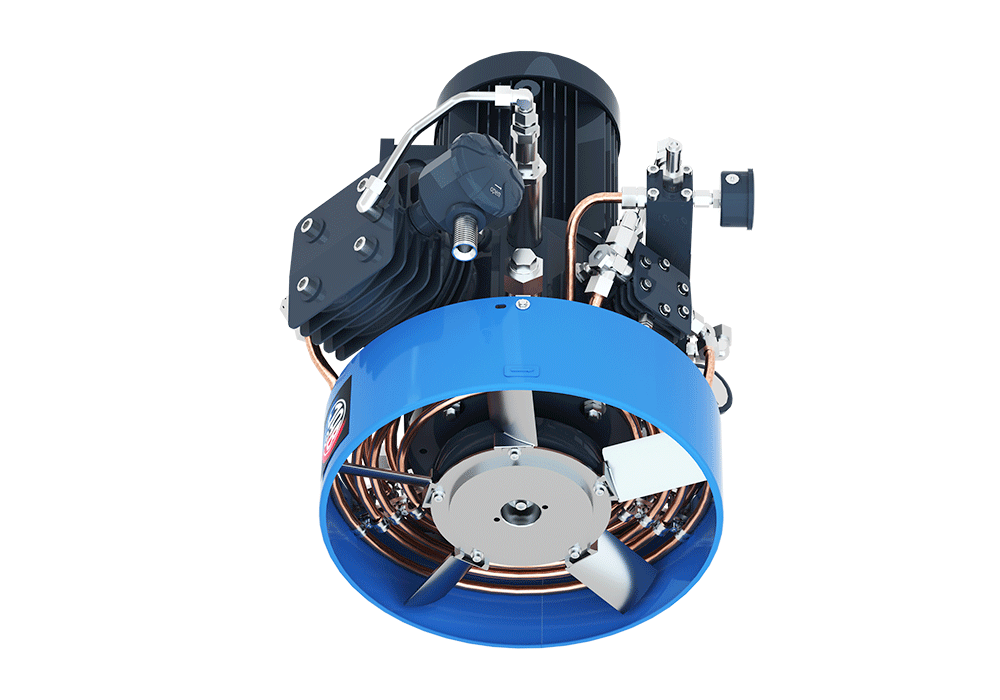

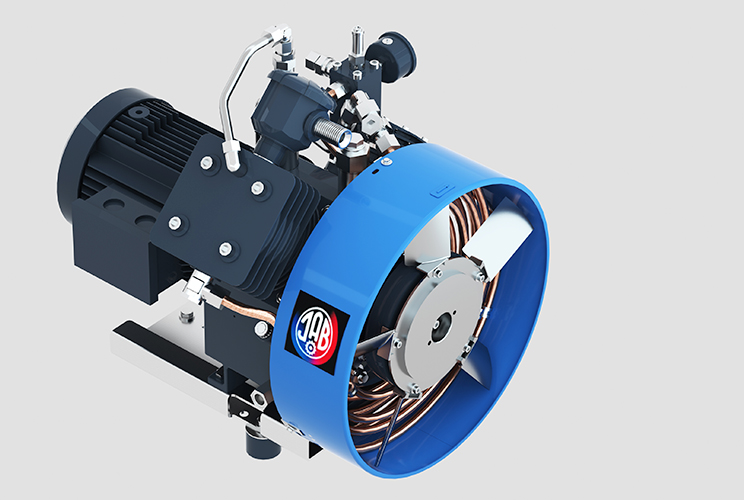

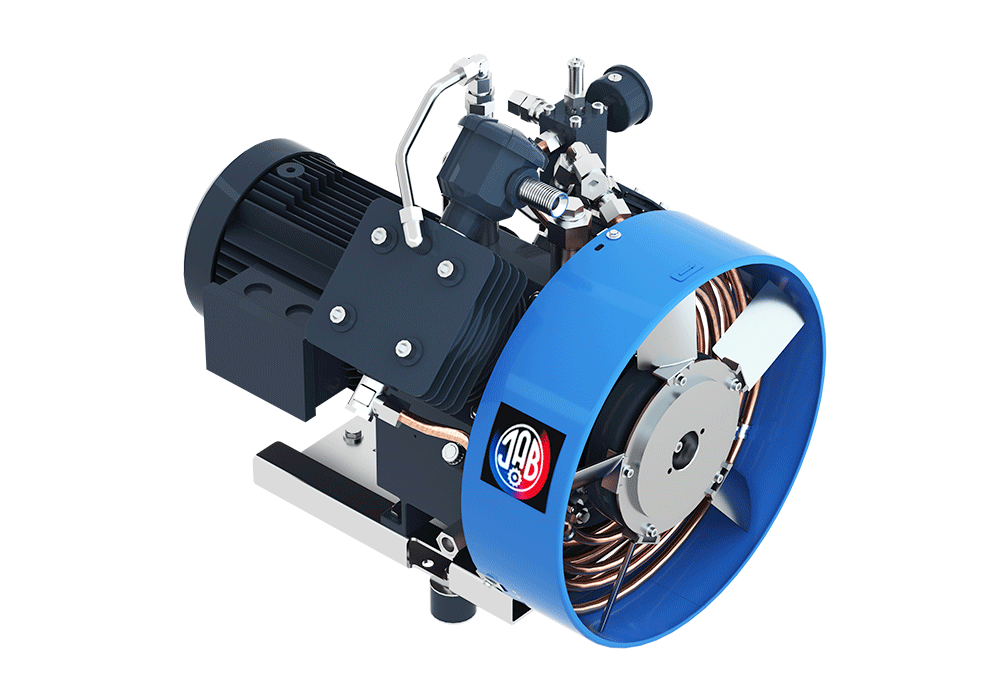

The SV 245/40 NG model is a premium category, two-stage natural gas compressor from J.A. Becker & Söhne, specifically developed for industrial applications requiring high reliability and efficiency. This unit offers an optimal solution for systems where a maximum operating pressure of 40 bar is required, within a flow rate range of 14.7 and 17.4 m³/h. The compressor was born under the philosophy of „NO 08/15 PRODUCTS”, guaranteeing excellent quality and long service life.
The SV 245/40 NG compressor features several outstanding characteristics that ensure continuous and economical operation:
Excellent Efficient Cooling: The advanced cooling technology minimizes heat loss and ensures the optimal operating temperature, which increases system longevity and reduces energy consumption.
Fully Automatic Discharge: The built-in automatic pressure reduction and draining system ensures a safe and trouble-free shutdown, and prevents the compressor from being overstressed.
Long Maintenance Cycles: The robust construction and application of quality components significantly extend the required maintenance intervals, thereby reducing downtime and operating costs.
Reliability: The German engineering precision characteristic of Becker & Söhne products guarantees the long-term, trouble-free operation of the unit, even in the most demanding environments.
The detailed technical specifications for the SV 245/40 NG compressor can be found in the following table:
| Parameter | Value | Unit | Note |
|---|---|---|---|
| Inlet Pressure (Min/Max) | 0,02 / 0,3 | bar | |
| Flow Rate (Min/Max) | 245 / 290 | l/min | This range corresponds to 14.7 – 17.4 m³/h. |
| Maximum Operating Pressure | 40 | bar | |
| Pressure stages / Number of cylinders | 2 / 2 | – | Two-step design |
| Electric motor performance | 4,4 | kW | |
| Rotational speed | 1.500 | rpm |
The SV 245/40 NG compressor is an ideal choice for natural gas (NG) compression, whether for filling stations, industrial processes, or special gas handling tasks where precise pressure control and high reliability are essential.
The two-stage design ensures that gas compression occurs at an optimal temperature, minimizing wear and maximizing efficiency up to the final pressure of 40 bar. The 4.4 kW electric motor provides sufficient power to maintain the specified flow rate, while the 1500 rpm speed contributes to a long service life.
During the design of the unit, great emphasis was placed on user-friendly operation and easy access to maintenance points. The product represents first-class quality in every aspect, reflecting J.A. Becker & Söhne's commitment to manufacturing quality industrial machinery.
Further detailed product information, datasheets, and brochures can be downloaded from the manufacturer's official sources.
