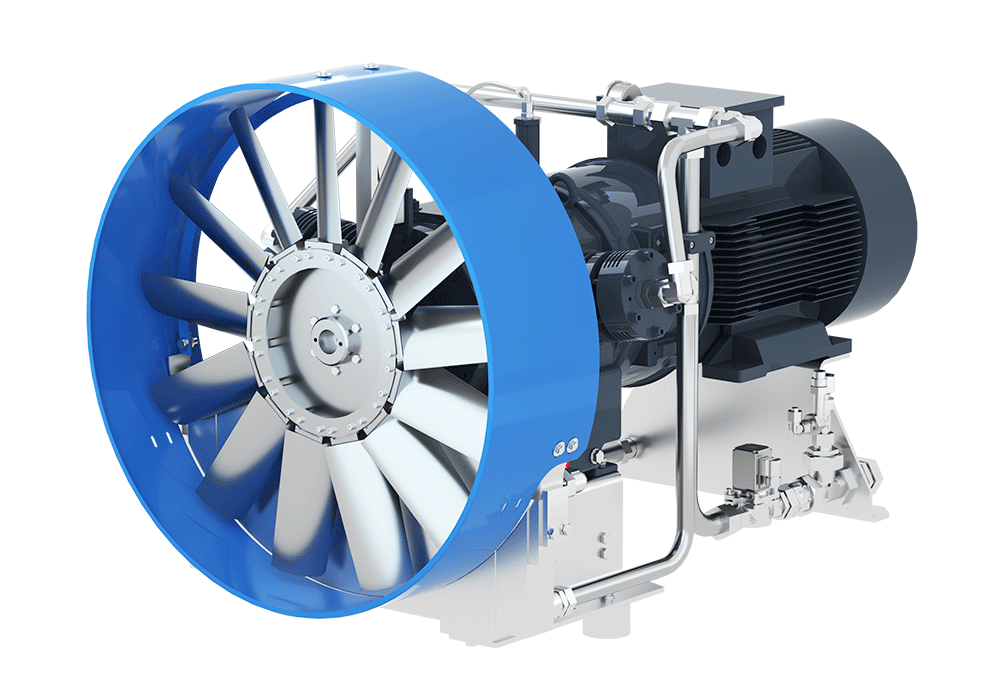

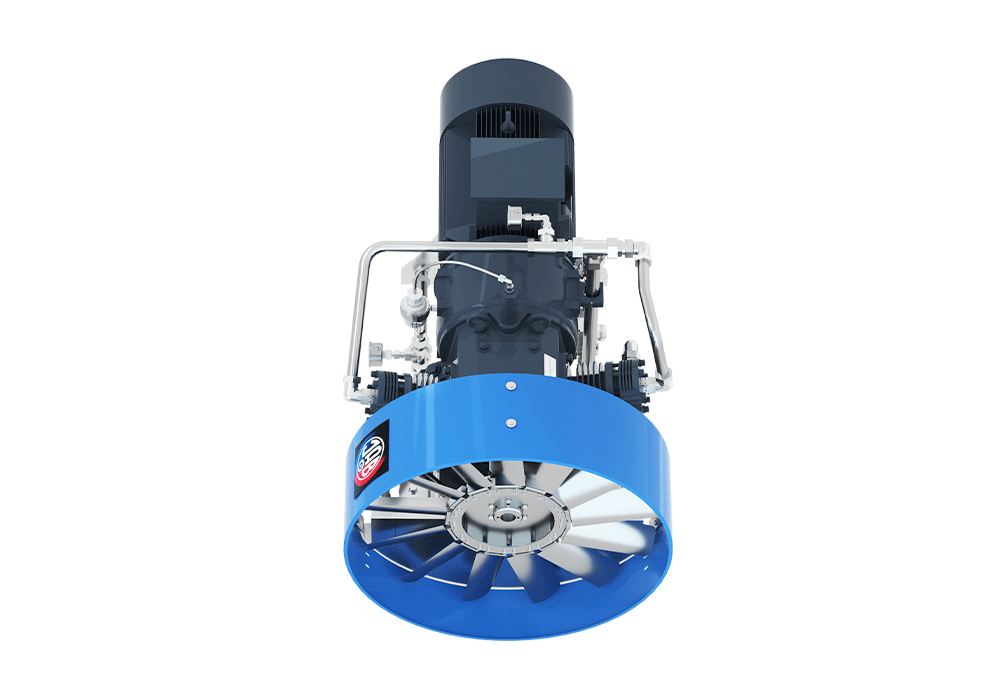

The J.A. Becker & Söhne V 5461-2/40 type, 22 kW power, single-stage air compressor is an excellent choice for those seeking a reliable, high-performance, and efficient compressed air generation solution. This model is a distinguished piece of the JAB compressor family, designed to meet even the highest industrial requirements, especially in high-pressure applications.
This compressor is not an „off-the-shelf product”; J.A. Becker & Söhne is committed to quality and customized solutions, which is evident in every component of the V 5461-2/40.
The V 5461-2/40 series was developed with durability, efficiency, and long service life in mind.
Outstandingly Efficient Cooling: The advanced cooling technology ensures optimal operating temperature, which increases the compressor's lifespan and maintains high performance even under intensive load.
Fully Automatic Discharge: The built-in automatic condensate drain system ensures the system remains dry, minimizing maintenance requirements and preventing corrosion.
Long Maintenance Cycles: As a result of high-quality components and precise engineering, maintenance intervals have been significantly extended, reducing downtime and operating costs.
Flexible Configuration: The unit is available with multiple inlet pressure and outlet pressure/flow rate combinations, allowing it to be precisely tailored to the specific application.
The V 5461-2/40 is a single-stage, two-cylinder compressor operating at 1500 rpm, equipped with a 22 kW drive motor. Performance data varies significantly depending on the inlet pressure, covering a wide range of operating pressures between 20 bar and 40 bar.
| Parameter | Value | Note |
|---|---|---|
| Model | V 5461-2/40 | Single-stage air compressor |
| Drive Motor Power | 22 kW | Nominal Power |
| Number of Cylinders | 2 | Two-cylinder Design |
| Rotational speed | 1.500 rpm | Constant Operating Speed |
| Operating Pressure Range | 20 – 40 bar | Maximum Operating Pressure depending on configuration |
| Flow Rate Range | 228.6 – 456.0 m³/h | Depending on inlet and outlet parameters |
The flexibility of the compressor is illustrated in the following table, which shows the flow rates and maximum operating pressures corresponding to different inlet pressures (suction pressure):
| Flow rate (l/min) | Flow Rate (m³/h) | Maximum Operating Pressure (bar) |
|---|---|---|
| 4000 l/min | 240.0 m³/h | 30 bar |
| 3810 l/min | 228.6 m³/h | 40 bar |
| Flow rate (l/min) | Flow Rate (m³/h) | Maximum Operating Pressure (bar) |
|---|---|---|
| 5890 l/min | 353.4 m³/h | 20 bar |
| 5610 l/min | 336.6 m³/h | 30 bar |
| 5350 l/min | 321.0 m³/h | 40 bar |
| Flow rate (l/min) | Flow Rate (m³/h) | Maximum Operating Pressure (bar) |
|---|---|---|
| 7600 l/min | 456.0 m³/h | 20 bar |
| 7240 l/min | 434.4 m³/h | 30 bar |
| 6895 l/min | 413.7 m³/h | 40 bar |
Note: The volume flow rates (l/min and m³/h) refer to the specified inlet pressure values and reflect the compression ratio required to achieve the maximum operating pressure.
The V 5461-2/40 model embodies the engineering philosophy of J.A. Becker & Söhne: robust construction, reliable operation, and long-term economy. The design of the unit guarantees that compressed air generation remains stable even in the most demanding industrial environments.
This compressor is the ideal choice for areas where a continuous and reliable supply of high-pressure air is essential, such as in high-pressure pneumatic systems, special manufacturing processes, or where subsequent air compression (booster function) is required.
Further detailed information regarding the product, including technical data sheets and brochures, can be downloaded from the manufacturer's official sources.
