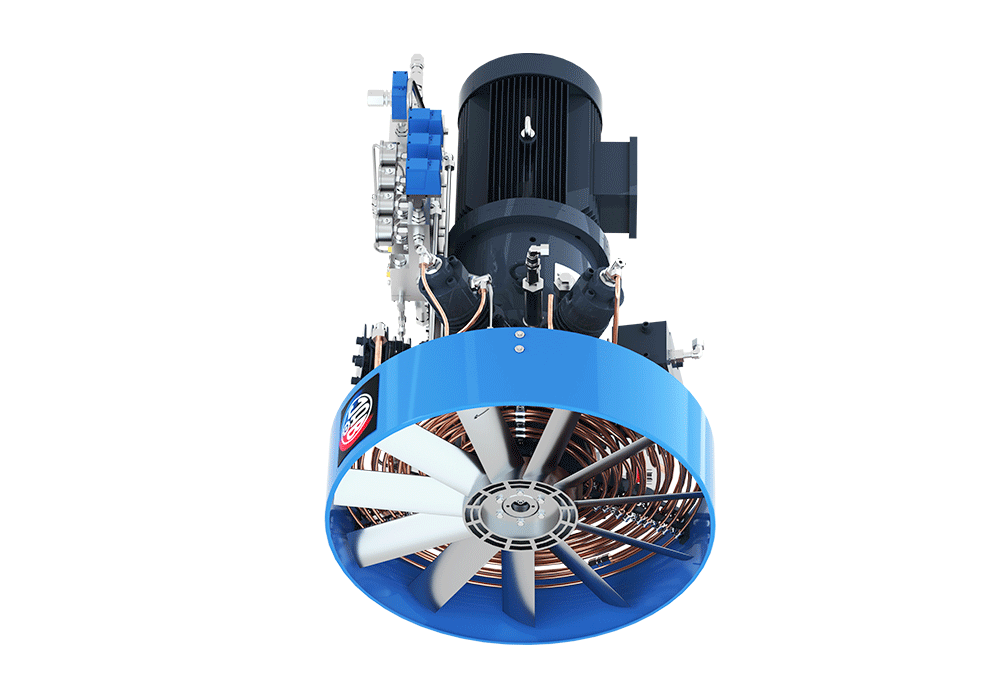

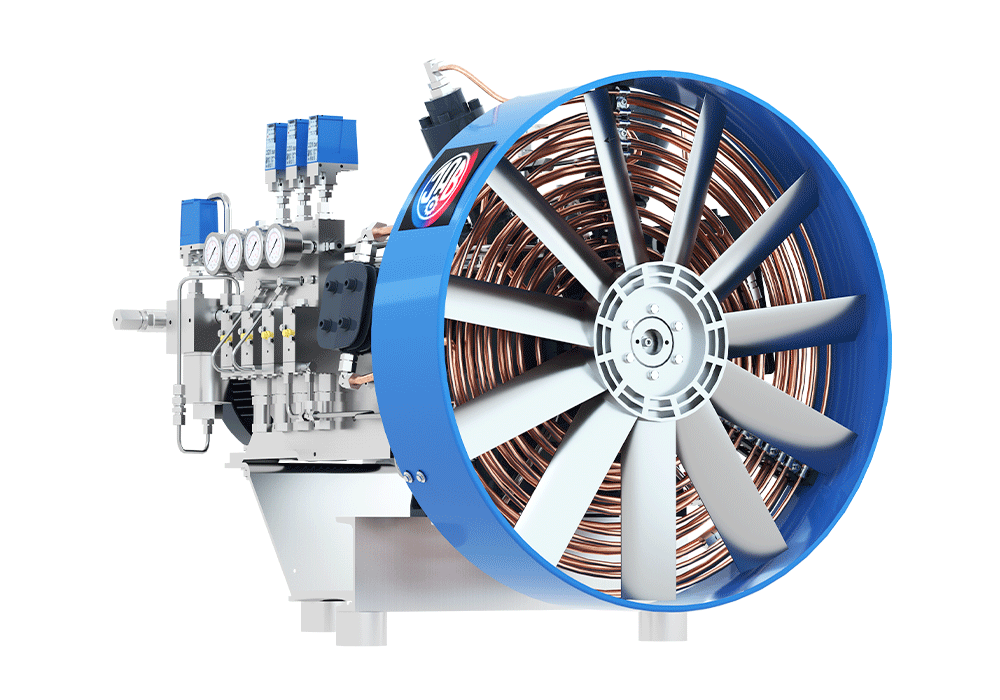

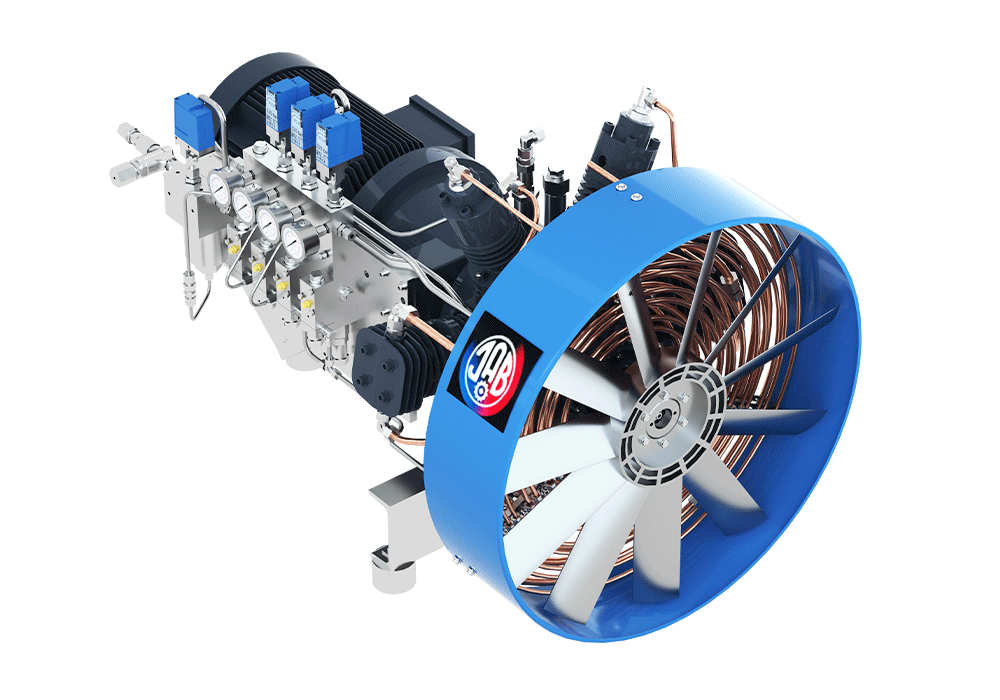

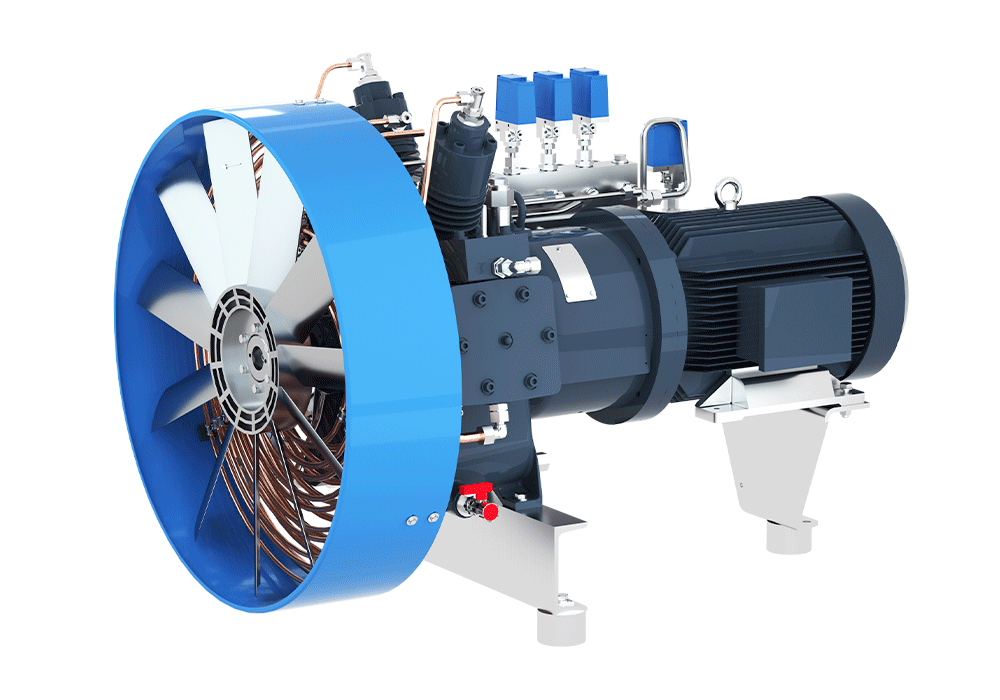

The J.A. Becker & Söhne SVC 450/300 NG model is a state-of-the-art, four-stage natural gas compressor designed for the highest reliability and efficiency. This unit provides an ideal solution for industrial applications requiring a maximum operating pressure of 300 bar while delivering a flow rate between 27.2 and 34.7 m³/h. The compressor reflects J.A. Becker & Söhne's commitment to the „NO 08/15 PRODUCTS” (No Average Product) philosophy, guaranteeing excellent quality and long service life.
The SVC 450/300 NG compressor features several outstanding characteristics that ensure continuous and economical operation:
Excellent Efficient Cooling: The advanced cooling system minimizes heat generation during the compression process, which increases system efficiency and extends component lifespan.
Fully Automatic Discharge: The built-in automatic discharge function optimizes operating cycles and simplifies maintenance, ensuring the system remains in optimal condition even during downtime.
Long Maintenance Intervals: The robust construction and the use of quality components significantly increase service intervals, thereby reducing downtime and operating costs.
Reliable Operation: The four-stage design guarantees stable pressure build-up and reliable performance even in the most demanding natural gas applications.
The precise technical parameters of the SVC 450/300 NG compressor ensure accurate performance and system integration:
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Inlet pressure | 0,02 / 0,3 | bar | Minimum / Maximum Inlet Pressure |
| Flow Rate (Suction) | 454 / 579 | l/min | General Flow Rate Range |
| Flow Rate (Suction) | 27.2 – 34.7 | m³/h | Calculated Flow Rate |
| Maximum Operating Pressure | 300 | bar | The final pressure achievable by the system |
| Compression Stages / Cylinder | 4 / 4 | – | Compression takes place in four stages |
| Electric motor performance | 15 | kW | Drive unit power |
| Rotational speed | 1.500 | RPM (revolutions/minute) | Nominal engine speed |
The SVC 450/300 NG is a first-class product in every aspect, engineered with the precision of J.A. Becker & Söhne. The four-stage compression process allows for efficient and controlled build-up of the gas to the desired 300 bar pressure.
The compressor's construction is optimized for long-term, trouble-free operation. The 4-cylinder design provides the necessary pressure stages, while the 15 kW electric motor supplies sufficient power to achieve the specified flow rate and pressure at a speed of 1500 revolutions per minute.
The wide range of inlet pressure (from 0.02 bar to 0.3 bar) provides flexibility in adapting to different natural gas supply conditions. The flow rate ranges between 454 l/min and 579 l/min, which translates to a capacity between 27.2 m³/h and 34.7 m³/h, depending on operating conditions.
The dissipation of heat generated during the compression process is critically important for the equipment's lifespan. The SVC 450/300 NG model features an exceptionally efficient cooling solution that stabilizes the gas temperature between stages. This not only enhances safety but also prevents premature wear of seals and valves.
The fully automatic discharge function ensures that the compressor starts up in an optimal state after every shutdown, preventing condensate buildup in pressure-containing system components. This function is crucial for handling moisture or other contaminants present in the natural gas.
J.A. Becker & Söhne's design philosophy focuses on minimal downtime. As a result, the SVC 450/300 NG compressor boasts long maintenance intervals. This feature represents a significant economic advantage for the user, as it reduces the frequency of necessary service visits and associated costs. During design, great emphasis was placed on easily accessible components, which speeds up any routine maintenance.
This compressor is an ideal choice for areas such as natural gas refueling stations, industrial processes, or any application requiring high-pressure natural gas reliably and efficiently.
Further product information, including detailed data sheets and brochures, can be found in the manufacturer's official documentation.
