Die set D4 + D5 | Rivet extraction | Ø 5 mm

D4 + D5 Tool Set | Rivet Removal | Ø 5 mm

Part number: 700242

This professional tool set, belonging to the Wieländer+Schill XSeries product line, has been specifically developed for the removal of Self Piercing Rivets (SPR) in a professional and efficient manner. The set is an ideal choice for body repair work where the precise removal of damaged or replacement rivets is essential for maintaining structural integrity.

The tool set is made from durable materials in accordance with Wieländer+Schill quality standards, ensuring a long service life and reliable performance even under intensive industrial use.

Product Description and Key Features

The tool set with part number 700242 contains two key components that work together to enable the safe removal of 5 mm diameter SPR rivets:

1. Extraction Mandrel: Fitting into the center of the rivet, it grips the head or body of the rivet and pulls it out of the hole.

2. Punching & Extraction Die: The other half of the tool set, which provides the necessary resistance and support for rivet removal, while aiding in the deformation or separation of the rivet for successful extraction.

This set is optimized for professional riveting technologies (XSeries), guaranteeing damage-free repair of body components.

Scope of Delivery

The set with part number 700242 includes the following precision components:

Detailed Specifications of the Components

1. D4 Extraction Mandrel for self-piercing rivets (Part No.: 700799)

This mandrel is the primary tool for rivet removal. Specifically designed for 5.0 mm diameter SPR rivets, it ensures a proper fit and reliable grip on the rivet body during the extraction process.

• Type: Extraction Mandrel

• Compatible Rivet Diameter: 5.0 mm

• Goal: Removal of Self Piercing Rivets (SPR)

• Advantage: Precise fit minimizes the risk of tool slippage.

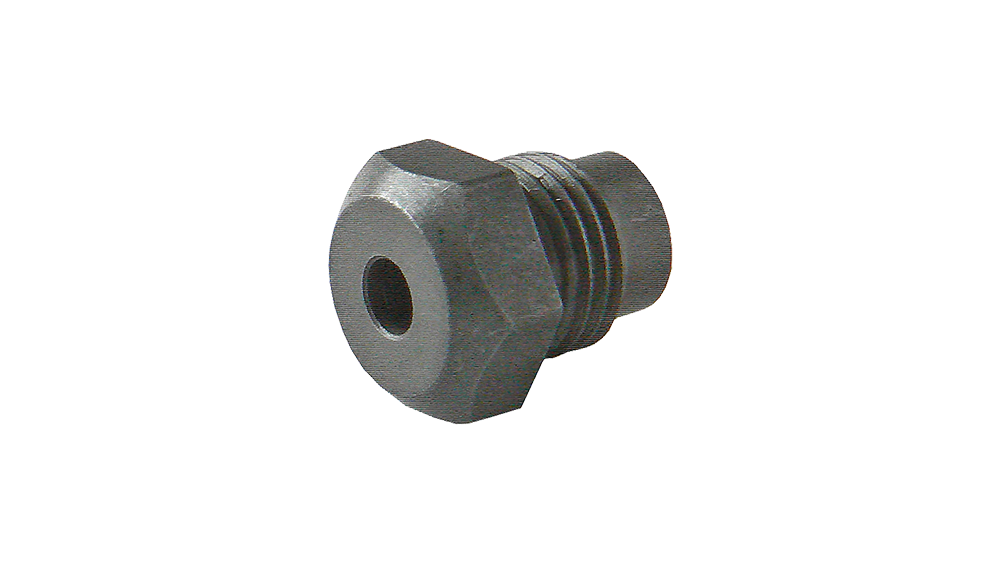

2. D5 Punching & Extraction Die (Part No.: 700816)

The D5 die supports the function of the D4 mandrel by forming the rivet counter-support surface or by assisting in the deformation of the rivet for easier removal.

• Type: Punching & Extraction Die

• Inner Diameter: Ø 8 mm

• Goal: Support for the rivet removal process and protection of the body surface.

Application Area and Benefits

This tool set is essential for any professional dealing with body repairs, especially in cases where SPR technology used for the manufacturing of modern vehicles is applied.

Main Advantages:

• Damage-Free Removal: The specially designed tools minimize the risk of damaging surrounding metal surfaces during rivet removal.

• Efficiency: Enables fast and reliable removal, reducing repair time.

• System Compatibility: Optimized for XSeries technology, ensuring a professional result.

• Quality: The high-quality execution typical of Wieländer+Schill products guarantees the durability of the tools.

Technical Data Summary

This tool set is part of the extensive range offered by Wieländer+Schill, which includes premium quality riveting, welding, separation, and metalworking technologies. The product complies with the highest industry standards, supported by the company's ISO 9001 and ISO 14001 certifications.
