Product Identifier: 700334
This detailed service kit has been specifically developed for the maintenance, venting, and hydraulic oil refilling of the Wieländer+Schill XPress 800 PowerPack hydraulic unit. The kit ensures the optimal operation of the PowerPack, extends its lifespan, and guarantees the reliable performance of professional riveting technology (XSeries).
A Service Kit EB-XP 800 a comprehensive solution for routine servicing of the XPress 800 PowerPack hydraulic system. Hydraulic systems, especially in high-performance riveting machines, are sensitive to the presence of air bubbles, which can reduce thrust and operational efficiency. This kit contains the specific tools and materials required for professional system venting and refilling with the correct level of hydraulic oil.
Using the kit is essential for adhering to the maintenance schedule prescribed by the manufacturer, especially when used in intensive industrial or workshop environments.
The 6-piece service kit contains all necessary components for performing an efficient and clean maintenance process:
| Part number | Designation | Description/Specification |
|---|---|---|
| 700933 | Special Oil Pump | 250 ml capacity, for precise dosing of the oil. |
| 700946 | Connector | For a safe and leak-free connection to the system. |
| 700582 | Adapter | To ensure compatibility with various connection points. |
| 700934 | Hose | Diameter: Ø 6 × 4 mm, Length: 700 mm. |
| 700935 | Hose | Diameter: Ø 8 × 6 mm, Length: 500 mm. |
| 700102 | Hydraulic Oil HLP 22 | 250 ml quantity, specifically for the maintenance of the PowerPack and modules. |
Total Content: 6 pieces
Physical characteristics of the service kit and specifications of the oil contained within:
| Parameter | Value |
|---|---|
| Length × Width × Height | 225 x 135 x 180 mm |
| Weight | 0.700 kg |
| Compatibility | XPress 800 PowerPack |

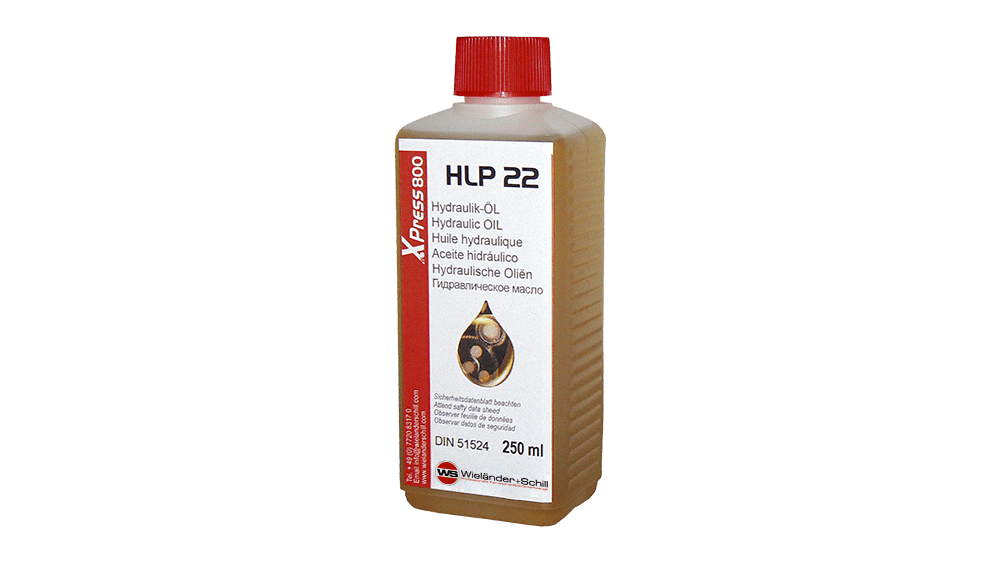

The kit includes Hydraulic oil HLP 22 | 250 ml (Part No.: 700102) quantity.
Area of application: This special oil is exclusively recommended for servicing and maintaining the Powerpack, the Blind Rivet Adapter, and the PushPull modules. HLP 22 standard oil possesses excellent viscosity properties, ensuring optimal lubrication and heat dissipation of the hydraulic system, even under load.
By using the Service Kit EB-XP 800, users benefit from the following advantages:
Increased Lifespan: Regular venting and refilling with fresh oil prevents corrosion and wear, significantly extending the lifespan of the PowerPack.
Maximum Performance: The removal of air bubbles ensures that the hydraulic system can deliver its nominal thrust and speed, which is critical for precision riveting tasks.
Easy Maintenance: The special oil pump and correctly sized hoses included in the kit simplify the venting and refilling process, minimizing the risk of spillage and contamination.
Factory Compatibility: The elements of the kit (including the oil) have been optimized directly for the XPress 800 PowerPack, guaranteeing compliance with factory specifications.
This service kit is essential for any professional who uses the Wieländer+Schill XSeries professional riveting technology during body repair work.
