This professional tool kit has been specially developed for the precise measurement of the return flow pressure of Common Rail (CR) injectors. It is an essential tool for the diagnostics of modern diesel engines, enabling quick and accurate checks of the efficiency and reliability of the injection systems. The kit consists of high-quality components, ensuring a long service life and reliable measurement results even in the most demanding workshop environments.
This return flow pressure gauge kit is used to measure the return flow rate of Common Rail systems, which is crucial for identifying injector failures caused by excessive fuel return. Excessive return flow can reduce system pressure, leading to power loss, poor starting, and uneven engine operation.
Precise Diagnostics: Enables the measurement of the returned fuel quantity, aiding in the quick and accurate identification of faulty or worn injectors.
Wide Compatibility: The included adapters ensure wide compatibility with the Common Rail injectors of various manufacturers.
Robust Construction: The measuring tools and housing are made from durable materials, withstanding workshop conditions.
Könnyű Kezelhetőség: The transparent measuring cylinders allow for visual inspection of the returned fuel, while the pressure gauge provides an accurate digital or analog reading.
Complete Set: Includes all necessary tools to perform the measurement, minimizing the need for additional components.
The kit is equipped with instruments meeting the highest professional standards. The precise specifications ensure professional application.
| Parameter | Spezification |
|---|---|
| Measuring Range (Pressure) | The exact range depends on the type of built-in manometer (usually 0-10 bar or similar; the precise value is according to the specifications of the included gauge) |
| Measurement Principle | Measurement of returned fuel quantity based on volume/time, supplemented with pressure detection. |
| Measuring Vessel Volume | Usually 1000 ml (1 liter) or larger capacity, scaled cylinders. |
| Connections | Quick connectors and threaded adapters of various sizes and types for CR injectors. |
| Application Area | Common Rail (CR) systems, including Bosch, Delphi, Denso, Siemens/VDO systems (depending on the adapter kit). |
| Housing | Robust carrying case for safe storage and transport. |
| Meter Type | Analog or digital (determined by the specific model). |

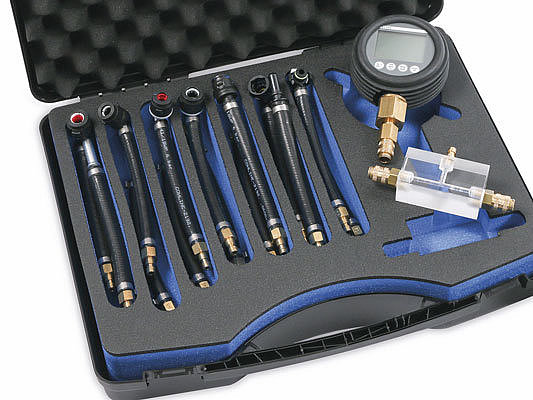

The return flow pressure gauge kit provides a comprehensive solution for testing Common Rail systems. During measurement, the return pipes are disconnected from the injectors, and the measuring units are connected.

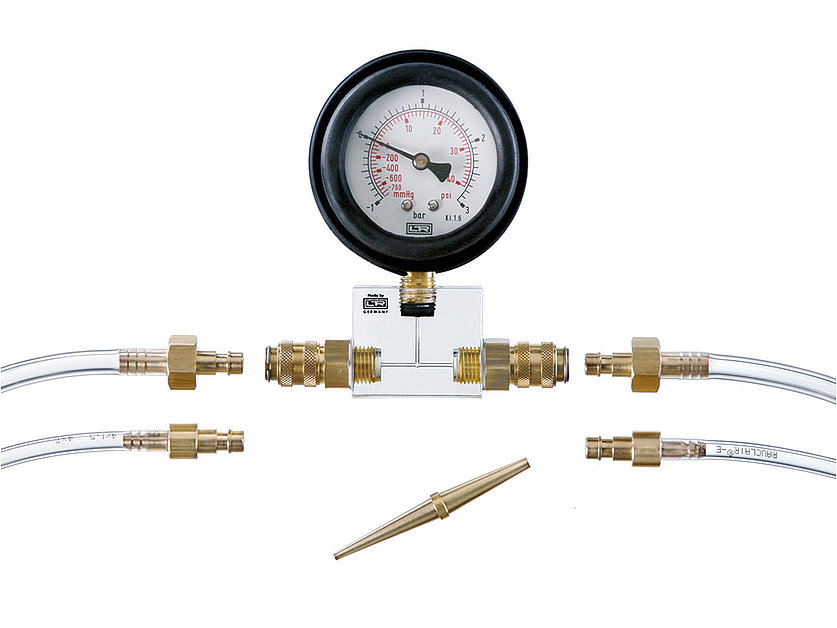

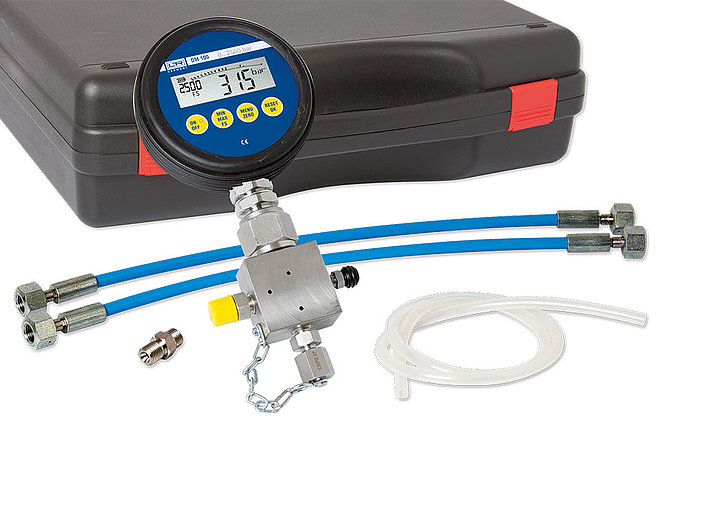

1. Pressure Gauge Unit:
The kit contains one or more high-precision pressure gauges that monitor the momentary pressure conditions of the system during measurement. This can be especially important in systems where the return flow occurs under pressure.

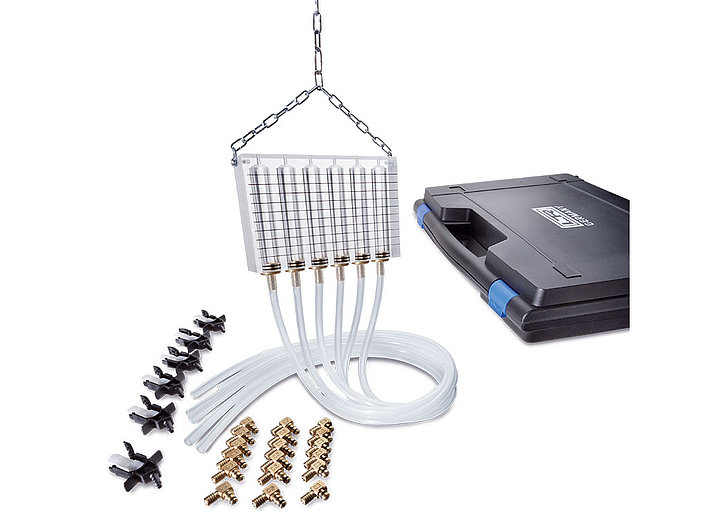

2. Volume Measuring Cylinders (Collection Vessels):
The basic elements of the kit are transparent, graduated measuring cylinders. These allow for the precise measurement of the volume of returned fuel over a specified period (e.g., 30 seconds or 1 minute at idle or under load). Visual inspection helps to immediately identify drastically deviating values.
3. Adapters and Connectors:
Versatile connection options are essential for professional use. The kit includes several special adapters that ensure a leak-proof connection to various types of Common Rail injectors (e.g., M6, M7, M8 connectors, with different thread pitches). These adapters ensure that the test can be performed on almost any modern diesel engine.
4. Hoses and Tubes:
High-quality, fuel-resistant hoses that withstand diesel fuels and pressure fluctuations. The length of the hoses is sufficient for comfortable work inside the engine bay.
This diagnostic tool is the ideal choice for:
Automotive Repair Shops: For daily service tasks and quick troubleshooting.
Diesel Service Shops: For in-depth diagnostics of complex Common Rail systems.
Fleet Maintenance: For regular testing of a high volume of vehicles.
Vehicle Diagnostic Specialists: Those who require reliable, calibrated measuring tools.
Measuring the return flow pressure is a fundamental step in ensuring the correct operation of the Common Rail system. Excessive return flow indicates that the injector is not sealing properly, leading to interference with the injection timing and pressure maintenance. With this kit, workshops can quickly determine which injector requires replacement or overhaul, thereby optimizing the repair process and reducing downtime.
The product prioritizes reliability and accuracy, ensuring that diagnostic results precisely reflect the actual condition of the vehicle. The robust design guarantees that the instrument will be a loyal partner for the specialist in the long term.
