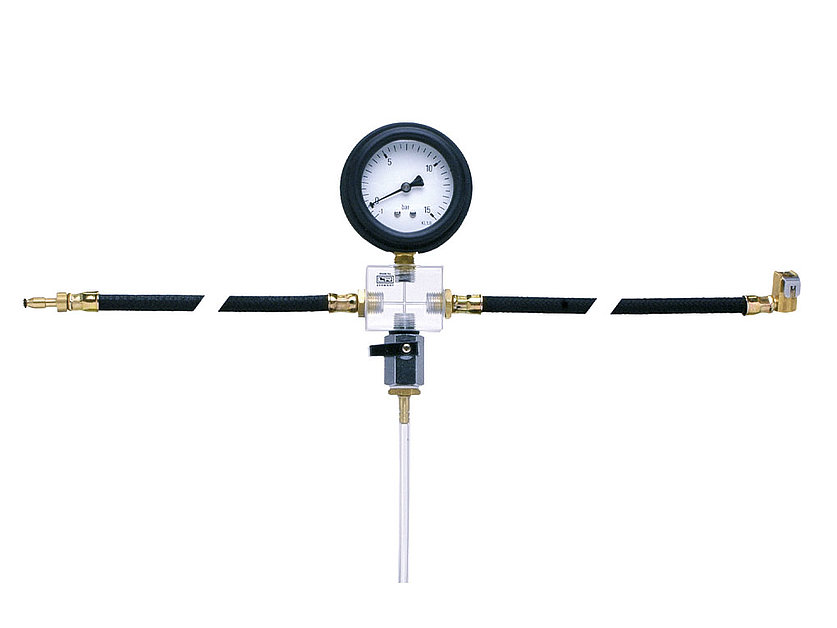

This professional tool set has been specifically developed for the precise measurement of the leak-off pressure (return flow pressure) of modern Common Rail (CR) injectors, with special consideration for units equipped with Piezo technology. This category of diagnostic tools is essential for ensuring the efficiency and reliability of diesel injection systems, enabling workshops to quickly identify excessive return flow, which can be a sign of injector failure.

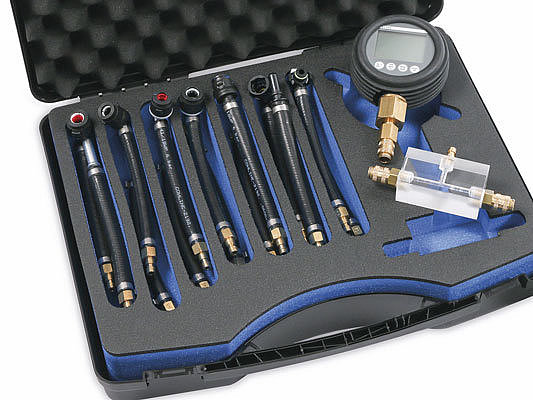

The set consists of outstanding quality components that guarantee a long service life and reliable, repeatable measurement results even in the most demanding workshop environments. Due to the specific design of Piezo injectors, conventional measurement methods are often inaccurate; therefore, this dedicated set provides the optimal solution for determining the precise leak-off flow rate.
Precise Diagnostics: Enables accurate measurement of the return flow of Common Rail Piezo injectors, which is crucial for identifying the causes of performance loss, increased fuel consumption, and increased harmful emissions.
Piezo Compatibility: Design specifically optimized for Piezo injectors, taking into account their different hydraulic characteristics compared to conventional solenoid injectors.
Robust Construction: The measuring tools and connectors are made of durable materials, resistant to the physical demands of the workshop environment.
Simple Operation: The intuitive design of the kit allows for quick and easy connection to vehicle injection systems.
Comprehensive Applicability: Wide compatibility with Common Rail systems from various manufacturers.
The product belongs to the category of hydraulic diagnostic tools and has the following specifications:
| Parameter | Value | Note |
|---|---|---|
| Product Category | Fuel Injection System / Common Rail Injector Return Flow Meter | |
| Field of application | Measurement of Return Pressure/Flow for Common Rail Piezo Injectors | |
| Measurement principle | Return flow measurement | |
| Display type | Analog (likely based on context, if no digital data is present) | |
| Measurement range | (Exact range not specified, but adjusted for CR systems) | |
| Connectors | Special CR injector connectors | With adapters matching Piezo systems |
| Housing Material | Heavy-duty, durable design | |
| Accessories | Includes necessary tubes and adapters |
Measuring the leak-off flow rate is critically important in the maintenance of Common Rail systems. If an injector returns too much fuel to the tank (excessive return flow), it means the injector cannot properly regulate the amount of fuel injected, which leads to:
For power loss results, as insufficient fuel reaches the main injection cycle.
For increased fuel consumption contributes to it.
For damage to the catalytic converter and particulate filter (DPF) can result due to improper combustion.
This dedicated measuring tool allows the technician to test injectors individually and compare the measured values with the specifications prescribed by the manufacturer. Quick and accurate diagnosis reduces unnecessary parts replacements and increases the efficiency of the repair process.
This leak-off pressure gauge set perfectly complements the following tools related to fuel injection systems, which are also available in our range:

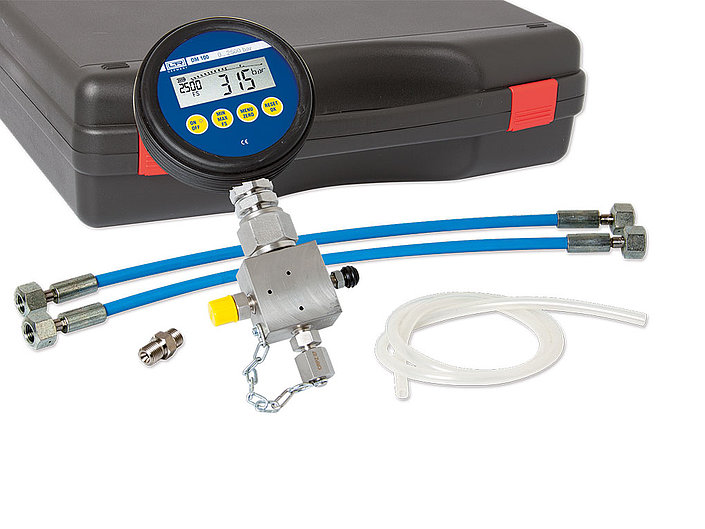

High-Pressure Test Equipment for Common Rail Systems: For checking the basic pressure relationships of the system.
Common Rail Injector Return Flow Testers: Similar alternatives with possibly different design or capacity.
Fuel Pressure & Leakage Testers: To assess the total integrity of the system.
Fuel Identifier Tools: For checking the correct fuel usage.
This professional return pressure gauge set is an essential tool for any service aiming to perform high-standard diagnostics and repair of modern diesel engines, especially Piezo Common Rail systems. Reliable measurements form the basis for professional intervention.
