This product is part of the Wielander + Schill XSeries professional riveting technology range, specifically a high-quality steel Nutsert designed for creating threaded fastening points. The product offers an ideal solution for applications requiring a reliable, threaded connection on thin sheets or in hard-to-reach locations.
Nutserts (also known as rivet nuts) are essential components in body construction, automotive repair, and general metal fabrication work. They enable the creation of a threaded connection on base materials where thread tapping or traditional nut-and-bolt fastening is not feasible (e.g., hollow profiles, thin sheets).

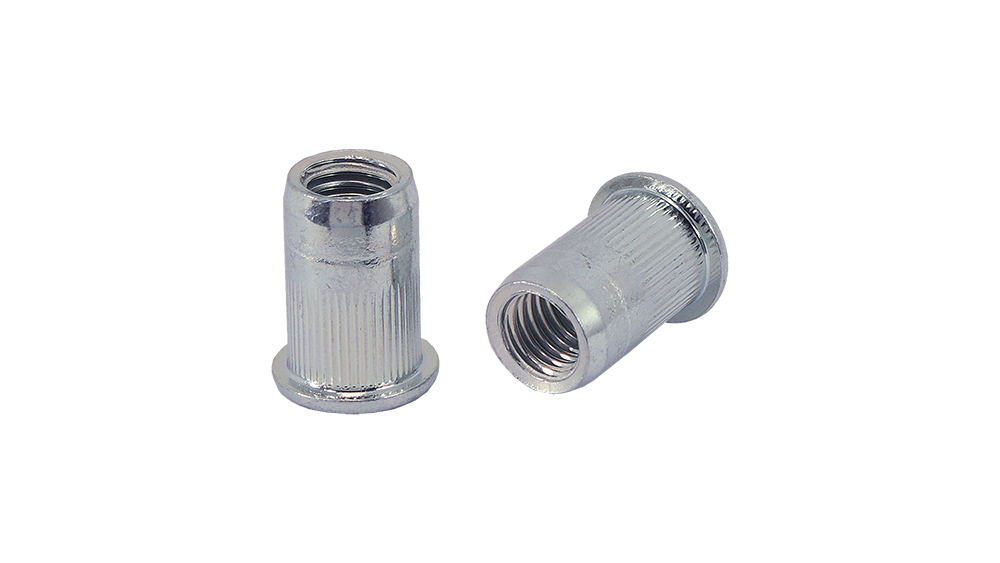

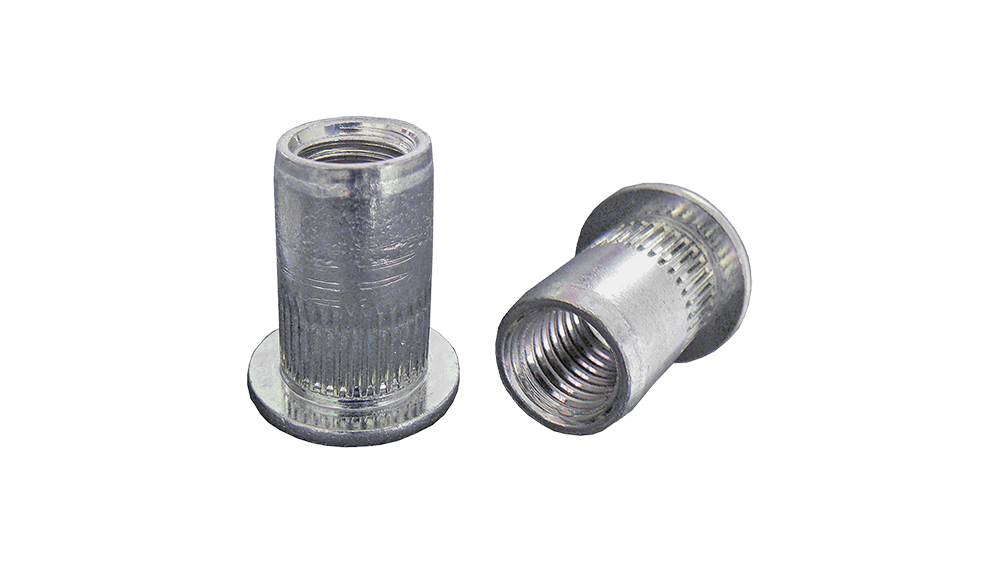

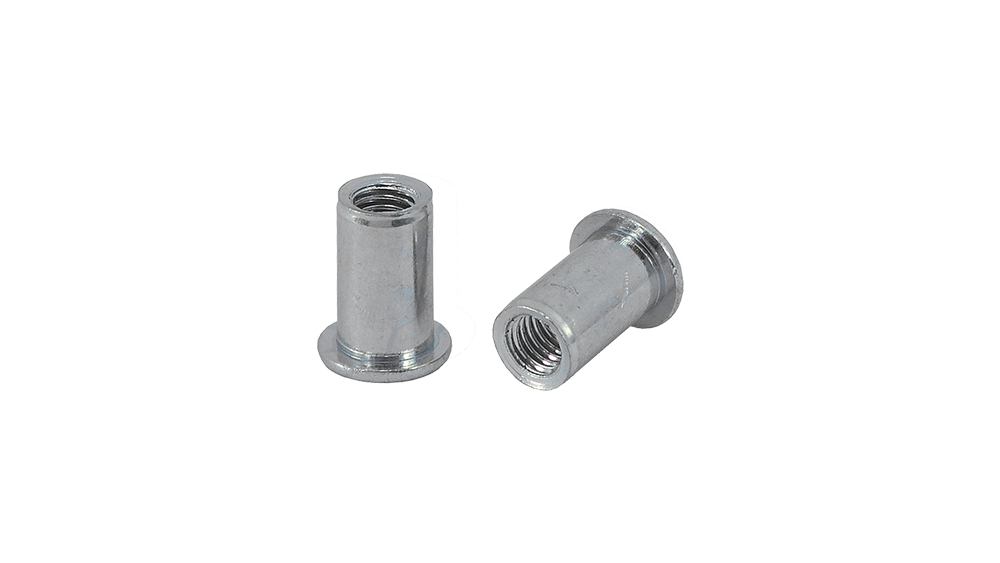

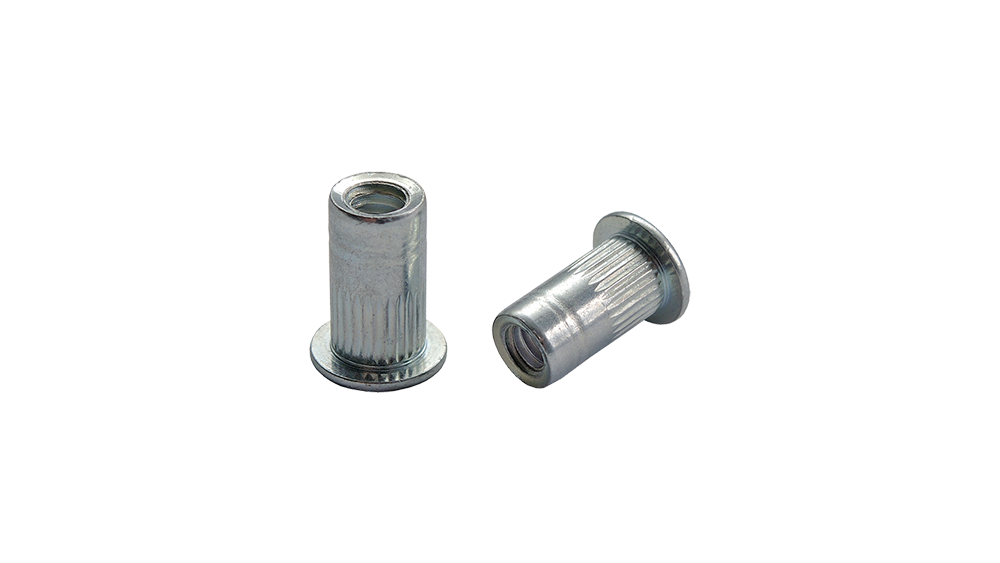

This specific M10 size steel Nutsert provides high load-bearing capacity and durability, while the galvanized coating guarantees excellent corrosion protection. The package contains 10 pieces, ideal for smaller projects or as a spare part kit.
Main Advantages:
Creating Screw Points: Provides a stable, threaded connection surface for subsequent assembly.
Material quality: All-steel construction for maximum mechanical strength.
Corrosion Protection: Galvanized surface treatment for a long service life, even in wet or corrosive environments.
Versatility: Suitable for base materials of various thicknesses within the specified range.
The precise dimensioning of the product ensures compatibility with the appropriate rivet nut tool and standard M10 screws.
| Property | Value | Note |
|---|---|---|
| Part number | 777207 | Unique Identifier |
| Material | Steel | High-strength structural material |
| Surface Treatment | Horganyzott | Excellent Corrosion Resistance |
| Thread size | M10 | Metric standard thread |
| Diameter (Ø) | 12.0 mm | The diameter of the hole into which it must be inserted |
| Length | 17.5 mm | The total length of the rivet nut |
| Overall dimensions (Length x Width x Height) | 18.97 x 14.72 x 18.97 mm | External dimensions |
| Weight | 0.067 kg | Weight per package (10 pcs) |
| Package contents | 10 pieces / package |
The key to successful installation is proper preparation and the correct tool usage. This M10 rivet nut is optimized for the Wielander + Schill XSeries professional technology.
Drilling: The hole diameter must precisely match the specified Ø 12.0 mm to ensure the rivet nut fits tightly and the mandrel deforms correctly during riveting.
Insertion: The rivet nut must be inserted into the hole.

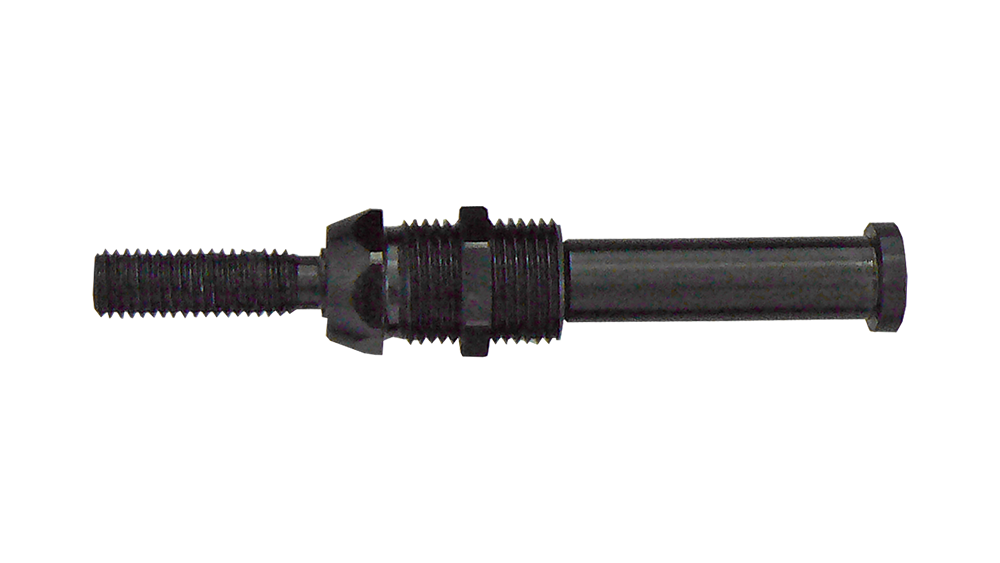

Crimping: Using the appropriate Nutsert tool (not included), the mandrel of the rivet nut must be pulled, which presses the body against the workpiece, thereby creating the durable fastening point.
Screwing: After installation, the M10 thread can be used for fastening screws.
This product belongs to the XSeries – Professional Riveting Technology category, which meets the highest industrial requirements. The wide selection of different sizes (M4, M5, M6, M8, M12) ensures that the right solution can be found for every fastening requirement.
Similar Products (Examples from the Offer):
| Product | Part number | Thread | Package contents |
|---|---|---|---|
| Blind rivet nut, steel | 777203 | M4 | 25 pcs |
| Blind rivet nut, steel | 777204 | M5 | 25 pcs |
| Blind rivet nut, steel | 777205 | M6 | 25 pcs |
| Blind rivet nut, steel | 777206 | M8 | 10 pcs |
| Blind rivet nut, steel | 777208 | M12 | 5 pcs |
This detailed specification guarantees that the user knows exactly what quality and size of fastener they are selecting for critical structural tasks. The galvanized steel version is particularly recommended for areas where environmental effects are significant alongside mechanical load.
