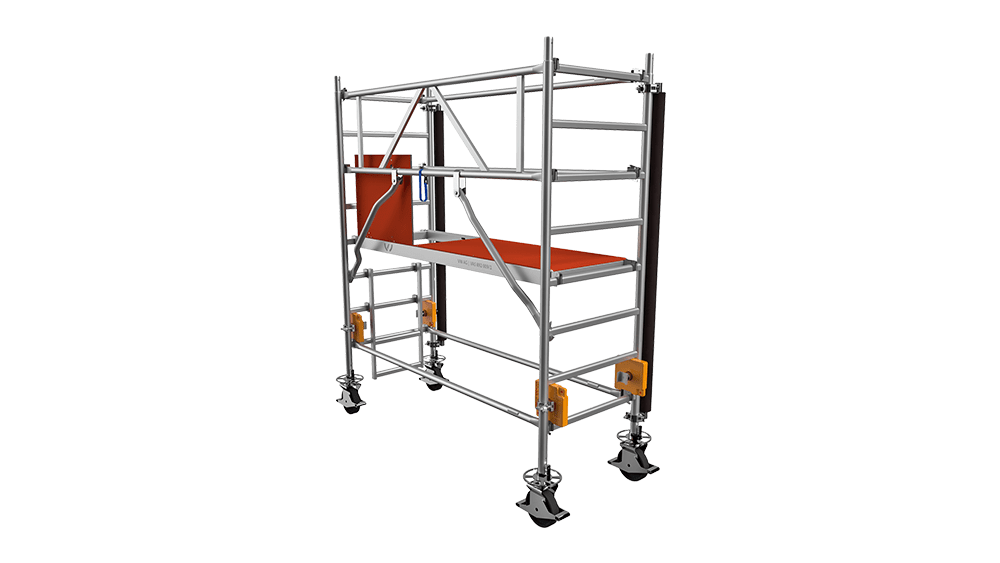

A VAS 892 009/1 Chassis Frame (Part No.: 932091) forms the stable and flexible base for professional service platforms, specifically developed according to the recommendations for Volkswagen AG workshop equipment (VAS). This component ensures a safe working environment while guaranteeing maximum mobility and adjustability during body repair and other technical tasks.
This product is part of the wide range of professional riveting technologies, welding technology solutions, and vehicle repair tools from Wieländer+Schill, occupying a prominent position among OEM recommendations.
The primary function of the chassis frame is to provide an extremely stable yet easily movable base surface for work performance. The mobile design facilitates positioning and adjustment to adapt to various workflows.
Stability and Safety:
The stability of the work surface is guaranteed by the high-quality, non-slip phenol resin laminated board surface. This material resists mechanical stress and ensures that tools and parts placed on it do not shift.
Vehicle Protection:
The frame is equipped with two 2-meter high bumpers, which effectively protect the vehicles from accidental damage during work performed near the platform. This passive protection is crucial for the repair of premium category vehicles.
Load capacity:
The robust design of the structure allows for significant load bearing, which is essential for placing heavy tools and equipment.
Mobility and Balancing:
In addition to ensuring mobility, maintaining the stability of the frame is a priority. For this purpose, the delivery includes four ballast holders and four counterweights, each weighing 10 kg. These weights allow for optimal balancing of the platform, especially when the load is asymmetric.
The table below summarizes the critical technical parameters of the VAS 892 009/1 Chassis Frame:
| Parameter | Value | Note |
|---|---|---|
| Product Identifier | VAS 892 009/1 | Volkswagen AG Specification |
| Part number | 932091 | Manufacturer Identifier |
| Base Surface Dimensions | 625 x 2000 mm | Platform Dimensions |
| Standing Height | 1.30 m | Platform height relative to the ground |
| Total Load Capacity | 250 kg | Maximum load for the entire frame |
| Surface load capacity | 200 kg/m² | Maximum load per square meter |
| Protective elements | 2 pcs 2-meter bumper bars | Vehicle Protection |
| Number of ballast holders | 4 pcs | For fixing counterweights |
| Weight of counterweights | 4 x 10 kg | Serves to increase stability |
| Surface material | Phenolic resin laminated plywood | Slip-free and durable |
The product completely includes all necessary components for installation and safe use:
1 pc Mobile undercarriage frame (the entire structure)
1 pc Platform (size 625 x 2000 mm, with a standing height of 1.30 m)
2 pcs Bumper bars (for vehicle protection)
4 pcs Ballast holder
4 pcs Weights (10 kg per piece)
This undercarriage frame is the ideal choice for any service environment where the goal is to optimize access to vehicles and maximize workplace safety.
Előnyök:
Optimized Access: The standing height of 1.30 meters allows technicians to work ergonomically on the underside or side of the vehicles without having to constantly step off the platform.
Flexible Positioning: Thanks to the mobile design, the platform can be quickly relocated within the workshop, adapting to daily tasks.
Outstanding Durability: The phenolic resin coated surface is extremely resistant to abrasion, chemicals, and moisture, ensuring a long service life.
Safety Guarantee: The built-in bumper bars and ballasting option minimize the risk of accidents and damage to vehicles.
A VAS 892 009/1 Chassis Frame The commitment of Wieländer+Schill to quality, safety, and efficiency in modern automotive workshops is reflected here. The product is exclusively available through authorized distributors or the local Volkswagen importer.
