One wheel, three functions!

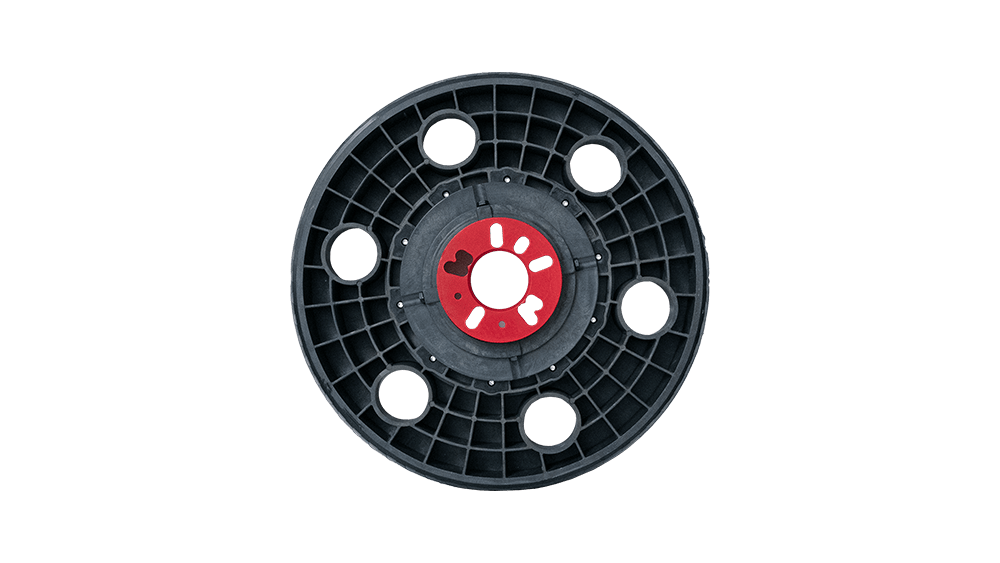

Discover the WS Roller-Spinner HD system, which is the most modern solution for the exceptionally easy movement of stopped, locked, or parked vehicles, regardless of their drive chain or brake system. This exceptionally high-quality tool revolutionizes workshop logistics and vehicle positioning.
The WS Roller-Spinner HD makes moving electric or automatic transmission vehicles child's play thanks to its innovative, rotating inner ring. It functions as a universal spare wheel, eliminating the difficulties of maneuvering on lifts or in tight spaces. The system ensures smooth vehicle movement even up to 8 km/h.
It is a breakthrough especially for paint shops, where storage, logistics, and the handling of paint wheels are critical. The Roller-Spinner can also be used independently as a paint wheel. Its flexibility makes it the perfect complement to traditional maneuvering aids, especially on challenging surfaces such as cobblestone or gravel.
The design of the WS Roller-Spinner HD focused on durability, ease of handling, and versatility:
Robust, One-Piece Cast Design: This construction solution prevents premature aging or damage to the tire, even under intensive use.
Light Weight: Compared to standard steel wheels lighter with 40%, which significantly improves handling and reduces user fatigue.
Robust Steel Core: The 10 mm thick steel core ensures exceptional stability and load-bearing capacity.
Universal Rim Bolt Pattern: The design fits perfectly with impact wrenches and prevents the wheel from over-spinning during tightening.
Ball Bearing Sliding System: This crucial element enables extremely smooth rotation with minimal resistance, which is essential for moving locked vehicles.
The product specifications ensure wide applicability for various vehicle fleets.
| Characteristic | Spezification | Note |
|---|---|---|
| Product Name | WS Roller-Spinner HD | Heavy Duty Construction |
| Part number | HV168 | |
| Wheel Diameter (Ø) | 22 inch | |
| Bolt Circle Pattern | 4/5 bolt pattern | Base Configuration |
| Bearing Type | Ball Bearing Slide | Ensures smooth rotation |
| Maximum Speed | 8 km/h | Maneuvering Speed |
| Construction | Single piece casting | Maximum Durability |
| Weight reduction | 40% | Compared to traditional steel wheels |
| Inner Core Material | Steel | Thickness: 10 mm |
| Application Area | Vehicle movement, polishing wheels | Universal application |
Important Note on Compatibility: Before installation, it is essential to check whether the vehicle bolt pattern matches the basic configuration of the Roller-Spinner (4/5 bolt). If there is a discrepancy, compatibility can be ensured with accessories (see Accessories).
The flexibility of the WS Roller-Spinner HD system can be further enhanced with several accessories that allow adaptation to different bolt patterns and convenient storage.
| Part number | Product Name | Capacity | Description |
|---|---|---|---|

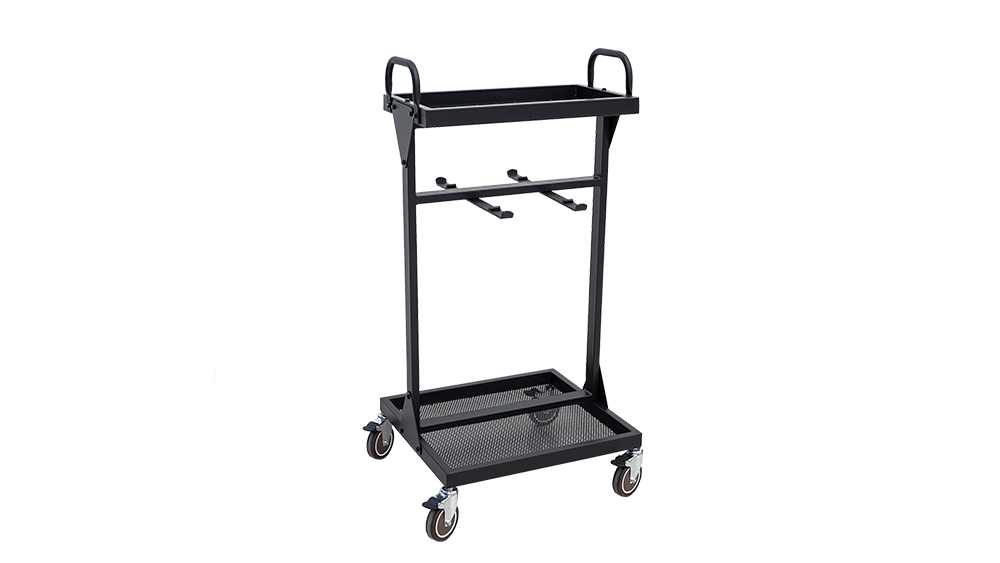

| HV160 | Large Trolley (Trolley for WS Roller-Spinner | large) | 8 pcs Roller-Spinner |
| HV161 | Small Trolley (Trolley for WS Roller-Spinner | small) | 4 pcs Roller-Spinner |
These accessories enable the Roller-Spinner to be used for rims with different bolt patterns or to switch to the „rolling” operating mode.
| Part number | Product Name | Application | Important Information |
|---|---|---|---|

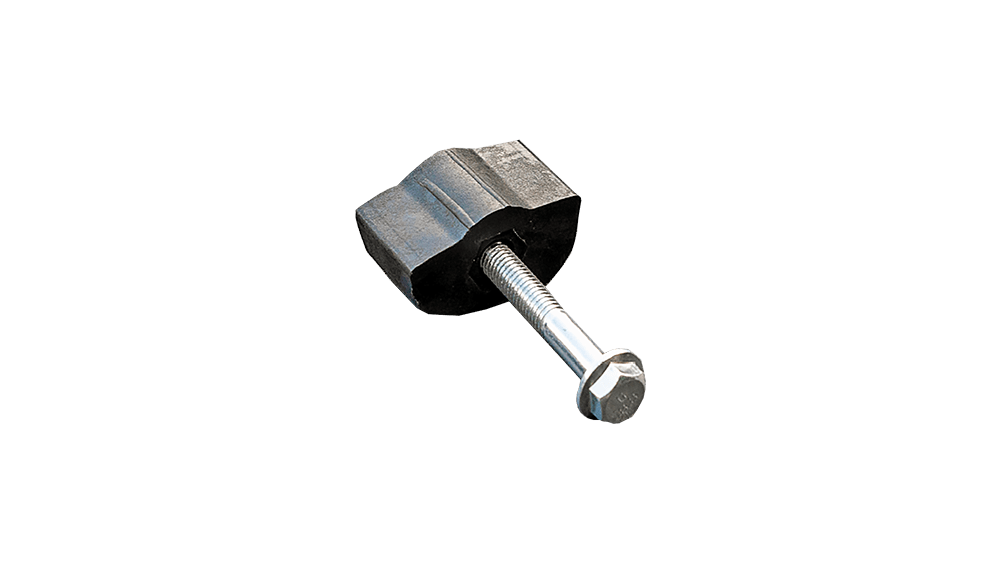

| HV156 | Wedge nuts with bolt | Conversion to rolling mode | For converting the WS Roller-Spinner to rolling mode. |

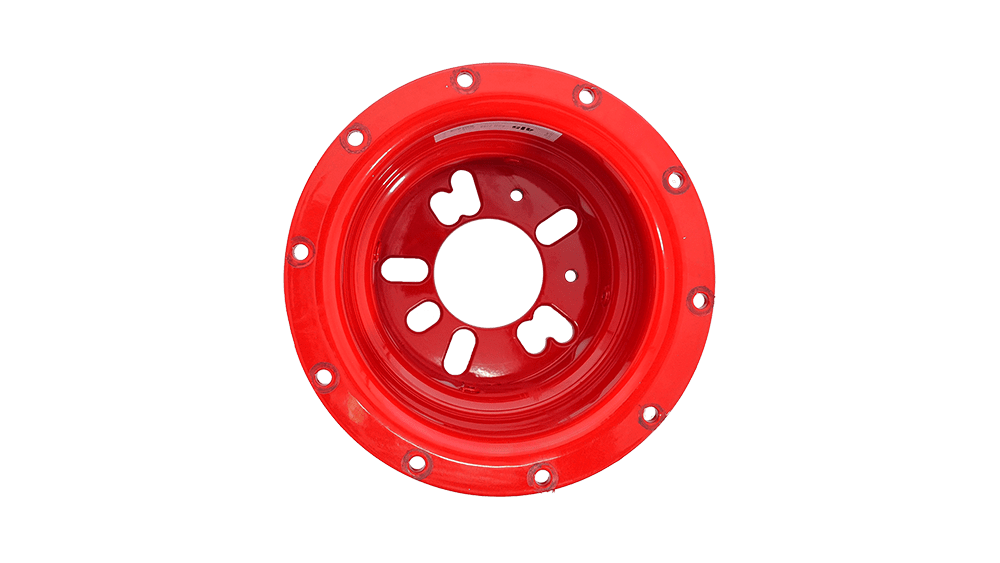

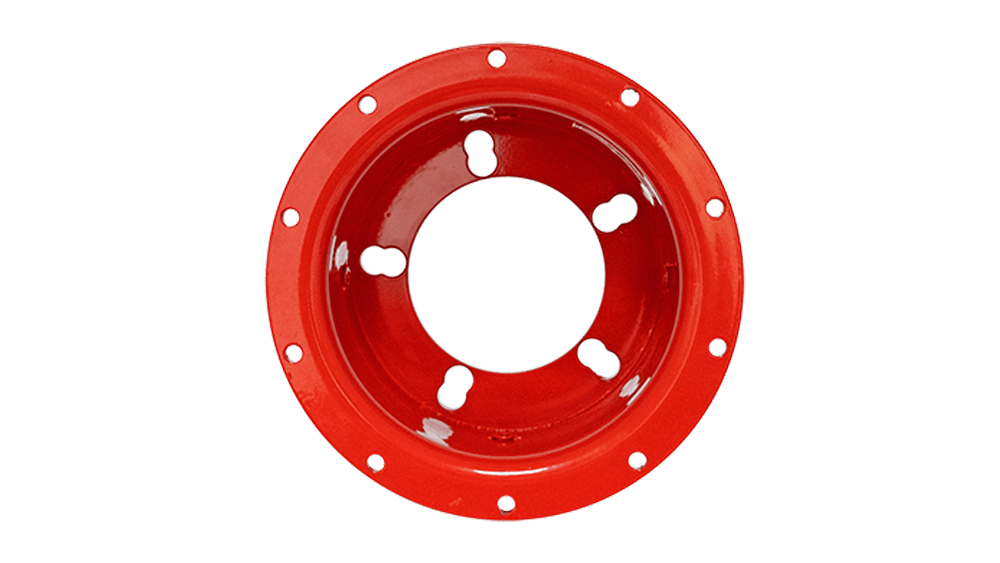

| HV158 | Steel flange (Steel flange 4/5-hole) | CB: Ø 74.1 mm | For converting the existing Roller-Spinner to the desired bolt pattern. Adapter ring required. |

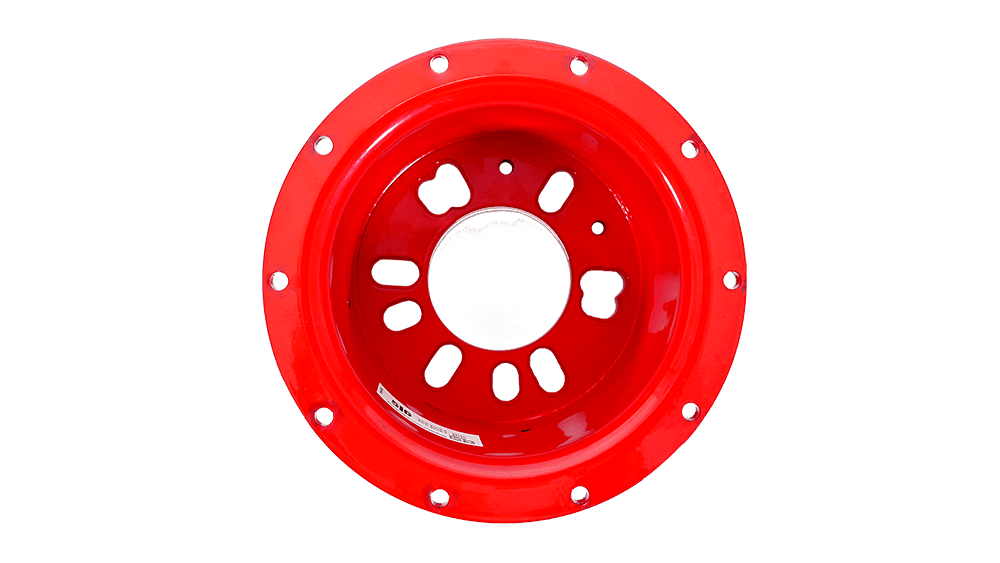

| HV159 | Steel Flange (Steel flange 5/6-hole) | CB: Ø 87.1 mm | For converting the existing Roller-Spinner to the desired bolt pattern. Adapter ring required. |
| HV162 | Steel Flange (Steel flange 5-hole) | CB: Ø 110 mm (SUV & VAN) | For SUVs and light commercial vehicles. Adapter ring required. |

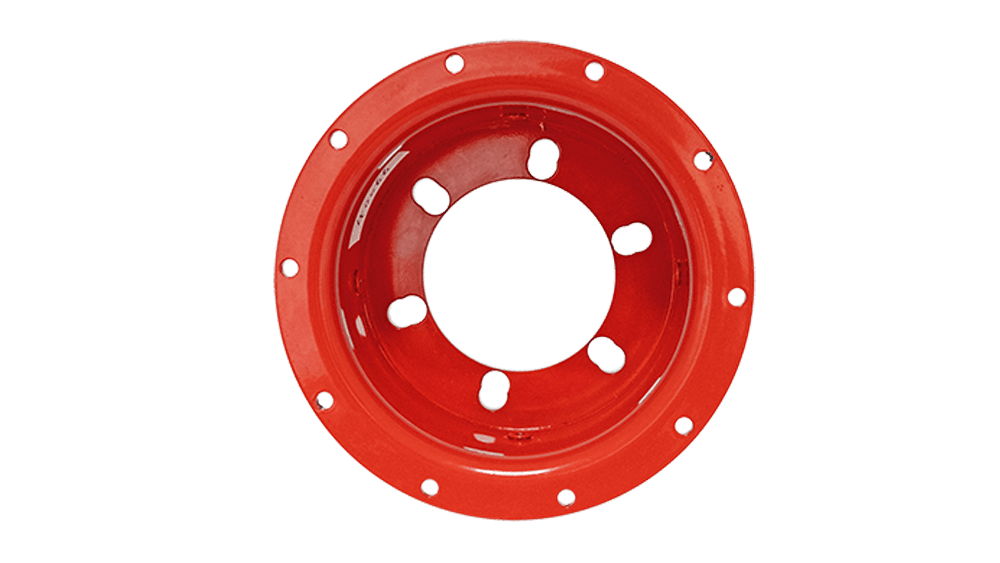

| HV165 | Steel Flange (Steel flange 6-hole) | CB: Ø 108 mm (SUV & VAN) | For SUVs and light commercial vehicles. Adapter ring required. |

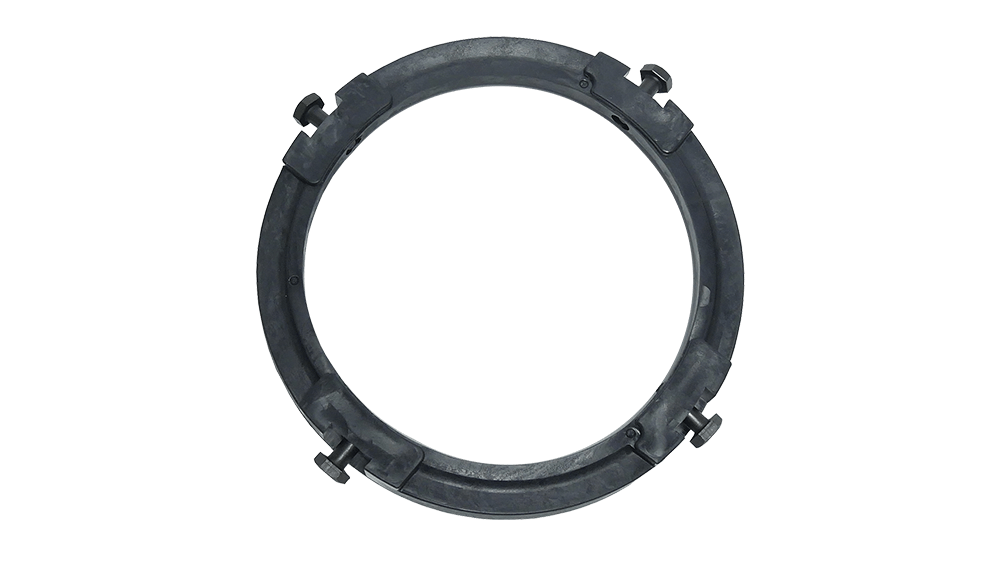

| HV155 | Adapter ring with 5/6 bolts | Stabilizing the rolling mode | Can be mounted on the 5/6 bolt steel flange to activate the rotating mode and stabilize the wheel. Diameter: Ø 185mm. Fixing screws included. |
Due to the versatility of the WS Roller-Spinner HD, it is an ideal choice for modern automotive repair and body shops:
The most common application is moving vehicles under service, especially when:
The vehicle cannot be started (e.g., battery failure).
The brake system is locked (e.g., parking brake stuck, or brake calipers seized).
The parking brake cannot be released electronically for electric or automatic transmission vehicles.
By mounting the Roller-Spinner wheels, even one person can move the vehicle with minimal effort within the shop or transport areas.
In paint shops, vehicles often stand for days in various phases (priming, painting, drying). The Roller-Spinner enables:
Space optimization: Vehicles can be positioned easily in drying booths or storage areas without needing to start the engine or move the entire running gear.
Paint Wheel Function: The product itself can be used as a wheel to move parts or wheels undergoing painting, ensuring 360-degree access.
The robust design and the ball-bearing running gear ensure that the Roller-Spinner operates reliably not only on smooth concrete but also on uneven, gravelly, or paved surfaces, unlike cheaper plastic roller solutions. The 40% weight reduction increases maneuverability, while the 10 mm steel core guarantees load-bearing capacity.
The WS Roller-Spinner HD (HV168) is a standout piece in Wieländer+Schill's professional workshop equipment category, significantly increasing workshop efficiency and safety.
