This detailed product description presents a specially designed center punch belonging to the professional riveting technology of Wieländer+Schill XSeries, intended for the precise marking of self-piercing rivets. This tool is an essential accessory for any professional using self-piercing rivets during body repair or semi-industrial work, ensuring precise positioning and efficient execution.

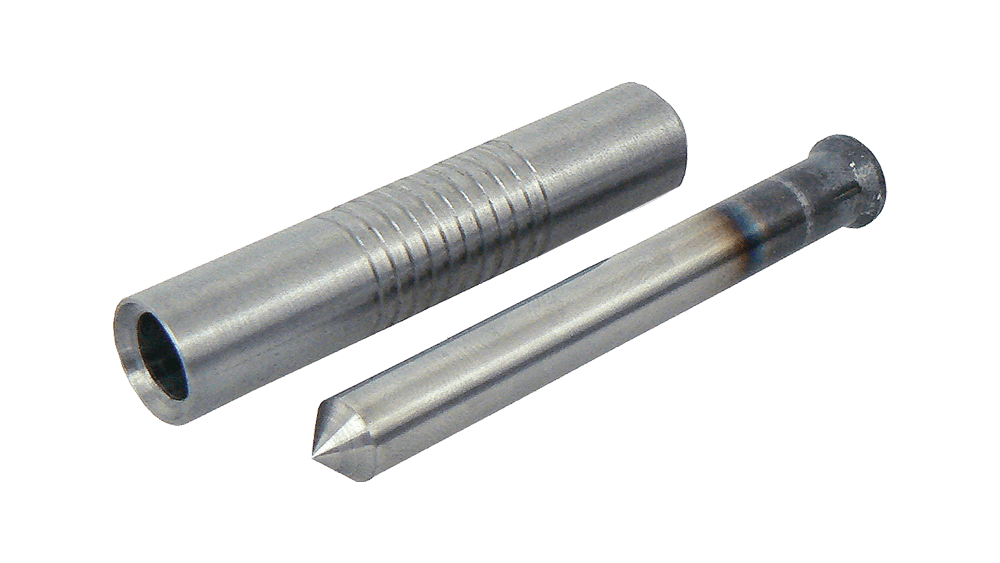

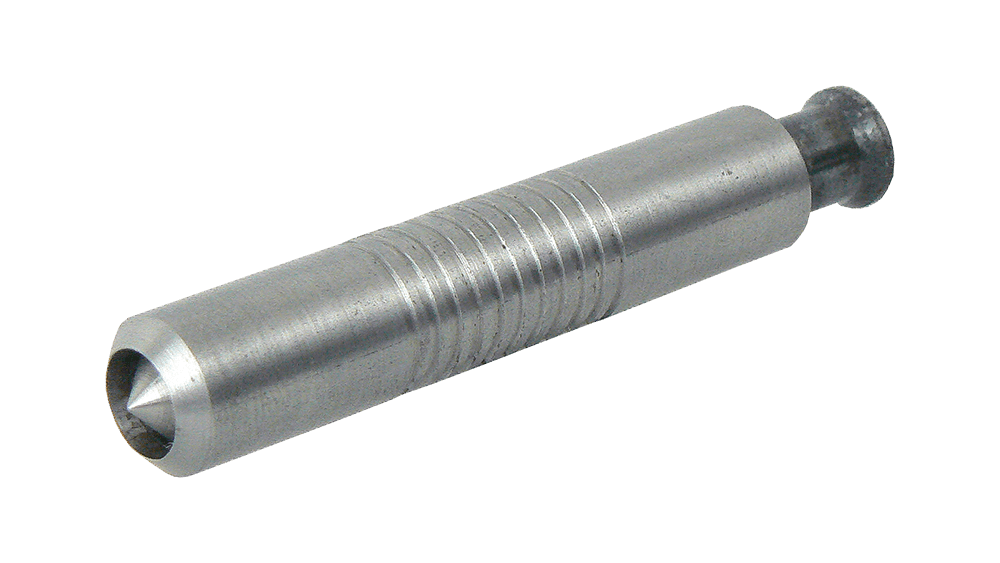

A WS Special Center Punch 2F an extremely precise tool developed specifically for machining self-piercing rivets (Self Piercing Rivets). Its outstanding feature is self-centering capability, which guarantees that the mark is always placed exactly on the center point of the rivet, regardless of surface irregularities or the shape of the rivet head.
This center punch performs two fundamental functions in the riveting process:

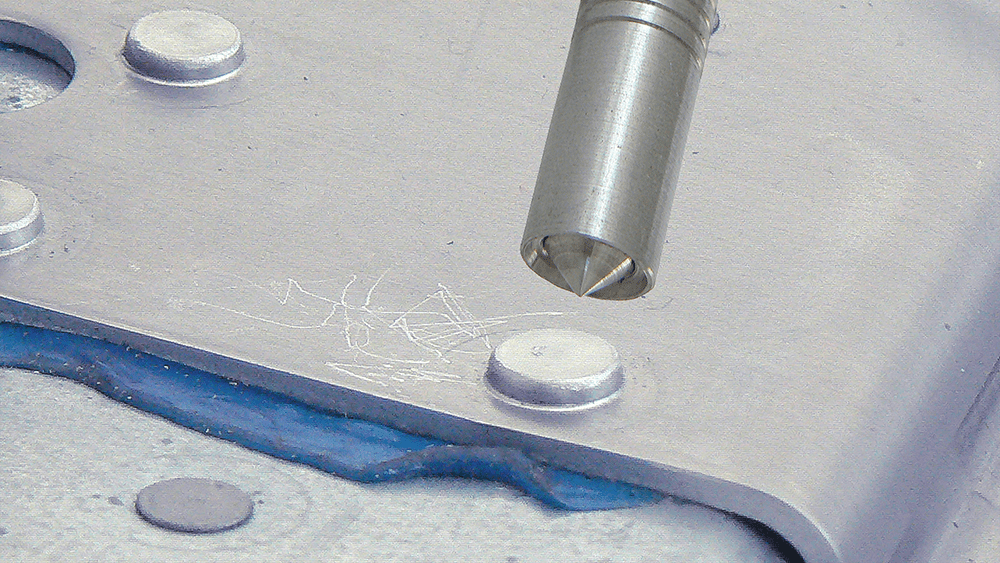

Function 1: Marking from the rivet head side: It enables the precise marking of the drilling or marking point on the side of the rivet where the rivet head is located. This is critically important for accurate fitting and professional fastening.
Function 2: Marking from the rivet tail side: By using the tool in reverse, marking can also be performed on the opposite side of the rivet, providing flexibility for working conditions and accessibility.
The tool is made from high-quality materials, guaranteeing a long service life and reliable performance even under high demand.
The precise dimensions and material of the WS Special Center Punch 2F tool ensure compatibility and durability.
| Property | Value | Note |
|---|---|---|
| Part number | 628006 | Product Identifier |
| Diameter (Ø) | 12 mm | Diameter of the working part of the tool |
| Total length | 71 mm | Total length of the tool |
| Dimensions (Length x Width x Height) | 71 x 12 x 8 mm | Physical dimensions of the tool |
| Material | HSS (High-Speed Steel) | Excellent wear resistance and hardness |
| Weight | 0.055 kg | Ensures easy handling |
| Package contents | 1 darab | Contents of the package |
The tool is made of HSS (High-Speed Steel) material. This alloy steel offers excellent resistance to high temperatures and mechanical stress, which is essential for metalworking operations. HSS ensures that the center drill's edge maintains its sharpness and accuracy for a long time, even with repeated use.
This special center drill is an ideal choice for the following areas:
Body Repair: When using self-drilling rivets, precise marking is essential for proper alignment during the fastening of body panels.
Metal Industry Connections: Any application where fastening with self-drilling rivets is required, and where precision is key.
Prototype Manufacturing and Series Production: Recommended for both custom and high-volume jobs due to its reliability.
Maximális Pontosság: The self-centering mechanism eliminates user errors and guarantees perfect marking.
Double-Sided Functionality: Enables two different marking modes (head and side), increasing the tool's versatility.
Kiváló Tartósság: The use of HSS ensures long-term, reliable performance.
Ergonomics: Its compact dimensions (71 mm length) and low weight (0.055 kg) allow for comfortable and fatigue-free work.
This product is part of the Wieländer+Schill XSeries professional riveting technology range, meeting the highest professional demands.
