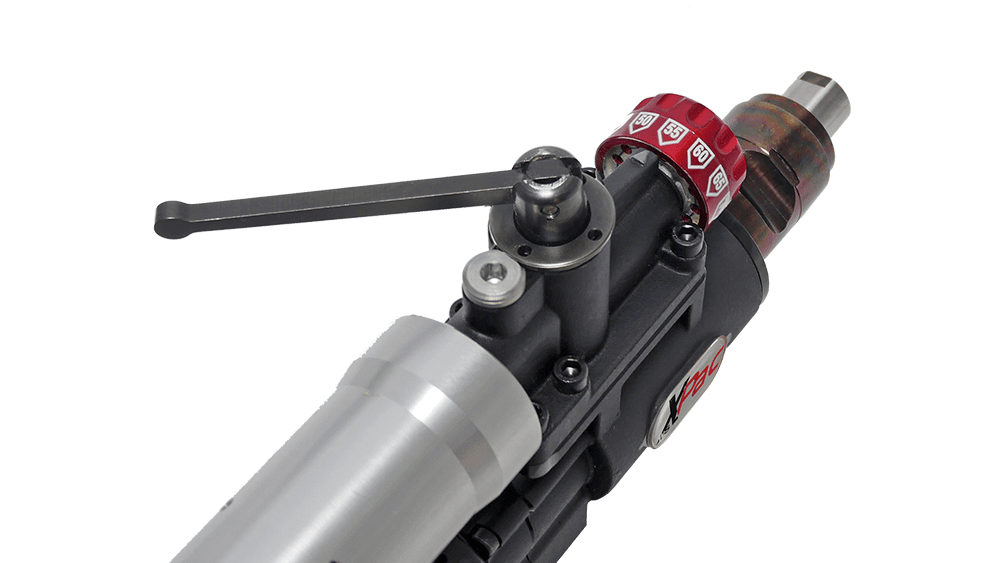

The Wieländer+Schill XPac Activator Kit (Part No.: 703510) is a compact, mechanically driven hydraulic actuator designed for the highest level of body repair and fastening tasks. This system is exceptionally capable of generating high pressing force, while its cordless operation and automatic safety functions guarantee efficient and safe working.
The XPac belongs to the XSeries professional riveting technology family and is the ideal complement for every modern workshop requiring precise and powerful fastening solutions.
The XPac actuator combines a user-friendly design with robust performance:
High Clamping Force: Capable of pumping up to 80 kN (kilonewton) pressing force, which is sufficient even for the toughest fastening operations. Operating range 25 kN and 80 kN is adjustable.

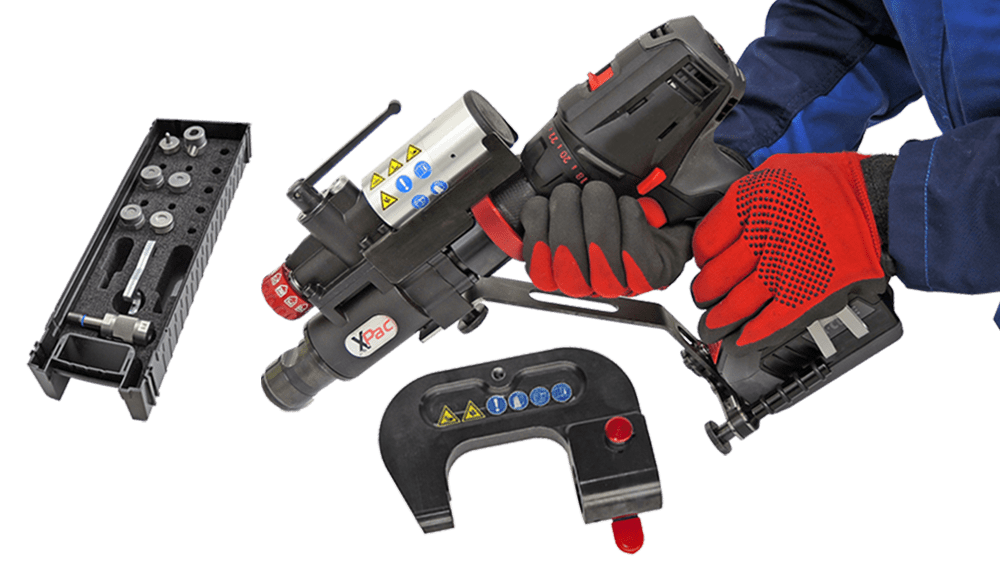

Wireless Operation: The cordless operating mode significantly simplifies the workflow, increases flexibility, and reduces cable interference factors in the work area.
Safe Application: The automatic limit switch-off function guarantees safe usage by preventing the set force from being exceeded.

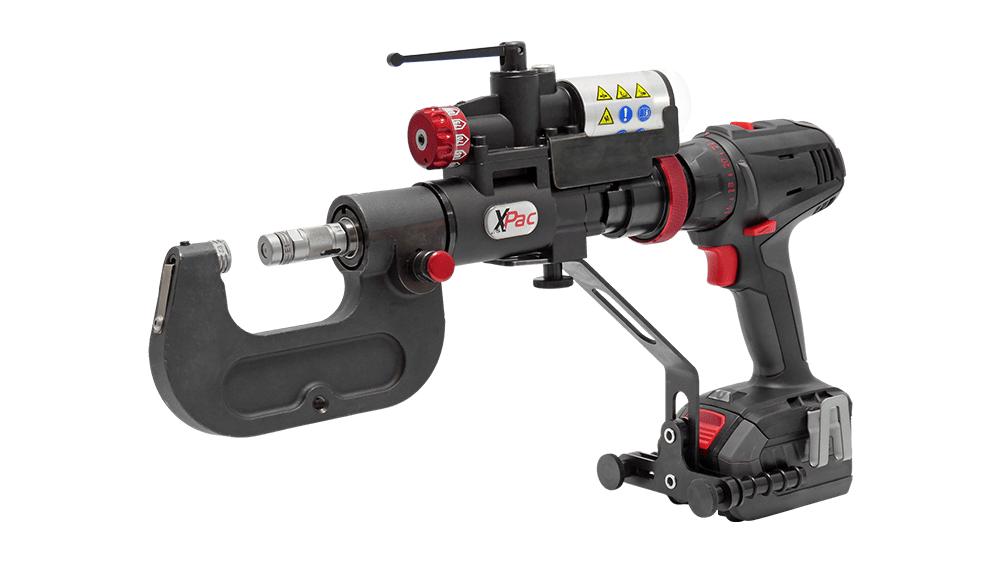

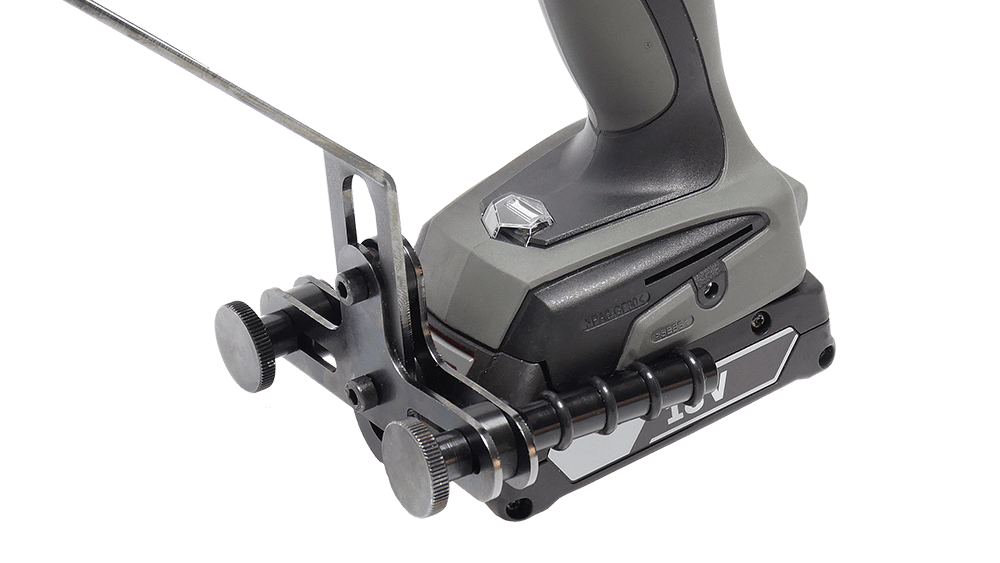

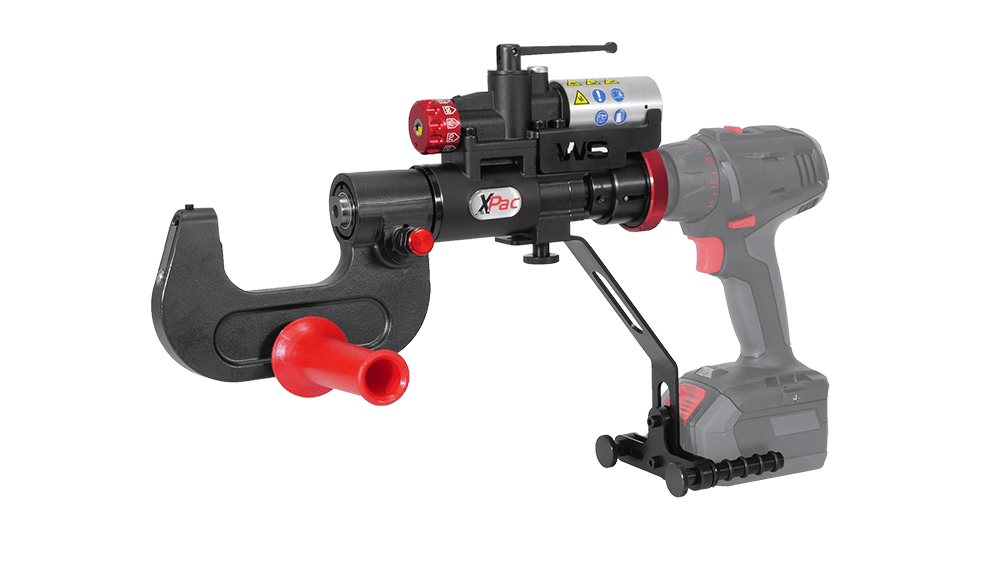

Quick Installation: The XPac actuator and the torque arm can be quickly and easily mounted on almost any standard cordless screwdriver.
Compact Design: The device dimensions (240 x 62 x 130 mm) and a weight of 3.410 kg ensure optimal handling.
The detailed specifications of the XPac Activator Kit are as follows:
| Property | Value | Unit of Measure |
|---|---|---|
| Part number | 703510 | – |
| Product Family | XSeries – Professional Riveting Technology | – |
| Drive type | Mechanically driven hydraulic actuator | – |
| Maximum Force | 80 | kN |
| Force Range | 25 – 80 | kN |
| Stroke | 25 | mm |
| Length | 240 | mm |
| Width | 62 | mm |
| Höhe | 130 | mm |
| Weight | 3,410 | kg |
| Materials | Aluminum (Alu), Steel | – |

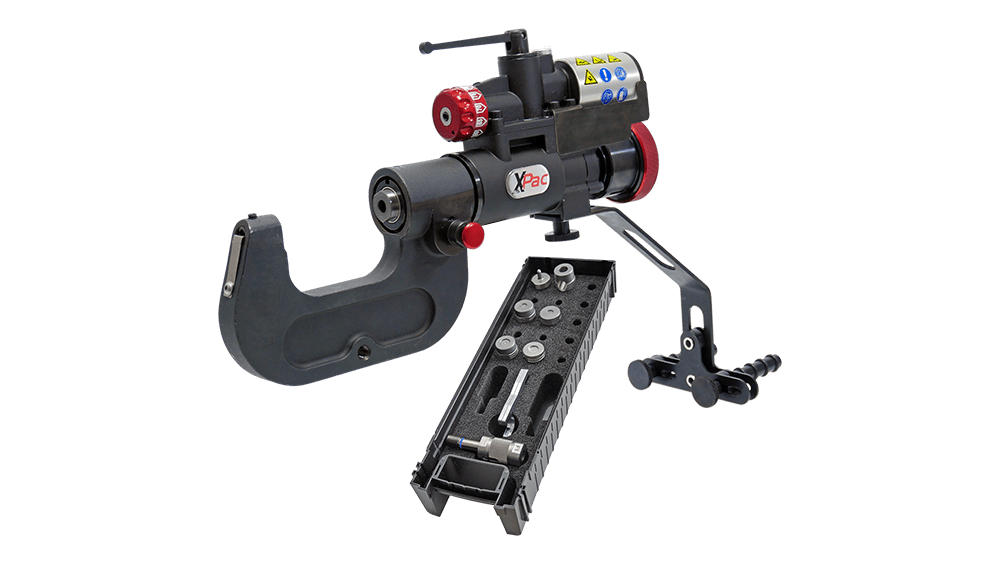

The XPac Activator Kit (703510) contains a comprehensive package that enables immediate deployment:
XPac actuator with torque support: The central hydraulic unit.
700070 C-Arm GC 80/40: Special arm for fastening points.
700200 Tool Box RS-03 | BMW: A dedicated, branded storage for organized tool keeping.
881341 Handle Red for Fixed Magnets and C-Arms | red: Ergonomic handle for mounting accessories.
User Manual: For the correct and safe operation of the device.
In the Wieländer+Schill offer, several accessories (Zubehör) are available for the XPac system, which further expand the possibilities of use.
Although logging in is required for exact prices, the following accessories can be integral parts of professional work:
1. Tool Box RS-09 | Ford | Version 2 (Part No.: 700195)
This box contains further special tools that may be ideal for Ford vehicles or general bodywork:
700341 A4: Ejector pin with polyurethane spring.
703221 BL8: Punch and pull tool Ø 8 mm.
Various C-series closing and setting tools (C10, C11, C12, C13, C14, C15, C19, C20) for self-riveting nuts (SPR).
700220 F1: With M6 extension threaded sleeve | 32 mm.
700299 Z4: Assembly tool (2 pcs/pack).
2. Service Kit EB-XP 800 | Aeration and Refilling (Part No: 700334)
This kit is essential for the maintenance of the XPress 800 PowerPack hydraulic system, ensuring continuous optimal performance:
700933 Special oil pump (250 ml).
Connectors and adapters.
700934 Hose (Ø 6 × 4 mm | 700 mm).
700935 Hose (Ø 8 × 6 mm | 500 mm).
700102 Hydraulic oil HLP 22 (250 ml).
The XPac Starter Set is excellently applicable in all areas where a precise, high-force, yet mobile fastening solution is required:
Vehicle Repair and Bodywork: Ideal for riveting body elements, reinforcements, and panels, especially in areas where traditional riveting machines cannot fit or where cordless freedom is an advantage.
Structural Assembly: Any industrial or construction application requiring the joining of elements with 80 kN force.
Prototyping and Custom Manufacturing: Ideal for small series or custom jobs due to the quick setup capability.
This set represents Wieländer+Schill quality, guaranteeing long service life and reliable performance even for the most demanding professionals.
