This detailed product description presents the Wielander + Schill C-Arm electrode holder with a rocker mechanism (no. 10), specifically developed for precise and efficient resistance spot welding in hard-to-reach welding points, especially around wheel arches. This tool offers an ideal solution for situations where conventional electrodes cannot reach the desired position.

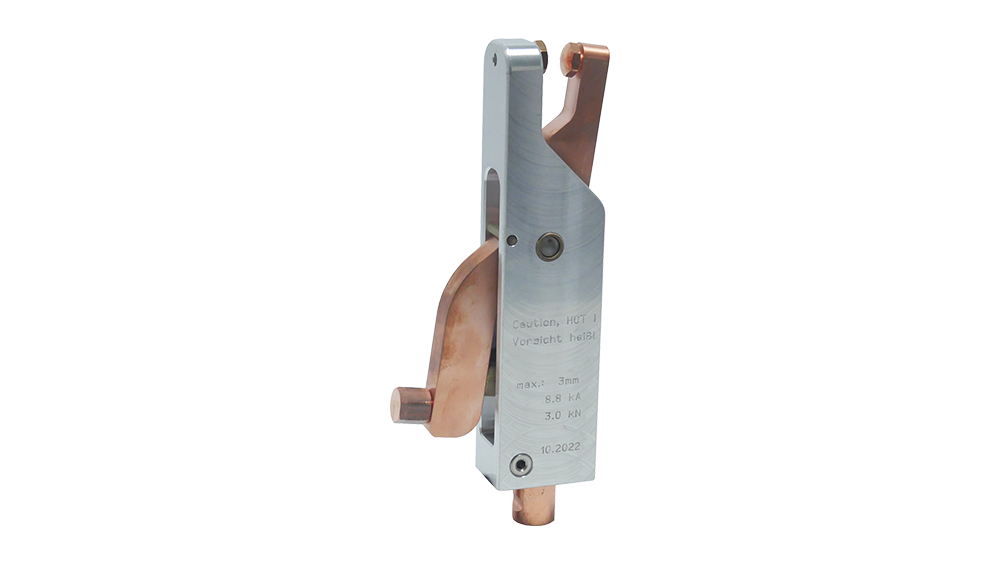

A C-Arm electrode holder with rocker mechanism (no. 10) A special accessory designed for resistance spot welding technology. Its main function is to enable welding in areas where standard electrodes cannot be used due to geometric constraints. The rocker mechanism and the included special electrodes – a finger-shaped electrode and a flat electrode – ensure excellent accessibility and precise operation.
This holder guarantees the full functionality of the automatic welding mode, ensuring that welding parameters can be consistently maintained, regardless of difficult accessibility. It is excellently applicable during body repairs, especially on wheel arches and other narrow, complexly shaped parts.
The product is made from high-quality materials, guaranteeing long service life and reliable performance in demanding workshop environments.

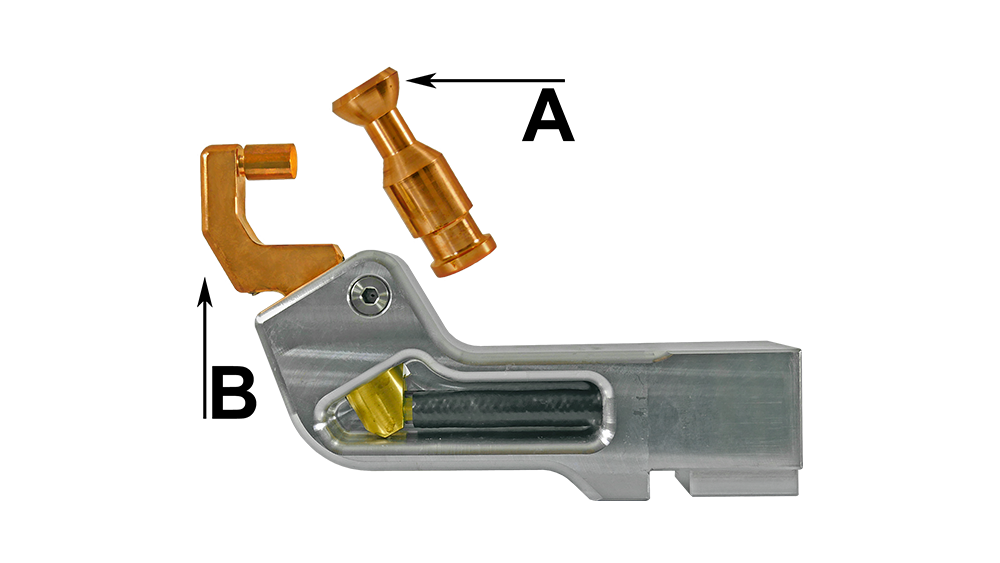

Excellent Accessibility: The design of the rocker mechanism and the special electrode (finger-shaped and flat) allows welding in locations where conventional electrodes get stuck.
Full Automatic Mode Compatibility: The holder does not restrict the functions of automatic welding machines, ensuring continuous and reliable weld quality.
Durable Material Use: The construction consists of a combination of aluminum, CuCrZr (copper-chromium-zirconium), stainless steel, and steel, providing optimal electrical conductivity and mechanical stability.
Precise Workmanship: The 25 x 12 mm work window allows for precise positioning at the weld spot.
The table below summarizes the most important technical parameters of the C-Arm Electrode Holder with Rocker (no. 10):
| Property | Value | Note |
|---|---|---|
| Part number | 495604 | The unique identifier of the product. |
| Content | 1 darab | Package contents. |
| Length × Width × Height | 215 x 125 x 45 mm | The physical dimensions of the holder. |
| Materials | Alu, Aluminum, CuCrZr, Rubber, Stainless Steel, Steel | Multiple material combinations for functional requirements. |
| Shank diameter | 25 mm | The dimension of the C-arm connection. |
| Weight | 1.492 kg | The net weight of the holder. |
| Work opening (Work window) | 25 x 12 mm | The effective area for reaching the welding spot. |
This special C-Arm holder primarily offers a significant advantage in the following areas:

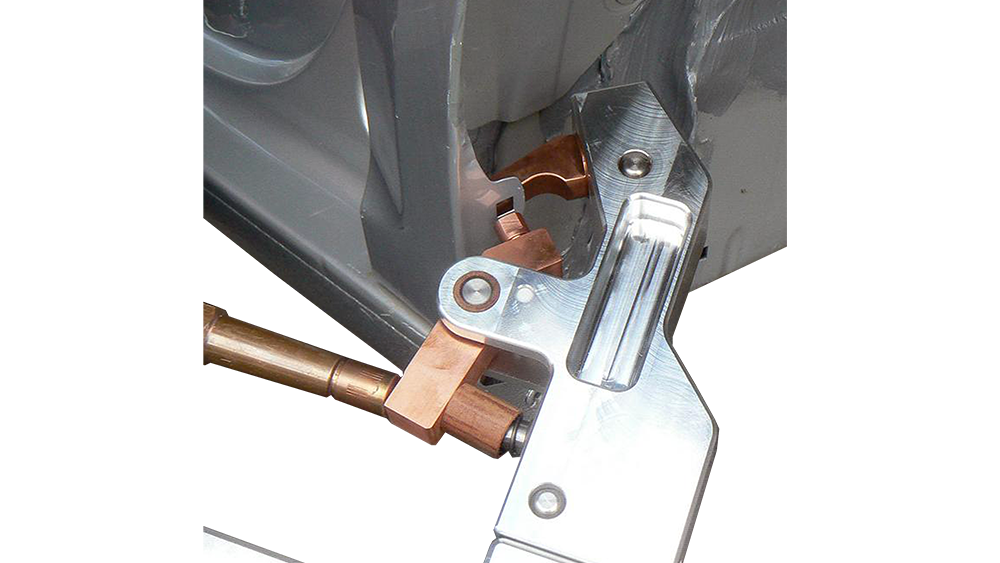

Vehicle Body Repair: Especially for reaching spot welds on curves, corners, and other deeply located or narrow areas.
Hard-to-Reach Structures: Any industrial application where standard welding guns cannot fit.
High Quality Welding Requirements: Jobs where maintaining the automatic welding process is essential for quality assurance.
Wielander + Schill's portfolio includes several other C-Arm types and accessories that can complement your welding equipment. Although logging in is required to view the price list, here are a few examples of similar or complementary products:

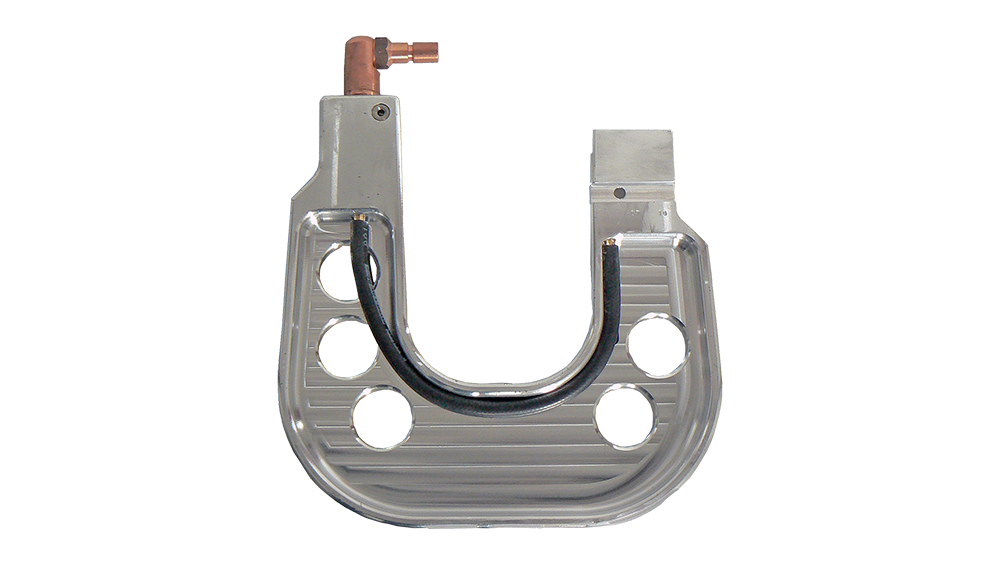

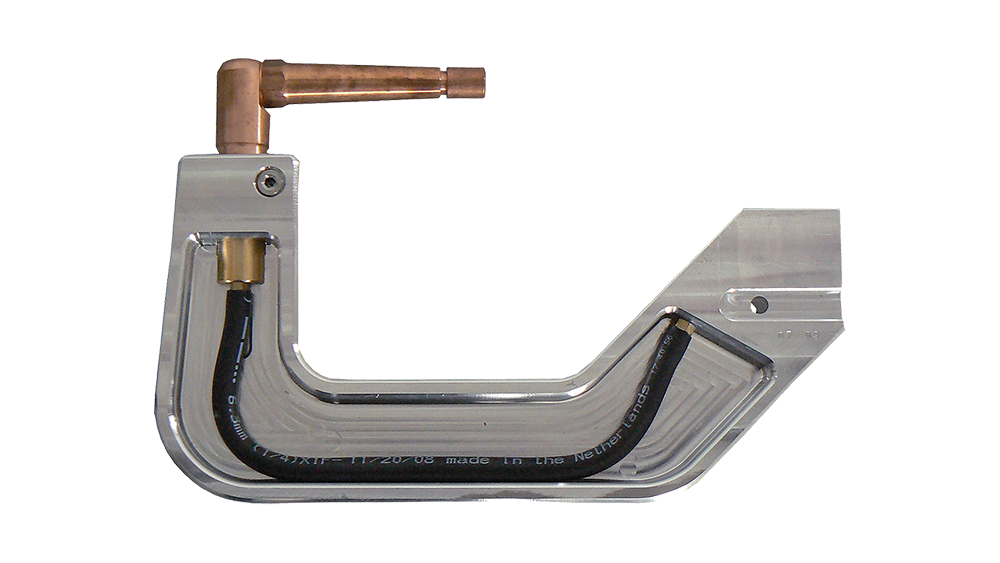

C-Arm No. 9 (120 × 250 mm, Part Number: 495624): With water-cooled C-arm electrode and 16 mm electrode tips.
C-Arm No. 3 (150 × 450 mm | GT, Part Number: 495625): With water-cooled C-arm electrode and 16 mm electrode tips.

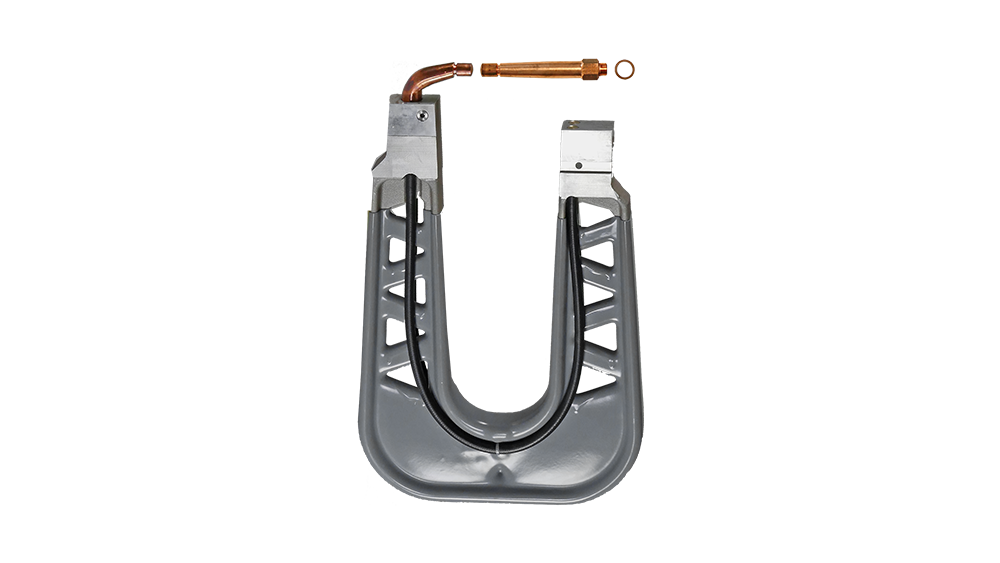

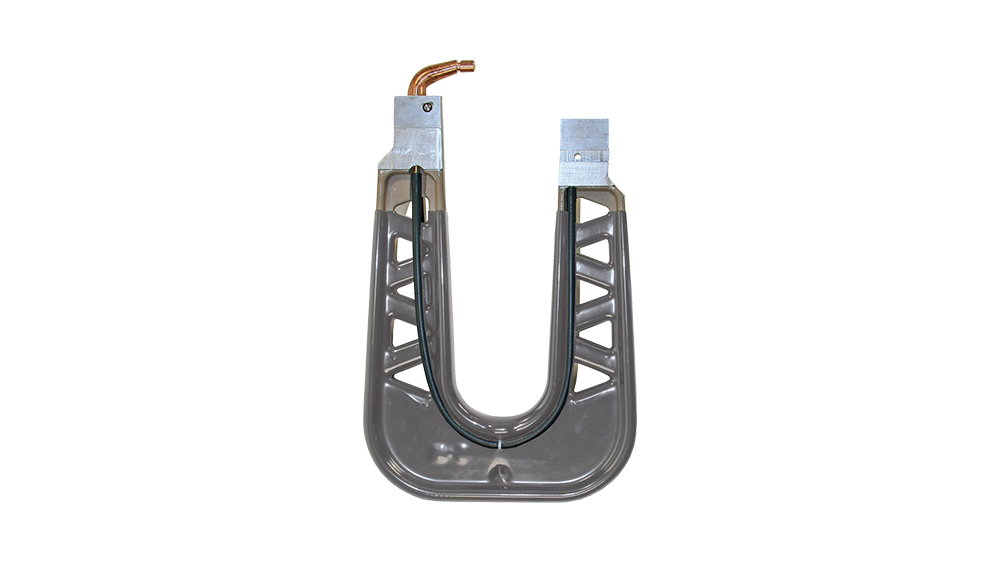

C-Arm No. 5 (205 × 550 mm | GT, Part Number: 495626): With water-cooled C-arm electrode and 16 mm electrode tips. Includes electrode 495667 as an accessory.

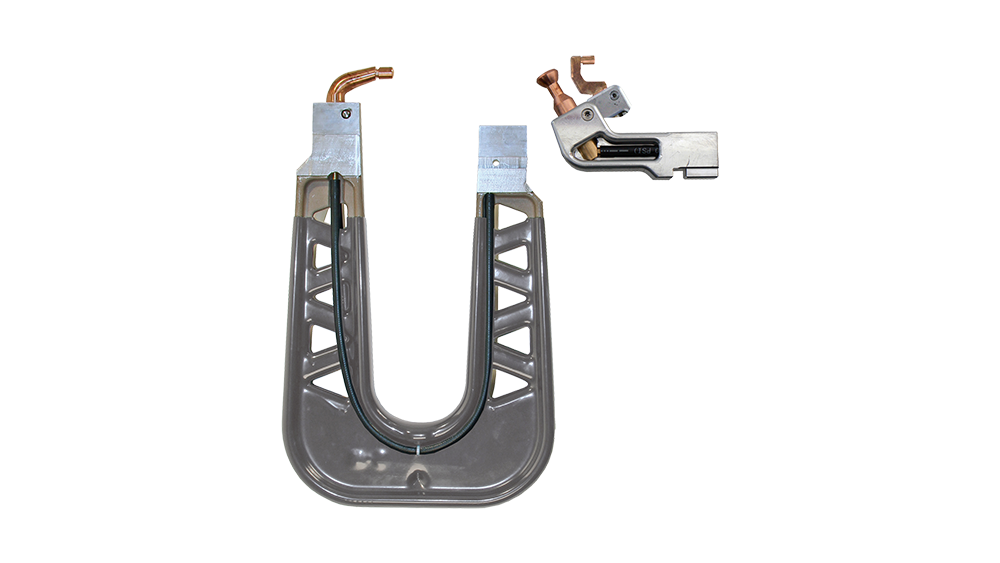

C-Arm Set (No. 2 + No. 3 | GT, Part No.: 495630): Two-piece set containing the 495602 C-arm (for wheel arcs) and the 495625 C-arm (150 × 450 mm).
C-Arm Electrode Holder with Oscillating Mechanism (Part No.: 495688): This model is specifically designed for welding very narrow metal strips. Thanks to its concentric electrodes, it pushes the welding spot outwards from the center point, thus penetrating into every corner.
Important Note: A wide selection of C-arms (e.g., Part No.: 495614, 290 × 760 mm) may be a custom-manufactured product to which returns and exchanges are excluded. Please check the conditions for the specific part number.
This pivoting mechanism C-arm holder is an essential tool for any professional seeking the highest level of accessibility and precision in the field of resistance spot welding when repairing the most complex bodywork elements.
