The Consul 2.35 MKK type, twin-cylinder, inground (unterflur) lifting system offers an ideal solution for lifting passenger cars and most light commercial vehicles (e.g., VW T5) in a workshop environment. With a load capacity of 3500 kg, the system is excellently suited for bodywork repairs and the use of vehicle lifts, thanks to the strategically designed cylinder spacing.
This model belongs to the Consul Twin Ram Inground Lifts category and is characterized by a reliable, durable design. Important note: The installation of the lift must mandatorily be combined with the appropriate chassis element.
The Consul 2.35 MKK lift contains several design elements that guarantee safe and efficient operation:
Integrated Installation Cassette: The structure has an installation cassette equipped with a galvanized profile steel frame, which ensures a long service life and corrosion resistance.
Chrome-Plated Guide Cylinders: The hydraulic cylinders are fitted with hard-chrome-plated pistons, resulting in smooth running and minimal wear.
Electro-Hydraulic Drive: The drive unit is located externally to the lifting unit, which facilitates maintenance.
Mechanical Synchronization: Mechanical synchronization is achieved with the help of a yoke, which also functions as a safety device.
Hydraulic Synchronization During Lowering: Adjustable restrictor valves ensure safe and even lowering.
Electronic Control: The system features electronic control and a built-in safety valve.
Excellent Protection: The unit belongs to protection class IP54, has GS certification, and complies with DIN EN 1493 and CE standards.
Utility Connection: Connection stub DN 100 to a KG pipe for cassette ventilation and the creation of the hydraulic line network.
Cassette Cover: The cassette cover is entirely galvanized.
The table below details the critical technical parameters of the Consul 2.35 MKK lift:
| Parameter | Value | Note |
|---|---|---|
| Item Number (SKU) | 567271 | |
| Manufacturer Number (HAN) | 9657 | |
| Category | Twin-Cylinder Inground Lifts | |
| Rated load capacity | 3,500 kg | For passenger cars and light commercial vehicles (e.g., T5) |
| Lifting height | ca. 1.990 mm | |
| Lifting Time (loaded) | approx. 35 seconds | |
| Power supply | 400 V / 50 Hz | Three-phase mains |
| Drive Power | 3.3 kW | |
| Electrical Supply Voltage | 400 / 50 V / Hz | |
| Fuse Protection | 16 A slow-blow fuse | |
| Oil quantity | approx. 10 liters | |
| Distance between columns | 2,500 mm | Distance of the synchronizing element |
| Plunger diameter | 130 mm | |
| Operating pressure | 150 bar |
Detailed documentation is available for the product to facilitate installation and maintenance:
Catalogue (Brochure): Detailed overview of the C-Line scissor in-ground lifts.
Foundation plan: Precise guidance for proper foundation and installation.
To maximize flexibility and meet specific requirements, the system can be extended with the following accessories (these must be ordered separately):
Consul Installation Cassette ex ante 2,500 mm: This cassette is ideal for versions with a 2,500 mm cylinder distance.
Consul Hydraulic Oil in a 5-liter container: HLP 22 quality hydraulic oil, suitable for all hydraulically driven Consul lifts. The required quantity depends on the type of lift.

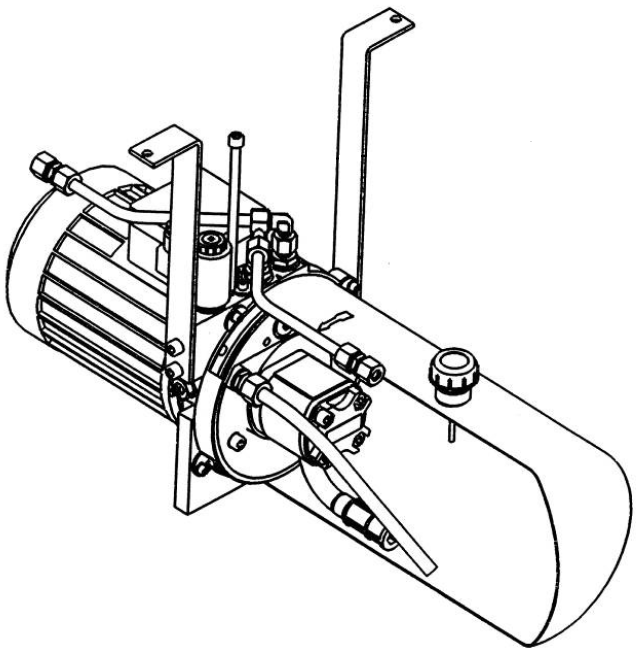

Surcharge: Drive unit inside the cassette: It is possible to place the hydraulic power unit inside the installation cassette, which provides a space-saving solution, often combined with a wall-mounted control.

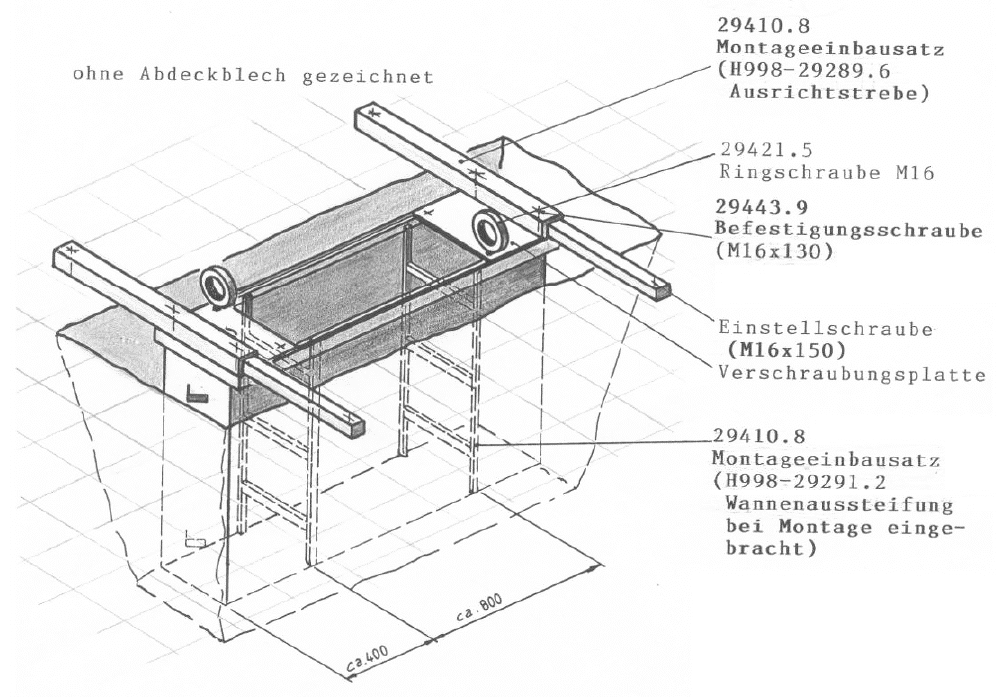

Consul Installation Kit: Contains the necessary accessory elements for installation.
Consul Control Unit according to OEM industrial standard: Special control unit that can be ordered according to OEM (manufacturer's) specifications (the OEM designation is required at the time of order).
Consul In-ground lifting unit for externally manufactured cassettes: If non-Consul manufactured installation cassettes are used (with a cylinder distance of 2,300 mm or 2,500 mm), this lifting unit ensures compatibility.
The Consul 2.35 MKK is a robust, precise, and safe lifting device that significantly increases the efficiency and workplace safety standards of workshops.
