This detailed description introduces the Wieländer+Schill professional body repair tool, a water-cooled electrode set specifically optimized for high-performance resistance spot welding applications.
A Part number 495715 An essential accessory for precision welding tasks, this electrode set is designed to meet the highest quality requirements. This set features a straight design, a length of 280 mm, and is equipped with a 90° angle, ensuring optimal access to hard-to-reach welding spots. The set is compatible with the high-quality InvertaSpot GT welding machines X-Trafogun gun.
The water-cooled design is crucial for maintaining durable and reliable performance, especially during intensive use. The cooling effectively dissipates heat from the electrode tips, minimizing wear and ensuring consistent weld quality throughout the entire service life.
Excellent Thermal Conductivity: The use of CuCrZr (Copper-Chromium-Zirconium) material guarantees excellent electrical conductivity and heat resistance, which is essential for high-current welding processes.
Ergonomic Design: The straight, 280 mm length, and the 90° angle allow the user to perform welding from an optimal position, thereby increasing precision and reducing fatigue.
High Clamping Force: The set is capable of operating with a maximum force of 1500 kN (kilonewtons), ensuring solid and reliable joints even when welding thicker or multi-layered materials.
Compatibility: For use exclusively with the InvertaSpot GT welding machine's X-Trafogun unit, which guarantees perfect system fit and performance.
Accessories: The set comes with 16 mm diameter electrode tips, which are ideal for standard spot welding tasks.
The table below summarizes the critical technical parameters of the electrode set:
| Property | Value | Unit of Measure | Note |
|---|---|---|---|
| Part number | 495715 | – | Product Identifier |
| Construction | straight | – | Geometric Shape |
| Length | 280 | mm | Total length |
| Angle | 90° | Degree | Tip Position |
| Material | CuCrZr | – | Copper-Chromium-Zirconium Alloy |
| Maximum Force | 1,500 | kN | Welding Force Capacity |
| Operating Pressure | 8 | bar | Optimal pressure of the cooling system |
| Weight | 2,358 | kg | Net weight of the set |
| Electrode Tip Diameter | 16 | mm | Diameter of Replaceable Tips |
| Package contents | 1 set | – | Contents of the package |
To maintain maximum efficiency and weld quality, regular replacement of the appropriate electrode tips is recommended.
Recommended Accessory:

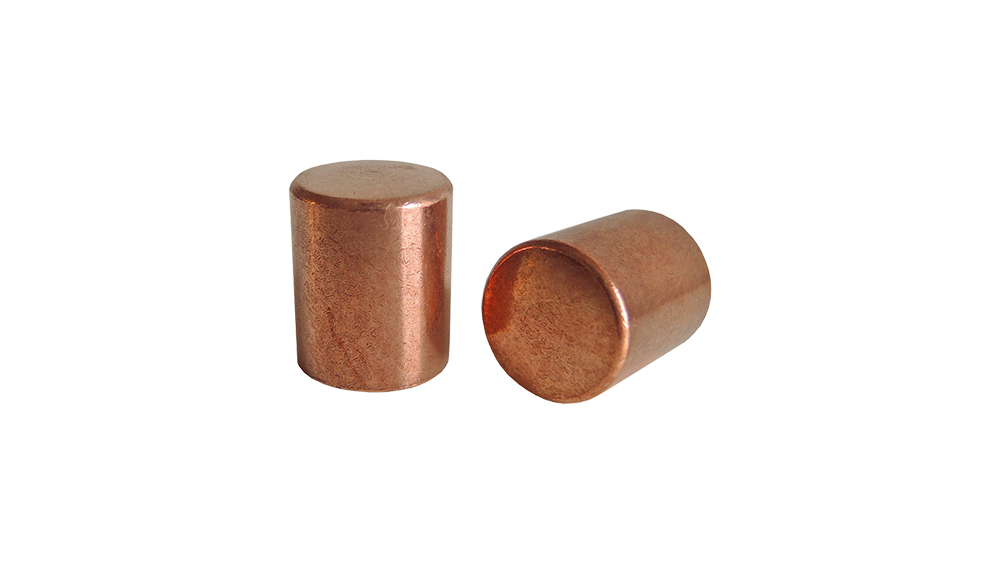

Electrode Tips | Ø 16 mm | Type A-40 | Packaging: 6 pcs
Part number: 497097
Description: Type A-40 electrode tips, with a length of 20 mm and a diameter of 16 mm. These tips ensure precise contact and efficient current transfer.
This electrode set is specifically developed for resistance spot welding in the automotive body repair sector, as well as in general metalworking applications. The water-cooling and robust construction make it suitable for continuous use in demanding workshop environments where fast cycle times and reliable joint quality are fundamental requirements. The 280 mm length allows access to the internal structural elements of vehicles where standard electrodes can no longer reach.
Wieländer+Schill is committed to the highest quality standards. The products comply with strict industrial regulations, evidenced by ISO 9001 (Quality Management) and ISO 14001 (Environmental Management) certifications. This welding accessory guarantees a professional result every time.
