This detailed description presents the upgrade kit offered by Wieländer+Schill, specifically designed for the Roll Out 2004 modernization of edge protector removal systems. This kit enables a simple and cost-effective transition of existing 2004 models to the latest technical standard, ensuring continuously high performance and efficiency during the professional removal of edge protectors.
The goal of the kit is to upgrade older Roll Out 2004 units to the modern Roll Out 2020 CF (Constant Friction) technology, introducing innovative functions and enhanced components.
The upgrade kit integrates the latest technology into the existing edge protector removal equipment. The central element of the package is the innovative, double drum capstan, which is equipped with the critical „Constant Friction” (Állandó Súrlódás) function. This function revolutionizes the pulling process, allowing for more precise and uniform force application, minimizing the risk of damage to the bodywork or the edge protector frame.
The kit also includes the small ratchet , which facilitates precise work in tight spaces.
With this upgrade, Roll Out 2004 systems can easily and economically be brought up to current industry standards.
The package contains carefully assembled components that ensure successful integration and increased functionality:
| Component | Quantity | Note |
|---|---|---|
| Double drum capstan (with Constant Friction function) | 1 stück | The key to modernization |
| Compact ratchet | 1 stück | For precise work |
| Other fixing and fitting elements | Is part of the package | For complete installation |
Total: 2 main components (as per description).
The durability and reliability of the product are guaranteed by carefully selected materials that withstand continuous stress and workshop conditions.
| Property | Value |
|---|---|
| Part number | 848084 |
| Content | 2 pieces (main component) |
| Materials | Aluminum (Alu), Plastic (Plastic, kunststoff), Steel (Steel) |
| Weight | 0.400 kg |
| Compatibility | Roll Out 2004 system upgrade |
| Integrated Function | Constant Friction (Állandó Súrlódás) |
The „Constant Friction” technology built into the new, double-drum winch represents a significant advancement in the windshield removal process:
Constant Pulling Force: The function ensures that the pulling force remains constant throughout the entire process, regardless of the cable tension or the condition of the adhesive on the windshield. This reduces sudden jerks that could damage the windshield frame or the surface intended for the new glass installation.
Precise Control: The user can exert much finer control over the process, which is especially critical for modern, complexly shaped, and sensitive windshields.
Cost-Effectiveness: Integrating the latest technology while retaining the existing Roll Out 2004 equipment results in significant investment savings compared to purchasing a new, complete system.
For the optimal operation of the upgraded system and to meet the Roll Out 2020 CF specifications, the manufacturer recommends the following accessories (which must be ordered separately):

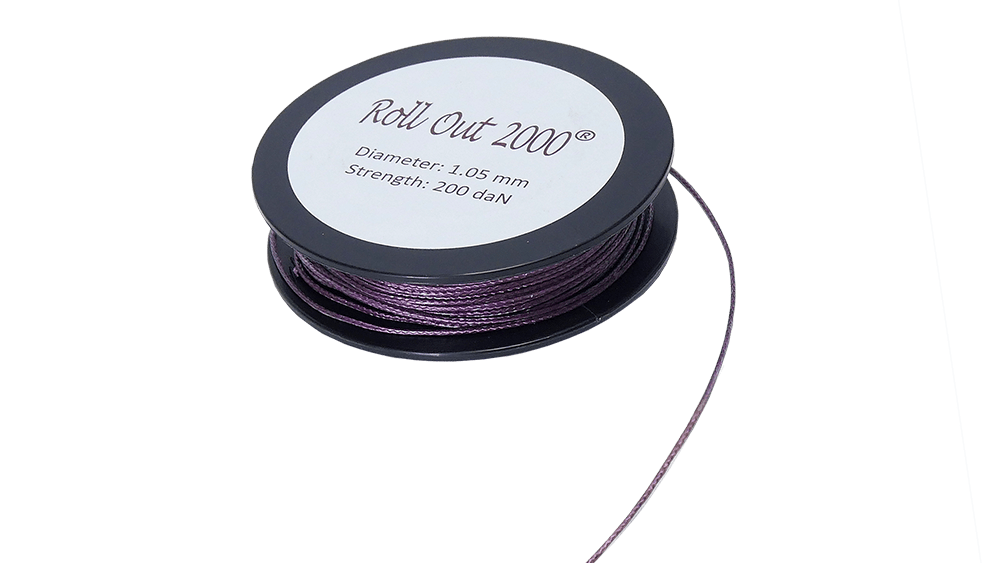

Description: High tensile strength Kevlar cord, specifically designed for use with the Roll Out 2020 CF system.
Hossz: 25 meters.
Advantage: Kevlar provides excellent resistance to cutting and abrasion, increasing safety and service life.
Description: A slender, fine-toothed ratchet that allows for extremely precise work even in the tightest spaces.
Ergonomics: Features an ergonomic handle and durable construction for a secure grip and long service life.
Compatibility: Recommended for use with the Roll Out 2020 CF system.
Description: Double-drum winch that already includes the „Constant Friction” function and comes with two different sized suction cups (120 mm and 150 mm in diameter).
Application: The suction cups enable the secure mounting of different sized windshields and surfaces.
Compatibility: Ideal for the Roll Out 2020 CF system.
This upgrade kit is primarily designed for professional body repair shops where the Roll Out 2004 windshield removal system is used. The modernization ensures that shops comply with the latest OEM (Original Equipment Manufacturer) recommendations and safety regulations while maximizing efficiency during windshield replacements. The light weight (0.400 kg) facilitates handling and installation.
The quality of Wieländer+Schill products is also confirmed by ISO 9001 (Quality Management) and ISO 14001 (Environmental Management) certificates, guaranteeing reliable and professional solutions.
