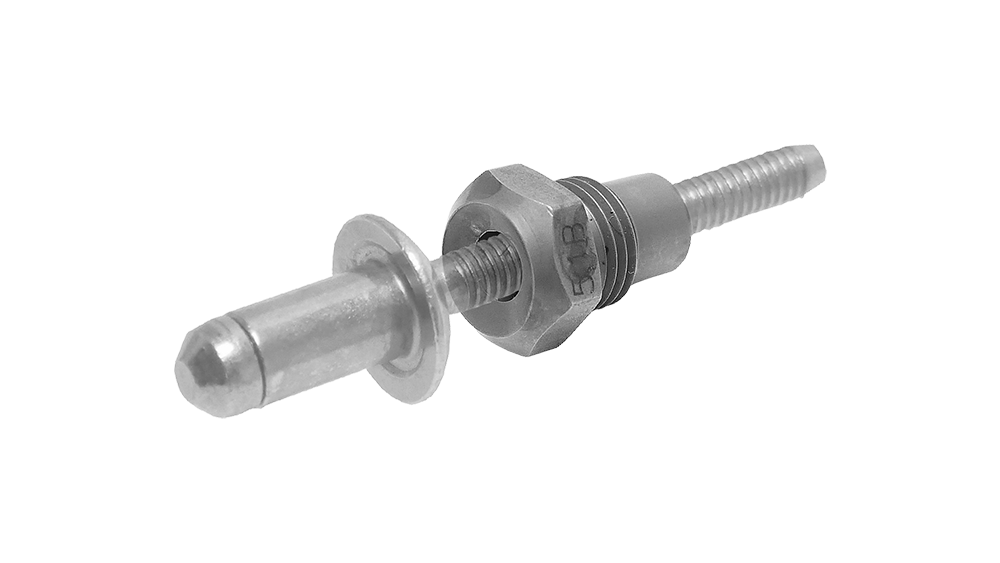

This detailed product description presents a high-quality, precision mouthpiece designed for the Wielander & Schill XSeries professional riveting technology, essential for reliable and durable fastening tasks. The Mouthpiece 5.1B with part number 700359 specially designed tool, which, working together with high-pressure riveting adapters, ensures the optimal setting of standard blind rivets.
A Mouthpiece 5,1B a precision component designed as part of the Wielander & Schill XSeries professional riveting systems. This mouthpiece is crucial for the professional and durable installation of blind rivets, especially during automotive repairs and other demanding metalworking applications.
The characteristic feature of the mouthpiece is the concave (cupped) head design, which ensures optimal fit and force transmission to the rivet head during the pulling process. This design minimizes the risk of surface damage while guaranteeing maximum deformation of the rivet and the creation of a solid connection.
This model is specifically for 5.1 mm diameter blind rivets ideal. For efficient operation, the mouthpiece must be used with the BR 50 type blind rivet adapter (blind rivet adapter). This combination ensures the necessary force and precise positioning for professional work execution.
The product is made of high-quality steel, which guarantees a long service life and high wear resistance, even under intensive, daily use.
The Mouthpiece 5.1B is manufactured according to strict quality specifications, ensuring compatibility and reliability within the Wielander & Schill systems.
| Property | Value | Note |
|---|---|---|
| Part number | 700359 | Unique Identifier |
| Product Name | Mouthpiece 5,1B | Mouthpiece 5.1B |
| Head Design | Concave | Optimal Rivet Setting |
| Diameter (Ø) | 5.1 mm | Internal diameter for the rivet |
| Compatible Adapter | BR 50 | Blind Rivet Adapter |
| Material | Steel | High Durability Design |
| Length | 12 mm | |
| Width | 12 mm | |
| Höhe | 17.61 mm | |
| Weight | 0.010 kg | Easy handling |
| Package contents | 1 piece (1 stück / 1 piece) |
Precise Fit: The 5.1 mm inner diameter precisely fits standard 5.1 mm blind rivets, ensuring that the mandrel is drawn out of the rivet centrally and effectively.
Concave Head: The concave design promotes even settling of the rivet head on the fastening surface, which is critical for a neat and strong connection, especially with thinner sheets.
Robust Material Usage: The steel construction guarantees that the nozzle withstands the high mechanical stress and continuous friction occurring during the riveting process without premature wear or deformation.
System Integration: Optimized exclusively for use with the BR 50 adapter, ensuring the performance and compliance with the safety requirements of Wielander & Schill XSeries systems.
Selecting the appropriate nozzle is fundamentally important for the success of the riveting process. By using Nozzle 5.1B, part number 700359, professionals gain the following advantages:
Increased Joint Quality: The special head shape ensures optimal closure of the rivet, resulting in a long-lasting, vibration-resistant connection.
Faster Work Execution: The precise fit reduces setup time and minimizes the chance of incorrect riveting.
Tool Protection: The quality steel nozzle protects the more expensive pulling adapter (BR 50) from excessive wear, thereby increasing the adapter's service life.
Professional Results: When used with XSeries technology, it guarantees repair quality that meets OEM (manufacturer) specifications.
Wielander & Schill offers a wide range of options for different rivet types and applications. In addition to the 5.1B nozzle, the following similar profile accessories are available for comprehensive work (note: prices and availability can be viewed after registration):
| Part number | Designation | Diameter | Head Design | Compatible Adapters |
|---|---|---|---|---|
| 700521 | Mouthpiece 4,5A | 4.5 mm | Flat | BR 20 or BR 50 |
| 700522 | Mouthpiece 4,8B | 4.8 mm | Concave | BR 50 |
| 700523 | Mouthpiece 4,5B | 4.5 mm | Concave | BR 50 |
| 700524 | Nozzle 3.2C | 3.2 mm | Standard | BR 20 or BR 50 |
| 700525 | Nozzle 3.6C | 3.6 mm | Standard | BR 20 or BR 50 |
| 700532 | Nozzle 3-AL | N/A | N/A | BR 50 |
| 700519 | Nozzle 3.6A | 3.6 mm | Flat | BR 20 or BR 50 |
| 700520 | Nozzle 4.0A | 4.0 mm | Flat | BR 20 or BR 50 |
Important Note: The 700359 Nozzle 5.1B is exclusively recommended for use with the BR 50 blind rivet adapter, and as part of the XSeries professional riveting technology, it meets the highest quality expectations.
