This detailed product description presents a rectangular thermometer without bimetallic compensation from the Leitenberger MR product family, which is ideal for precise temperature measurement in various industrial and technical applications. The high-quality instrument, manufactured in Germany, guarantees reliability and accuracy.
This special thermometer is excellently suited for environments where reliable, easily readable temperature measurement is required, and where bimetallic compensation is not desired or necessary. The robust ABS housing and the plexiglass window ensure durability, while the integrated spring clips allow for simple and secure mounting.
Main Advantages:
Outstanding Accuracy: The instrument operates with an accuracy of ± 3%, ensuring reliable measurement results.
Durable Design: The ABS plastic housing is resistant to environmental influences.
Integrated Mounting: The built-in spring clips enable fast and stable installation.
Customizability: Several options are available regarding the housing color, scale design, and bezel, so that the instrument perfectly matches the user's requirements and the environment.
The precise physical parameters and selectable options of the thermometer are detailed in the table below:
| Characteristic | Spezification | Note |
|---|---|---|
| Part number | 2002540040_LR-WS | Bimetal compensation excluded |
| Pontosság | ± 3 % | Standard measurement tolerance |
| Housing Material | ABS | In black or white |
| Window Material | Acrylic Glass | Durable and transparent |
| Compensation | Bimetal compensation excluded | |
| Fixation | Integrated spring clips | Simple and secure mounting |
| Dimensions (Type 1) | 102.5 x 58 mm | Overall housing size |
| Height (b) | 58 mm | |
| Width (c) | 25 mm | |
| Depth (d) | 4 mm | |
| Measurement range (A) | 65 mm | Length or relevant dimension of the scale |
| Total Length (B) | 32 mm | Distance between mounting points or relevant dimension |
In addition to the standard version, several options are available to tailor the thermometer to individual requirements, thereby increasing readability and aesthetic appearance:
Colored Scale: Scales available in different colors for better contrast and faster reading.
Case Colors: In addition to standard black and white, other housing colors are available: blue, red, yellow, green.
Front Bezel: The front bezel is available in chrome-plated ABS material, or optionally in a color matching the case.
Bimetal Compensation: Although the standard model does not include this, this function can be requested as a separate option (although the specific item number refers to the version without compensation).
Rögzítő Adapter: Mounting adapter available separately in 74 x 32 mm size, in black or white.
U-clamp: An additional mounting element for even more stable support.
The ABS-cased thermometer without bimetal compensation is the ideal choice in the following areas:
Refrigeration and HVAC Technology: General temperature monitoring in refrigeration units and air conditioning systems where ambient temperature fluctuations do not significantly affect measurement accuracy.
Industrial Measurement and Control Technology: Process monitoring where robust, fixed-installation instruments are advantageous.
Automotive Testing: Suitable for temperature monitoring on test benches or during maintenance procedures.
To increase measurement accuracy and flexibility, users often choose the following accessories that can be used with the thermometer:
You can optimize the positioning of the temperature sensor (probe) and heat transfer by selecting different capillary types:
Stainless Steel (V-Stahl): Extremely durable, natural stainless steel design.
Copper – Single Copper Braided (Capillary Cooper- Single Cooper Braided): Good mechanical protection and heat transfer.
Copper – Double Copper Braided (Capillary Cooper- double copper braided): Increased mechanical protection.
Copper – PVC coated (Capillary Copper- PVC coated): Especially good protection in wet or corrosive environments.

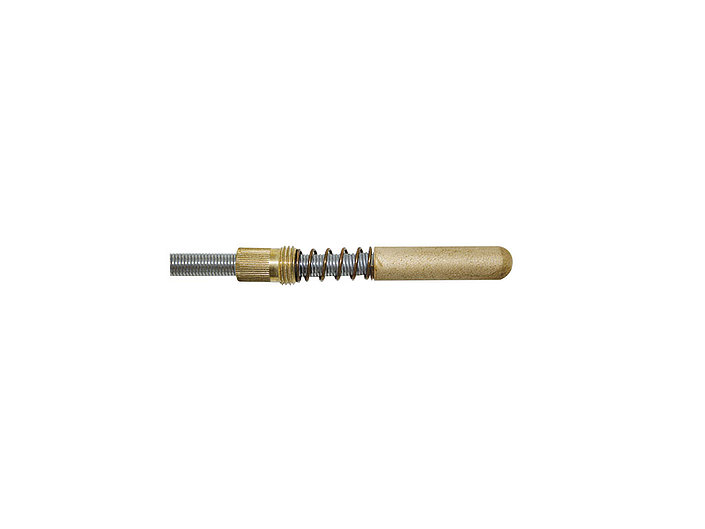

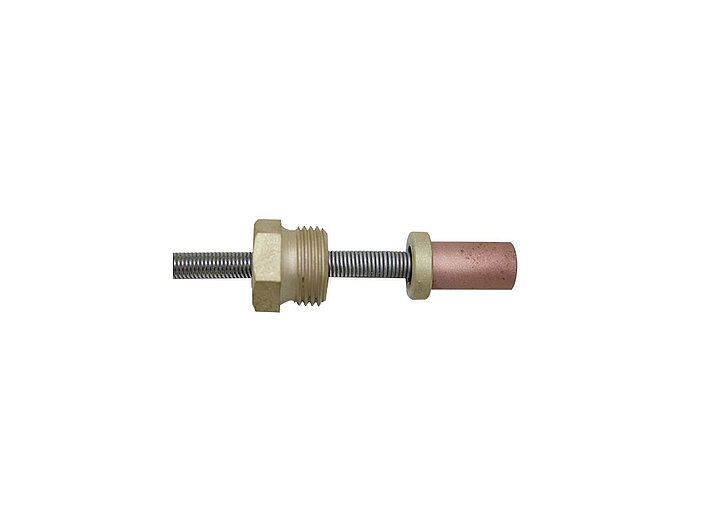

Probe types adapted to the measurement location and the required heat transfer:
Type 1 (1a, 1b, 1c): Probes with different geometries and sizes.
Type 2 (2a, 2b, 2c): Further variations for installation requirements.
Type 3 (3a, 3b, 3c): Sensors with a special design.
Type 5 (5a, 5b, 5c): Larger or specially fastened probes.
Type 6 (6a): Custom probe design.
Type 7 (7c): Probe optimized for specific applications.

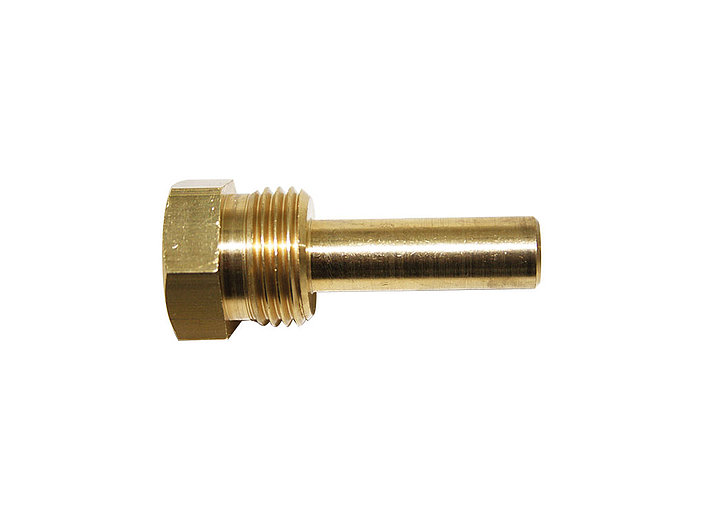

Protective sleeves for protecting the probes and connecting the temperature sensor:
Pocket No. 8: General purpose protection sheath.
Pocket No. 9: Stainless steel protection sheath.
This thermometer represents the quality of Leitenberger, providing a reliable and long-term solution for temperature measurement challenges.
