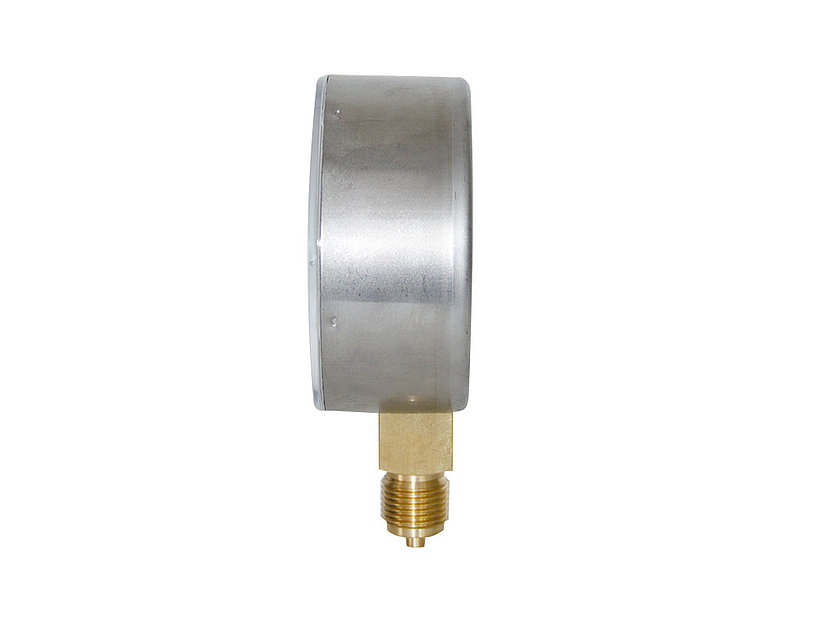

LEITENBERGER Mess- und Regeltechnik GmbH presents the KFM_Klips part number capsule pressure gauge, manufactured in Germany (Made in Germany) in accordance with the highest quality requirements. This precision instrument is the ideal choice for measuring the pressure of gaseous media, especially where reliability and accurate measurement are essential.
This product family is manufactured in accordance with EN 837-3, featuring outstanding design and user-friendly functions.
The KFM Clip series pressure gauges offer the following key advantages:
Excellent Quality Construction: The wetted parts of the instrument are made of copper alloy, ensuring a long service life and resistance to corrosion against compatible media.
Snap-in Window: The Plexiglas window is easily replaceable and lockable, which facilitates potential maintenance and ensures a clear reading.
Zero Point Adjustment: The zero point correction can be carried out simply and quickly using the adjustment screw found on the scale, guaranteeing the accuracy of the measurements.
Versatile Application: Specifically suitable for all gaseous media that do not clog the pressure system.
Robust Protection: Thanks to its IP 45 protection class, the instrument is resistant to the ingress of dust and splashing water, ensuring reliable operation even in industrial environments.
High Accuracy: The 1.6 accuracy class (±1.6 % FS – full scale) ensures a high degree of reliability of the measurement results.
The specifications of the KFM Clip capsule pressure gauges are summarized in the following table of the most important parameters:
| Parameter | DS 63 Design | DS 100 Design | Note |
|---|---|---|---|
| Standard | EN 837-3 | EN 837-3 | |
| Part number | KFM_Klips | KFM_Klips | |
| Material of Wetted Parts | Copper alloy | Copper alloy | |
| Window Material | Acrylic Glass | Acrylic Glass | |
| Protection | IP 45 | IP 45 | Protection against dust and splashing water |
| Accuracy Class | 1.6 (±1.6 % FS) | 1.6 (±1.6 % FS) | |
| Measuring Ranges (Pressure/Vacuum/Combined) | From 0/25 mbar to 0/1000 mbar | From 0/16 mbar to 0/1000 mbar | Suitable for pressure, vacuum, and combined (pressure/vacuum) measurements |
| Connection (Standard) | 1/4″ BSP M, Brass (SW 14) | 1/2″ BSP M, Brass (SW 22) | |
| Other Connections | Available upon request (e.g., NPT threads) | Available upon request (e.g., NPT threads) | |
| Zero Point Adjustment | Adjustment screw on the scale | Adjustment screw on the scale |
This type of capsule pressure gauge is an ideal choice for systems where low pressure values (mbar range) need to be measured, and the medium is gaseous. Typical application areas:
Refrigeration and HVAC Technology: Monitoring gas pressure and during leak tests.
Industrial Measurement and Control Technology: Supervision of low-pressure processes.
Medium handling: In gas transport systems where precise pressure monitoring is critical.
LEITENBERGER offers flexible solutions to meet special requirements. The following options are available at an extra charge:
The KFM Klips capsule pressure gauge is a guarantee of German engineering precision, ensuring reliable and accurate pressure measurement in your critical systems in the long term.
