This detailed product description presents the Leitenberger thermometer with article number MRT 02.13, designed for front installation, featuring a stainless steel casing, U-clamp fixing, and bimetallic compensation. Guaranteed by „Made in Germany” quality, this instrument is excellently suited for precise temperature measurement in industrial and refrigeration applications.
This robustly designed analog thermometer is an ideal choice for situations requiring reliable and accurate temperature measurement, especially in cooling systems, air conditioning equipment, or general industrial processes. The bimetallic compensation technology ensures the correction of ambient temperature effects, thereby increasing measurement accuracy.
Main features of the instrument:
Locking mechanism: Designed for mounting with a U-clamp, allowing for stable and secure front installation.
Compensation: Built-in bimetallic compensation to minimize error resulting from ambient temperature fluctuations.
Casing material: Fully stainless steel (INOX) casing, which guarantees excellent corrosion resistance and long service life.
Front Ring: Polished stainless steel front bezel, providing an aesthetic appearance and protecting the structure.
Window: Durable plexiglass window to facilitate reading.
Accuracy: Default accuracy class ± 2 %.
The thermometer is available in various size combinations that can be adapted to the measuring range and installation requirements. The table below details the available types and their physical parameters:
| Típus | a (Installation depth) | b (Mounting hole distance) | c (Casing thickness) | D (Casing diameter) | e (Total diameter) | Casing size (mm) |
|---|---|---|---|---|---|---|
| 1063 KB/V | 33 | 48 | 6 | 63 | 68 | 63 |
| 1080 KB/V | 30 | 45 | 6 | 80 | 85 | 80 |
| 1100 KB/V | 30 | 45 | 7 | 100 | 105 | 100 |
| 1160 KB/V | 35 | 50 | 13 | 160 | 190 | 160 |

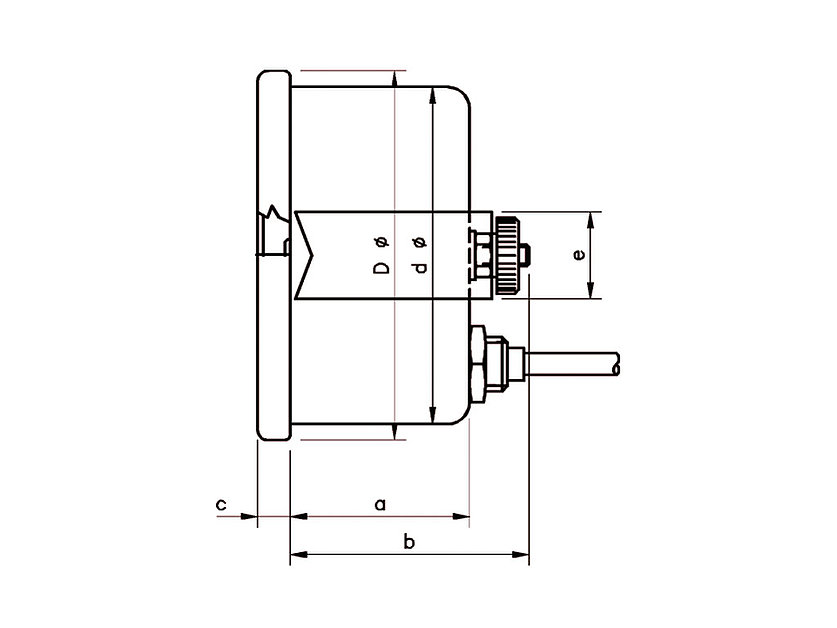

Note: The parameters ‘a’, ‘b’, ‘c’, ‘D’, ‘e’ listed in the table indicate the specific installation and physical dimensions of the instrument. The designation „KB/V” likely refers to bimetallic compensation and V-clamp fixing.
In addition to the standard design, Leitenberger offers a wide range of customization options to meet even the most specific application requirements for the thermometer:
Back adjustment: Allows for post-installation fine-tuning of the instrument on site.
Enhanced Accuracy: Accuracy selectable instead of standard ± 2 %:
± 1 %
± 1.5 %
Drag pointer: An auxiliary indicator that records the highest (or lowest) measured value, helping to track maximum temperature peaks.
Custom scale and dial: Possibility to customize the dial, including colored scales that visually highlight critical temperature zones.
Glass Window: Real glass window available instead of standard plexiglass for better scratch resistance and optical clarity.
Glycerin filling: The instrument housing can be filled with glycerin. This liquid dampens pointer vibrations (e.g., in environments with strong vibration) and protects the internal mechanism from moisture, ensuring continuous, stable readings.
Due to the stainless steel case and bimetallic compensation, this thermometer is particularly recommended for:
Refrigeration technology: Pressure and temperature monitoring of air conditioning equipment, refrigeration units, and cold rooms.
Industrial Measurement and Control Technology: Supervision of processes where ambient temperature might affect instrument accuracy.
Solar energy systems: Monitoring the temperature of heat transfer fluids used in solar systems.
General Mechanical Engineering: Any mechanical application requiring permanent, durable front panel installation.
Leitenberger products are manufactured according to „Made in Germany” quality criteria, which guarantees precise workmanship and long-term reliability. The stainless steel (INOX) case resists corrosive substances and harsh industrial conditions, thus maintaining the instrument's operating parameters over the long term.
This thermometer is part of Leitenberger's wide product range, which also includes pressure gauges, pumps, digital measuring devices, and other temperature controllers, ensuring comprehensive solutions in industrial metrology.
