Part number: 700319
The Wieländer+Schill K1 punch tool belongs to the professional riveting technology (XSeries) category, specifically developed for automotive body repair work and precise machining of metal sheets. This excellent quality tool is the ideal choice for applications requiring reliable and precise punching, especially for high-strength sheets.
The K1 punch is a precision component designed as part of the Wieländer+Schill XSeries systems. The main function of the tool is to prepare body elements for riveting or other fastening procedures, ensuring clean, burr-free holes.
Main Advantages:
Precise Manufacturing: The tool is manufactured in accordance with strict quality specifications, guaranteeing consistent performance with every use.
Compatibility: Optimized specifically for XSeries professional riveting technology, ensuring seamless integration with your existing toolset.
Durability: Manufactured using premium quality materials, ensuring long service life and resistance to high mechanical stress.
Ideal for High-Strength Materials: Especially suitable for punching through high-strength steels and aluminum alloys often used in modern vehicles.
The precise dimensions and specifications of the K1 punch tool ensure compatibility and professional use:
| Property | Value | Note |
|---|---|---|
| Product Category | XSeries – Professional Riveting Technology | |
| Part Type | Punch Tool | |
| Part number | 700319 | |
| Nominal Diameter (Ø) | 6 mm9.29" x 6.69" x 4.08" | Size of the punched hole |
| Length | 18 mm | |
| Width | 16 mm | |
| Höhe | 45.55 mm |
This 6 mm diameter punch tool is an indispensable device for the following areas:
Body Repair: Creating precise holes for repair points, joints, and riveting locations.
Structural Connections: Can be used in areas where metal sheets need mechanical fastening, for example, during repairs or the installation of new components.
Prototype Production and Custom Machining: For precision-demanding industrial tasks.
For optimal performance of the K1 punch and to support the entire body repair process, the following accessories are recommended:
| Accessory Product | Part number | Description |
|---|---|---|

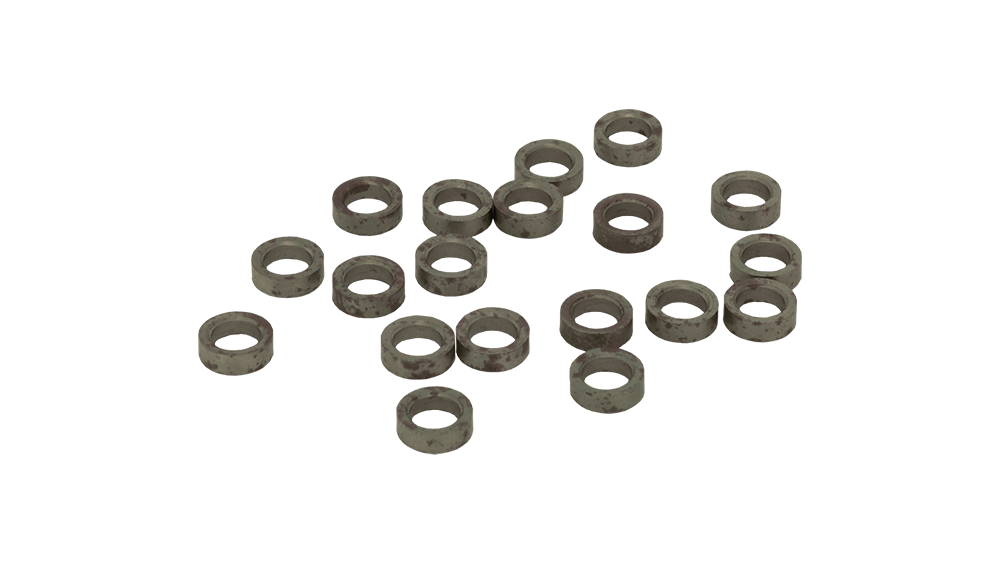

| SKR Punch Crowns | 700141 | SKR punch crowns in Ø 6 mm size. Package contents: 50 pcs/pack. Recommended specifically for high-strength sheets. |

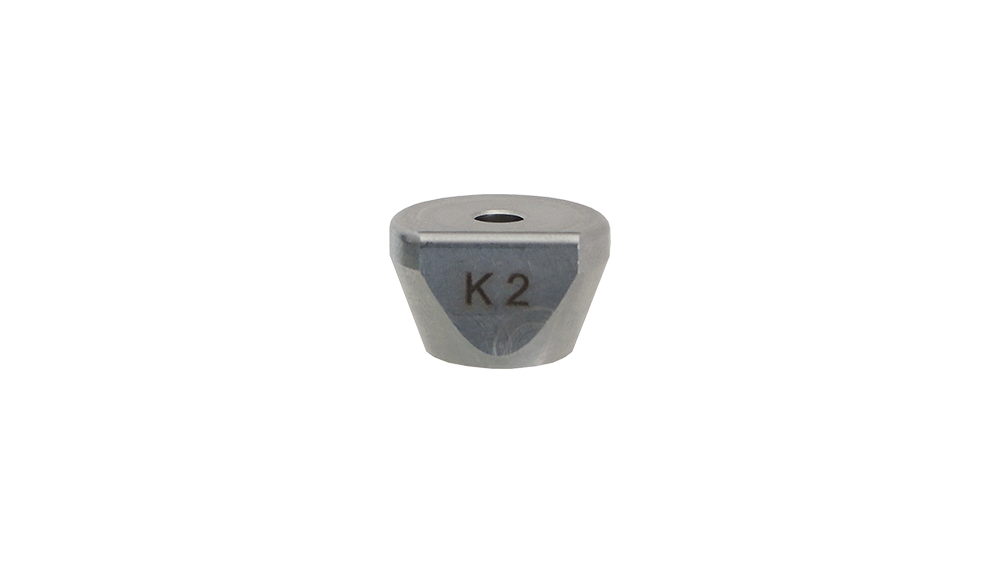

| K2 Backing Head | 700297 | K2 backing head in Ø 6 mm size. For post-punching operations, shaping the hole edge. |
Note: Prices and availability of accessories can be viewed after logging in.
Wieländer+Schill is committed to the highest quality standards. The manufacturing processes are strictly controlled, as evidenced by the following certificates:
ISO 9001: Quality Management System Certificate.
ISO 14001: Environmental Management System Certificate.
These certificates guarantee that the K1 punching tool meets even the strictest industry requirements.
This product belongs to the Wieländer+Schill XSeries – Professional Riveting Technology product family, which offers reliable and effective solutions for body repair specialists.
