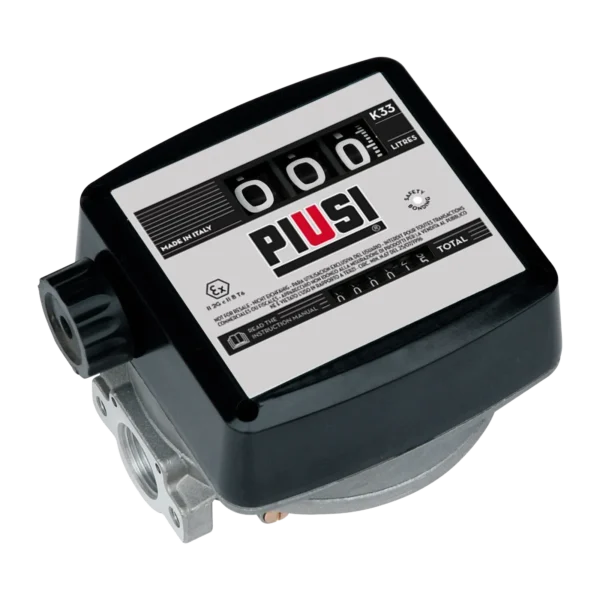

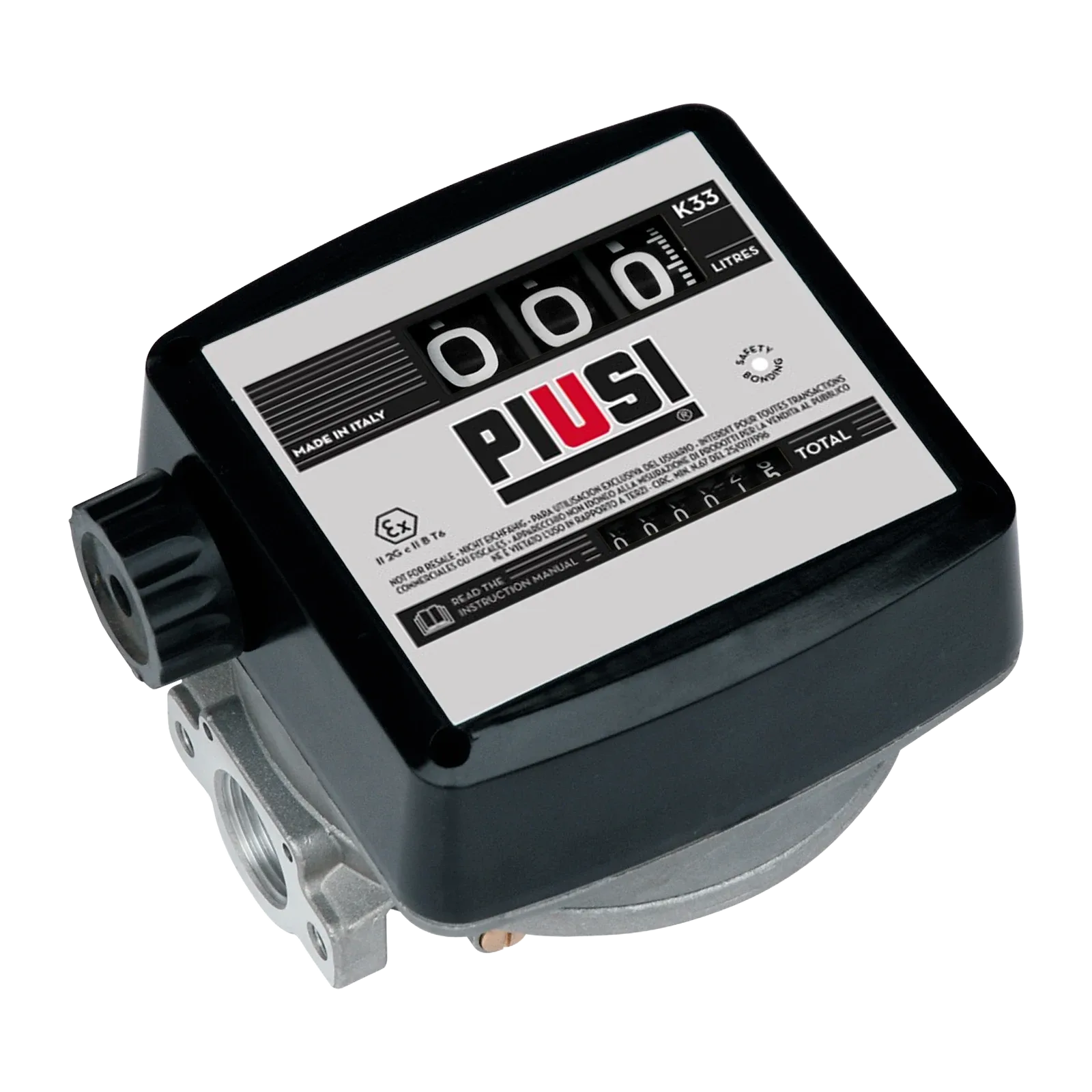

The PIUSI K33 ATEX is a robust, mechanical flow meter specifically designed for the accurate measurement of diesel, petrol, and kerosene for non-commercial use. This device offers an ideal solution for environments with high explosion risk, as it complies with ATEX directives, ensuring safe and precise fuel dispensing control.
The K33 ATEX flow meter is excellently suited for use in the logistics, mining, construction, industrial, marine, and agricultural sectors where a reliable, easy-to-handle, and cost-effective measurement solution is needed to track fuel consumption in vehicle fleets or machinery parks.
The K33 ATEX flow meter is designed with accuracy, quality, and reliability in mind.
The device guarantees extremely accurate measurement of the amount of fuel dispensed.
Measurement Accuracy: The K33 ATEX flow meter ensures an accuracy of ±%.
Easy Calibration: Thanks to its user-friendly design, the instrument can be easily calibrated on-site.
Display: Features a 3-digit partial totalizer for easy reading.
Flow Directions: Support for four different flow directions makes installation flexible.
The robust construction and wide compatibility of the K33 ATEX ensure long-term, trouble-free operation.
Application Areas: Ideally applicable for pumps or fuel dispensers.
Installation Flexibility: Can be installed in any position on rigid and flexible pipes, directly onto pumps or tanks.
Gravity Operation: It can also be used in gravity operation thanks to its low flow resistance.
Explosion Proofing (ATEX Certification): The device belongs to Group II, Category 2 (G IIB T=85°C (T6)), making it suitable for operation in Zones „1” and „2” according to Directive 99/92/EC, where there is a high risk of explosion.
The K33 ATEX is exceptionally resistant to pressure fluctuations occurring in the system.
Burst Pressure: The device is guaranteed to withstand pressures up to 28 bar.
Maximális Üzemi Nyomás: The maximum operating pressure of the pump is 3.5 bar.
The PIUSI K33 ATEX flow meter can be perfectly integrated into the following industrial sectors:
Logistics: Fleet management and fuel dispensing control.
Mining & Construction: Precise measurement of heavy machinery fuel supply.
Industrial Applications: Production lines and site fuel supply.
Naval: Monitoring of vessel fuel consumption.
Agriculture: Tracking the fuel consumption of agricultural machinery.
| Parameter | Value | Note |
|---|---|---|
| Product Category | Flow Meter | Mechanical |
| Compatible Fluids | Diesel, HVO/XTL, Gasoline, Kerosene | For non-commercial use |
| Maximum Flow Rate | 20 – 120 l/min | |
| Maximum Operating Pressure | 3,5 bar | Maximum pump pressure |
| Burst Pressure | 28 bar | |
| Measurement Accuracy | ± 1% | |
| Display | 3-digit partial meter | |
| Flow Directions | 4 | |
| ATEX Certification | Group II, Category 2 G IIB T=85°C (T6) | Suitable for zones „1” and „2” |
| Installation | In any position | On pipes, pump outlets, or tanks |
| Operating Mode | By pump or by gravity |
The K33 ATEX flow meter is available in different versions, meeting various connection standards (the exact product codes can be selected according to installation requirements):
| Product code | Description |
|---|---|
| F0057000A | (Ex) K33 METER VER.A LTR. |
| F0057001A | (Ex) K33 METER VER.B |
| F0057002A | (Ex) K33 METER VER.C |
| F0057003A | (Ex) K33 METER VER.D |
| F00570570 | (Ex) K33 METER NPT/UNC GAL VER.B |
The PIUSI K33 ATEX is the cornerstone of reliable, explosion-proof fuel measurement, offering simplicity and precision even in the most demanding industrial environments.
