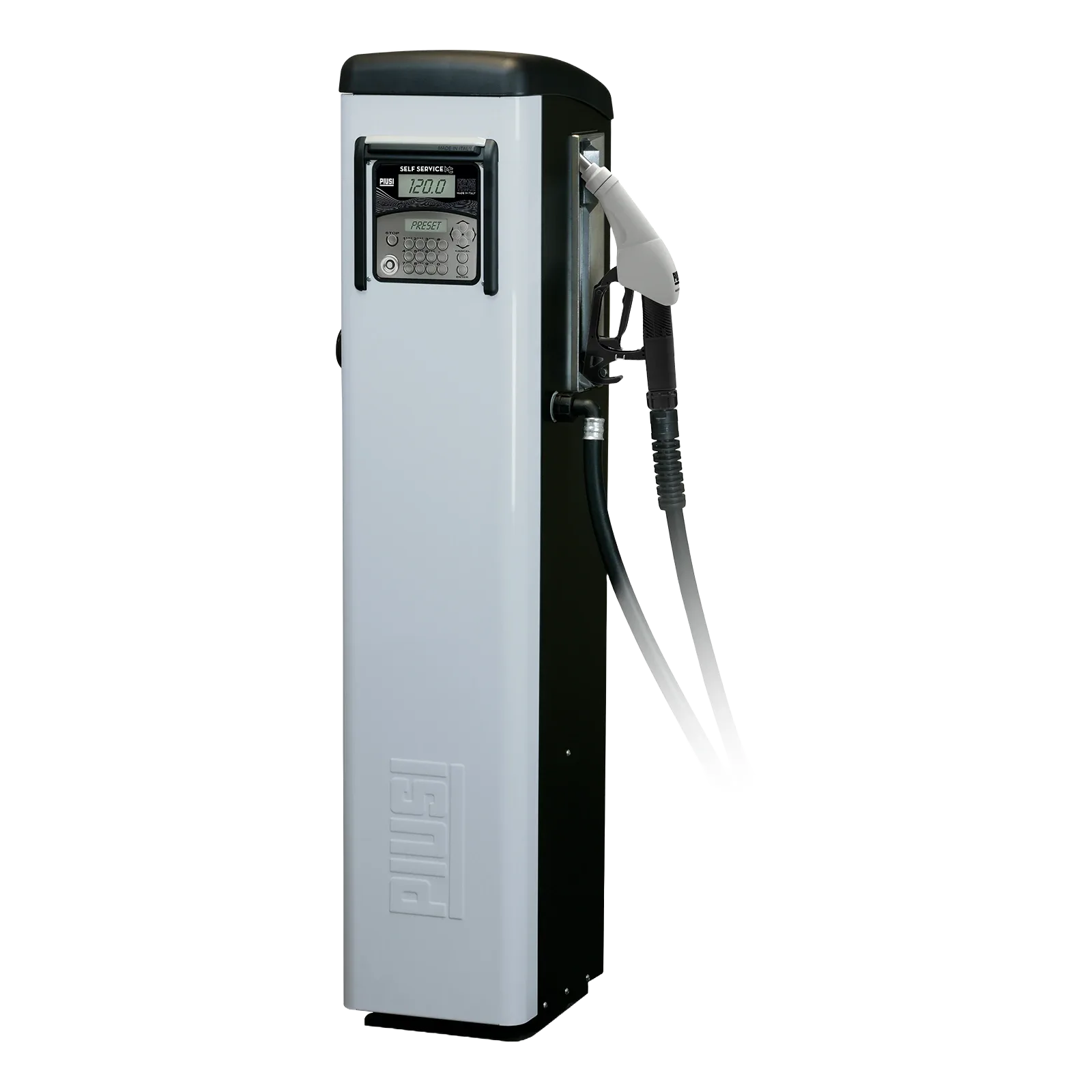

A SELF SERVICE MC AdBlue® dispenser a prominent element of the PIUSI range, specifically developed for the transfer of non-commercial AdBlue® (urea solution). This compact yet robust unit is an ideal choice for logistics, mining, construction, and general industrial applications where the reliable and controlled refueling of vehicles equipped with Diesel Particulate Filters (SCR) is essential.
The SELF SERVICE MC AdBlue® dispenser combines quality, durability, and user-friendliness, ensuring the preservation of AdBlue® quality and extending the service life of the catalyst.
The SELF SERVICE MC AdBlue® dispenser has several features that guarantee efficient and safe operation:
Industrial Quality Design: The unit has a massive structure that withstands harsh working environments. The hinged front panel ensures easy access to components, thereby facilitating maintenance.
Self-Priming Pump: The transfer of AdBlue® is performed by a diaphragm pump specially developed for this fluid, driven by an electric motor without dynamic seals. This design guarantees extremely reliable, industrial-level performance and excellent self-priming capability.
SB325_X Automatic Dispensing Nozzle: The standard equipment includes the ergonomic, heavy-duty SB325_X nozzle. Stainless steel spout equipped with a breakaway system, which prevents damage to the hose or nozzle if the vehicle is accidentally moved while the nozzle is still in the tank.
3D Filter for AdBlue®: The integrated 3D filter with high-efficiency, progressive mechanical filtration is crucial for completely preserving the quality of AdBlue®. This filtration technology prevents contaminants from entering the vehicle's SCR system, thus significantly contributing to the long service life of the catalyst and the optimal operation of the system.
Multi-user Management: Enables tracking of users and transfers, which is essential for fleet management.
Compact All-in-One Solution: Thanks to the integrated design, all necessary components are housed in a single, space-saving unit.

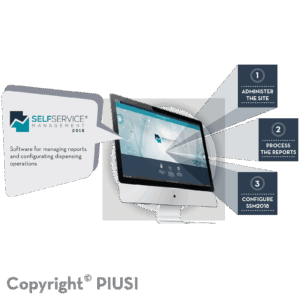

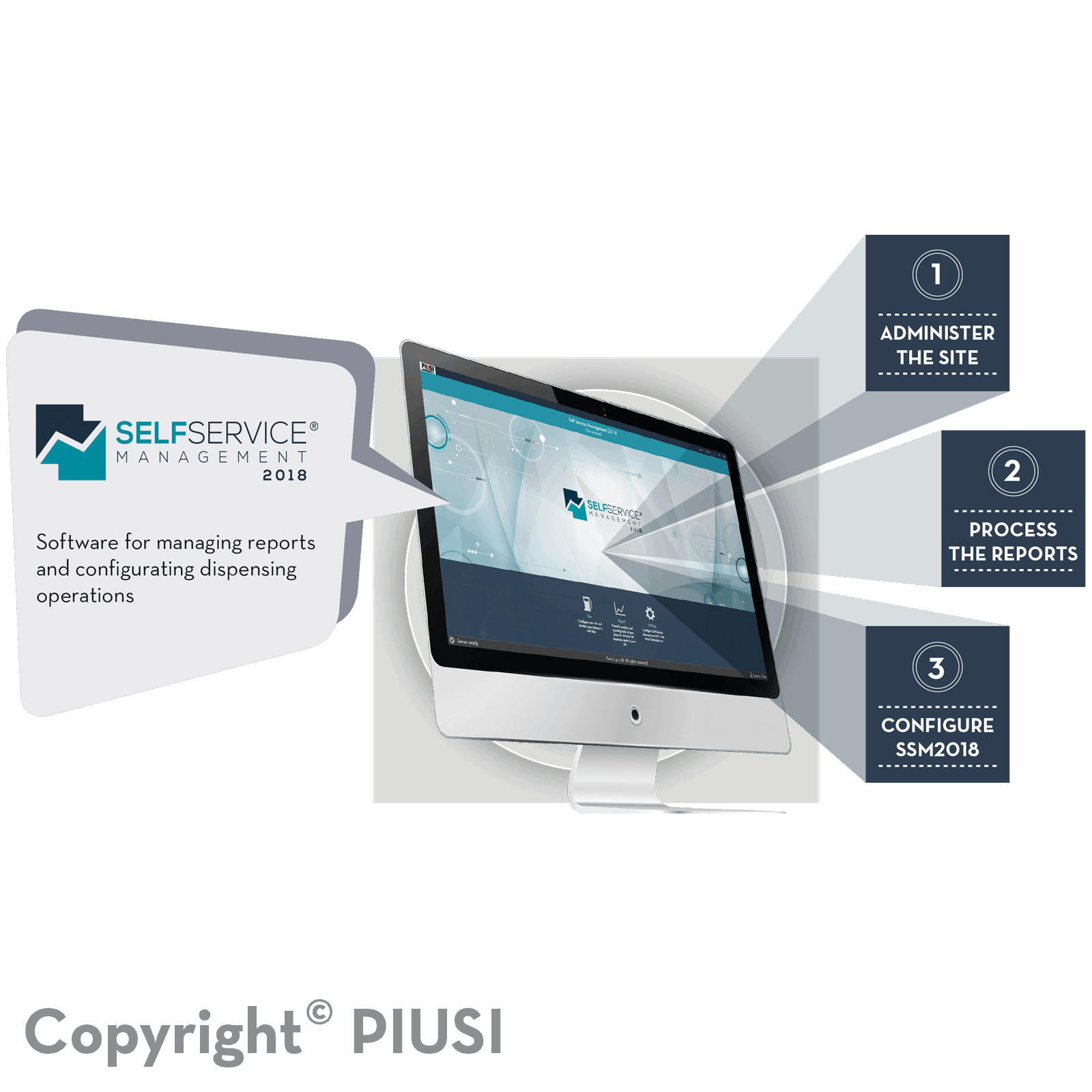

Software Compatibility: Compatible with SSM AGILIS software, which further expands management and data collection capabilities.
The SELF SERVICE MC AdBlue® dispenser is the ideal choice in sectors where large quantities of AdBlue® are consumed and strict quality assurance is required:
Logistics Centers
Mining and Construction Sites
Industrial Plants and Fleets
For reliable operation, the device has the following technical parameters:
| Property | Spezification |
|---|---|
| Product Category | AdBlue® / Other Fluids |
| Fluid | AdBlue® (Urea solution) |
| Application | Logistics, Mining & Construction, Industrial |
| Pump Type | Diaphragm pump, without dynamic seals |
| Pump Function | Self-priming |
| Dispensing gun | Automatic SB325_X |
| Nozzle Features | Stainless steel spout, Breakaway system |
| Filtration | 3D filter for AdBlue®, high efficiency, progressive mechanical filtration |
| Handling | Multi-user management |
| Integration | SSM AGILIS software compatible |
| Construction | Compact, All in one equipment |
| Maintenance | Hinged front panel |
The product identification and the list of necessary accessories are summarized in the table below:
| Product Code | Description |
|---|---|
| F0074400B | SELFSERV.MC ADBL 230V/50Hz AGILIS |
Optional Accessories:
| Product Code | Description |
|---|---|
| F1590400A | KIT DRIVER KEY YELLOW (10 pc pack) – User identification key set |
The SELF SERVICE MC AdBlue® dispenser reflects PIUSI's commitment to durable, efficient, and environmentally compliant fluid management solutions. The built-in filtration technology and industrial-grade components ensure that AdBlue® always reaches vehicles in optimal condition, thereby maximizing the performance of SCR systems.
