The Wielander + Schill GTC-082A/SW is a high-quality pneumatic (compressed air powered) angle grinder, specifically designed for professional metal processing and bodywork repair tasks. This compact and powerful tool is ideal for grinding, deburring, polishing, and fine machining work where precision and reliability are essential.
This angle grinder belongs to the Wielander + Schill category of „Separating Tools” and is excellently suited for post-processing of weld seams, removing surface irregularities, and stripping paint and contamination, especially on aluminum (ALU) surfaces.
The GTC-082A/SW angle grinder features the following key properties that guarantee efficient and ergonomic work execution:
Compact Design: Its extremely small dimensions (225 x 72 x 28 mm) allow for precise work in tight spaces where larger tools cannot fit.
High Speed: A maximum speed of 20,000 revolutions/minute (U/min) ensures rapid material removal and a smooth surface finish.
Ergonomic Handle: The tool's light weight (0.685 kg) and carefully designed ergonomics minimize user fatigue during prolonged use.
Robust Construction: The housing is made of aluminum die-cast and durable plastic (Kunststoff), which guarantees a long service life even under intense workshop conditions.
Alacsony Zajszint: The sound pressure level of 87 dB(A) contributes to a more pleasant working environment.
Low Vibration: A vibration level of only 2.5 m/s² ensures precise controllability and reduces the risk of Hand-Arm Vibration Syndrome.
The following table details all the important technical parameters of the GTC-082A/SW pneumatic angle grinder:
| Parameter | Value | Unit | Note |
|---|---|---|---|
| Part number | 611123 | – | Product Identifier |
| Drive type | Pneumatic | – | Pneumatically operated |
| Power | 400 | W | Drive Power |
| Operating pressure | 6 | bar | Optimal operating pressure |
| Air consumption | 0,085 | m³/min | Average Air Consumption |
| Rotational Speed (No-load) | 20000 | rpm | Maximum Speed |
| Collet (Spannzange) Size | 6 | mm | Tool Holder Diameter |
| Length x Width x Height | 225 x 72 x 28 | mm | Compact dimensions |
| Weight | 0,685 | kg | Light weight |
| Sound pressure level | 87 | dB(A) | Ambient Noise Level |
| Vibration | 2,5 | m/s² | Vibration Level |
| Materials | Alu, Aluminum die-cast, Plastic | – | Construction Materials |
| Air quality | ISO 8573-1 | – | Required Air Purity |
| Package Contents | 1 stück | Piece | Package contents |
To achieve optimal tool performance and maximize its service life, it is essential to ensure compressed air quality compliant with the ISO 8573-1 standard. Maintaining an operating pressure of 6 bar is crucial for achieving 400 W power and 20,000 rpm.
To utilize the full potential of the GTC-082A/SW shaft grinder, several special grinding and machining accessories are available. These accessories enable the precise processing of various materials and tasks:
Solid Carbide Burrs:
Small Conical Shape (Part No.: 637001): Ideal for finishing weld seams.

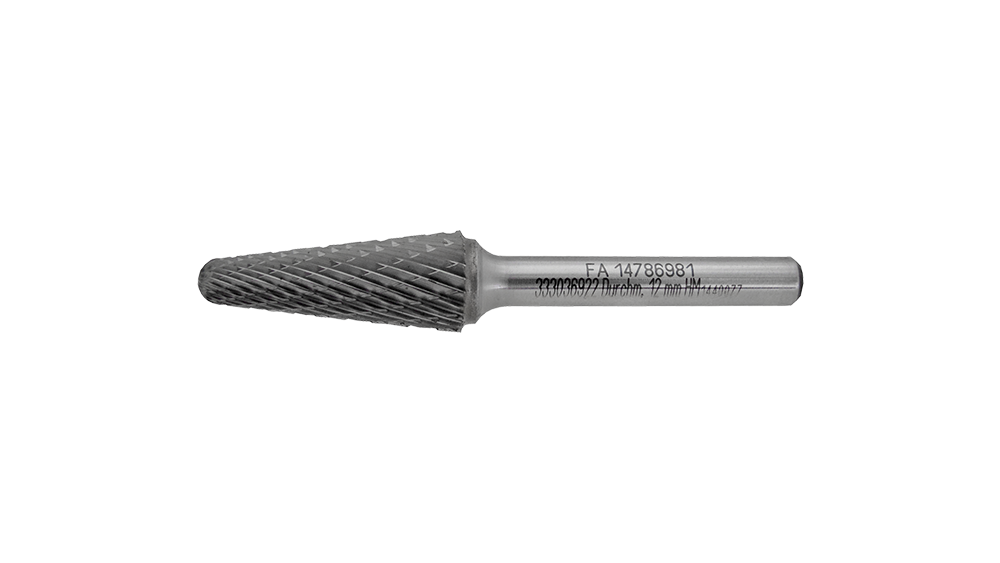

Large Conical Shape (Part No.: 637003): For greater material removal and weld profiling.
Round Shape, Ø 12 mm (Part No.: 637002): For general surface finishing.
ALU Burrs (Part No.: 637010, 637011, 637012): Shapes specially optimized for aluminum (cylindrical-domed, round, large dome) that prevent material sticking.

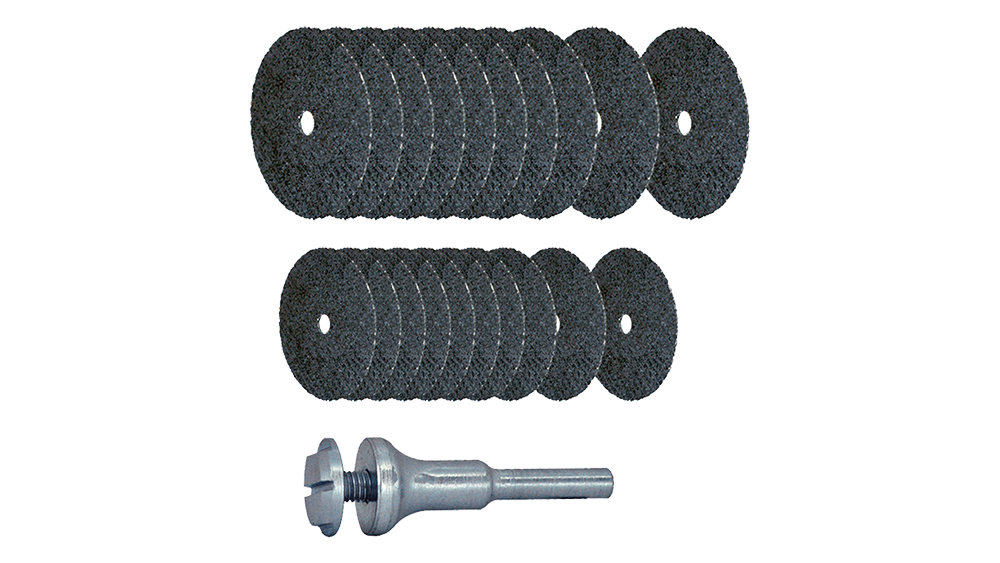

Cutting Disc Set with Mandrel (Part No.: 637025):
Set of 21 pieces, containing 1 mandrel with a 6 mm bore (Part No.: 637020) and 20 cutting discs (10 pcs Ø 30×1.0x6 mm and 10 pcs Ø 50×1.0x6 mm). Excellently suited for precise cutting of thin sheets.
CSD Grinding Disc Set with Mandrel (Part No.: 612010):
This set (2 CSD grinding discs and 1 mandrel) is ideal for the chemical removal of paint and contamination from metal surfaces, perfectly preparing them for coating, painting, or soldering phases.
Crimped Conical Brush (Part No.: 541203): Ø 100 mm, with 0.5 mm wire diameter, for cleaning hard-to-reach areas.
Crimped Circular Brush (Part No.: 541204): Ø 75 mm, with 0.5 mm wire diameter, for larger surfaces.
Crimped Brush (Part No.: 541206): Ø 20 mm, with 0.35 mm wire diameter, for narrower crevices.
Brass Coated Circular Brush (Part No.: 541214): 36 × 6.5 mm, with M6 thread, 0.3 mm wire diameter, for more delicate cleaning or special surfaces.
The GTC-082A/SW axle grinder is an integral part of the Wielander + Schill professional tool range, guaranteeing the high-quality execution of body repair work.
