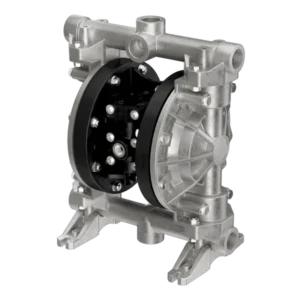

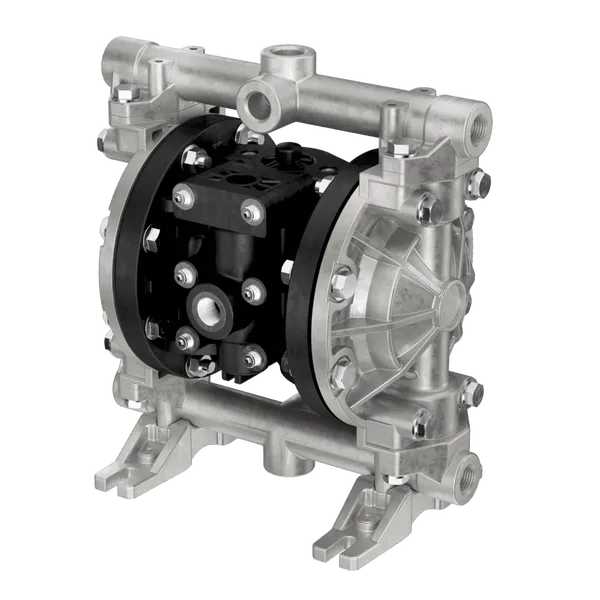

A PRO ONE 25 MA a high-quality, Air Operated Double Diaphragm (AODD) pneumatic pump, specifically designed for the maximum efficient and reliable transfer of oil and other industrial fluids. This equipment is an ideal choice for environments requiring continuous, high-performance fluid movement, such as in service centers, mining and construction facilities, and general industrial applications.
The PRO ONE 25 MA features self-priming (suction) capability and an anti-stall design, ensuring uninterrupted, smooth operation even under the most demanding conditions. Its robust construction and the use of high-quality materials guarantee a long service life and easy maintenance.
One of the outstanding advantages of the PRO ONE 25 MA is its energy efficiency, made possible by low compressed air consumption. This results in more economical and sustainable operation in the long run. The pump is also optimized for quiet operation, with only 78 dB(A) noise level, contributing to a more pleasant working environment.
The fluid transfer rate is extremely flexibly adjustable, between 0 and 160 liters/minute, providing maximum versatility for different operational needs. For continuous and reliable flow, the pump is equipped with ball-type suction and discharge valves. van felszerelve.
The connection design facilitates integration: the fluid connections 1” Gas thread (4+4) are provided, while the pneumatic inlet is 3/8” Gas size, ensuring simple and secure fitting to existing systems. The operating pressure (supply pressure) required is adjustable over a wide range, between 1 and 6.8 bar, allowing for precise performance adjustment for the specific application.
Only 11.4 kg weight, the PRO ONE 25 MA is compact and easy to install in various industrial environments.
The PRO ONE 25 MA is the ideal solution for oil transfer and the handling of other viscous industrial fluids. It is the perfect choice for those seeking reliability, efficiency, and durability. Its solid structure, low maintenance requirement, and optimized performance represent a secure investment for any fluid handling system.
The PRO ONE 25 MA pump features the following key specifications:
| Characteristic | Value | Note |
|---|---|---|
| Product Category | Lubricants Fluid Management | |
| Application Areas | Service Equipment, Mining & Construction Industry, Industrial | |
| Flow Rate (Adjustable) | 0 – 160 l/min | Maximum flexibility |
| Valve Type | Ball-type suction and discharge valves | Ensuring continuous flow |
| Fluid Connections | 1” Gas Thread (4+4) | |
| Pneumatic Supply Inlet | 3/8” Gas | |
| Supply Pressure (Min / Max) | 1 / 6.8 bar | Adjustable operating range |
| Max. Equivalent Solid Particle Diameter | 5.1 mm | Capacity for solid particle transfer |
| Suction Height (Dry / Wet) | 4 m / 7 m | Self-priming capability |
| Noise Level | 78 dB(A) | Quiet Operation |
| Weight | 11.4 kg | Easy Installation |
| Technology | Pneumatic (AODD) | Pneumatically operated |
The PRO ONE 25 MA performs excellently in the following sectors:
Vehicle Service Centers and Maintenance Workshops: For rapid and clean pumping of large quantities of used or new oil.
Mining & Construction: Reliable dispensing of lubricants, hydraulic oils, and other industrial fluids in harsh environments.
General Industrial Processes: In any manufacturing or processing area where a high-flow pneumatic driven pump is required.
A F00808A20 The product code identified (EX) PRO ONE 25 – MA 160 L/MIN model guarantees the reliability of PIUSI in the field of industrial fluid management.
