This Wielander + Schill 7-piece jaw die set (part no: 700215) is specifically for the BR 50 blind rivet adapter tasks, ensuring precise and reliable riveting performance. The set is an essential accessory for professional body repair and metalworking applications where standard blind rivet technology is used.
The set is made from high-quality materials, combining durability and precise fit, which is essential for professional work execution. The dies of different sizes and head shapes cover the most common application areas.
The 7-piece set contains standard jaws designed for use with the Wielander + Schill BR 50 blind rivet adapter. The goal of the set is to give users immediate access to the most necessary sizes and types, minimizing setup time.
Main area of application: Blind Riveting using the BR 50 adapter.
Materials: The jaws are made of durable steel and plastic (kunststoff), guaranteeing a long service life and precise forming of the rivets.

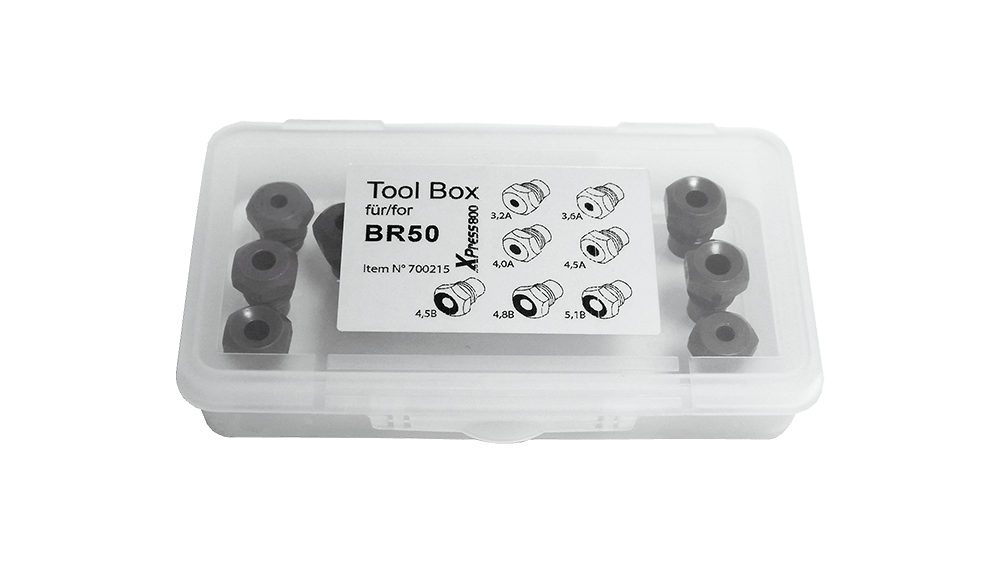

Storage and Portability: The set comes in a compact, custom-sized plastic storage case, making it easy to organize and transport tools between workplaces.

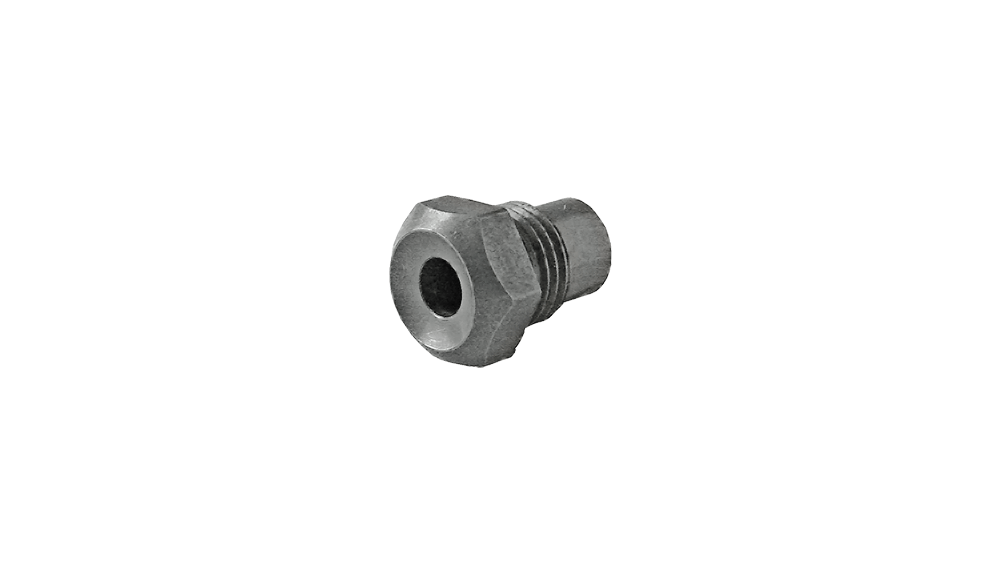

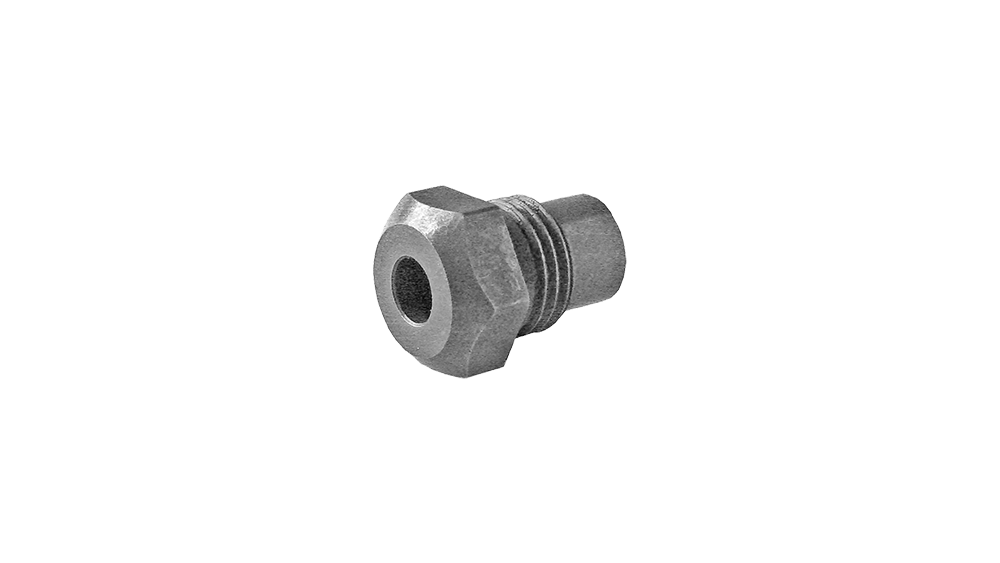

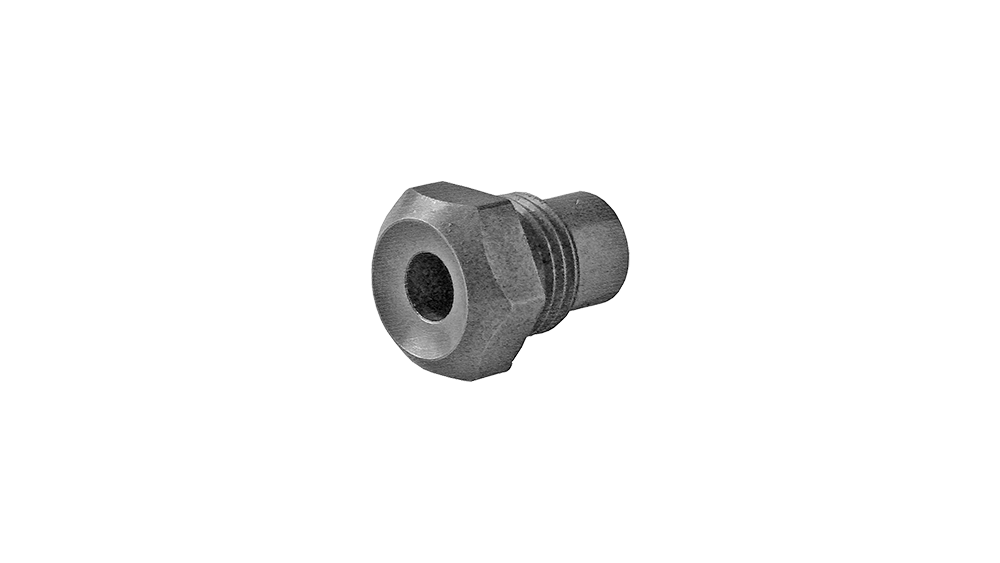

The set with part number 700215 includes seven (7) dies with different specifications, covering the most common diameters ranging from 3.2 mm to 5.1 mm, with different head shapes (flat or countersunk).
| Part number | Diameter | Head Type | Compatibility | Description |
|---|---|---|---|---|
| 700518 | 3.2 mm | A (Flat) | BR 50 | Standard Blind Rivet Die |
| 700519 | 3.6 mm | A (Flat) | BR 20 or BR 50 | Standard Blind Rivet Die |
| 700520 | 4.0 mm | A (Flat) | BR 20 or BR 50 | Standard Blind Rivet Die |
| 700521 | 4.5 mm | A (Flat) | BR 20 or BR 50 | Standard Blind Rivet Die |
| 700522 | 4.8 mm | B (Countersunk) | BR 50 | Ideal for RIBE blind rivets |
| 700523 | 4.5 mm | B (Countersunk) | BR 50 | Ideal for RIBE blind rivets |
| 700359 | 5.1 mm | B (Countersunk) | BR 50 | Ideal for RIBE blind rivets |
Note on Head Shapes:

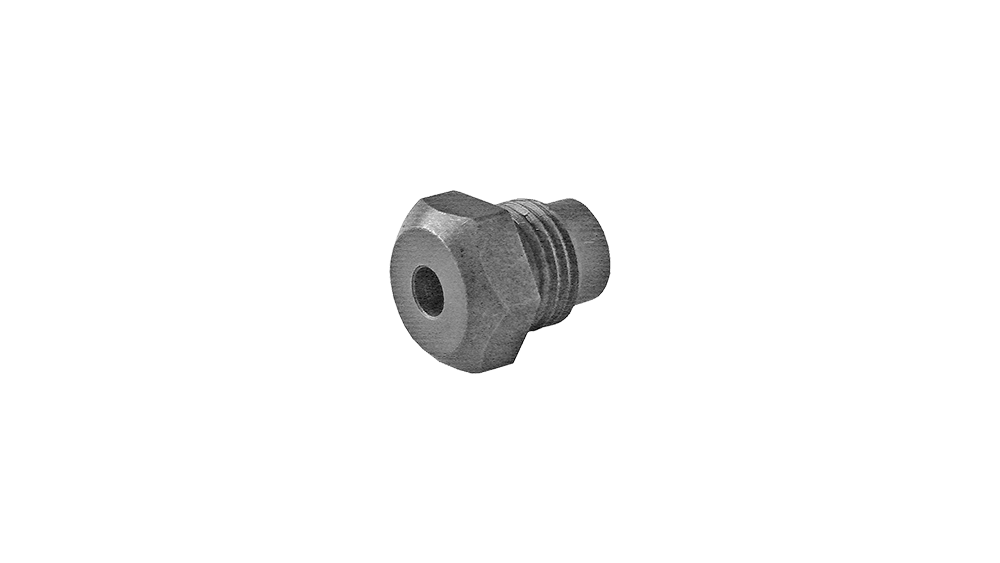

Type A (Flat Head): For general use with flat-headed blind rivets.

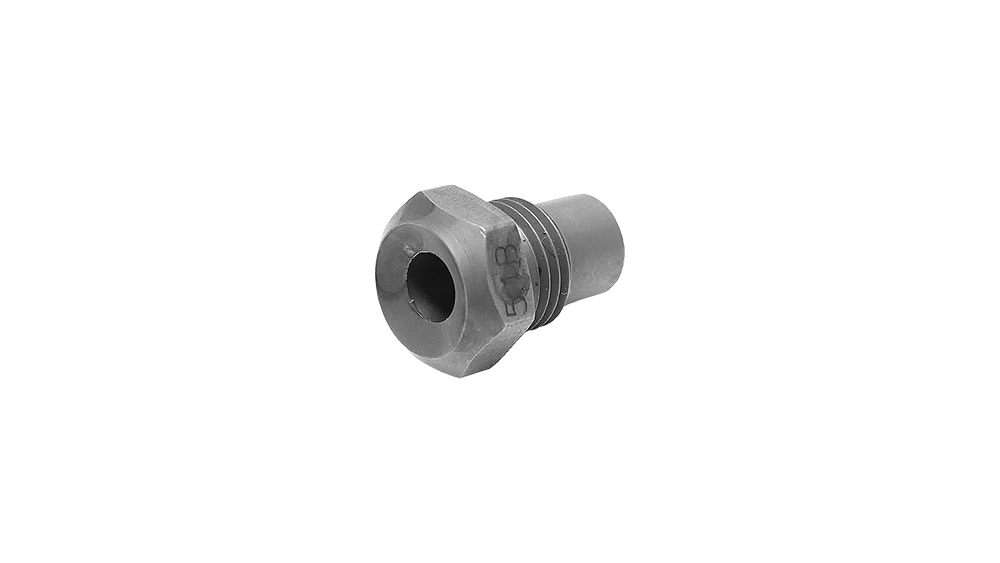

Type B (Countersunk Head): Specifically for optimal fit and force transmission with RIBE (Reversed Isothermal Blind Rivet) type blind rivets.
The product's physical characteristics and dimensions ensure easy handling and compatibility between tools.
| Property | Value |
|---|---|
| Part number | 700215 |
| Product Name | Jaw Die Set |
| Number of Parts | 7 pieces |
| Length × Width × Height | 118 x 68.35 x 83 mm (Case dimensions) |
| Material composition | Plastic (Case), Steel (Jaws) |
| Total weight | 0.080 kg |
| Compatible Adapters | BR 50 (basic), BR 20 (for certain jaws) |
The Wielander + Schill 7-piece jaw set is not just a collection of parts, but a strategic tool for efficient work:
Comprehensive Capability: The immediate availability of the seven most frequently used sizes and types (from 3.2 mm to 5.1 mm, with flat and concave heads) significantly speeds up repair processes.
RIBE Compatibility: Type B concave head jaws (4.5B, 4.8B, 5.1B) guarantee the optimal closure of RIBE rivets, which is critical for high-strength fastenings.
BR 20/BR 50 Flexibility: Although the set is primarily intended for the BR 50 adapter, several jaws (3.6A, 4.0A, 4.5A) are also compatible with the BR 20 adapter, increasing the usability of the tools in the workshop.
Quality Construction: The steel jaws ensure the necessary hardness and wear resistance, while precise manufacturing guarantees that the rivet head fits perfectly into the jaw, avoiding damage to the rivet during pulling.
Organized Storage: The compact plastic case protects the precision parts from damage and contamination, and ensures that every piece remains in place.
This set is the ideal choice for any professional using Wielander + Schill XSeries professional riveting technology, looking for a reliable, fast solution for blind rivets of various sizes and types.
