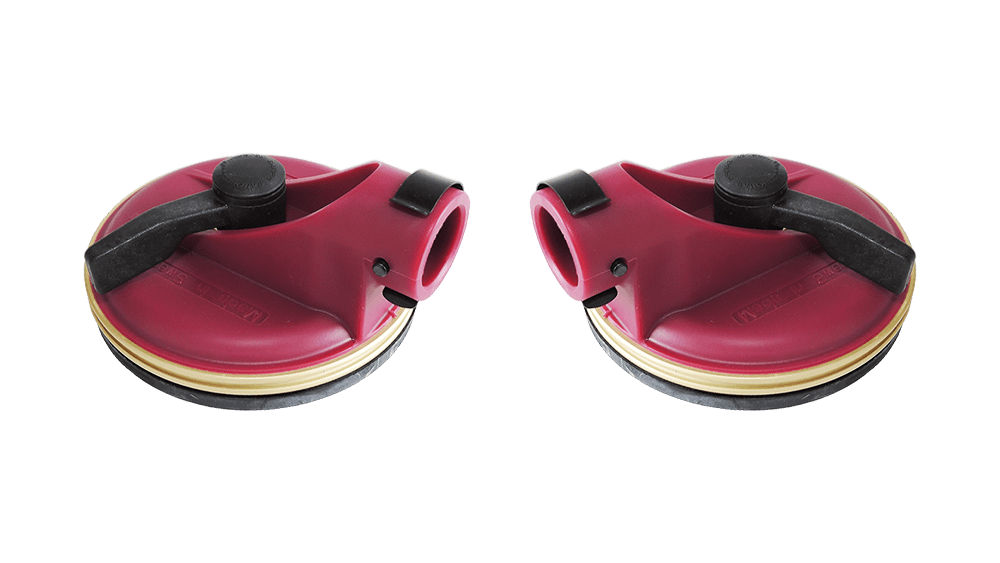

This excellent quality, 150 mm diameter suction cup, with integrated guide ring, is a fundamental component of the Wieländer+Schill professional tool range, specifically for the Roll Out 2000 sealing strip removal system optimized. This two-piece pack size is the ideal choice for body shops where precise and safe glass handling is essential for efficient work.
The design of the suction cups guarantees maximum adhesion and stable mounting on the vehicle's glass surfaces, minimizing the risk of damage during the removal of sealing strips. The built-in guide ring allows for precise positioning, which is crucial for accurately cutting through the sealing strips surrounding the glass.
This tool represents the recognized quality of Wieländer+Schill, ensuring long service life and reliable performance even in the most intensive workshop conditions.
Integrated Guide Ring: Enables precise guidance of the tool along the sealing strip, increasing work accuracy and speed.
Robust Construction: Made from a combination of metal and plastic (kunststoff), providing an optimal balance between durability and handling.
Ideal Size: The 150 mm diameter provides an optimal contact surface for the sealing strips of most passenger vehicles.
Two-Piece Pack Size: The set contains two pieces, which is ideal for simultaneously securing both sides of the sealing strip or for use as a spare.
Compatibility: Specifically designed for the Roll Out sealing strip removal system, ensuring seamless integration.
The detailed product specifications ensure it exactly meets professional requirements:
| Property | Value | Note |
|---|---|---|
| Part number | 848051 | Unique Identifier |
| Packaging Unit (PU) | 2 pieces | Two suction cups in one package |
| Diameter (Ø) | 150 mm | The size of the suction cup |
| Length × Width × Height | 150 x 150 x 75 mm | External dimensions |
| Material composition | Metal, Plastic (kunststoff) | Durable and robust materials |
| Weight | 0.740 kg | The combined weight of the two pieces |
| Field of application | Windscreen Removal | Compatible with the Roll Out 2000 system |
To maximize the service life of the tools, necessary spare parts and accessories can be found in the Wieländer+Schill range.
These accessories help maintain and repair the suction cups, ensuring continuous, error-free operation:

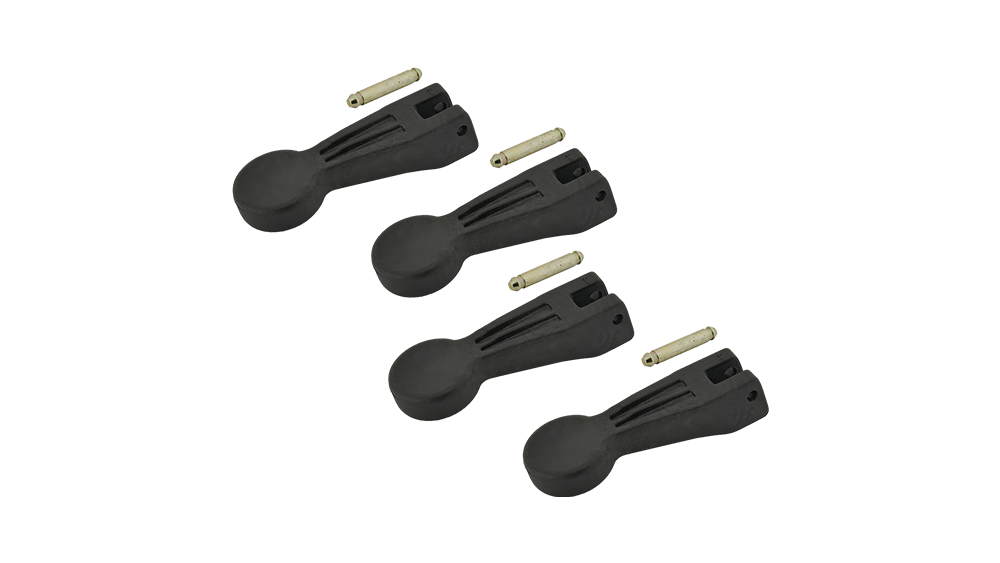

Push Rod Repair Kit (4-piece set) – Part Number: 848083: For repairing the suction cups with push rods of the Roll Out edge protector system.

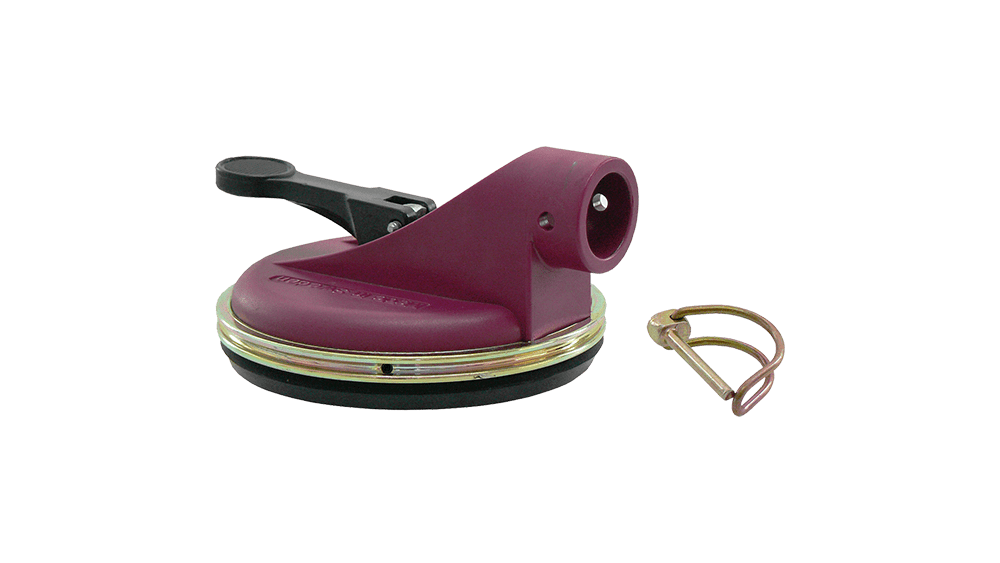

Replacement suction cup with screwing rod (Ø 150 mm) – Part Number: 848075: Contains 1 pc replacement rubber (Ø 150 mm), 1 pc spring, 1 pc fixing pin, 1 pc washer, and 1 pc screwing rod. Ideal for screw-fastened units.

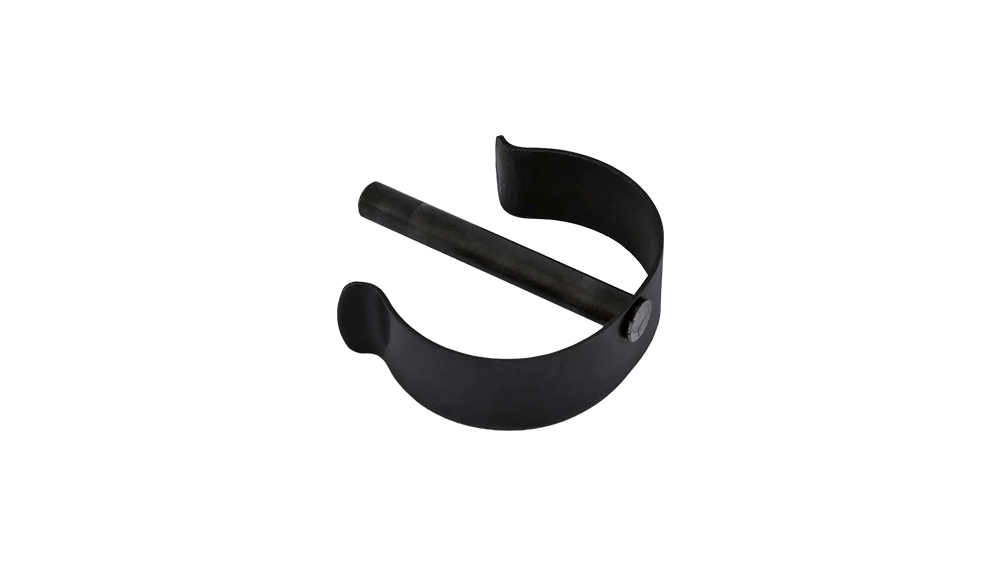

Quick clamp – Part Number: 848052: For quick and secure fastening of the suction cups to the roller.

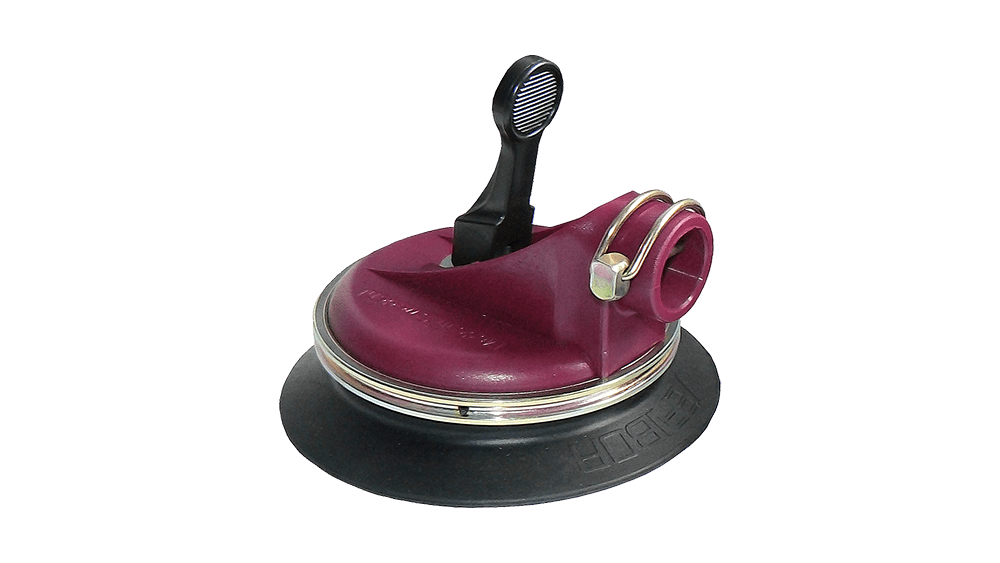

Replacement suction cup with tilting rod (Ø 150 mm) – Part Number: 848049: Contains 1 pc replacement rubber (Ø 150 mm), 1 pc spring, 1 pc fixing pin, 1 pc washer, and 1 pc tilting rod. Ideal for tilting rod units.
If you require a different size or packaging, the following products are also available:
Suction cup with guide ring | Ø 120 mm | Packaging: 1 pc (Part Number: 848046): Smaller diameter version, packaged individually.
Suction cup with guide ring | Ø 120 mm | Packaging: 2 pcs (Part Number: 848047): Smaller diameter version, two-piece packaging.
Suction cup with guide ring | Ø 150 mm | Packaging: 1 pc (Part Number: 848050): Same diameter, but individually packaged.
This set of two 150 mm suction cups is a reliable and precise accessory for the Wieländer+Schill edge protector systems, guaranteeing the success of professional body repair work.
