This excellent quality mandrel is part of the Wieländer+Schill tool range, specifically developed for precision automotive body repair and metalworking tasks. This component is essential for mounting and stable operation of the appropriate cutting discs, ensuring efficient and accurate work performance.
The product belongs to the Separating Tools (Separating Tools) belongs to the category, and is an ideal accessory for the LaserCutter LC 04 system.
This mandrel enables the No. 2 cutting disc ( Ø 40 mm diameter) use, achieving maximum 0.8 mm cutting depth achievement. The precisely machined steel structure guarantees long service life and vibration-free operation, which is critical during the processing of fine body parts.
The mandrel is designed to ensure an optimal fit with the corresponding cutting disc, maximizing tool efficiency and workpiece quality. The 40 mm diameter is ideal for separating most standard body parts where controlled and shallow cutting is essential.
Precise Cutting Depth: The limited cutting depth of 0.8 mm prevents unwanted deep cuts, protecting underlying structures.
Robust Design: Steel material utilization ensures high durability and resistance to mechanical stress.
Compatibility: Optimized specifically for Type 2 cutting discs with a 40 mm diameter.
Easy Operation: The standard dimensions and design allow for quick and safe replacement.
The table below details the precise physical and material characteristics of the mandrel:
| Property | Value | Note |
|---|---|---|
| Part number | 640015 | The unique identifier of the product |
| Content | 1 darab | Package contents |
| Cutting Depth | 0.8 mm | Maximum achievable cutting depth |
| Diameter (Ø) | 40 mm | Diameter of the mountable cutting disc |
| Total length | 44 mm | Total length of the shaft |
| Dimensions (L x W x H) | 46 x 39 x 6 mm | Outer dimension (estimated packaging size or mounting surface) |
| Material | Steel | High-strength structural material |
| Weight | 0.050 kg | Low weight for high rotational speeds |
To achieve maximum performance and full tool functionality, the use of the following accessory is recommended:

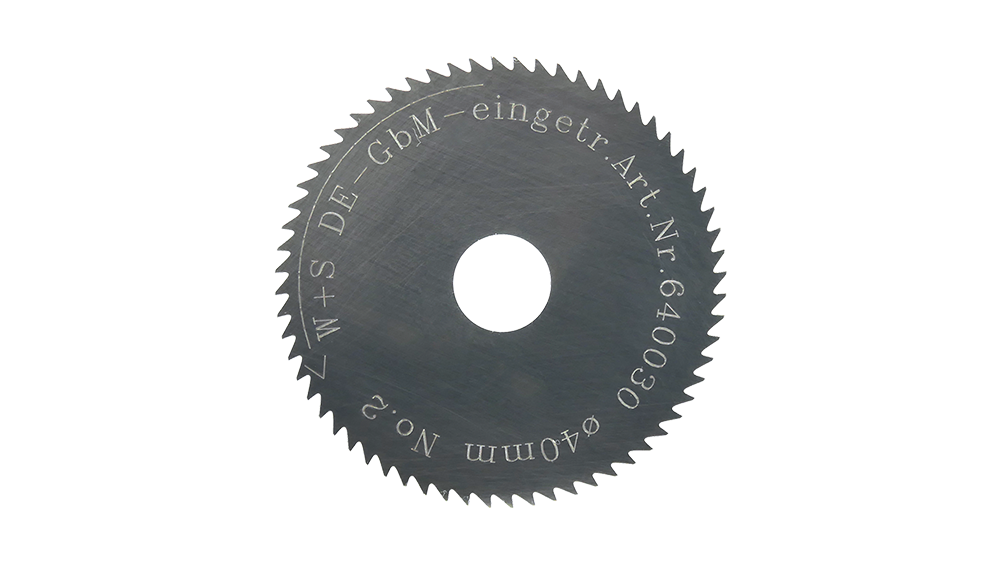

This specially designed cutting disc perfectly fits the mandrel with part number 640015.
Diameter: 40 mm
Thickness: 4 mm
Configuration: Duplex grind
Material: Special hard metal
Function: Designed for precision milling work.
The carbide material ensures the durability of the cutting edges and excellent cutting quality even on harder materials.
This combination of mandrel and accompanying cutting disc primarily provides outstanding performance in the following areas:
Separation of Body Parts: Ideal for the precise, controlled removal of damaged or worn metal sheets, reinforcements, and components.
Precise Cutting Operations: Any task where the cutting depth must be strictly limited to avoid damage.
Light Metal and Steel Processing: Thanks to the carbide cutting disc, it can be used effectively with various metal alloys.
Wieländer+Schill products are manufactured with professional workshops' requirements in mind, guaranteeing reliability and high-level performance. This mandrel can also be excellently integrated with the WS Arena professional work area systems and the XSeries riveting technology.
