This product is an accessory for Wieländer+Schill professional body repair tools, specifically designed for precise and reliable pulling operations. Made from high-quality V2A (AISI 304) stainless steel, these pull studs are ideal for restoring damaged body panels, especially when used with the Alu Pull Kit AK 98 type.

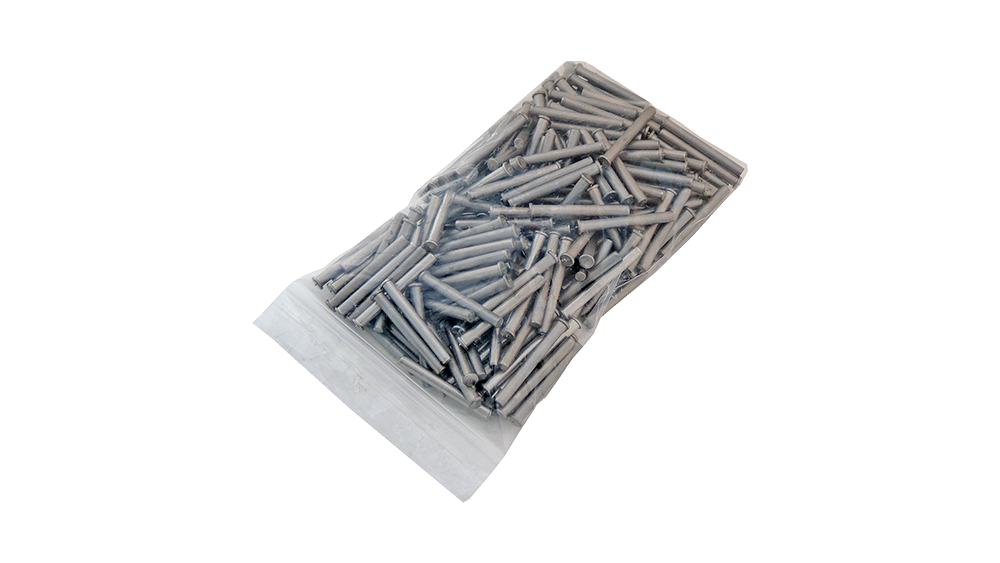

The package contains 200 pull studs of the same size, guaranteeing consistent performance and a long service life even under the most demanding workshop conditions.
Excellent Material Quality: V2A (1.4301) stainless steel provides excellent corrosion resistance and mechanical strength, which is essential for continuous, heavy-duty use.
Precise Sizing: The precisely defined diameter and length ensure a perfect fit and effective adhesion during the pulling process.
Compatibility: Specifically designed for the Alu Pull Kit AK 98 Optimized for the pull-out set, but also generally usable with other pulling systems of the same specification.
Large Pack Size: The 200-piece packaging ensures that the workshop always has enough consumables, minimizing downtime.
Professional Application: Ideal choice for auto repair shops, paint booths, and body builders where reliable and repeatable results are essential.
The pull studs feature strictly controlled parameters that guarantee professional use:
| Property | Value | Note |
|---|---|---|
| Part number | 367085 | The unique identifier of the product |
| Material | V2A (Stainless Steel) | Excellent Corrosion Resistance |
| Diameter (Ø) | 4.0 mm | Cross-sectional dimension of the stud |
| Length | 35 mm | Total length of the stud |
| Overall Dimensions (Length x Width x Height) | 5.5 x 5.5 x 36 mm | Total extension of the stud (considering the fixing part) |
| Package contents | 200 pieces | Quantity per package |
| Field of application | Stud Welding | For pulling and straightening operations |
| Compatible Tool | Alu Pull Kit AK 98 | Manufacturer Recommended Tool |
These V2A pull studs are crucial components in modern body repair processes, especially for aluminum and high-strength steels where traditional pulling methods may be insufficient or could damage the material.
The pull studs are fixed to the damaged surface by welding. During welding, the stud creates a small but strong connection with the body panel. Subsequently, Alu Pull Kit AK 98 or using a similar pulling tool, force is applied to the stud, pulling the panel back toward its original shape. The V2A material ensures that the weld point remains stable during the pull and that the stud can be easily removed after the operation (if technology permits, or if the stud is intended for final fixation).
The 4 mm diameter creates an ideal balance between the size of the fastening surface and the concentration of the pulling force, while the 35 mm length provides sufficient support for the pulling head. The 200-piece set guarantees sufficient supply even for high-volume jobs.
Wieländer+Schill products are manufactured according to the highest industrial standards. Strict quality control procedures applied during production ensure that every single pull stud meets the specified requirements. The company holds ISO 9001 (Quality Management) and ISO 14001 (Environmental Management) certifications, further reinforcing the reliability of the products and the professionalism of the manufacturing processes.
This product belongs to the welding technology category, specifically the stud welding subcategory, which is one of the most advanced and precise methods for body repair.
