Part number: 700121
This detailed product description is for the Wielander + Schill XSeries professional riveting technology, specifically for the rivet puller adapter with part number 700121, equipped with a 6 mm SelfLock thread applies to. This adapter is a crucial accessory for precise and reliable operation with the BRN 50 rivet nut adapter.
The puller adapter with part number 700121 is designed to provide optimal performance during the installation of rivet bolts. Specifically for rivet bolts equipped with a 6 mm self-locking (SelfLock) male thread is designed. This special thread type ensures a secure and stable connection between the tool and the fastener during the pulling process, minimizing the risk of slipping or improper seating.

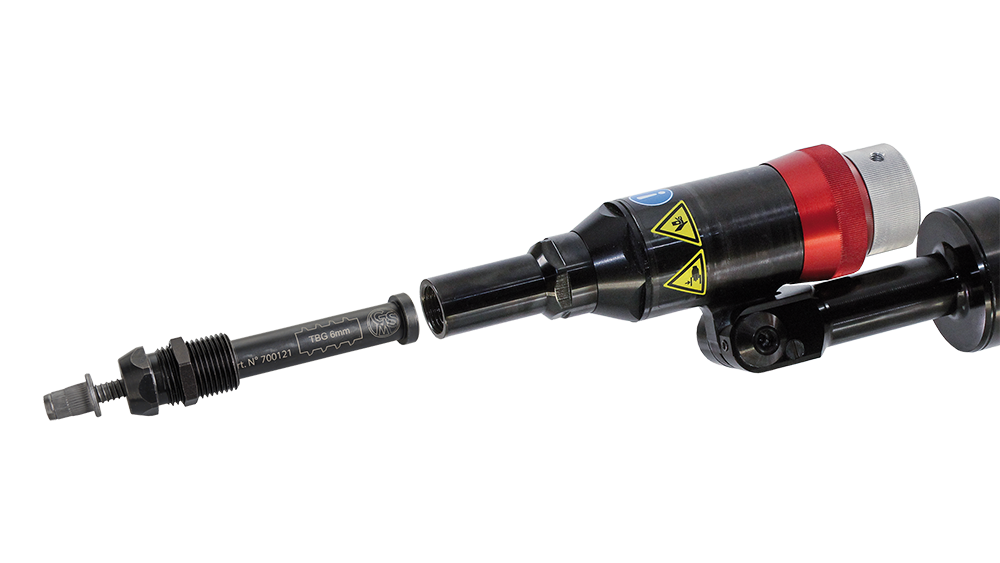

This adapter is for connection to the BRN 50 rivet nut adapter , enabling users to efficiently and accurately insert rivet bolts even in the most demanding industrial and body repair environments. The robust design typical of Wielander + Schill products guarantees long service life and reliability even under high stress.
The surface of the product is burnished, which provides excellent corrosion protection and durability for the tool, even in adverse working conditions.
Precise Compatibility: Optimized specifically for rivet bolts with a 6 mm SelfLock (self-locking male thread) thread.
BRN 50 Integration: Seamless fit with the BRN 50 rivet nut adapter, ensuring full compatibility with professional riveting systems.
Excellent Material Quality: Made entirely of steel, manufactured, guaranteeing high strength and long service life against high pulling forces.
Durable Surface Treatment: The burnished coating increases wear resistance and provides protection against corrosion.
Optimized Dimensions: The 90 mm length and 6 mm diameter provide an ideal balance between handling ease and necessary mechanical stability.
The table below summarizes all important technical parameters of the puller adapter with part number 700121:
| Property | Value | Note |
|---|---|---|
| Part number | 700121 | Unique Identifier |
| Product Name | Rivet Puller Adapter | |
| Thread type | SelfLock (Self-locking male thread) | Special Fastening |
| Thread diameter | 6 mm9.29" x 6.69" x 4.08" | |
| Compatible adapter | BRN 50 blind rivet nut adapter | |
| Material | Steel | High load-bearing construction |
| Surface Treatment | Burnished | Corrosion Protection |
| Length (L) | 90.0 mm | |
| Diameter (Ø) | 6 mm9.29" x 6.69" x 4.08" | |
| Overall dimensions (Length x Width x Height) | 90 x 18 x 12 mm | |
| Weight | 0.105 kg | Easy handling |
| Package Contents | 1 piece (1 stück, 1 piece) |
This adapter is part of the XSeries – Professional Riveting Technology product family. The XSeries system was developed to meet the highest demands of modern vehicle repair and metal processing, especially regarding fastening solutions for high-strength materials. Adapters equipped with a SelfLock thread are particularly valuable in applications where fasteners may tend to loosen, as the self-locking mechanism provides extra security during the pulling process.
The 6 mm SelfLock adapter is the perfect complement to the existing Pull Cylinder fleet, ensuring that workshops can work with the most diverse types of blind rivets/bolts without having to compromise on accuracy or reliability.
In addition to the adapter with part number 700121, the Wielander + Schill range offers several other specific pulling adapters for the BRN 50 system to cover all common fasteners found on the market:

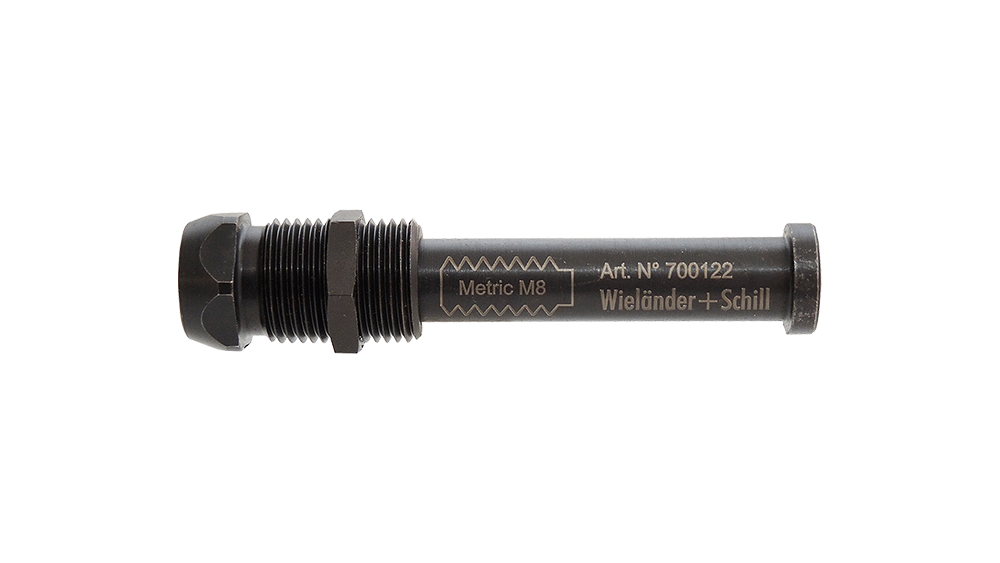

Blind Rivet Bolt Puller Adapter | M8 (Part No.: 700122): For blind rivet bolts with M8 thread.

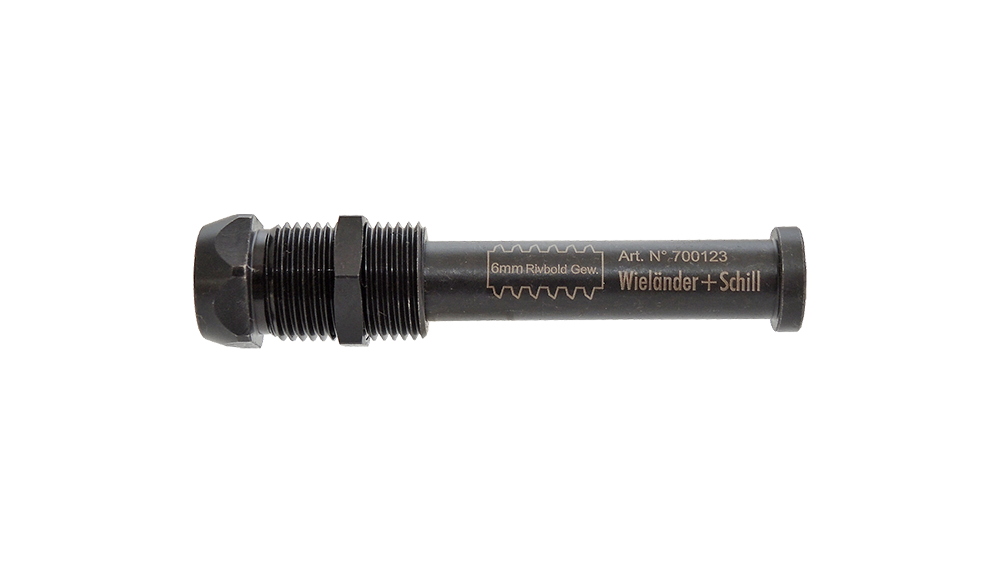

Blind Rivet Bolt Puller Adapter | 6 mm RivBolt (Part No.: 700123): For bolts with 6 mm RivBolt thread.

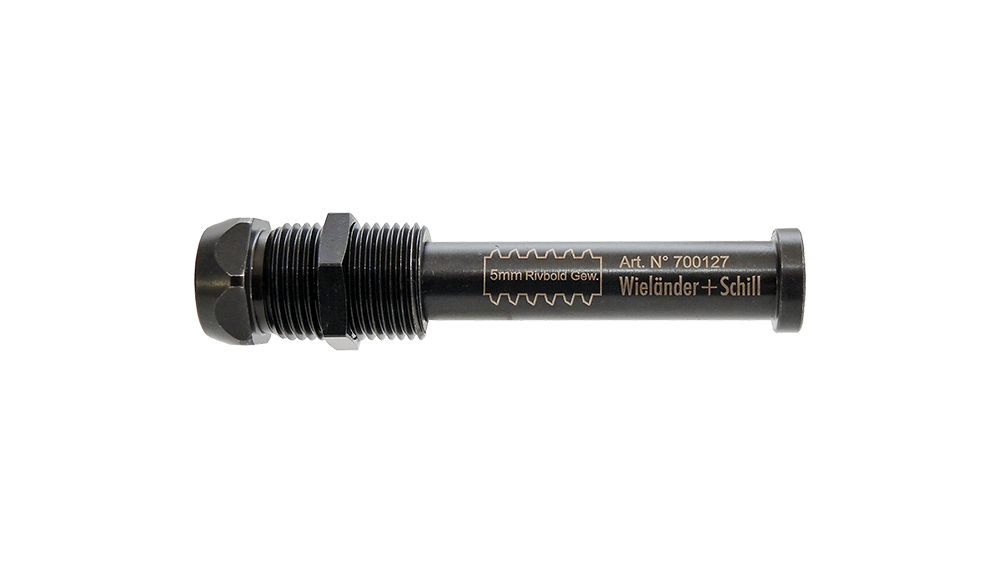

Blind Rivet Bolt Puller Adapter | 5 mm RivBolt (Part No.: 700127): For bolts with 5 mm RivBolt thread.

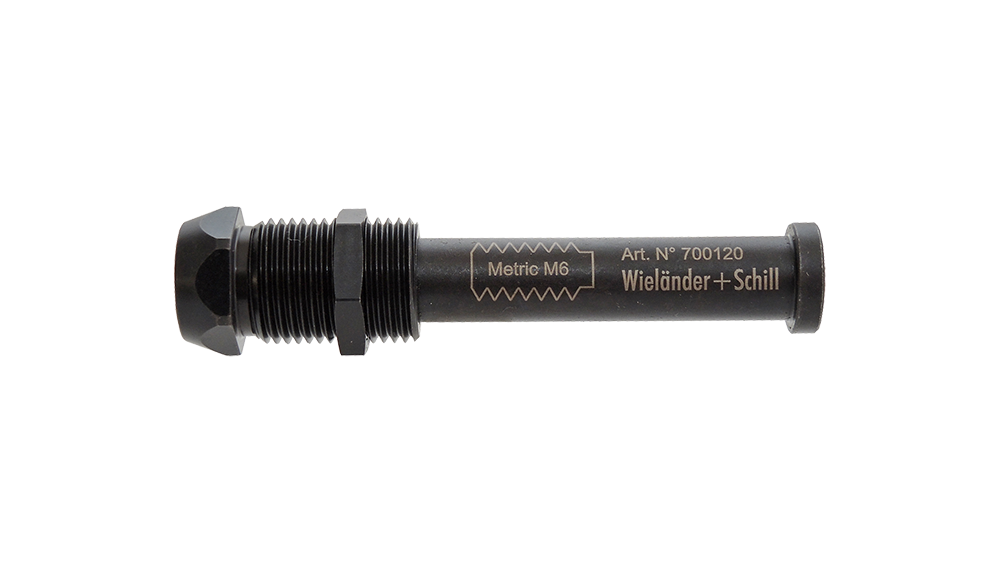

Blind Rivet Bolt Puller Adapter | M6 (Part No.: 700120): For blind rivet bolts with M6 thread.
These accessories ensure that users always have the right tool for the job, maximizing efficiency and minimizing downtime.
