TS30™ CPU Touch Screen Weighing Indicator

Intercomp TS30™ CPU: advanced, robust digital display and data processing unit for high-precision measurements.

Description

Additional information

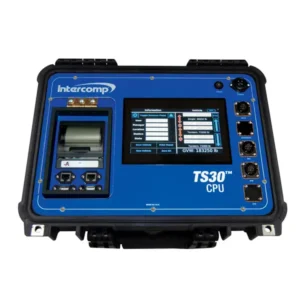

Intercomp TS30™ CPU Touchscreen Scale Indicator

The Intercomp TS30™ CPU is an extremely advanced, robustly designed digital display and data processing unit, specifically engineered for high-precision measurement tasks, particularly for wheel and axle weighbridges, as well as other industrial and automotive applications. This central unit ensures real-time display, processing, and management of measurement data, offering an outstanding user experience thanks to its touchscreen interface.

The TS30™ CPU is an ideal choice for environments requiring reliable, fast, and accurate weight measurement, whether for automotive testing, logistics, or specialized industrial processes.

Key Features and Advantages

The TS30™ CPU display combines state-of-the-art technology with a durable design to meet even the strictest industrial requirements.

Intuitive Touchscreen Interface: The large, high-resolution touchscreen simplifies settings, measurement startups, and data retrieval. The user-friendly graphical interface minimizes operational errors and increases efficiency.
High-Performance CPU: The embedded processor guarantees fast data processing and stable operation, even with high-speed or complex measurement sequences.
Robust and Reliable Design: Designed to withstand harsh operating environments, including vibration, temperature fluctuations, and the effects of dust/moisture (exact IP rating found in specifications).
Compatibility: Wide compatibility with Intercomp wheel, axle, and other weighing systems, including devices supporting RFX® wireless technology.
Data Management and Storage: Capability for internal storage of measurement data, as well as export options for later analysis and documentation.
Customizability: The software allows customization of user profiles, measurement units, and display formats to suit the specific application.

Technical Specifications

The table below details the critical technical parameters of the TS30™ CPU weighing indicator:

Parameter	Spezification	Note
Display Type	Touchscreen	High-resolution, intuitive operation
CPU	High-performance processor	Fast data processing
Communication Protocols	RFX® Wireless	Compatible with Intercomp wireless load cells
Input Channels	Multi-channel support	For simultaneous management of different weighing systems
Units of Measure	Pounds (lb), Kilograms (kg), Newtons (N)	Changeable display
Resolution	High internal resolution	Ensuring precise weight data
Tápellátás	External Power Supply / Battery Option	The exact voltage requirement is according to the specifications of the included adapter
Design	Robust, industrial-grade housing	Resistant to environmental factors
Data Storage	Internal memory	Storage of measurement data and settings
Output Interfaces	USB, Serial port (optional)	For data transfer and printing
Application Areas	Wheel/Axle measurement, General industrial measurement	Versatile application

Detailed Functions

The TS30™ CPU is not just a display; it is a full-value measurement management tool:

1. Measurement and Calibration

The display supports a full calibration routine, enabling fast and precise system setup for the currently used load cells. It is capable of handling zeroing (tare) functions as well as rapid recording of weight data. Built-in diagnostic functions help to identify communication or sensor failures.

2. Data Processing and Report Generation

The TS30™ CPU can perform complex calculations based on the incoming raw data. This includes:

Axle Load Calculation: Precise determination of the load on individual axles in the case of vehicles.
Total Weight Calculation: Summing the weights of all measurement platforms or wheel scales present in the system.
Data Logging: Every measurement is stored in the internal memory with a timestamp. The user can easily recall the results of previous tests.

3. Wireless Connection (RFX® Compatibility)

The integrated RFX® technology enables communication with Intercomp wireless weighing platforms and sensors. This drastically reduces the need for cabling, increasing installation flexibility and safety at the measurement site. The display reliably manages synchronized data streams arriving from multiple wireless units.

4. User Interface and Ergonomics

The touchscreen is also optimized for use with gloves, ensuring continuous operation in cold or wet conditions. The display layout is customizable, so the most important parameters (e.g., instantaneous weight, average, maximum value) always appear in the optimal location for the user.

Application Areas

Due to the versatility of the TS30™ CPU, it is an indispensable tool in several industries:

Automotive Testing: For fine-tuning weight distribution, roll angle, and suspension settings in motorsport (Formula, NASCAR, etc.) and OEM testing environments.
Commercial Vehicle Inspection (ITS): For fast and accurate measurement of axle loads at roadside inspection points, ensuring compliance with legal regulations.
Logistics and Warehousing: For checking the weight of incoming and outgoing goods in high-capacity warehouses and container terminals.
Aerospace: For determining the center of gravity of aircraft, especially when paired with Intercomp aircraft weighing systems.

The Intercomp TS30™ CPU is not just a measuring device, but an integrated solution for collecting and managing precision weight data, increasing the reliability and efficiency of measurement processes.
