Part number: 777205

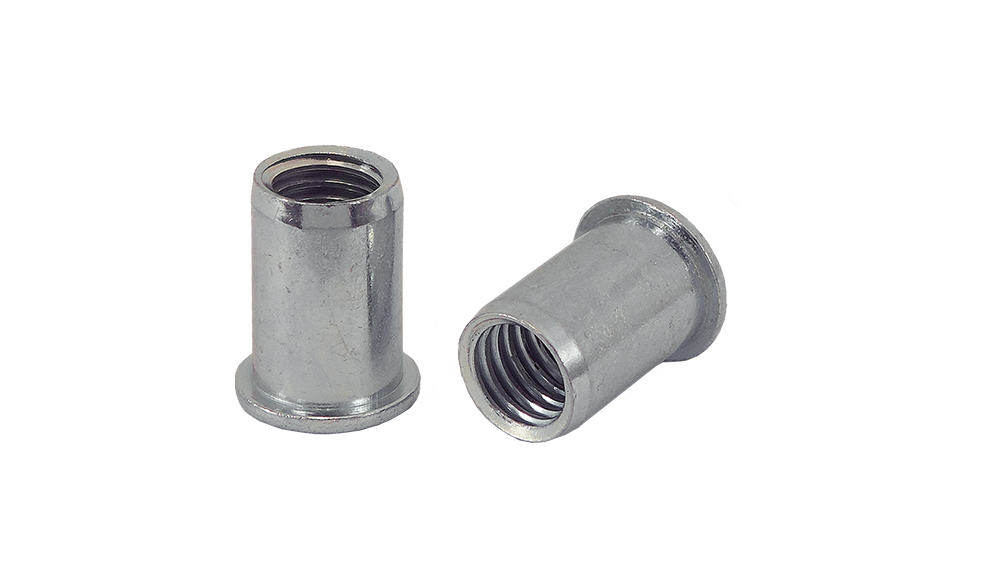

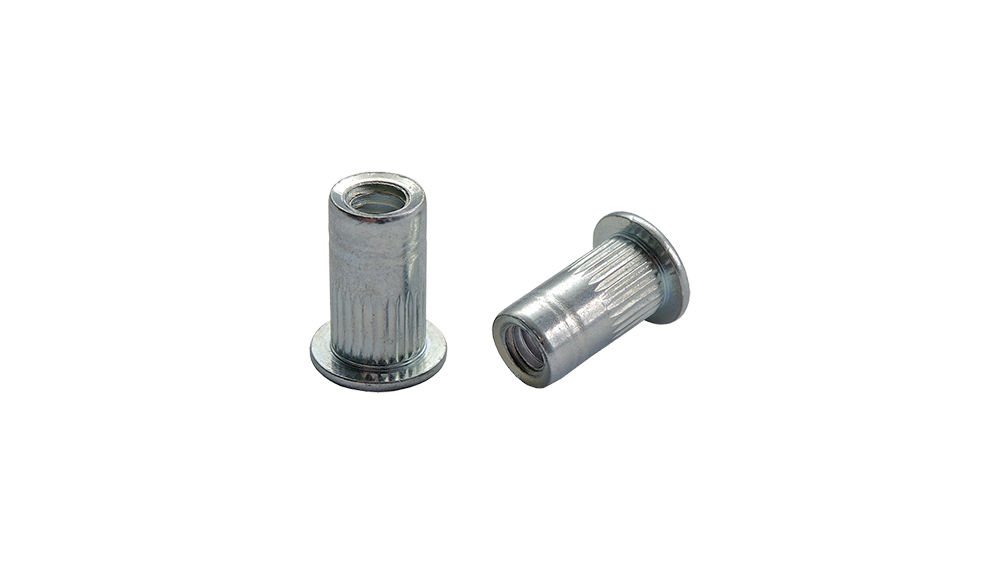

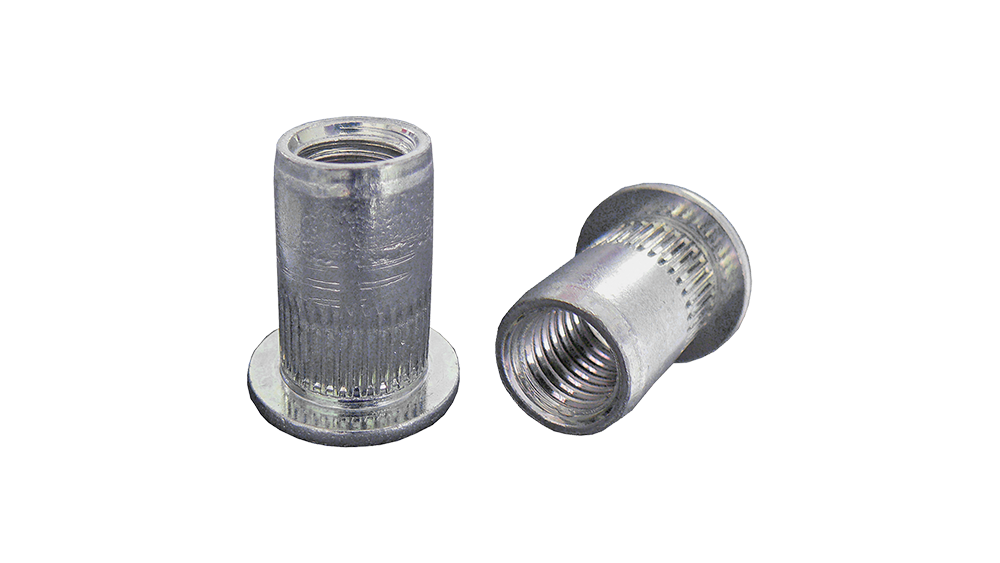

This product is part of the Wielander + Schill XSeries professional riveting technology range, specifically designed for creating reliable and durable screw fastening points. These steel rivnuts offer an ideal solution for applications where a screwable thread needs to be inserted into thin or hard-to-reach materials without requiring access to the backside of the workpiece.
Rivnuts (also known as threaded inserts) are excellently suited for reinforcing sheets, profiles, or other structural elements, enabling the use of standard screws for fastening. The product is made of high-quality steel and features a galvanized coating for enhanced corrosion protection.
These steel rivnuts with M6 thread target professional fastening technology requirements. The package contains 25 rivnuts, making it ideal for medium and high-volume jobs.
Application areas:
Vehicle Repair: Fastening of body parts, internal structures, and accessories.
Mechanical Engineering: For threading thin-walled metal components.
Construction Industry: Fastening of lightweight structural elements, covers, and assemblies.
Any situation where a screwable thread must be created subsequently, without access to the backside.
The installation of rivnuts is fast and simple using the appropriate riveting tool (e.g., the M6 puller adapter found among the accessories). During insertion, the body of the screw deforms in the sheet, securing itself firmly, thus ensuring a durable, high-load-bearing thread.
The precise sizing of the product guarantees compatibility with standard M6 screws and appropriate clamping range.
| Property | Value | Note |
|---|---|---|
| Part number | 777205 | Unique Identifier |
| Material | Steel | High-strength base material |
| Surface Treatment | Horganyzott | Excellent corrosion protection |
| Thread size | M6 | Metric standard |
| Diameter (Ø) | 9,0 mm | Minimum hole diameter |
| Length | 15,5 mm | Total length |
| Overall dimensions (L x W x H) | 17.08 x 11.76 x 17.08 mm | Head and body protrusion |
| Package contents | 25 pieces/pack | Quantity in package |
| Weight | 0.110 kg | Net weight per package |
The galvanized coating is crucial for durability. This surface treatment protects the underlying steel material from damage caused by moisture, chemicals, and corrosion, which is particularly important in environments where fasteners are exposed to the elements or humidity. This ensures that the screw fastening points maintain their mechanical integrity in the long term.
The diameter of 9.0 mm (Ø) refers to the outer diameter of the rivnut body, which determines the required hole size. The length of 15.5 mm indicates the total installation depth, necessitating a selection appropriate to the thickness of the material being fastened. The more precise dimensions (17.08 x 11.76 x 17.08 mm) describe the head dimensions and the overall profile, ensuring professional installation.
Use of appropriate installation tools is recommended for efficient and professional installation.

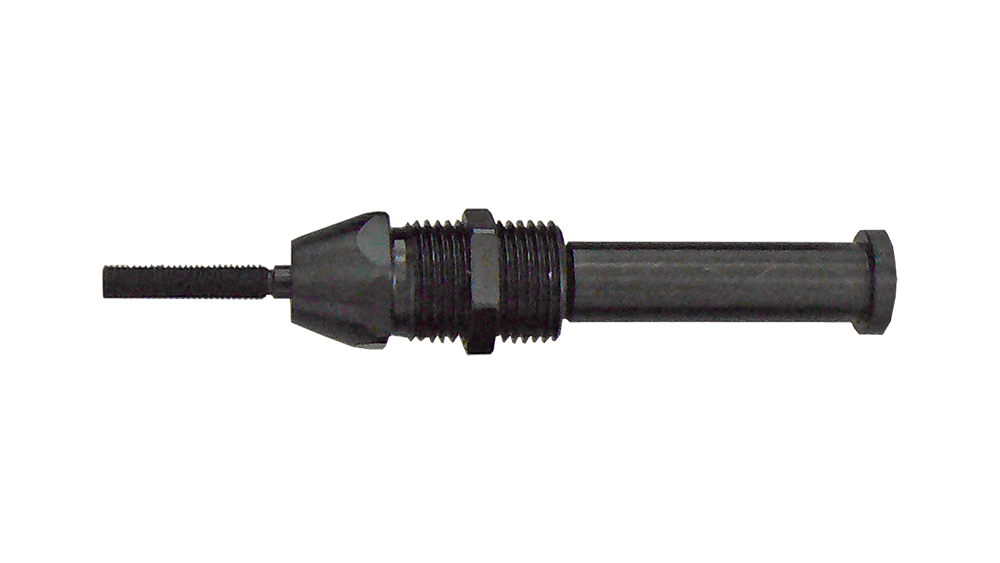

Blind Rivet Mandrel Adapter | M6 (Part No: 700326)
This accessory is specifically designed for BRN 50 type rivnuts (and other M6 types). The puller adapter with a 30 mm thread length ensures optimal deformation of the rivnut and perfect fastening to the sheet metal. Using the correct puller adapter is essential to achieve the maximum load-bearing capacity of the threaded insert.
Wielander + Schill offers a wide selection of rivnuts in various sizes and materials to meet every specific requirement. Below are a few examples from the selection:
Steel Rivnuts | M8 | Ø 11.0 × 17.0 mm (Part Number: 777206): Available in a pack of 10 pieces, with M8 thread.
Steel Anchor Screws | M10 | Ø 12.0 × 17.5 mm (Part No.: 777207): In a package of 10 pieces, with M10 thread.
Steel Anchor Screws | M12 | Ø 15.9 × 23.0 mm (Part No.: 777208): In a package of 5 pieces, with a higher load-bearing M12 thread.
Steel Anchor Screws | M4 | Ø 6.0 × 11.0 mm (Part No.: 777203): In a package of 25 pieces, with a smaller M4 thread.
Steel Anchor Screws | M5 | Ø 7.0 × 11.5 mm (Part No.: 777204): In a package of 25 pieces, with M5 thread.
These products all represent the professional quality of Wielander + Schill, ensuring reliable and durable fastening solutions for industrial and service applications.
