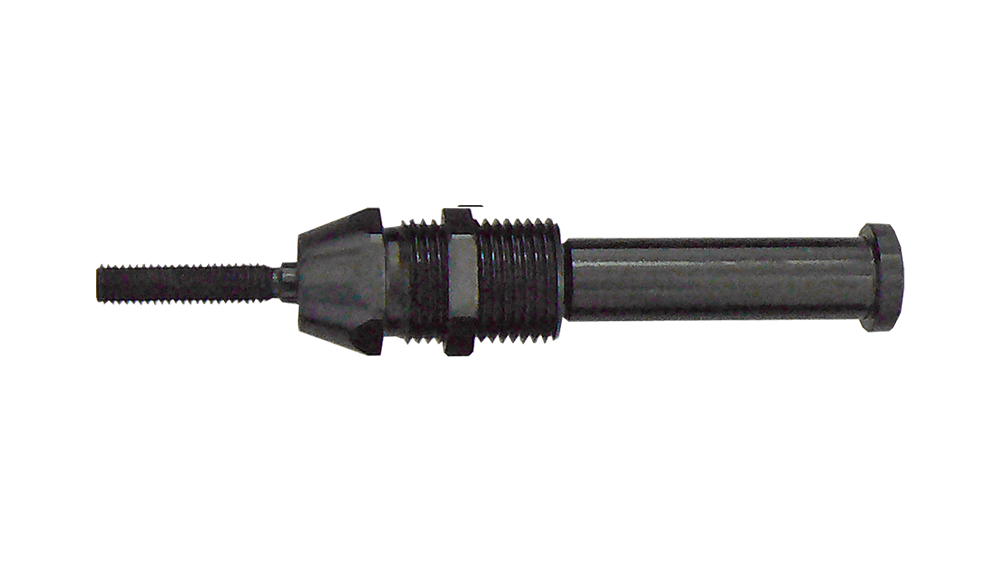

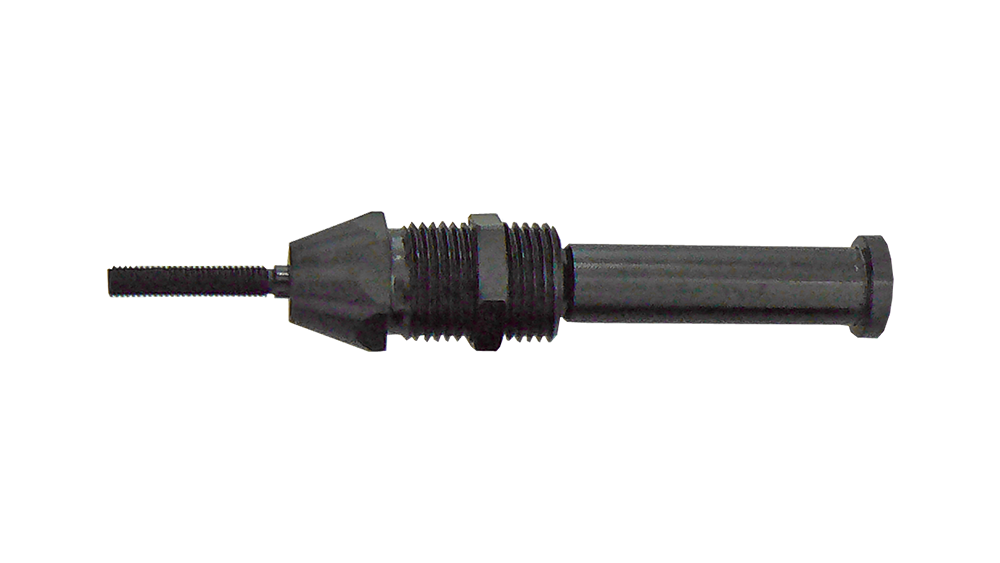

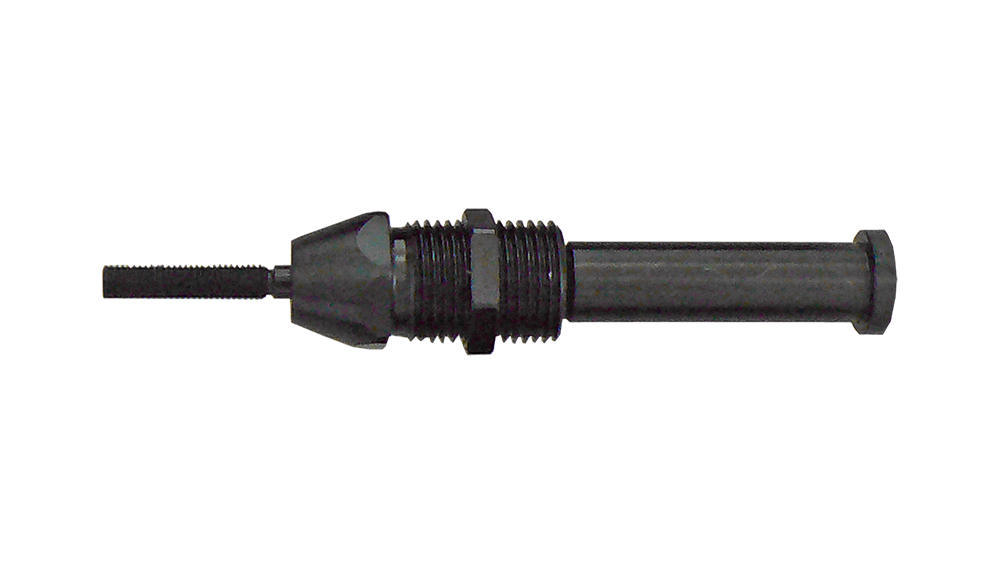

Part Number: 700324
This product is an essential accessory for the Wielander + Schill XSeries professional riveting technology, specifically designed for the BRN 50 blind rivet adapter. The puller adapter with M4 thread enables precise and reliable fastening during the installation of blind rivets.
The puller adapter with part number 700324 is for the BRN 50 blind rivet adapter and is specifically optimized for M4 size blind rivets. This component is crucial for the proper tightening and solid fastening of the rivet nut to the workpiece. The design, featuring a 25 mm thread length, ensures compatibility with standard applications.
The main function of the puller adapter is to enable the connection of the blind rivet to the pulling tool and to provide the necessary pulling force during the installation process for optimal deformation of the blind rivet and its fastening to the workpiece. The precise design guarantees quick and repeatable results, which is essential for professional bodywork and sheet metal jobs.
This adapter is part of the XSeries professional riveting technology system, which offers high-quality, durable solutions for the most demanding repair and manufacturing tasks.
The table below details the technical specifications of the M4 blind rivet puller adapter with part number 700324:
| Property | Value | Note |
|---|---|---|
| Part number | 700324 | Unique Identifier |
| Compatibility | BRN 50 blind rivet nut adapter | |
| Thread | M4 | Metric thread |
| Thread Size | 25 mm | Rivet installation range |
| Material | Steel | High-Strength Construction |
| Surface Treatment | Burnished | Corrosion Protection and Increased Durability |
| Length | 114.0 mm | Total length |
| Dimensions (L x W x H) | 119 x 21 x 21 mm | External dimensions |
| Weight | 0.127 kg | Easy handling |
| Package contents | 1 darab | Package Contents |
The adapter is made of high quality steel, which guarantees high mechanical strength and a long service life, even under high repetition loads. The burnished coating (burnished coating) provides additional protection against corrosion, ensuring the component maintains its functional integrity in the workshop environment.
The 114.0 mm length and compact external dimensions of 119 x 21 x 21 mm ensure optimal ergonomics and easy access in various mounting positions. The weight of only 0.127 kg contributes to reducing operator fatigue during longer work sessions.
This puller adapter integrates seamlessly into the Wielander + Schill XSeries portfolio, representing the cutting edge of professional riveting technologies. Its synergy with the BRN 50 adapter enables the quick and precise installation of M4 blind rivets, which is especially important during automotive repairs where reliable fastening of body panels is essential.
Main Advantages:
Precise fit: Specifically designed for M4 blind rivets and the BRN 50 adapter, minimizing play and inaccuracy.
Durability: Steel construction and corrosion-resistant burnished surface.
Efficiency: Enables a fast and reliable fastening process, increasing workshop productivity.
Standardization: Compatible with professional repair standards.
For maximum efficiency, it is recommended to use the puller adapter together with the following accessories:
The appropriate blind rivets are essential to utilize the full potential of the puller adapter.
| Product | Part number | Description |
|---|---|---|
| Blind Rivets | 777203 | Steel, M4 size, Ø 6.0 × 11.0 mm. Fixing points for rivets. The package contains 25 pieces of blind rivets. |

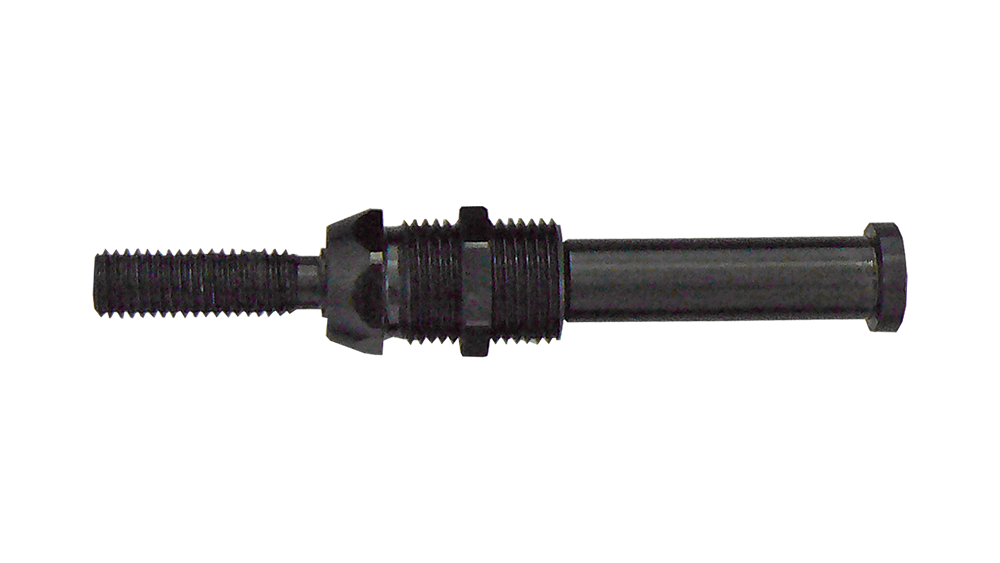

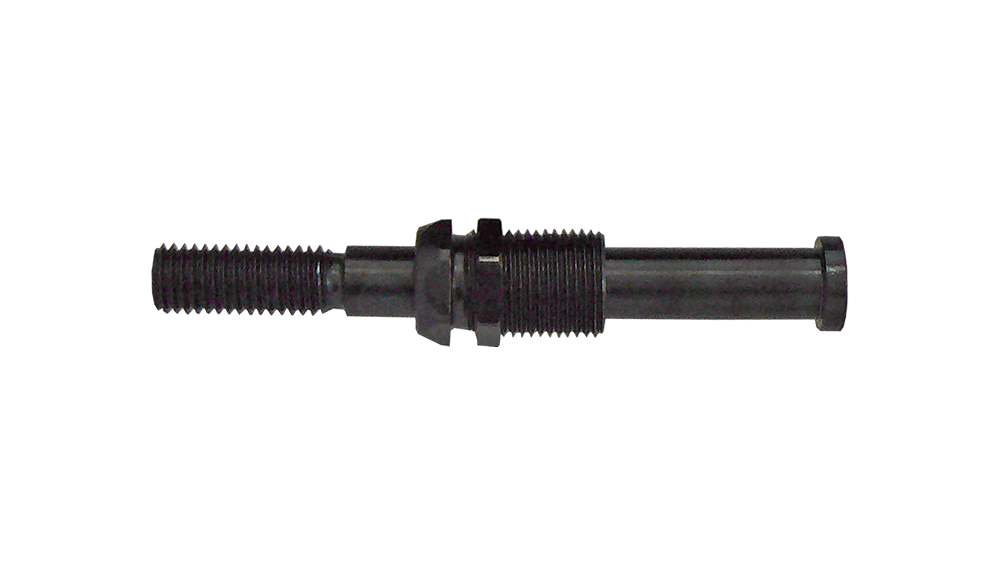

For various thread sizes and designs, the following pull adapters are available for the BRN 50 system:
M12 × 1.5 LHT (700157): Pull adapter with left-hand thread and special pitch.
M12 (700305): Adapter with 30 mm thread length.
M5 (700325): Adapter with 25 mm thread length.
M6 (700326): Adapter with 30 mm thread length.
M8 (700327): Adapter with 25 mm thread length.
M10 (700328): Adapter with 25 mm thread length.

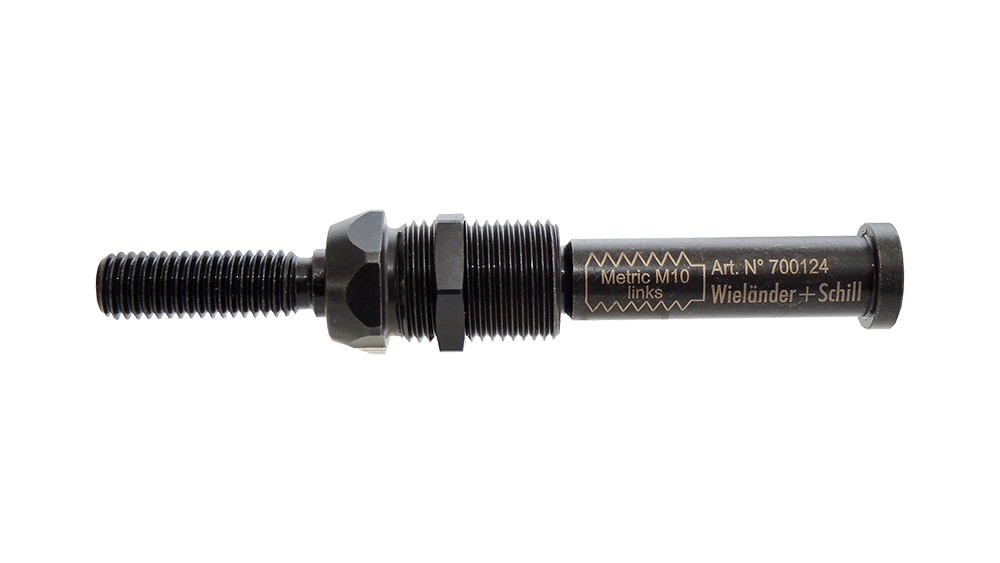

M10 LHT (700124): Left-hand thread M10 adapter with 25 mm thread length.

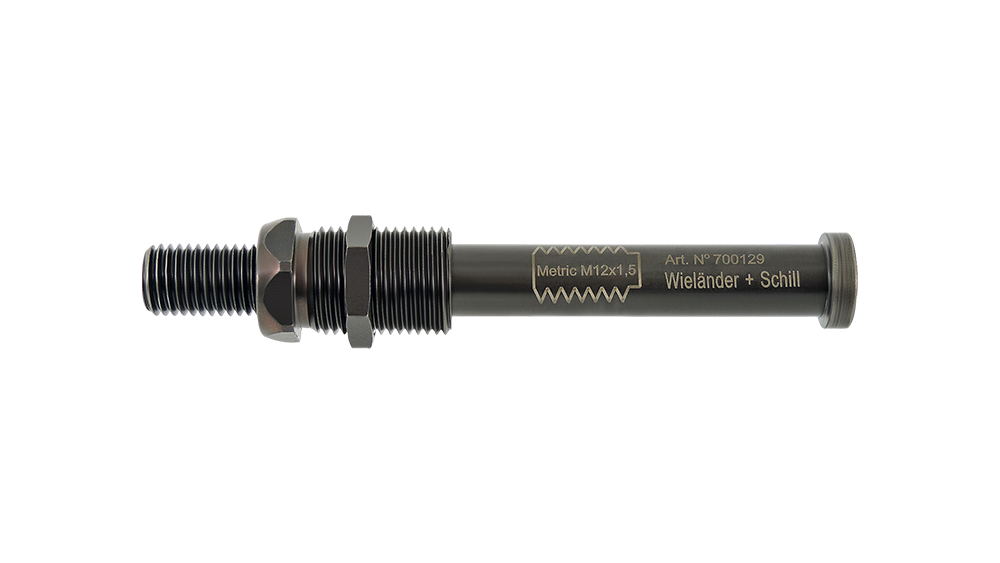

M12 × 1.5 (700129): Adapter with 30 mm thread length.
This M4 pull adapter (700324) is a reliable component of the Wielander + Schill XSeries offering, ensuring the professional and durable installation of blind rivet nuts.
