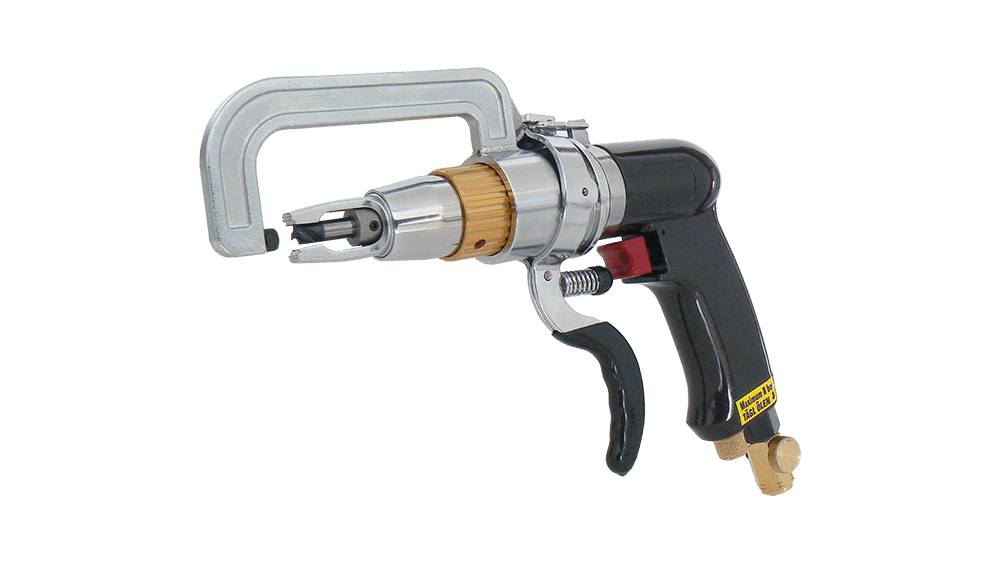

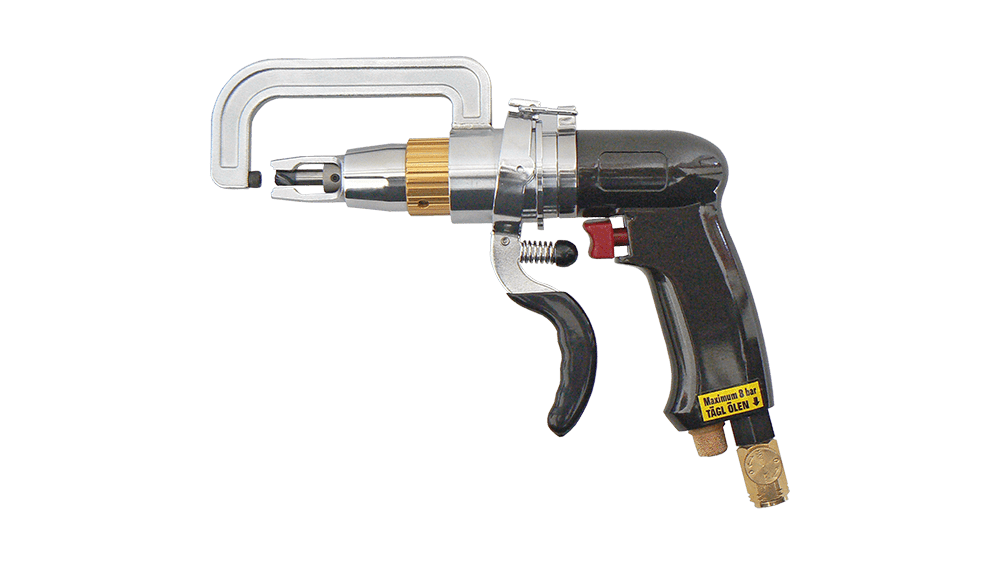

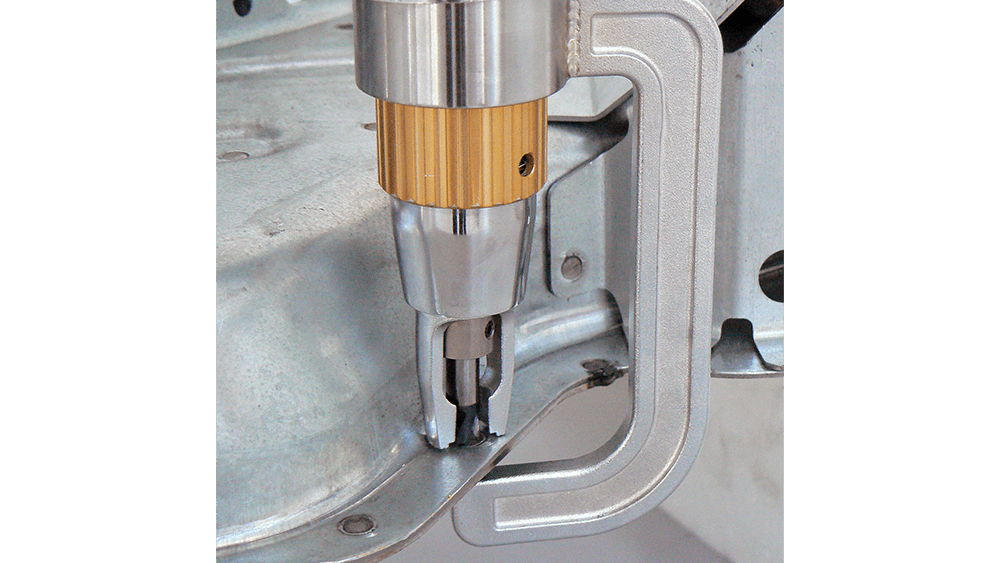

The Wielander + Schill VarioDrill WS 90 pneumatic spot weld remover is with Variomatic mandrel equipped with a universal, high-performance tool developed for the effective removal and exposure of spot welds found on the bodywork of modern vehicles. This professional tool is the ideal choice for work on both edges and hard-to-reach interior surfaces, ensuring precision and user-friendly handling.
The VarioDrill WS 90 with the Variomatic system guarantees optimized operation and durability even in the most demanding workshop environments.
Key Advantages:
Effortless Operation: The pneumatic drive enables extremely light and fatigue-free operation.
Precise Workmanship: The built-in depth stop protects the underlying sheet surface from accidental damage, ensuring precise weld removal.
Continuously Adjustable Drilling Depth: The user can precisely adjust the milling depth to suit the specific task and material thickness.
Fast and Simple Assembly: The Variomatic mandrel can be removed in seconds without tools, increasing flexibility and ease of maintenance.
360° Rotatable Variomatic Mandrel: This feature reliably prevents the tool from slipping, improving handling and safety.
Long Lifespan: Ensures a long service life thanks to its robust design.
Compatibility with High-Strength Materials: Specifically suitable for removing welds on high-strength (HSS) and ultra-high-strength (UHSS) steel sheets.
The VarioDrill WS 90 Variomatic is a sophisticated pneumatic tool whose performance is supported by the following specifications:
| Parameter | Value | Note |
|---|---|---|
| Part number | 601001 | Set Identifier |
| Power | 370 W | Pneumatic motor performance |
| Operating Pressure | 6 – 8 bar | Optimal Operating Range |
| Air consumption (Air consumption) | 250 l/min | Air volume required for continuous operation |
| Rotational Speed (Variomatic WS 90) | 900 RPM | Speed of the Variomatic unit |
| Noise level (Sound pressure level) | 70 dB(A) | Data important for occupational safety |
| Weight | 1,800 kg | Device weight |
| Dimensions (Length × Width × Height) | 290 x 30 x 230 mm | Physical dimensions of the device |
| Materials | Alu, Aluminium, Steel | Main materials used |
| Air quality | ISO 8573-1 | Conformity standard for compressed air quality |
| Conformity Declaration | According to 2006/42/EC | Machinery safety directive |
The VarioDrill WS 90 Variomatic set with article number 601001 offers a comprehensive solution for removing spot welds, containing the following elements:
VarioDrill WS 90 (Article No.: 602001): The drill/mill unit without Variomatic.

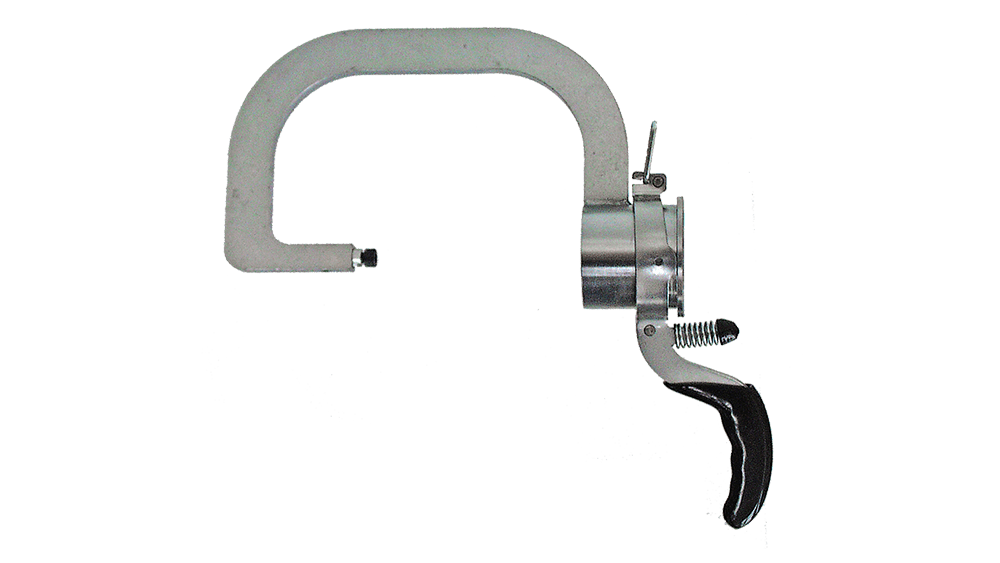

Variomatic WS 90 (Article No.: 608020): Pneumatic drive unit with a speed of 900 rpm, featuring a spindle that can rotate 360°.
Variantic Mill Z3 (Article No.: 620200): One milling insert with a diameter of 44 mm and a shank diameter of 8.0 mm.
Transport case: A biztonságos tárolás és szállítás érdekében.
Allen key: The tool required for securing the mill.
A number of accessories are available to ensure the maximum efficiency of the VarioDrill WS 90 and to meet special requirements:
BTR/BOR Mill Set Z3 (Article No.: 620116): A 7-piece set for removing spot welds, which includes:
2 pcs BTR/BOR mill Z3 (44 mm, Ø 6.0 mm)
2 pcs BTR/BOR mill Z3 (44 mm, Ø 8.0 mm)
2 pcs BTR/BOR mill Z3 (44 mm, Ø 10.0 mm)
1 pc Center punch Ø 8 × 70 mm for UHSS.
Step drill bit NK-2F (Item number: 627001): Ø 6.7 × 44 mm rivet head drill bit, with 8 mm shank diameter, ideal for loosening riveted connections.
Set Screw (Set screw | M4 × 4 mm) (Item number: 604101): For clamping the milling cutter on the VarioDrill WS 90.

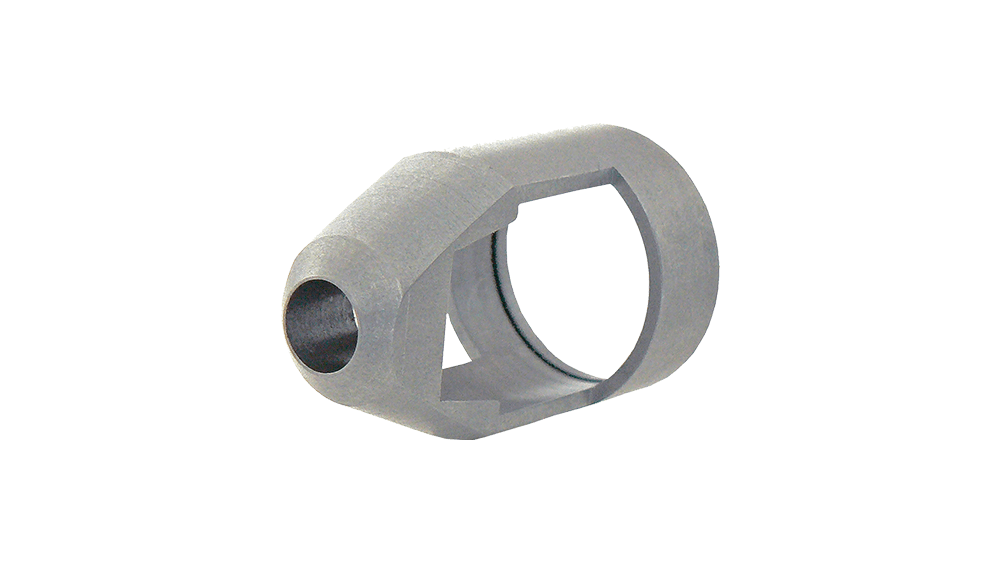

Centering Attachment V1 (Centering attachment V1 | WS 90) (Item number: 608001): Centering device equipped with an adjustable head, can only be used with the solid carbide milling cutter with item number 627010.
Centering Attachment V2 (Centering attachment V2 | WS 90) (Item number: 608002): Centering device equipped with a locking head, can only be used with the solid carbide milling cutter with item number 627010.

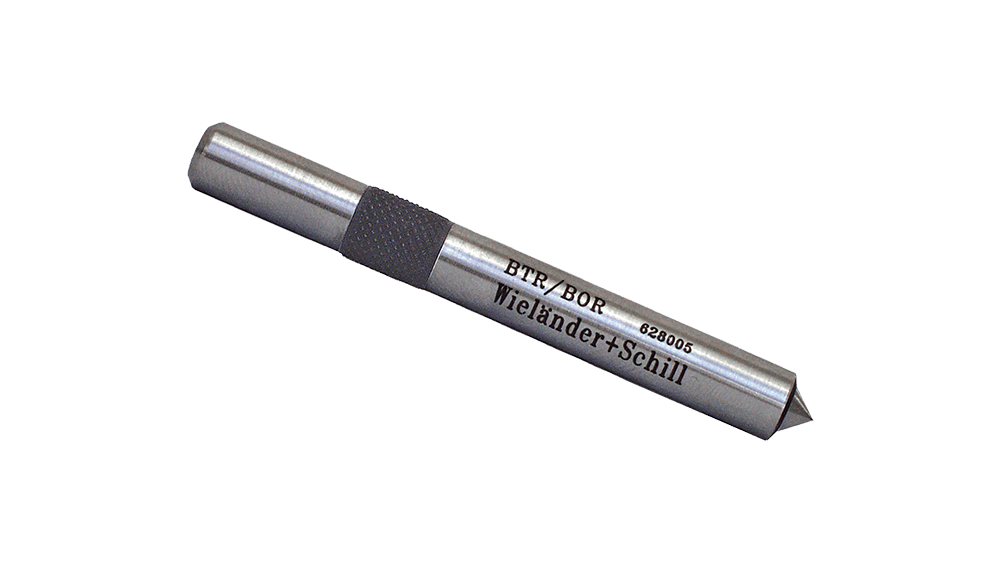

Center Punch with Centering Aid (Center punch with centering aid) (Item number: 628005): For precise drilling and milling.
Allen key SW 2.0 (Allen key SW 2.0) (Item number: 60410108): For clamping the milling cutters of the VarioDrill WS 90.
Extension VD 305 (Extension VD 305 | WS 90) (Item number: 608012): 305 mm extension for the VarioDrill WS 90, for reaching deeper surfaces.
Jumbomatic WS 90 (Item number: 608018): Used for removing welding points on deep sheet metal profiles.

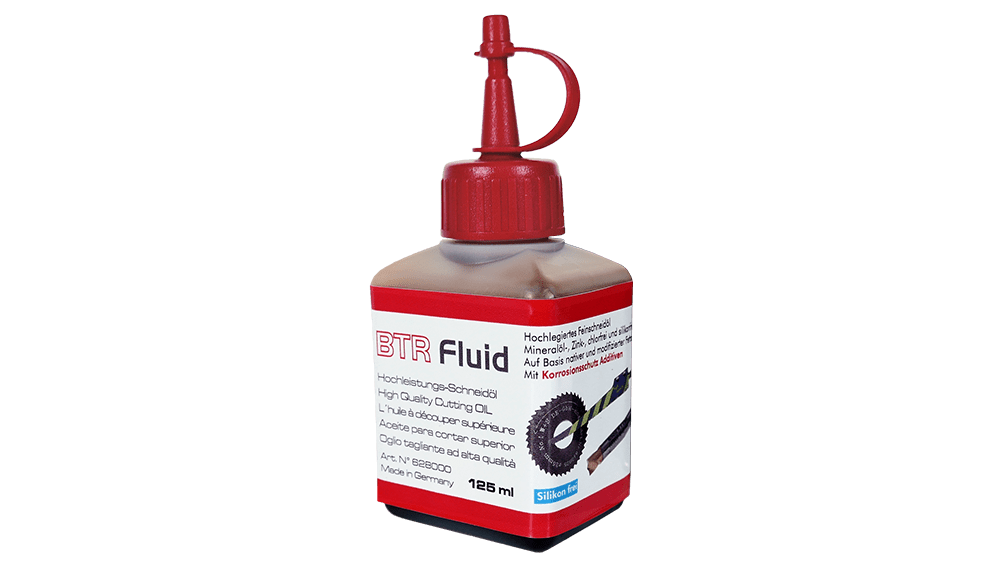

BTR/BOR Cutting Fluid (BTR/BOR Fluid | 125 ml) (Item number: 628000): Silicone-free cutting oil that significantly increases the service life of milling cutters, drill bits, and saws when machining high-strength automotive steels, ensuring optimal cutting performance.
The VarioDrill WS 90 Variomatic set reflects Wielander + Schill's commitment to quality, efficiency, and user safety in the vehicle repair sector.
