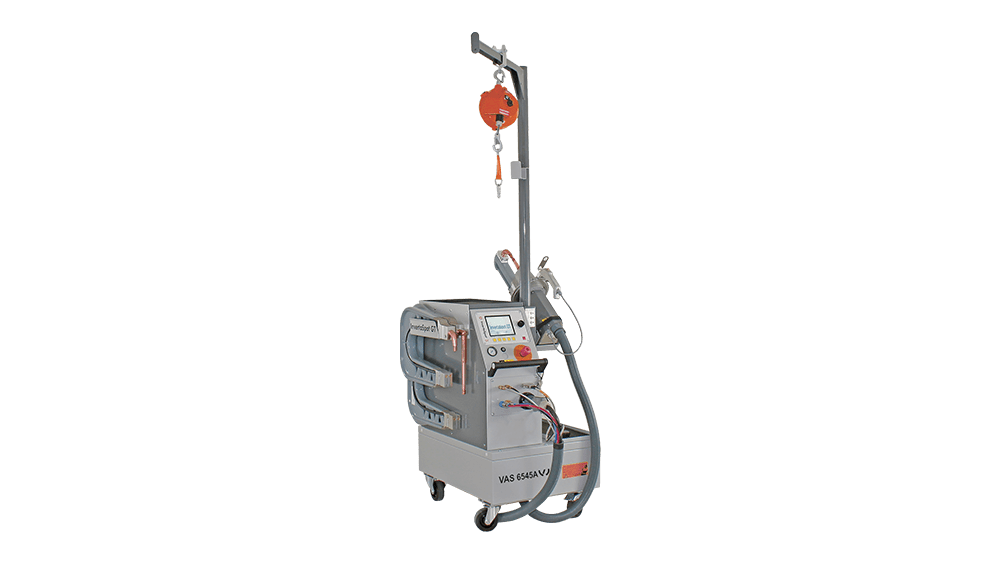

A VAS 6545A InvertaSpot GT Automatic 3 × 200 V | UL a spot technology, automatic resistance spot welding machine, specifically designed to meet the demands of modern vehicle repair. This equipment is an ideal choice for high-strength steel (HSS) and ultra-high-strength steel (UHSS) welding, which are essential for modern body structure repair.
The main strength of the InvertaSpot GT-C AUTOMATIC is its intelligent, fully automated operation, which guarantees consistent and excellent quality welding results while ensuring significant energy efficiency.
This welding machine is capable of detecting the conditions prevailing at the welding point, and accordingly automatically sets the welding parameters. During the process, continuously monitors the welding process, ensuring that every single spot meets strict quality specifications.
Teljes Automatizálás: Optimizes energy consumption and minimizes the possibility of human error.
Energy Efficiency: Due to full automation, extremely energy-saving operation is made possible.
Manual Mode: Although automation dominates, experienced professionals have the option to manual mode for use, where welding parameters can be freely modified to meet specific requirements.
The equipment is excellently suited for welding the latest generation of high-strength and ultra-high-strength steels (HSS/UHSS), which are common in modern vehicle bodies.
The massive construction of the machine and compliance with strict standards guarantee a long service life and reliable operation under workshop conditions.
Powder coating: Powder-coated surface treatment for increased durability.
Air Requirement: 6–8 bar operating pressure is required for pneumatic functions.
Cooling: A water-flow cooling system ensures the optimal temperature of the welding gun.
The table below details the specifications for the VAS 6545A InvertaSpot GT Automatic 3 × 200 V | UL equipment: | Parameter | Value | Note | | :--- | :--- | :--- | | Part number | 932163 | | | Mains Voltage | 3 ~ 200 V | | | Frequency | 50 – 60 Hz | | | Rated Power | 45 kVA | | | Current Adjustment Range | 0 – 13 kA (in both ranges) | | | No-load Voltage | 12 V DC | | | Welding Force | 6.2 kN | | | Cooling | Water-flow | | | Flow Rate (Cooling) | 5 l/min | | | Operating Pressure | 6 – 8 bar | | | Fuse | 63 A | | | Protection Class | IP 21 | | | Noise Level | < 70 dB(A) | | | Dimensions (L x W x H) | 810 x 560 x 750 mm | | | Weight | 119 kg (262 lbs) | | | Conformity Declaration | CE/UL | | | Air Quality | ISO 8573-1 | | | Tank Capacity | 80 l (22.45 gal) | Coolant tank capacity |
The VAS 6545A InvertaSpot GT Automatic 3 × 200 V | UL is supplied fully equipped, ensuring immediate operation.
The delivery package includes the following items:
Important Note: Please remember to return the registration card to the manufacturer for machine registration.
This welding machine is in the Volkswagen AG Workshop Equipment category (OEM recommendations), which means it complies with the stringent quality and technological requirements of the Volkswagen Group and is ideal for brand dealerships. The device can be excellently integrated into professional body repair shops where maintaining the structural integrity of body parts is critical.
The VAS 6545A InvertaSpot GT Automatic 3 × 200 V | UL is the perfect combination of reliability, advanced technology, and user-friendly automation for the most demanding welding tasks.
