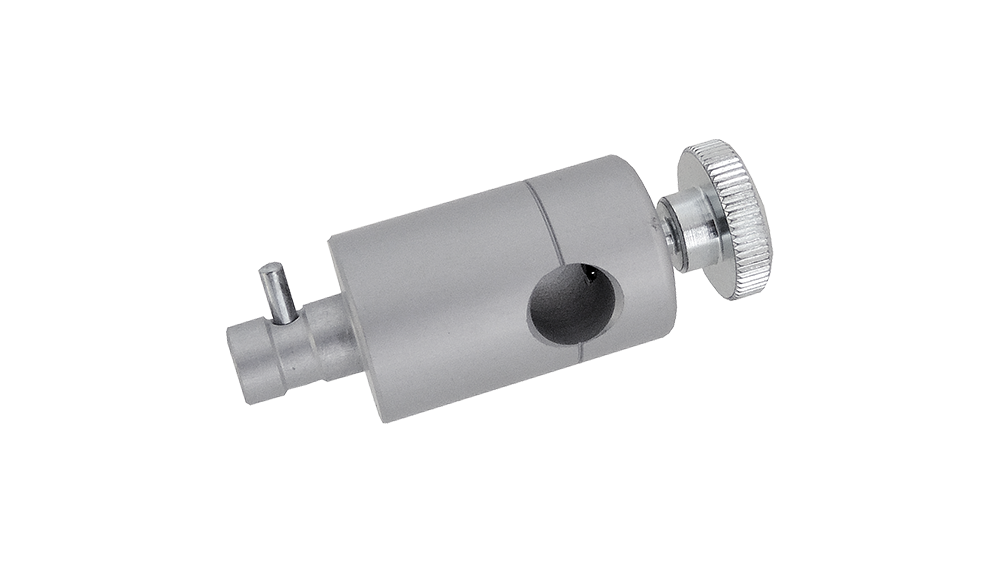

This detailed product description is designed for the professional body repair tools from Wieländer+Schill, specifically presenting the precision fixing screw used for securing measuring tubes. This component is crucial for ensuring the accuracy of measurements and the stability of settings during body repair processes.
A Fixing Screw a specially designed element essential for fixing the position of measuring systems (especially measuring tubes). Its main function is to prevent accidental displacement or adjustment of the measuring tubes during measurements or body checks. This stability guarantees the reliability of the measured data, which is critically important for precise body realignment work.
This fixing element belongs to the Dent Removal Technology & Metalworking category and is closely associated with precision measuring equipment.
The fixing screw is made from high-quality materials and offers durable, reliable performance in a workshop environment.
| Property | Value | Note |
|---|---|---|
| Part number | 874024 | Unique identifier for kit tracking. |
| Coating | nickel-plated | Ensures excellent corrosion protection and durability. |
| Material | Steel | High-strength base material for reliable fastening. |
| Dimensions (Length x Width x Height) | 20 x 20 x 21.5 mm | Compact design for use in tight spaces. |
| Weight | 0.016 kg | Lightweight, meaning minimal load on the structure. |
Prevention of Accidental Adjustment: The primary task of the screw is to firmly secure the measuring tubes, thereby excluding movement caused by user or environmental factors.
Durable Construction: Steel base material and nickel-plated surface treatment ensure a long service life, even under intensive industrial use.
Compatibility: Ideal accessory for Wieländer+Schill measuring systems, especially when used together with the measuring tube holder, Part Number 874027.
For optimal utilization of the fixing screw, Part Number 874024, it is recommended to use it together with the following accessories, which form the basis for precision measurements:
This holder ensures the stable positioning of the measuring tubes on the surface under inspection. With the help of the fixing screw (874024), this holder can be fixed, thereby guaranteeing precise measurement.
Function: Support for the measuring tubes for the purpose of precise measurement.
Importance: The holder and the fixing screw together form the stable measuring point.
This longer measuring tube allows for the precise and reliable measurement of structural damage, as well as checking dimensions after body straightening.
Application: Structural damage assessment and dimensional monitoring.
Advantage: Longer reach, reliable data acquisition.
A specially designed measuring tip that enables measurements in hard-to-reach locations and even between non-flush surfaces.
Configuration: Angled shape.
Advantage: Access to narrow or complex geometry surfaces.
Similar to the angled version, this short, straight tip is also ideal for measuring hard-to-reach points, especially where direct, perpendicular access is possible.
Configuration: Straight shape.
Advantage: Precise measurement on straight-line or easily accessible points.
The 874024 fixing screw is an essential tool in every professional body repair shop that utilizes digital or mechanical measuring systems. The basis for precise measurement is the creation of stable reference points. This screw ensures that the measuring tips do not move during measurement, which is especially important when restoring the complex structures of modern vehicles where millimeter accuracy counts.
Wieländer+Schill products, including this fixing element, meet the highest quality requirements, as certified by ISO 9001 and ISO 14001 certificates, ensuring continuous quality management and environmentally conscious manufacturing.
