A VAS 843 007 Premium Booster Riveting Tool the perfect choice for workshops looking for a compact, high-performance, and extremely precise solution for riveting tasks. This professional tool can process rivets with impressive speed and adjustable force, making workflows not only more efficient but also significantly more time-saving. The system, designed according to Volkswagen AG workshop equipment recommendations, ensures the highest level of quality and reliability.
The VAS 843 007 Premium Booster represents the cutting edge of modern body repair technology, featuring outstanding functions that optimize the user experience and the quality of work.
One of the most important, patented features of the VAS 843 007 Premium Booster is the adjustable, force-free pre-feed. This „Smart Control” technology enables extremely precise and safe positioning of the tools. During particularly sensitive riveting operations, this function guarantees maximum accuracy and control. The entire pressing or pulling process is controlled with millimeter precision , minimizing the risk of errors and ensuring a perfect fit.
The system delivers outstanding performance in three main areas:
Faster: The high-performance technology speeds up every riveting process.
Stronger: The high adjustable force ensures optimal results even for the most demanding materials.
More Precise: The „Smart Control” function guarantees maximum precision during the execution of the work.
The modular structure of the Premium Booster allows for the use of various adapters and tool inserts . This means that a single tool can process the most diverse rivet types, increasing efficiency and significantly reducing the number of tools required in the workshop.
The VAS 843 007 set provides a comprehensive solution for professional riveting tasks.
The complete set includes the following components, ensuring versatile usability:
| Part number | Designation | Description/Function |
|---|---|---|
| VAS 843 007/1 | PowerPack 1000 SC | The central unit of the hydraulic system. |
| VAS 843 007/2 | SSC 40/25 Short stroke cylinder | Short stroke cylinder for precise operation. |

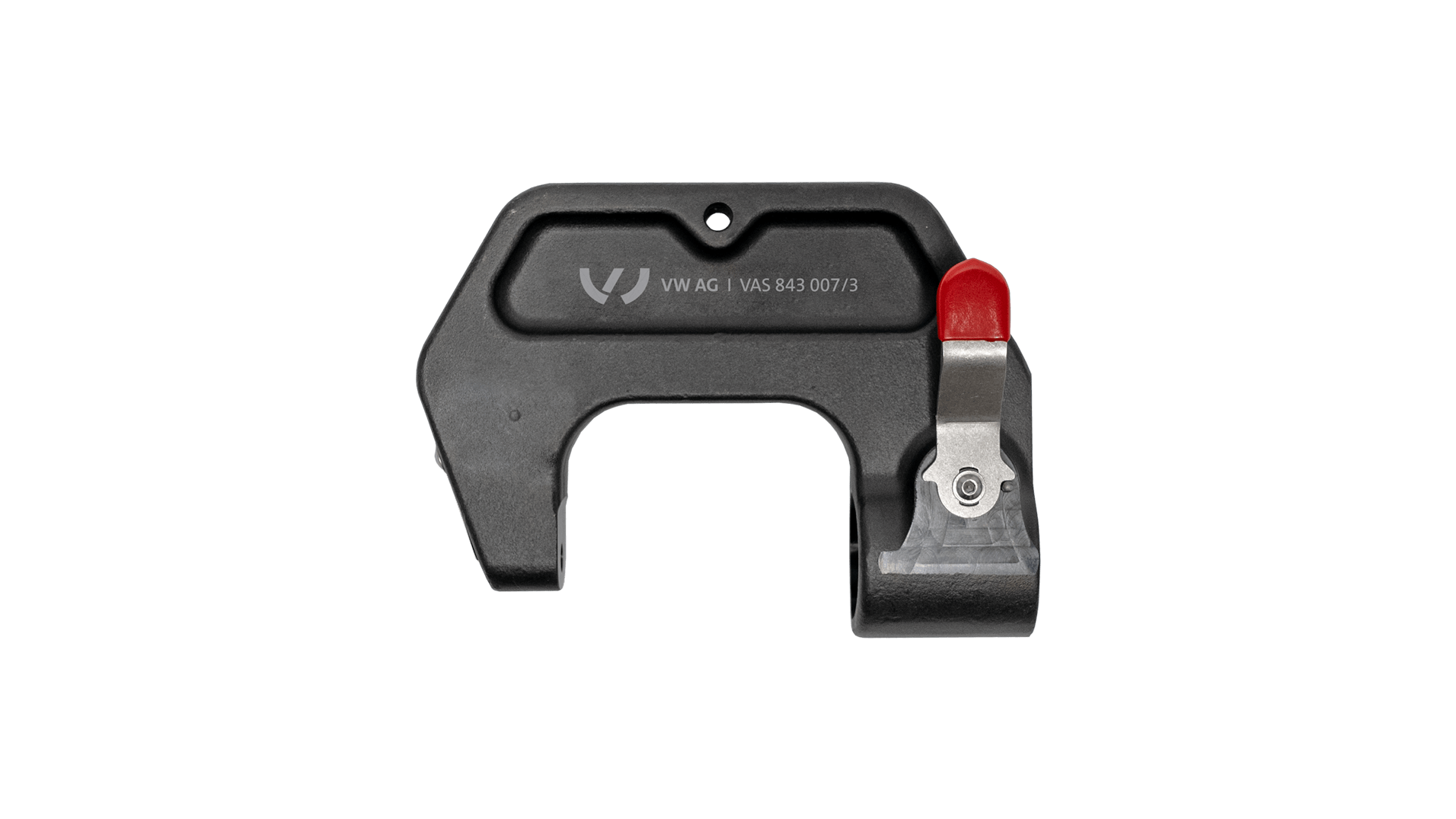

| VAS 843 007/3 | C-Arm GC 80/40 | C-arm with 80 x 40 mm working opening. |
| VAS 843 007/4 | C-Arm GC 80/130 | C-arm with 80 x 130 mm working opening, specially developed for the VAS 843 007. |
| VAS 843 007/5 | C-Arm GC 140/240 | C-arm with 140 x 240 mm working opening for larger work surfaces. |
| VAS 843 007/6 | Extension | 60 mm extension element. |
| VAS 843 007/7 | Tool Box Basic | Basic tool kit for various riveting and punching operations. |
| VAS 843 007/8 | Tool Box CFFR | Special tool kit for CFFR (Countersunk Flow Form Rivets) and other special rivets. |
| VAS 843 007/9 | BR 20 Blind rivet adapter | Blind rivet adapter. |
| VAS 843 007/10 | Tool Box mouthpieces | 5-piece nose piece set for blind riveting. |
| VAS 843 007/11 | Service kit | Service kit for venting and refilling the PowerPack 1000 SC. |
| WS Special center punch | Special center punch | Two-stage (2F) center punch with punch for SPR rivets. |
| Handle | For fixed magnets and C-arms | Red handle. |
| USB Stick | Operating instructions and introductory video | Digital documentation and installation aids. |
| Cases | For the complete set and C-arms | Two robust storage cases for tool protection. |
The system's flexibility is further enhanced by optionally available accessories:
This 5-piece set contains standard nose pieces for riveting with the VAS 843 007/9 BR 20 blind rivet adapter.
1 x Nose piece 3.2A
1 x Nose piece 3.6A
1 x Nose piece 4.0A
1 x Nose piece 4.5A
1 x Nose piece 4.5B
Tools required for venting and refilling the VAS 843 007/1 PowerPack 1000 SC unit.
1 x Special oil pump (250 ml)
1 x L-connector
1 x Adapter
1 x Hose (Ø 6 × 4 mm | 700 mm)
1 x Hose (Ø 8 × 6 mm | 500 mm)
C-yoke with 80 x 130 mm working opening, specially developed for work performed with the VAS 843 007 Premium Booster riveting tool.
This case contains basic tools for various riveting and punching technologies:
Extractor pin (D1, D2, D3, D4, D5, S1, S4, S5) for various rivet types (e.g., Self-piercing Rivets, Solid Rivets).
Punching and forming tool sets (D5+D16, D10+D11, D6+D7, D15+D16, D8+D9, D17+D17).
Closing tools for solid rivets (D8) and SPR (S6, S7, S8).
Extension element (F1) with M6 thread.
Assembly tool (Z4).
This case contains the necessary tools for processing special CFFR (Countersunk Flow Form Rivets) and TKR rivets:
Extractor pin with polyurethane spring (A4).
Punching and extracting tools (BL6, BL8).
Closing tool for TKR rivets (D21).
Setting tool for CFFR rivets (S9).
Punching and forming tool set (K1+K2).
SKR punching crowns (Ø 6 mm, pack of 20).
Extension element (F1) with M6 thread.
Assembly tool (Z4).
Important Note: The application areas of the tools and the specific work procedures must always be taken from the respective repair specifications of the vehicle manufacturer (e.g., Volkswagen AG).
The VAS 843 007 Premium Booster Riveting Tool is a comprehensive, reliable, and highly efficient device essential for modern body repair work that meets high-quality requirements.
