This product is part of the Wieländer+Schill professional body repair tool range, specifically designed for the VAS 882 005 Sheet Metal Cutter tool. This extremely durable flat end mill, made of hard metal, features an innovative coating that significantly increases the tool's lifespan and performance even under extreme load.
Compared to standard, comparable tools, the VAS 882 005/1 milling cutter head offers three times longer lifespan This outstanding durability is due to the special AlTiXN coating which resists the highest temperatures, high-speed machining, and extremely hard workpieces.
This tool is an ideal choice for precise and efficient sheet metal cutting tasks, especially when machining steel materials where reliability and long service life are critical factors.
A crucial element of the cutter head is the AlTiXN (Aluminum-Titanium-Nitride) coating. This coating is excellently suited for:
Milling under extreme load: Capable of withstanding high mechanical stress.
High temperature resistance: Prevents rapid tool wear in case of high rotational speeds and friction.
Hardness: Performs excellently on materials with high workpiece hardness.
In order to optimize maximum performance and tool life, the use of ‘BTR Fluid’ cutting oil is essential during every milling process. This lubricant ensures adequate cooling and lubrication, minimizing friction and overheating of the tool.

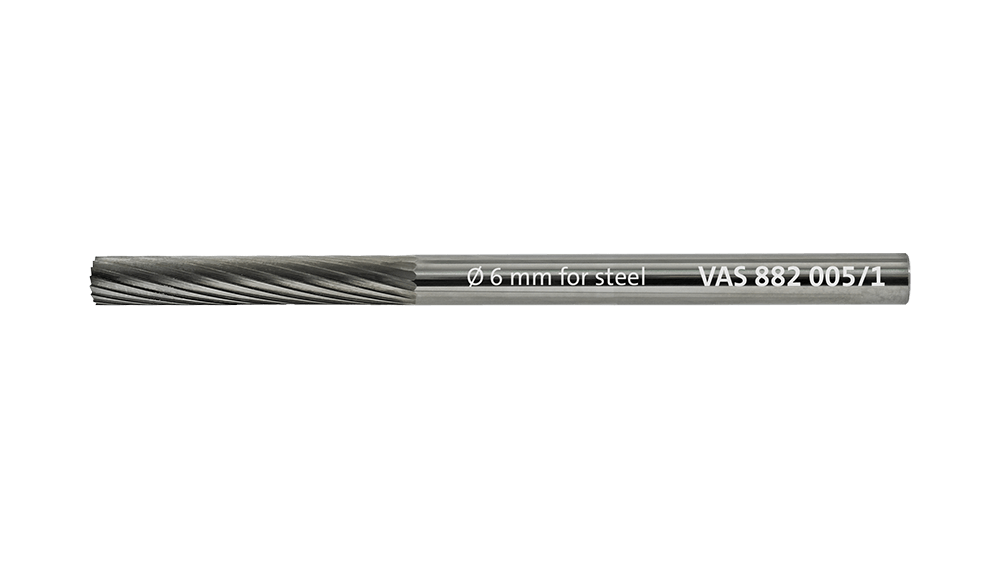

The following table details the precise specifications of the VAS 882 005/1 flat end mill:
| Property | Value | Note |
|---|---|---|
| Part Number (Manufacturer ID) | 932248 | |
| Product Name | VAS 882 005/1 Flat-End End Mill | |
| Diameter (Ø) | 6.0 mm | The nominal diameter of the cutting edge. |
| Total length | 95 mm | The total length of the tool. |
| Dimensions (Length x Width x Height) | 95.5 x 6 x 6 mm | The physical dimensions of the tool. |
| Material | Hard Metal (Carbide), HSS | The material of the tool body and the cutting edges. |
| Coating | AlTiXN | Innovative, high-performance coating. |
| Weight | 0.037 kg | |
| Package contents | 1 darab | |
| Field of application | Machining of steel | |
| Compatibility | VAS 882 005 Sheet Metal Cutter |
This tool was developed as part of the Volkswagen AG workshop equipment (OEM recommendations), ensuring quality and fit according to factory specifications.
Advantages for the user:
Cost-Effectiveness: Triple service life reduces the frequency of tool changes and the resulting downtime.
Greater Productivity: High-speed and high-load machining capability allows for faster work completion.
Reliable Quality: The AlTiXN coating guarantees a clean, uniform cutting surface even on the hardest steels.
Special Compatibility: Optimized specifically for the VAS 882 005 system.
To ensure optimal performance of the end mill and to further increase tool life, the use of the following accessory is recommended:

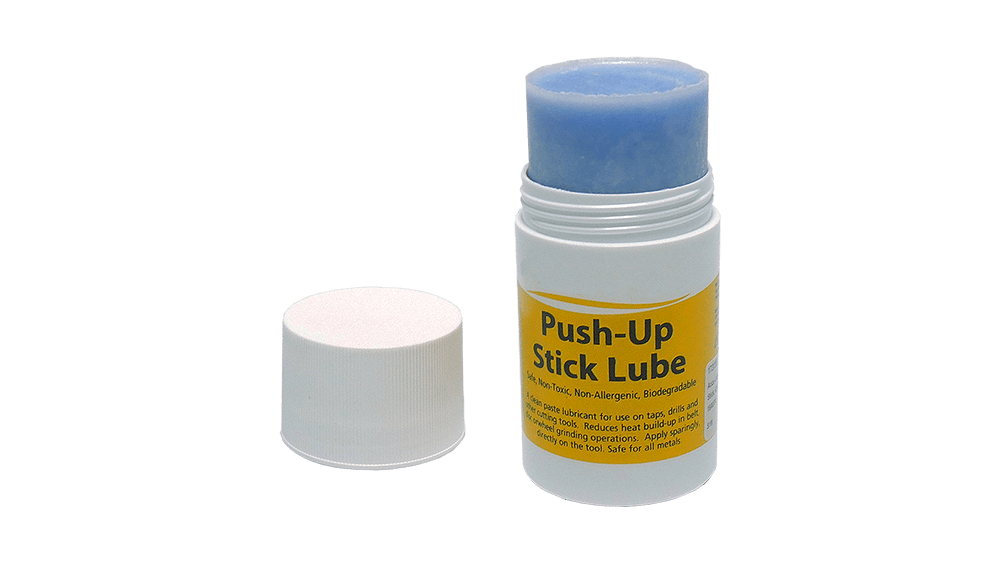

Drill wax stick (Drill wax stick | MEC 600)
Part number: 640068
Function: Serves as a lubricant for aluminum end mills (although this product is for steel, it may be listed due to the general benefits of the lubricant, but for VAS 882 005/1, ‘BTR Fluid’ is key). The wax optimizes application results and increases the cutting tool's service life.
Adjusted for different materials and tasks, other members of the VAS 882 005 series are also available in the Wieländer+Schill range:

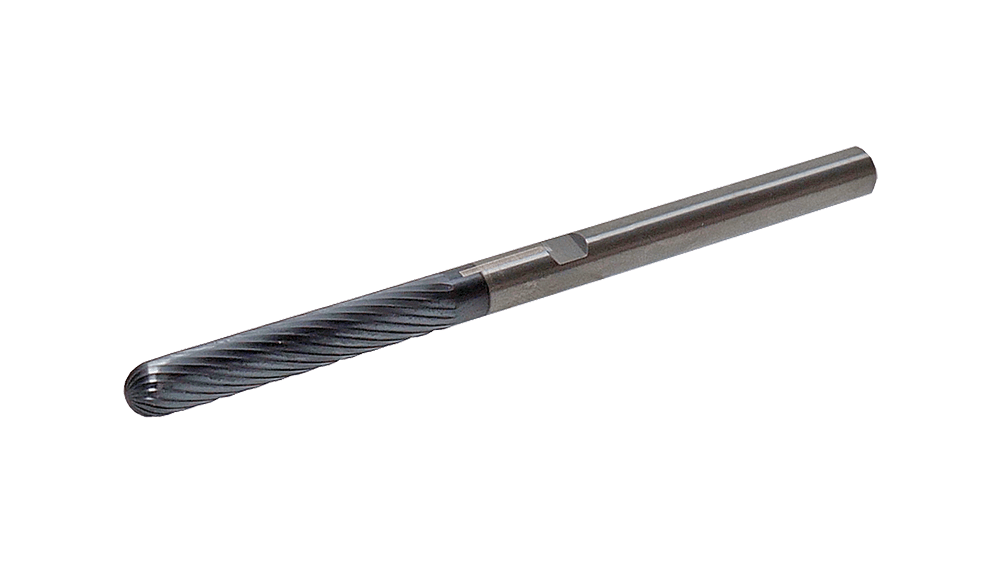

Part number: 932250
Feature: Specially developed for aluminum, with a coarse cutting geometry that prevents material smearing and clogging. The use of special wax lubricant is also recommended.

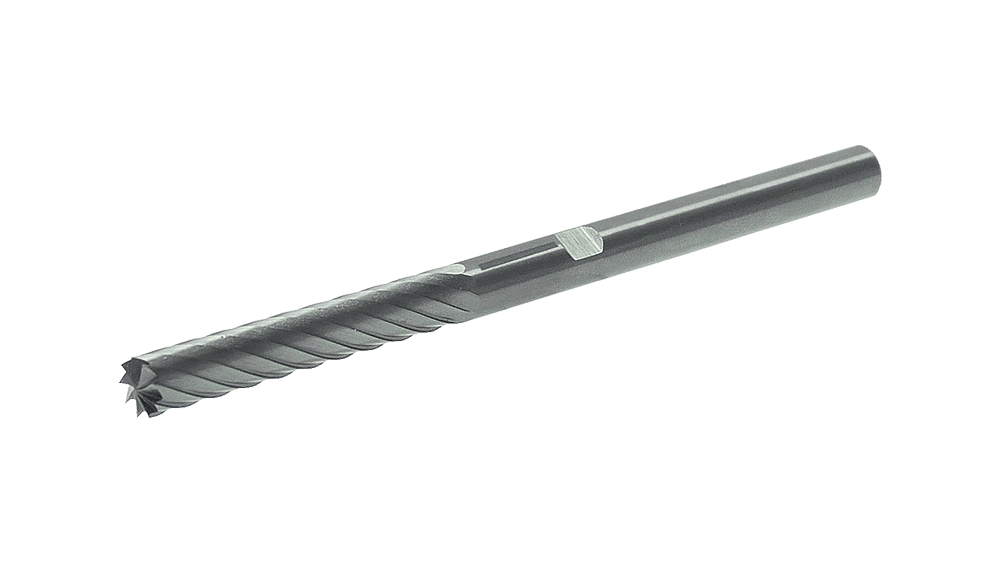

Part number: 932249
Feature: Features an innovative coating, specifically designed for cutting laser weld seams (LWS) on bodywork components. The same AlTiXN coating ensures high heat and load resistance. For best results, the use of ‘BTR Fluid’ cutting oil is mandatory.
This flat-end mill is an indispensable tool for precision body repair work, combining durability and excellent machining quality.
