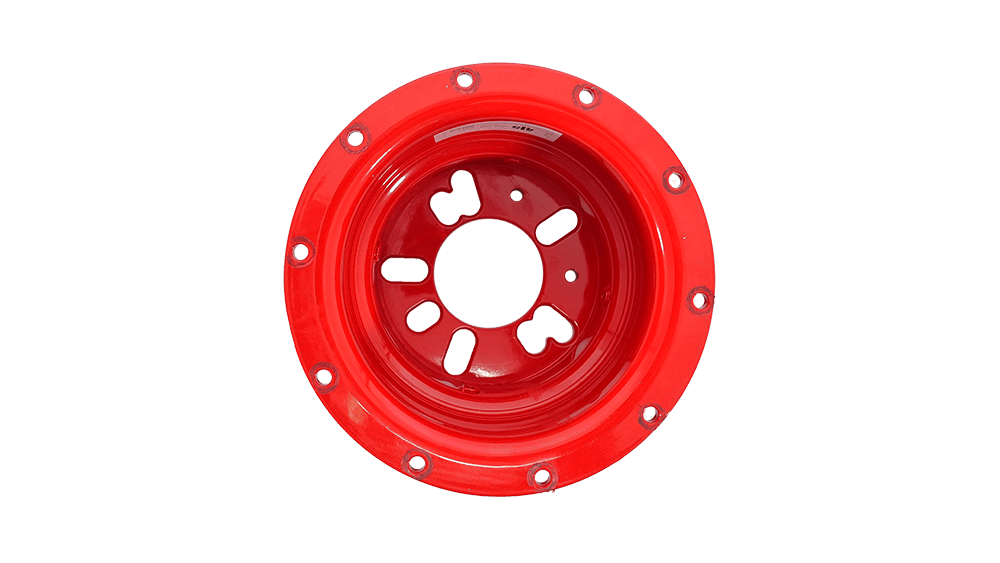

Discover the WS Roller-Spinner HD- the ultimate solution for extremely easy maneuvering of serviced, blocked, or parked vehicles, regardless of their drive or brake system. This heavy-duty (HD) rolling-spinning mechanism revolutionizes workshop logistics and vehicle positioning.
The innovative rotating inner ring of the WS Roller-Spinner simplifies the recovery of electric or automatic transmission vehicles, where traditional maneuvering methods often fail. Functioning as a universal spare wheel, it not only eliminates the inconvenience caused by immobilized lifts, but also up to 8 km/h ensures smooth vehicle movement.
This product is a breakthrough especially for painting shops: it offers a seamless solution for the storage, logistics, and handling of painting wheels, as it can be used by itself as a painting wheel. Its adaptability makes it the perfect complement to traditional maneuvering aids, especially on challenging surfaces such as cobblestones or gravel beds.
The design of the WS Roller-Spinner HD focused on durability, ease of handling, and versatility:
Massive, One-Piece Cast Construction: This design prevents the tires from detaching or separating during intensive use, ensuring a long service life.
Könnyű Kezelhetőség: Compared to standard steel wheels lighter with 40%, which significantly improves handling and reduces user fatigue.
Robust Core: Features a 10 mm thick steel core, guaranteeing excellent stability and load-bearing capacity.
Universal Rim Bolt Pattern: The standard rim bolt pattern fits perfectly with impact wrenches and prevents excessive wheel spin during fastening.
Ball Bearing Sliding System: The ball bearing design of the inner ring ensures extremely low-friction, easy rotation, which is critical for positioning in tight spaces.
The product specifications ensure precise fit and reliable performance even in the most demanding workshop environments.
| Characteristic | Spezification | Note |
|---|---|---|
| Product Name | WS Roller-Spinner HD | Heavy Duty Design |
| Part number | HV170 | |
| Wheel Diameter (Ø) | 25 inches | |
| Bolt Circle | 4/5 | Base product configuration |
| Selectable Bolt Circle | 5/6 | With convertible accessories |
| Bearing | Ball bearing | For the inner ring |
| Maximum Speed | 8 km/h | Travel speed |
| Construction | Single piece casting | Maximum strength |
| Core Material | Steel | 10 mm thickness |
| Weight | lighter with 40% | Like standard steel wheels |
Important Compatibility Note: Before installation, ensure that the vehicle's bolt circle matches the Roller-Spinner base configuration (4/5 holes). Conversion to 5/6 hole configuration requires special flanges and adapter rings (see Accessories).
The exceptional flexibility of the WS Roller-Spinner HD is ensured by widely available accessories that allow adaptation to different bolt circles and storage requirements.

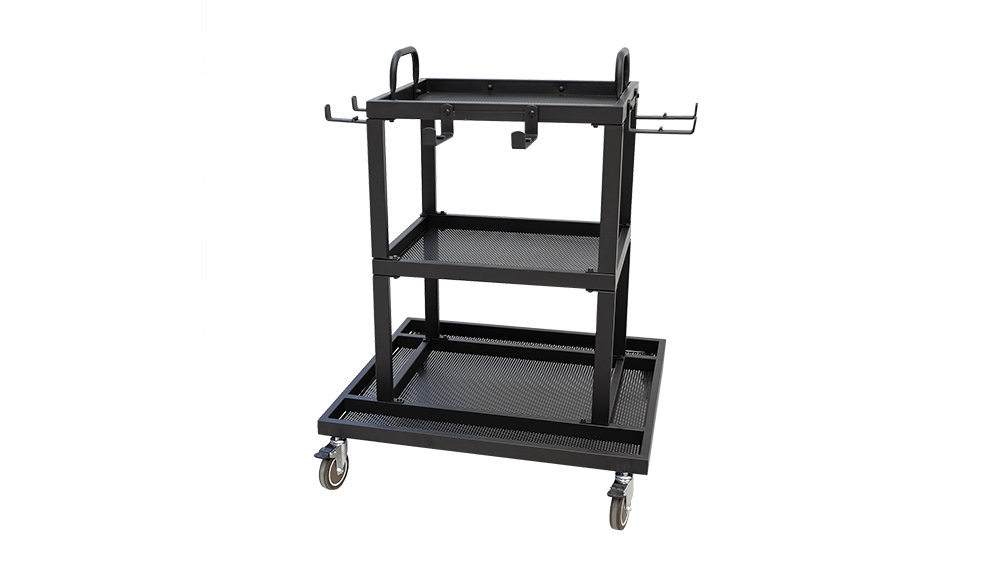

Trolley for WS Roller-Spinner | large (HV160): Large trolley that 8 pcs Suitable for storing the WS Roller-Spinner. Ideal for large workshops.

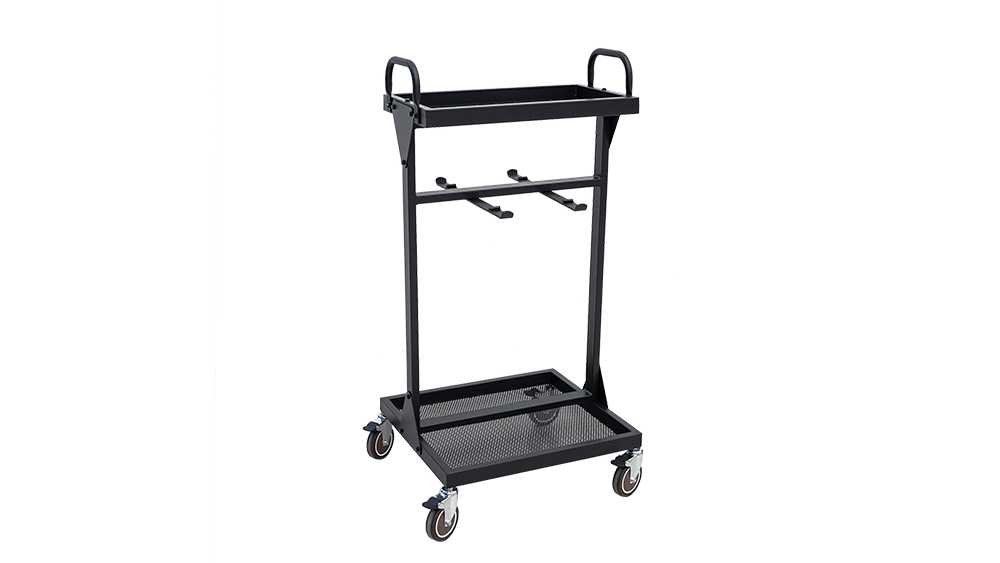

Trolley for WS Roller-Spinner | small (HV161): Smaller trolley, which 4 pcs Suitable for storing the WS Roller-Spinner.
The Roller-Spinner can be converted to other bolt circles to maximize compatibility with the vehicle fleet in the workshop. An adapter ring is always required for the conversion.
| Accessory | Part number | Description | Required Adapter Ring |
|---|---|---|---|

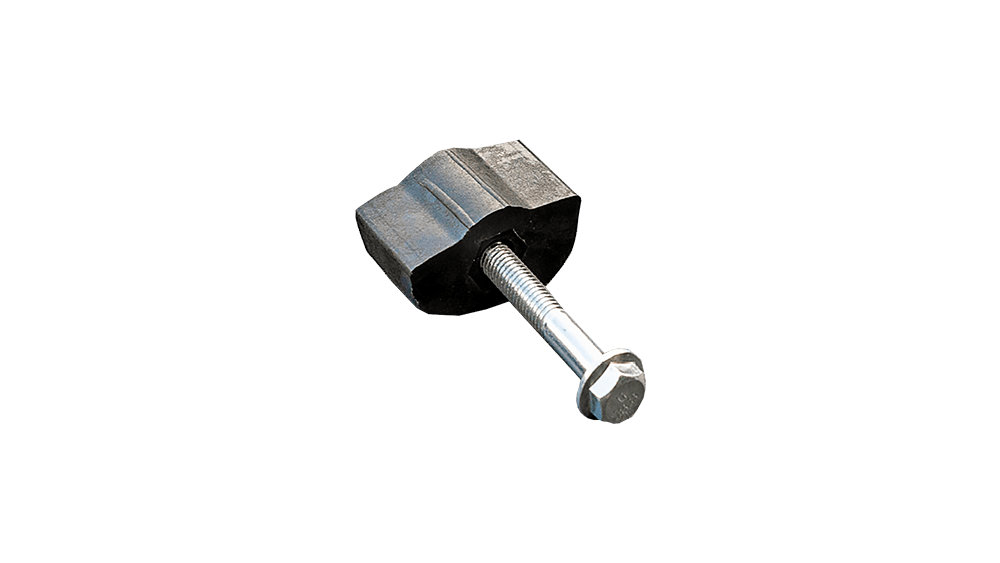

| Stud bolts with screw (M8 × 55 mm, 12 pcs/pack) | HV156 | For converting the WS Roller-Spinner to roller operation mode. | N/A |

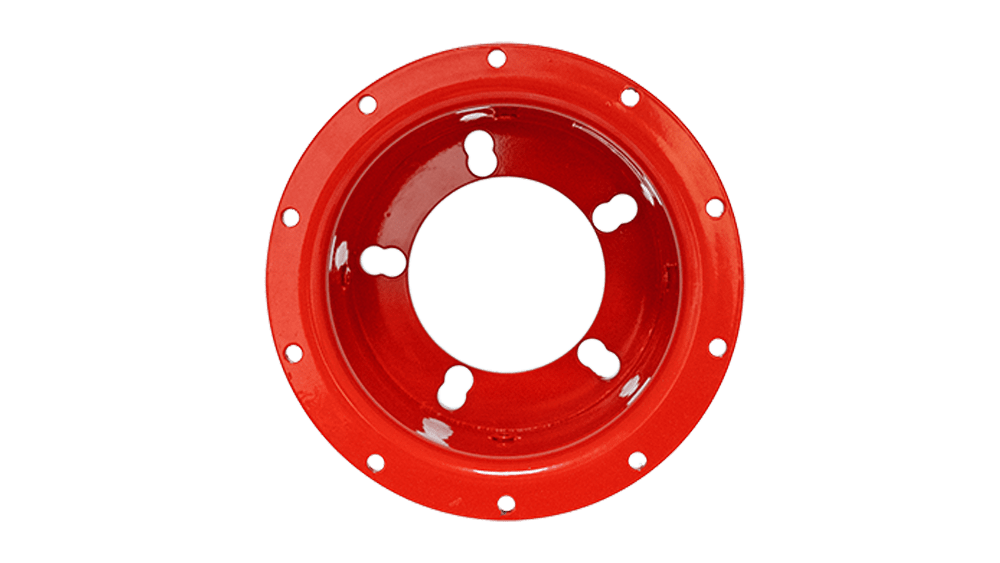

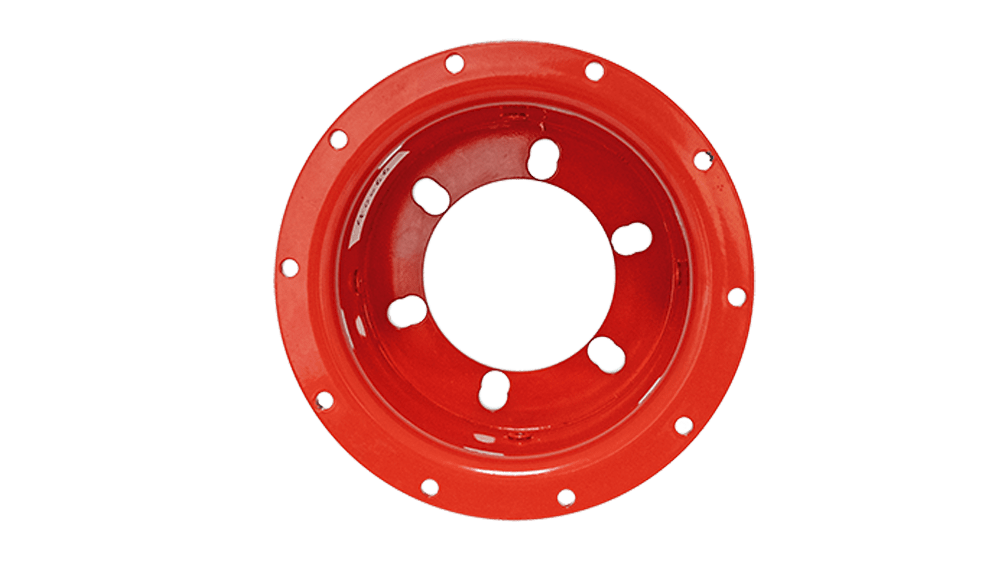

| Steel flange 4/5-hole (CB: Ø 74.1 mm) | HV158 | For converting the existing WS Roller-Spinner to the specified bolt circle. | Adapter ring 5/6 (HV155) required |

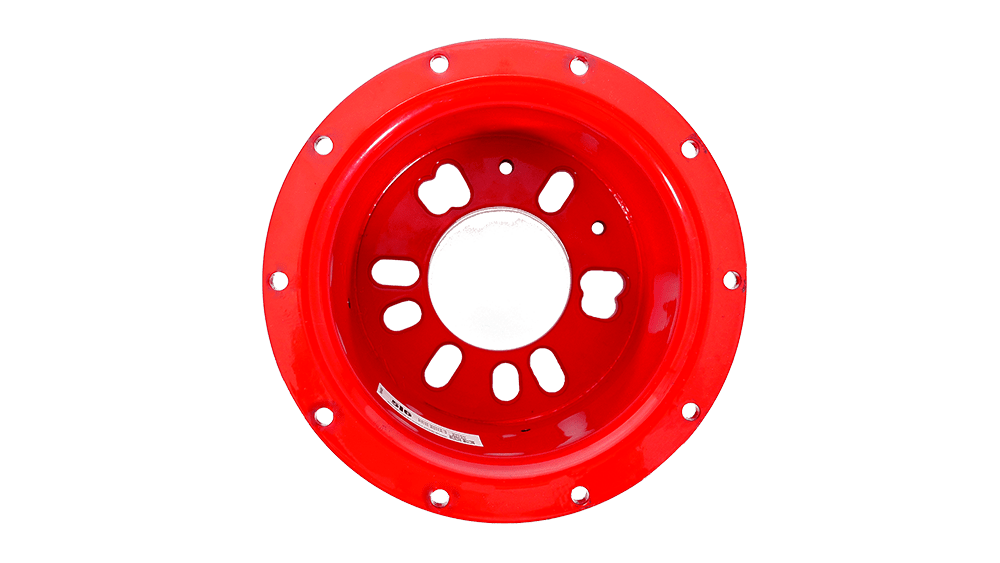

| Steel flange 5/6-hole (CB: Ø 87.1 mm) | HV159 | For converting the existing WS Roller-Spinner to the specified bolt circle. | Adapter ring 5/6 (HV155) required |
| **Steel flange 5-hole (CB: Ø 110 mm | SUV & VAN)** | HV162 | Conversion flange optimized for SUVs and vans. |
| **Steel flange 6-hole (CB: Ø 108 mm | SUV & VAN)** | HV165 | Conversion flange optimized for SUVs and vans. |

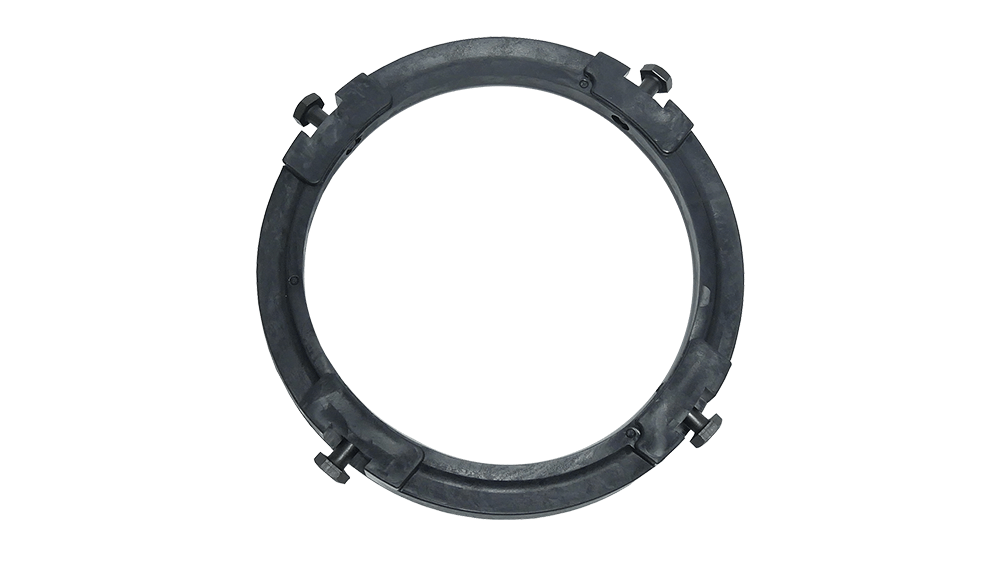

| Adapter ring 5/6 with screws (WS Roller-Spinner) | HV155 | Mountable on the flange, enables „spin” operation mode and stabilizes the wheel. Diameter: Ø 185mm. Fixing screws included. | N/A |
The WS Roller-Spinner HD is the ideal choice in the following situations:
Moving Blocked Vehicles: For vehicles with electric or automatic transmission where the wheels cannot rotate freely.
Maneuvering in Tight Spaces: In parking garages, service halls, or lifts where the vehicle needs to be moved sideways or diagonally.
Paint Shop Logistics: Positioning of vehicles before or after painting, as well as storage of the painted wheels.
Rough Terrain: Thanks to its robust design, it performs better than smaller rollers on uneven surfaces (e.g., gravel, rough asphalt).
The WS Roller-Spinner HD is a standout element in the Wielander + Schill category of professional service and workshop equipment, guaranteeing efficiency and damage-free vehicle handling.
