The Consul 4-post lift 4.65 model is a robust and reliable solution for lifting passenger cars and commercial vehicles, especially concerning wheel alignment tasks. This high-performance lift is also excellently suited for servicing long-wheelbase vehicles, guaranteeing maximum safety and precision in the workshop environment.
The Consul 4.65 lift is built to the highest quality and safety standards, making it an ideal choice for high-traffic services where reliability and fast execution are essential.
This 4-post lift incorporates several design elements that optimize usability and safety:
High Load Capacity: Its nominal load capacity of 6,500 kg also allows for the safe lifting of heavy commercial vehicles.
Low Installation Height: The installation height, optimized for wheel alignment, is only approx. 185 mm (optionally 235 mm with AM version), facilitating the drive-on of sporty or low-profile vehicles.
Hydraulic System: The quiet-running, oil-bath hydraulic drive ensures a smooth and reliable lifting process.
Electro-hydraulic Control: Modern control system for precise and easy operation.
Safety Features: Redundant safety system, including a tension-free cable, cable break protection, and rollback protection.
Acoustic Foot Protection: Increases personal safety during lifting and lowering.
Operating Direction: Operation is performed on the rear left side, corresponding to the vehicle's drive-on direction.
Main Switch: Main switch disconnected according to CE requirements, which can be locked if necessary.
The Consul 4.65 lift is specifically designed for precise wheel alignment, featuring several integrated functions:
Long Approach Ramps: 1,500 mm long drive-on ramps ensure comfortable drive-on for sporty and long-wheelbase vehicles.
Adjustable Platform: One platform is fully adjustable, equipped with a locking mechanism. Optionally available with roller guidance for even finer positioning.
Integrated Jack Beam Rail: The rail integrated into the platform allows for the simple and precise placement of jacking beams.
Pneumatic Locking: Central control for the pneumatic locking device (8 bar pressure required).
Height-dependent Locking: Locking rods placed in 100 mm increments across the entire lifting height ensure mechanical support.
If the lift is ordered with the wheel alignment kit, the following functions become available:
Integrated Full-Length Sliding Plates: Slide-on surfaces required for precise adjustment.
Turntable System: Suitable for 50 mm high systems, turntable cover with series mounting.
Detailed technical specifications for the Consul 4-post lift 4.65:
| Parameter | Value | Note |
|---|---|---|
| Rated load capacity | 6,500 kg | For passenger and light commercial vehicles |
| Lifting height | ca. 1.980 mm | Maximum lifting height |
| Lifting Time (loaded) | approx. 55 seconds | |
| Set-up width | 3,505 mm | |
| Drive-up height | approx. 185 mm / approx. 235 mm (AM) | AM = optional raised height jacking beam |
| Clearance between tracks | ca. 2.945 mm | |
| Power supply | 400 V / 50 Hz | Three-phase mains |
| Drive Power | 3.0 kW | |
| Fuse Protection | 20.0 A slow-blow fuse | |
| Oil quantity | approx. 9 liters | |
| Track width | 630 mm | |
| Track length | 5,500 mm | |
| Rail distance (adjustable) | approx. 690 – 1,140 mm | |
| Overall height | ca. 2.610 mm | |
| Installation length with ramp | 7,120 mm |
The Consul 4.65 lift complies with the strictest European safety regulations, ensuring long-term, trouble-free operation:
Protection Class: IP 54
Certifications: GS approval, DIN EN 1493, CE approval
For flexible use, several accessories are available, which can also be retrofitted (if permitted by the manufacturer):
Consul Wheel Alignment Kit (Complete 4.55 / 4.65): Complete kit for in-ground lifts, for 630 mm track width and 5,500 mm track length.

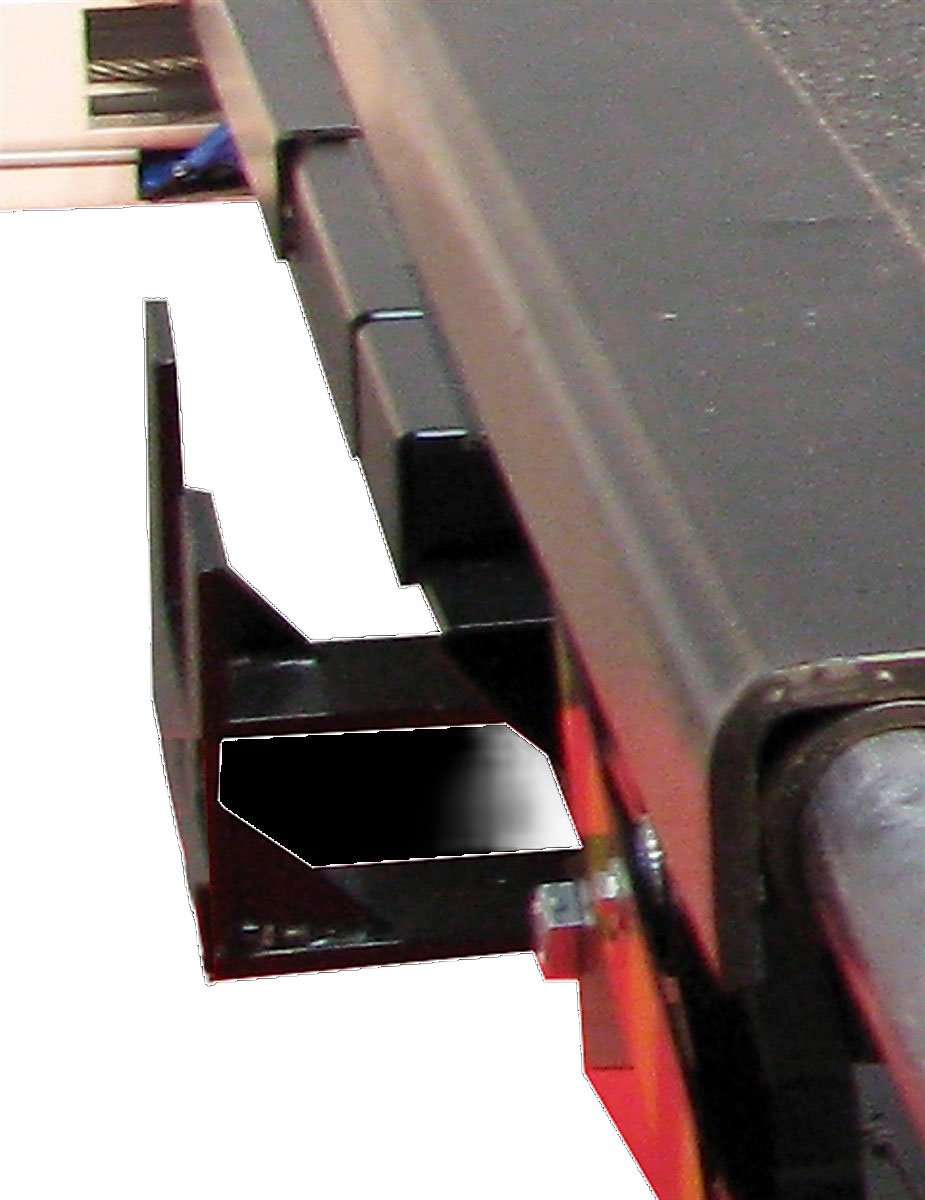

Consul Adapters for 3D Wheel Alignment Kit (Beissbarth Easy 3D): Adapters for retrofitting to the Beissbarth Easy 3D system for 4-post lifts. 1 kit = 2 pieces.

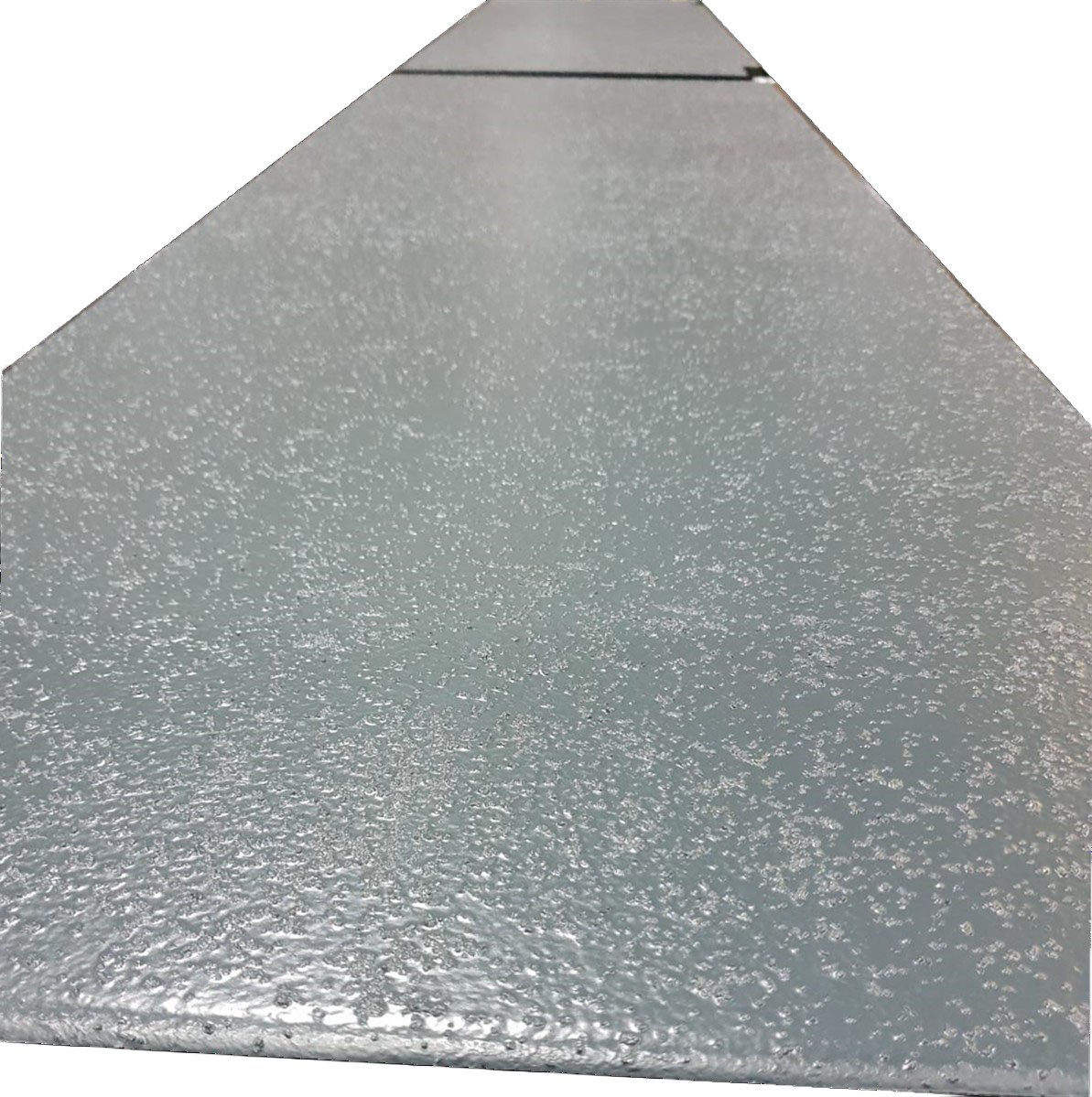

Consul Anti-Slip Coating for Tracks: (Note: This coating cannot be retrofitted.)
Consul Jacking/Roll-off Ramps with Anti-Slip Feature:
Version for lifts without wheel alignment equipment (for flush installation). 1 kit = 2 pieces.
Version for lifts equipped with wheel alignment equipment (for flush installation). 1 kit = 2 pieces.
Consul Jacking/Roll-off Ramps with Anti-Slip Feature, Straight, Extended: With anti-slip feature, length approx. 1,500 mm. 1 kit = 2 pieces.
Consul Lifting Platform Headlight Adjustment Kit for: The beam mountable on the platform for precise positioning of the headlight adjustment system. Eliminates the need for floor-based cables that pose a tripping hazard.
Consul Compensation Kit 630: Compensation kit for 630 mm wide rails, with a height of 50 mm. For subsequent installation, the type of lift must be specified.
A detailed Catalog and Installation Guide is also available in PDF format, which provides assistance in planning and professional commissioning.
