This detailed description presents the technical specifications and advantages of the Consul 2-Ram In-Ground Lift, model 2.65 MKK, which offers an ideal solution for vehicle lifting in workshop environments. Specifically designed for the safe and efficient lifting of vehicles up to 6,500 kg gross weight, it is equipped with chromed, double-acting hydraulic cylinders.
Important note: This lifting unit can only be used with a chassis frame!
The Consul 2.65 MKK is a robust, in-ground lift that ensures excellent stability and long service life thanks to its premium quality components.
Excellent Corrosion Protection: The installation cassette (recessed frame) features a hot-dip galvanized steel frame, which offers maximum protection against corrosion, ensuring long-term reliability in an in-ground installation environment.
High-Performance Hydraulics: The system uses hard-chromed, double-acting hydraulic pistons, which guarantee a smooth and precise lifting/lowering process.
External Drive Unit: The electro-hydraulic drive unit is located externally to the lift structure, which facilitates maintenance and increases safety.
Mechanical Synchronization: Mechanical synchronization is achieved via a yoke, which also functions as a safety device. This ensures that the lifting arms always remain at the same height, even under load.
Fine Lowering Control: Lowering synchronization takes place via adjustable check valves, which allows for extremely precise and safe lowering.
Electronic Control: The electronic control unit has a built-in safety valve for maximum operational safety.
Integrated Duct System: Features a connection stub for a DN 100 size drainage pipe system, used for cassette ventilation and for establishing the hydraulic supply line network.
Durable Cassette Cover: The cassette cover is entirely hot-dip galvanized, resisting workshop conditions.
Certified and Approved: The equipment has an IP54 protection rating, holds a GS certificate, complies with DIN EN 1493 standard, and bears the CE marking.
The table below summarizes the critical technical parameters of the Consul 2.65 MKK lift:
| Characteristic | Value | Note |
|---|---|---|
| Item Number (SKU) | 581314 | |
| Manufacturer Number (HAN) | 474766 | |
| Category | Double Ram In-Ground Lifts | |
| Rated load capacity | 6,500 kg | Maximum Permissible Vehicle Weight |
| Lifting height | ca. 1.990 mm | |
| Lifting Time (loaded) | approx. 45 seconds | |
| Power Supply (Mains) | 400 V / 50 Hz | Three-phase mains |
| Drive Power | 3.3 kW | |
| Electrical Supply Voltage | 400 / 50 V / Hz | |
| Fuse Protection | 20 A slow-blow | |
| Oil quantity | approx. 20 liters | |
| Cylinder distance (between columns) | 2,500 mm | |
| Plunger diameter | 2 x 130 mm | |
| Operating pressure | 150 bar |
Detailed documentation is available for the product to facilitate installation and maintenance:
Product Brochure: Detailed description of the C-Line 2-Piston In-Ground Lift product family.
Foundation Plan: Precise dimensioning drawings and instructions for preparing the necessary foundation for professional installation (available in PDF format).
For maximum performance and long service life, the use of the following accessories is recommended:
Consul Hydraulic Oil in 5-liter packaging: HLP 22 quality hydraulic oil, suitable for all Consul hydraulic drive lifts. The required quantity depends on the type of lift.

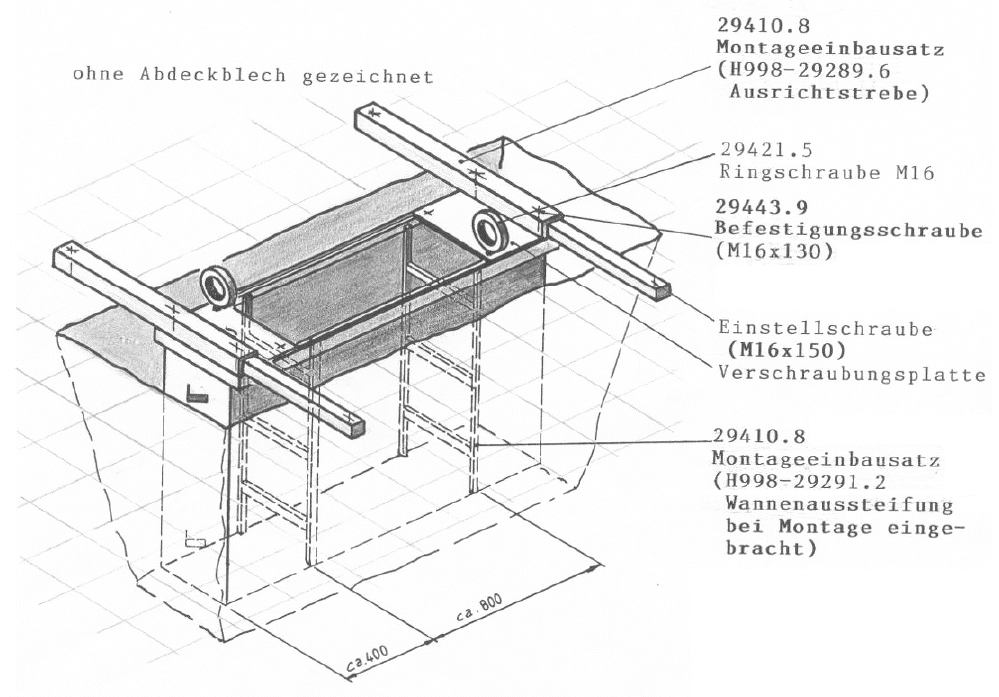

Consul Installation Kit: Contains the special mounting elements required for professional and fast installation.
Consul Control Unit according to OEM Industrial Standard: If a control unit meeting specific OEM requirements is needed, the OEM type must be indicated when ordering.
This Consul 2-ram in-ground lift offers the perfect combination of reliability, high load capacity, and space-saving design for modern service bays.
