This detailed description presents the Consul 0.42 SN BE – 4800mm refers to a type of in-ground (BE) scissor lift, which is equipped with an integrated auxiliary lift (wheel-free lift), and provides an ideal solution for lifting and servicing vehicles with a total weight of 4,000 kg. The equipment is a robust member of the Consul C-Line series, designed for high-load workshop environments, especially for wheel alignment and general servicing tasks.
The Consul 0.42 SN BE lift combines reliability, precision, and user-friendly design. The integrated auxiliary lift (wheel-free lift) allows for the complete release of the wheels, which is essential for complex wheel and brake system work.
Design: Inground installation (BE – Inground installation), which ensures minimal space requirement at floor level when the lift is not in use.
Integrated Auxiliary Lift: The auxiliary lift with a capacity of 3,500 kg, synchronized with the main lift, ensures the complete release of the wheels.
Robust Construction: The platforms are made of special rolled steel profile, guaranteeing long service life and high load capacity.
Electro-hydraulic Control: Precise and reliable lifting/lowering process.
Master/Slave Hydraulic System: Ensures the synchronized operation of the two lift arms.
Safety: Acoustic foot protection and mechanical locking system (17 steps) for maximum operational safety.
CE Conformity: CE certified according to DIN EN 1493 standard.
The following table summarizes the critical technical parameters of the Consul 0.42 SN BE – 4800mm lift:
| Parameter | Value | Note |
|---|---|---|
| Item Number (SKU) | 732800 | |
| Manufacturer Number (HAN) | 500447 | |
| Category | Scissor Lifts | |
| Rated Capacity (Main Lift) | 4.200 kg | |
| Lifting Height (Main Lift) | ca. 1.850 mm | |
| Lifting Time (loaded) | approx. 35 seconds | |
| Set-up width | approx. 2,260 mm | |
| Installation length | ca. 5.770 mm | |
| Drive Power | 5.5 kW | |
| Tápellátás | 400 V / 50 Hz | |
| Fuse Protection | 20 A slow blow | |
| Runway Length (Rail Length) | ca. 4.800 mm | |
| Clearance Height (SN) | ca. 50 mm | Very low installation height |
| Auxiliary Lift Capacity | 3,500 kg | |
| Auxiliary Lift Lifting Height | ca. 450 mm | |
| Auxiliary lift length | approx. 1,440 – 1,940 mm | Extendable design |
| Auxiliary lift raising time | 15 seconds | |
| Auxiliary lift width | ca. 670 mm | |
| Protection class | IP 54 | |
| Other | 230 V socket |
The design of the lift includes several functions that optimize service work and increase flexibility:
Platforms: Made from special cold-formed steel profiles, ensuring exceptional rigidity.
Drive-through Rails: The platforms have drive-through rails (drive-through version), which facilitate vehicle entry and exit.
Bearing: Shared, 20 mm thick fixed and sliding bearing (series hot-dip galvanized), which ensures excellent durability. Optionally for adjustable runway alignment.
Track Width: The width of the tracks is approx. 650 mm, which is ideal for vehicles with various wheelbases.

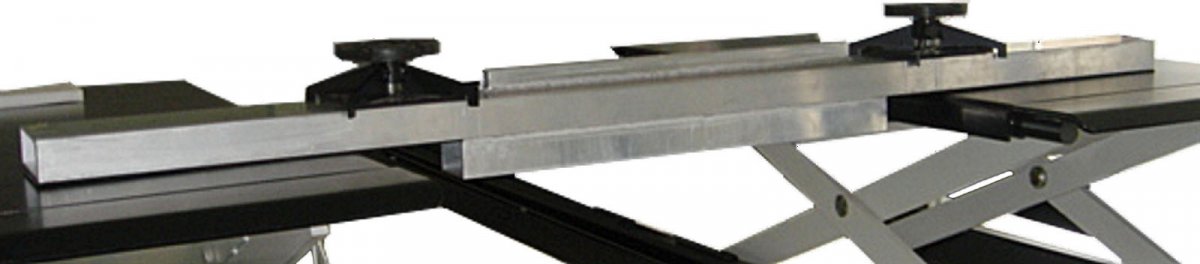

The built-in auxiliary lift can be extended on both sides, thus flexibly adapting to different wheelbase and track dimensions.
Extendability: The length of the auxiliary lift is adjustable from 1,440 mm to 1,940 mm, thus accommodating vehicles in a wide range.
Lifting Height: A lifting height of 450 mm is sufficient for most service work.
Pneumatic Release: Pneumatic release via a push-button during lowering assists in quick and safe descent.
Main Switch: It has a separate lockable main switch in accordance with CE regulations.
Integrated Jacking Rail: A rail integrated into the platform is available for jacking beams, which further increases flexibility.
Although the main product is the 0.42 SN BE lift, several accessory options are available for the system that can further extend its functionality (these must be ordered separately):
Hot-Dip Galvanized Accessory Lift (Surcharge): Increases corrosion resistance.
Anti-slip Coating for Guide Rails: Cannot be retrofitted, but can be selected as standard equipment or at the time of order.
For Pit Frame Lifts: Compatible with various lifts, 3,000 kg load capacity, with movable adapters and rotary spindle.
Compensation Kit 650 / 0.40 SN: 50 mm high compensation kit for 650 mm wide platforms.
Control Panel Position Right (Surcharge): Customization of the control unit's position.
Fastening Material for 0.35/0.40 Series: Includes the necessary M16 reaction bolts and fastening elements.
Lighting (Surcharge): With factory installation or in unmounted version (e.g., 4 LED lamps, with switch and cables).
Elastomer Adapters: Adapters of different sizes (e.g., 250 x 150 x 20 mm or 250 x 150 x 40 mm) for the accessory lift.
This Consul scissor lift is an ideal choice for workshops looking for an extremely reliable, high-capacity, in-ground submersible lifting system equipped with an integrated external lift for full serviceability.
