The Consul 0.42 S BA type floor-mounted electrohydraulic scissor lift is an excellent choice for professional workshop environments where a reliable and high-capacity lifting solution is required. This model is part of the C-Line series and is specifically optimized for servicing vehicles with a load capacity of 4,200 kg. Thanks to the 4800 mm runway length, it is ideal for longer wheelbase vehicles, while the floor-mounted (BA) design ensures minimal installation height.
This technical solution guarantees efficient and safe operation, whether for routine service or more complex wheel alignment jobs (with optional calibration).
The Consul 0.42 S BA lift includes several design elements that increase user comfort and safety:
Floor-Mounted Design (BA): This version means the lift is installed onto the workshop floor with minimal installation height, which facilitates vehicle driving onto the lift.
High Load Capacity: With a nominal capacity of 4,200 kg, it can be widely used for lifting passenger cars and smaller commercial vehicles.
Electro-hydraulic Control: Ensures a precise and reliable lifting process.
Master/Slave Hydraulic System: Guarantees synchronized operation and a stable platform position across the entire lifting range.
Pneumatic Release: Pneumatic unlocking at the push of a button during lowering, allowing for fast and easy operation.
Acoustic Foot Protection: Built-in safety function that prevents accidental injuries during the descent phase.
Mechanical Locking System: A 17-position mechanical locking system ensures safe holding during work.
Robust Bearing System: Shared, 20 mm thick fixed and sliding bearings (in galvanized version as standard) ensure a long service life and minimal maintenance requirements.
Integrated Rail: The track system integrated into the runways allows for easy positioning and use of hydraulic jacking beams (optional).
IP 54 Protection: The control unit and electrical components are protected against dust and splashing water.
Integrated 230 V Socket: Provides a convenient power supply point for auxiliary tools used in the workshop.
Compliance with Standards: It holds GS certification, DIN EN 1493, and CE marking, guaranteeing compliance with the highest European safety and quality standards.
The table below summarizes the critical technical parameters of the Consul 0.42 S BA – 4800 mm lift:
| Parameter | Value | Note |
|---|---|---|
| SKU | 732339 | |
| HAN | 500442 | |
| Category | Scissor Lifts | |
| Rated load capacity | 4.200 kg | |
| Lifting height | ca. 2.100 mm | |
| Lifting Time (loaded) | approx. 35 seconds | |
| Set-up width | ca. 2.240 mm | |
| Installation length | approx. 5,910 mm | |
| Drive-up height | ca. 260 mm | Floor-installed version |
| Power supply | 400 V / 50 Hz | Three-phase mains |
| Drive Power | 5.5 kW | |
| Fuse Protection | 20 A slow blow | |
| Width of runways | ca. 650 mm | |
| Length of runways | ca. 4.800 mm |
The runways are made of special rolled steel profiles, ensuring exceptional rigidity and durability. The surface of the runways includes drive-on ramps and anti-roll back protection, thus facilitating the safe positioning of vehicles.
Wheel Alignment Options:
The runways are equipped as standard with split, 20 mm thick fixed and sliding bearings, which are hot-dip galvanized in series for corrosion protection. Optionally Calibration required for wheel alignment is available, which further increases the precision of the machine in this area.
The Consul 0.42 S BA lift can be flexibly expanded with a number of factory accessories that optimize workshop processes:

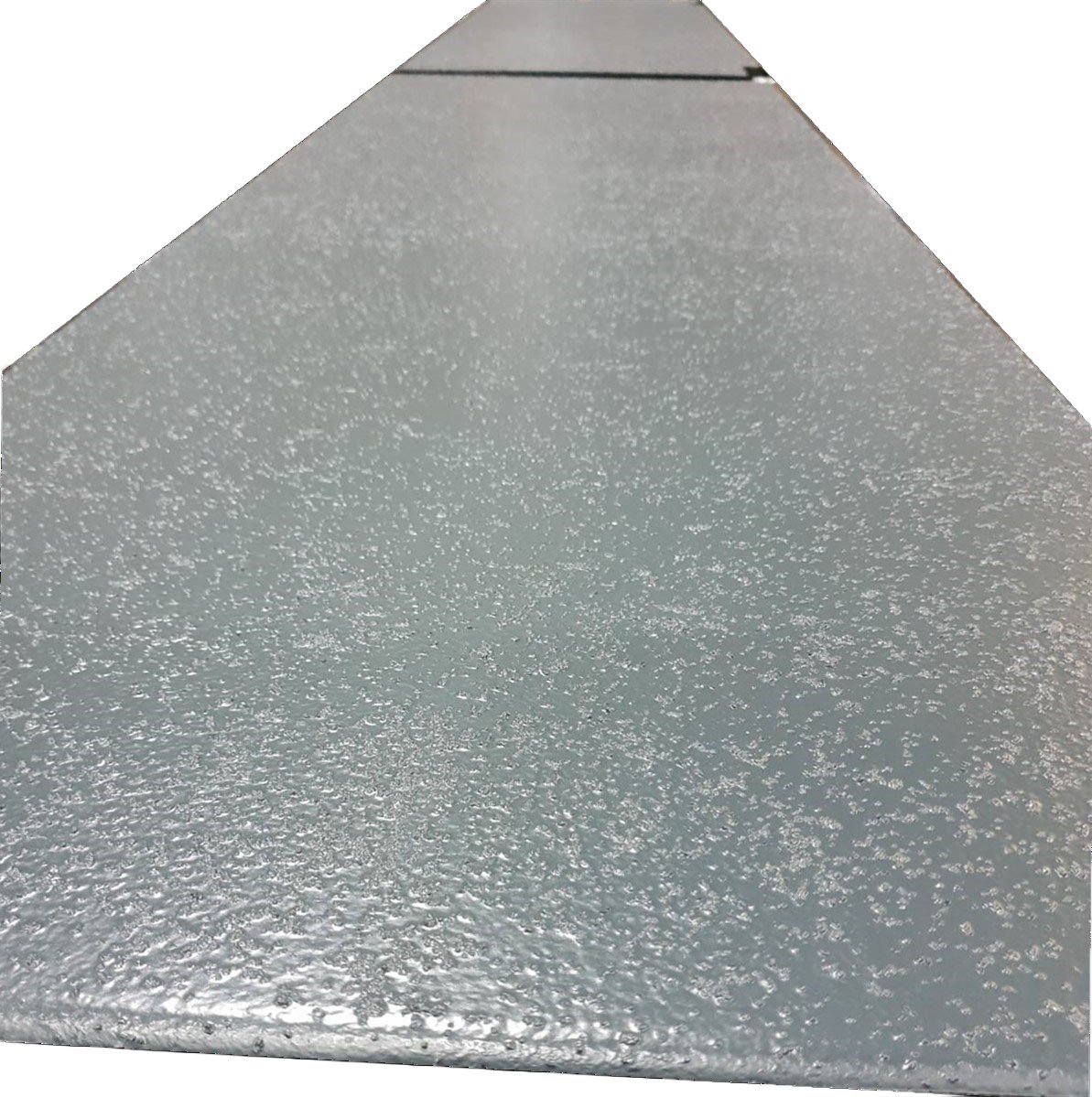

Anti-Slip Coating (Not retrofittable): Special anti-slip coating for the runways, which increases adhesion under wet or dusty conditions.
Incline/Decline Ramps with Roll-Back Protection: Set (2 pieces), approx. 1,000 mm long, which facilitates the safe ascent of vehicles due to the minimal lifting height.
Straight, Extended Incline Ramps: Set (2 pieces), approx. 1,500 mm long, for longer vehicles or specific requirements.
Right-Side Placement of Control Panel (Surcharge): Possibility to modify the placement of the control unit to suit the workshop layout.
Fastening Materials (for 0.35/0.40 series): Includes 28 M16 anchor bolts and other fastening elements for professional floor mounting.
Built-in Lighting (Factory fitted surcharge): Optional lighting package containing 4 LED lamps (1,235 mm long) with switch and cabling, for optimal illumination of the working area.
Platform Extension (Max. 1 pc): 250 mm extension element for the runways, to accommodate larger vehicles.
Hydraulic Play Detector Set (630 set): Hydraulic axle play detector with 18 directions of movement (longitudinal/transversal), up to a maximum vehicle weight of 2,000 kg. Integrable into the runways with a 50 mm superstructure, includes lifting block. Ideal for lifts that do not have wheel alignment calibration.
The Consul 0.42 S BA – 4800 mm scissor lift offers a perfect combination of reliability, high load capacity, and advanced safety features for modern automotive workshops.
