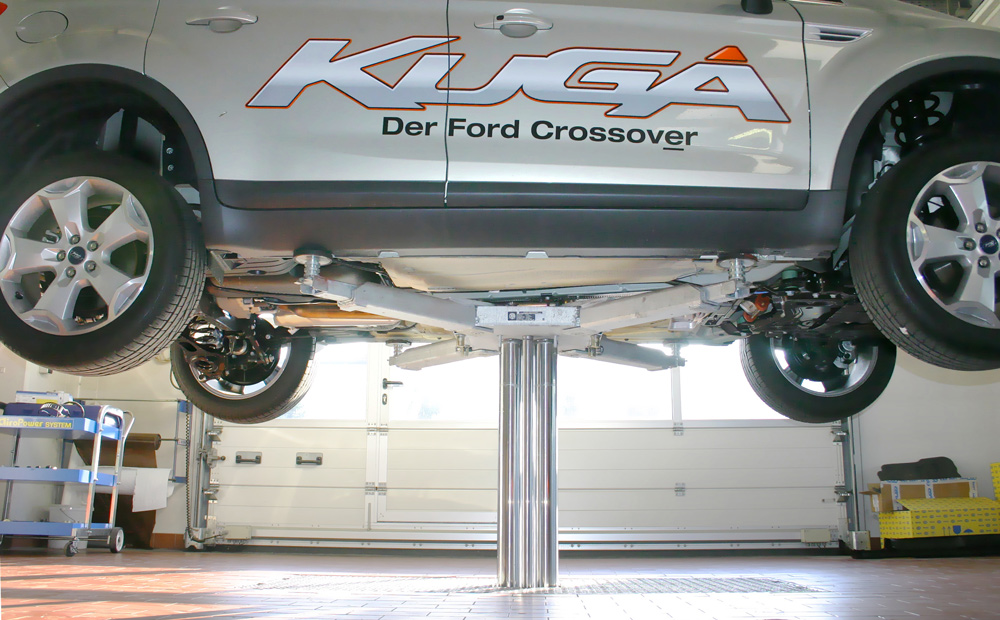

The J.A. Becker & Söhne DuoRam K36.2 lift system offers the most modern solution for lifting almost any passenger car and light commercial vehicle. Thanks to the dual telescopic tilting arms, it provides exceptional flexibility and accessibility during service work. The innovative JAB plug-in securing system guarantees the quick replacement of various vehicle-specific – even form-retaining – suspensions, thereby maximizing workshop efficiency.
This premium category lift is not just a standard tool; in line with JAB's philosophy, it is a non-standard product born in the spirit of safety, redundancy, and long service life.
In the design of the DuoRam K36.2, maximum safety and the optimization of service work were the central focus:
Redundant Design: Two independent hydraulic cylinders ensure safe and reliable operation, thus increasing the system's safety reserve.
Excellent Anti-Rotation System: The anti-rotation mechanism extending over the entire stroke length guarantees the stable position of the vehicle during lifting.
Momentum Damping: Additional guide rods absorb all occurring torsional moments, thereby protecting the lift structure and ensuring precise travel.

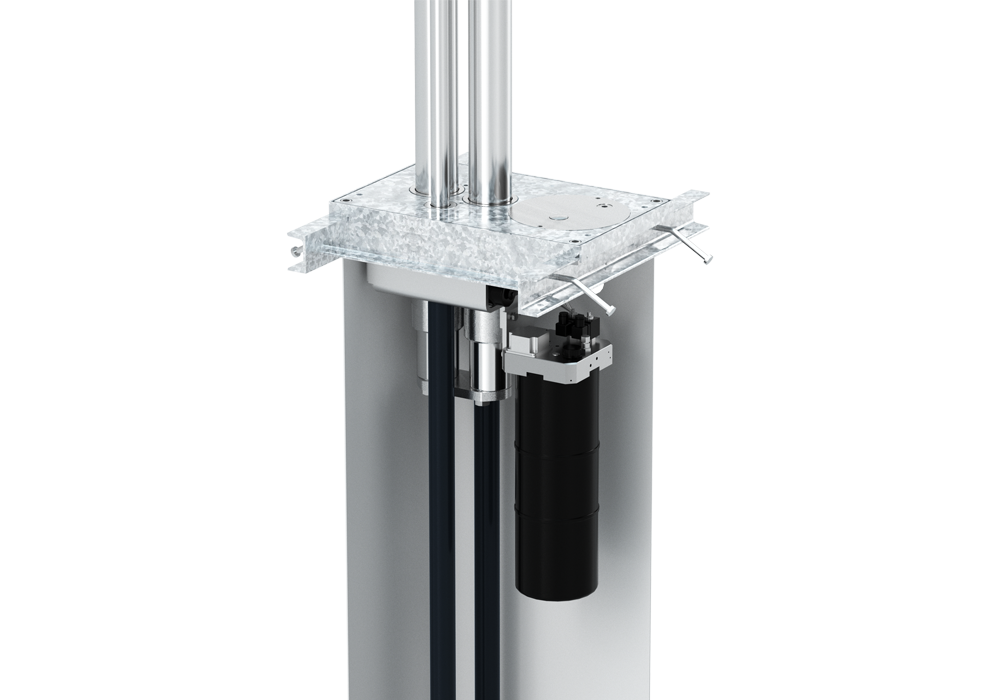

Directly Flanged Hydraulic Unit: The direct mounting of the hydraulic unit allows for simpler maintenance and optimal space utilization.
Excellent Accessibility: Thanks to the design, optimal access is provided to the wheels, brake system, engine hood, vehicle interior, and body for any repair or maintenance task.
High Payload Versatility: The system is capable of safely securing and lifting an extremely wide range of vehicles.
The DuoRam K36.2 lift is the result of precise engineering work, featuring the following key parameters:
| Parameter | Value | Note |
|---|---|---|
| Load Capacity | 3,500 kg | For passenger cars and light commercial vehicles |
| Lifting Height | 1,880 mm | Maximum lifting height |
| Clearance Height (Traverse Height) | 109 mm | Minimum height above floor level |
| Installation Depth | 2,350 mm | Depth required for installation below the floor |
| Oil quantity | 10 liter | The amount required to fill the hydraulic system |
| Connection Power | 2 kw | Electric drive power |

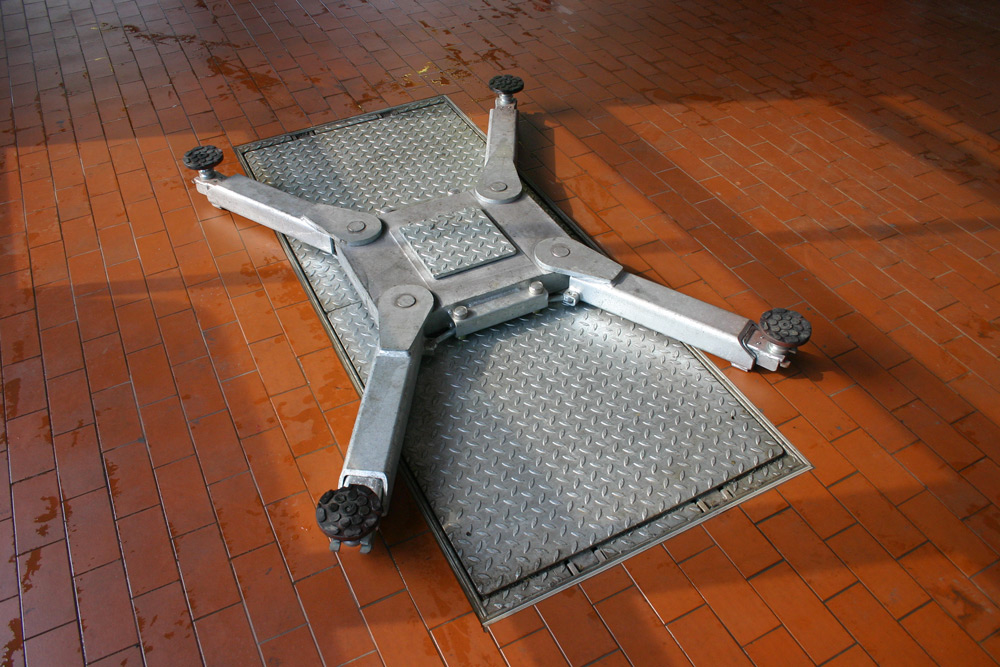

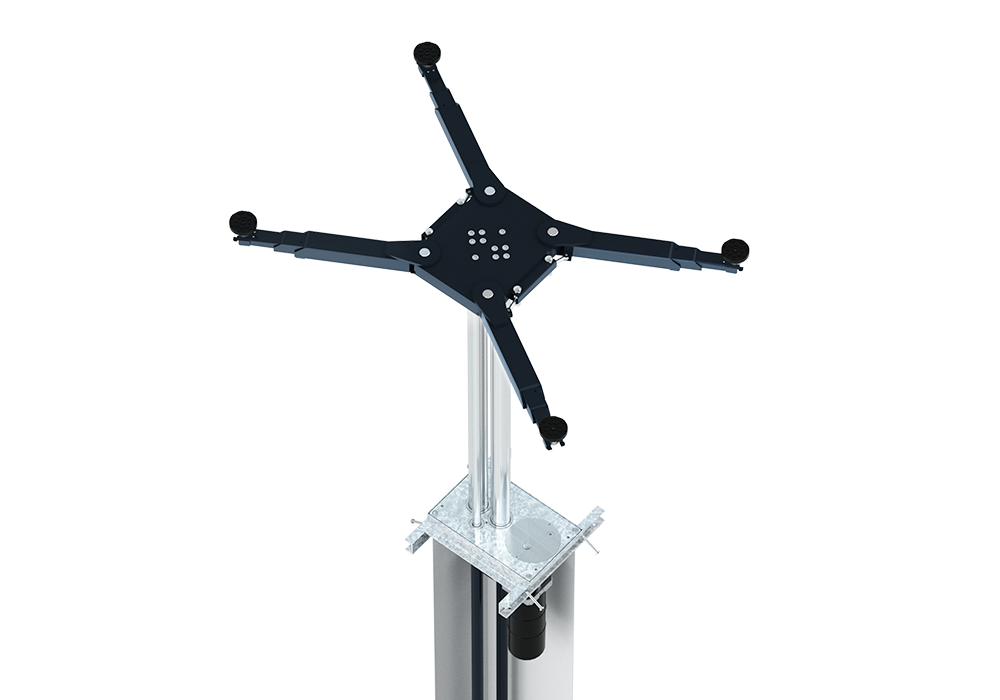

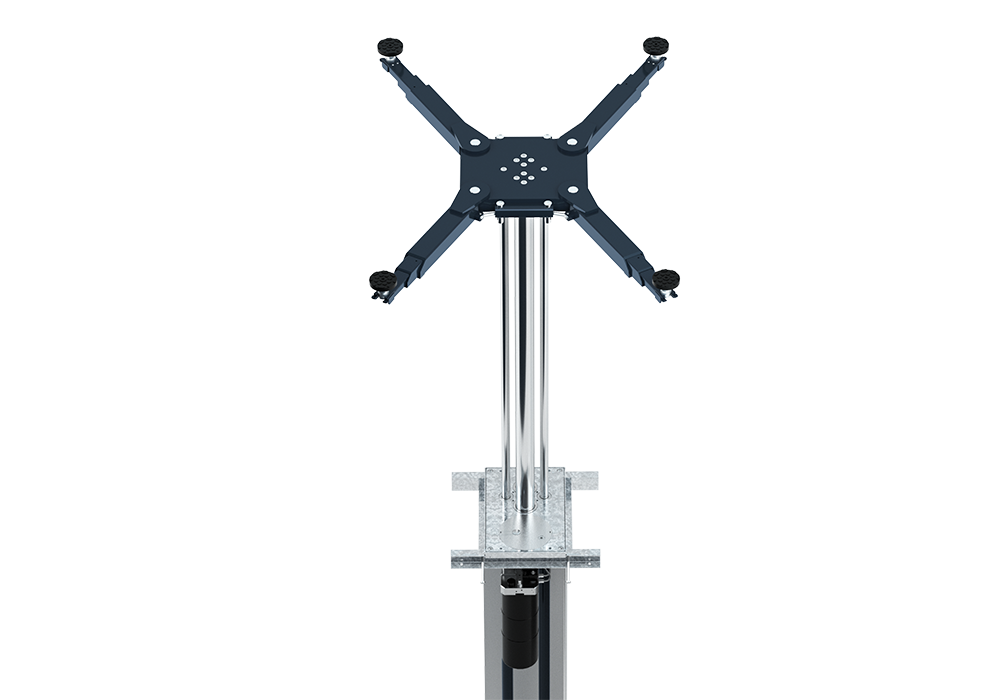

The DuoRam K 36.2 features double telescopic tilting arms that allow for the symmetric or asymmetric positioning of vehicles for maximum flexibility. The JAB plug-in fastening system (pluggable mounting points) allows the service technician to quickly switch between the specially designed mounting elements required for different vehicle models. This system is not only fast but also guarantees optimal fit to the vehicle's underbody.
The K36.2 model is the ideal choice for workshops where, in addition to meeting high safety requirements, quick changeover time and full access are essential for efficient work. The 1880 mm lifting height provides sufficient space for most underbody and drivetrain work, while the low 109 mm pass-through height minimizes the blind spot under the vehicle when the lift is not in use.
The DuoRam K36.2 is a first-class product in every respect, representing the decades of experience and quality of J.A. Becker & Söhne in vehicle lifting technologies. The robust construction and redundant safety systems guarantee long-term, trouble-free operation.
