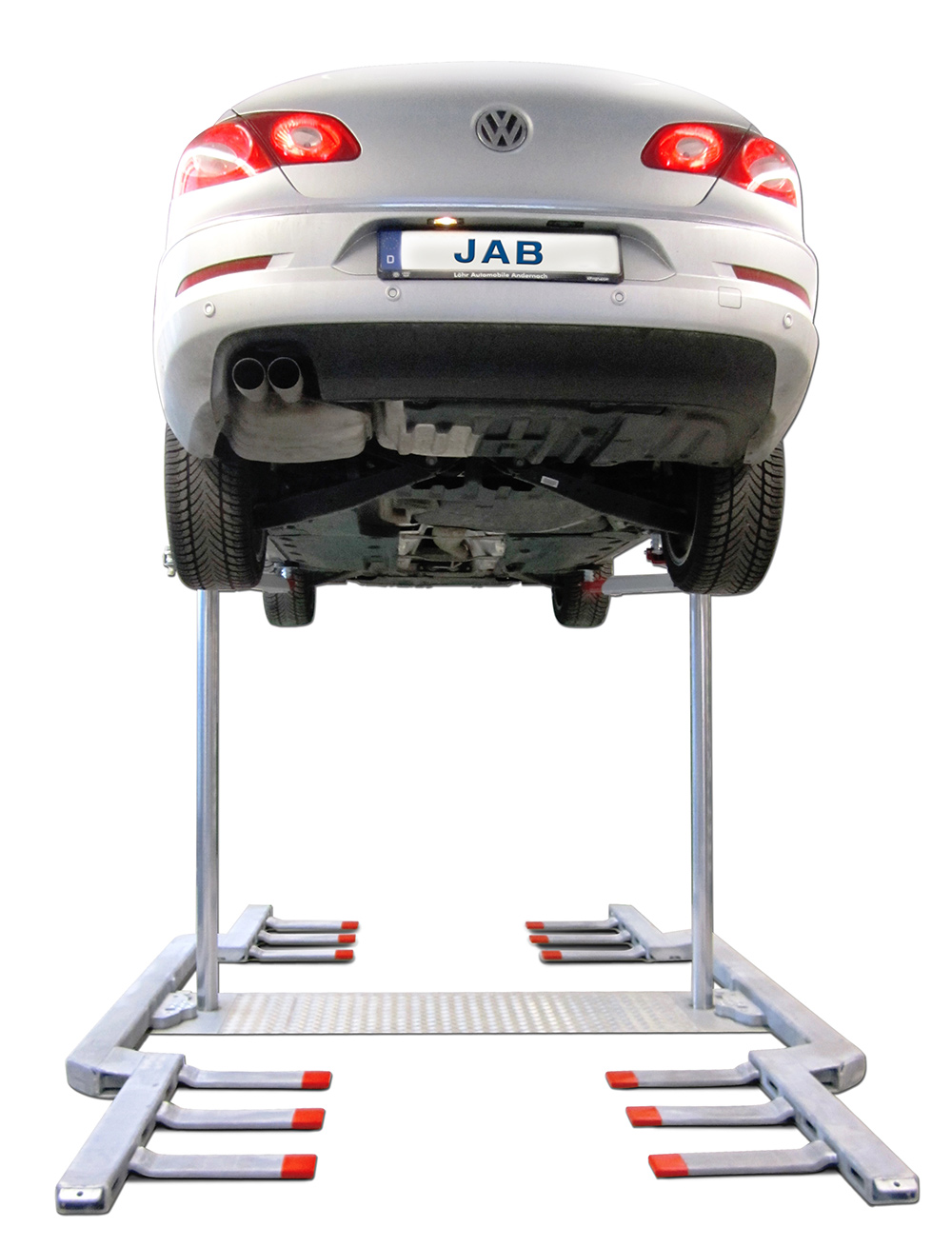

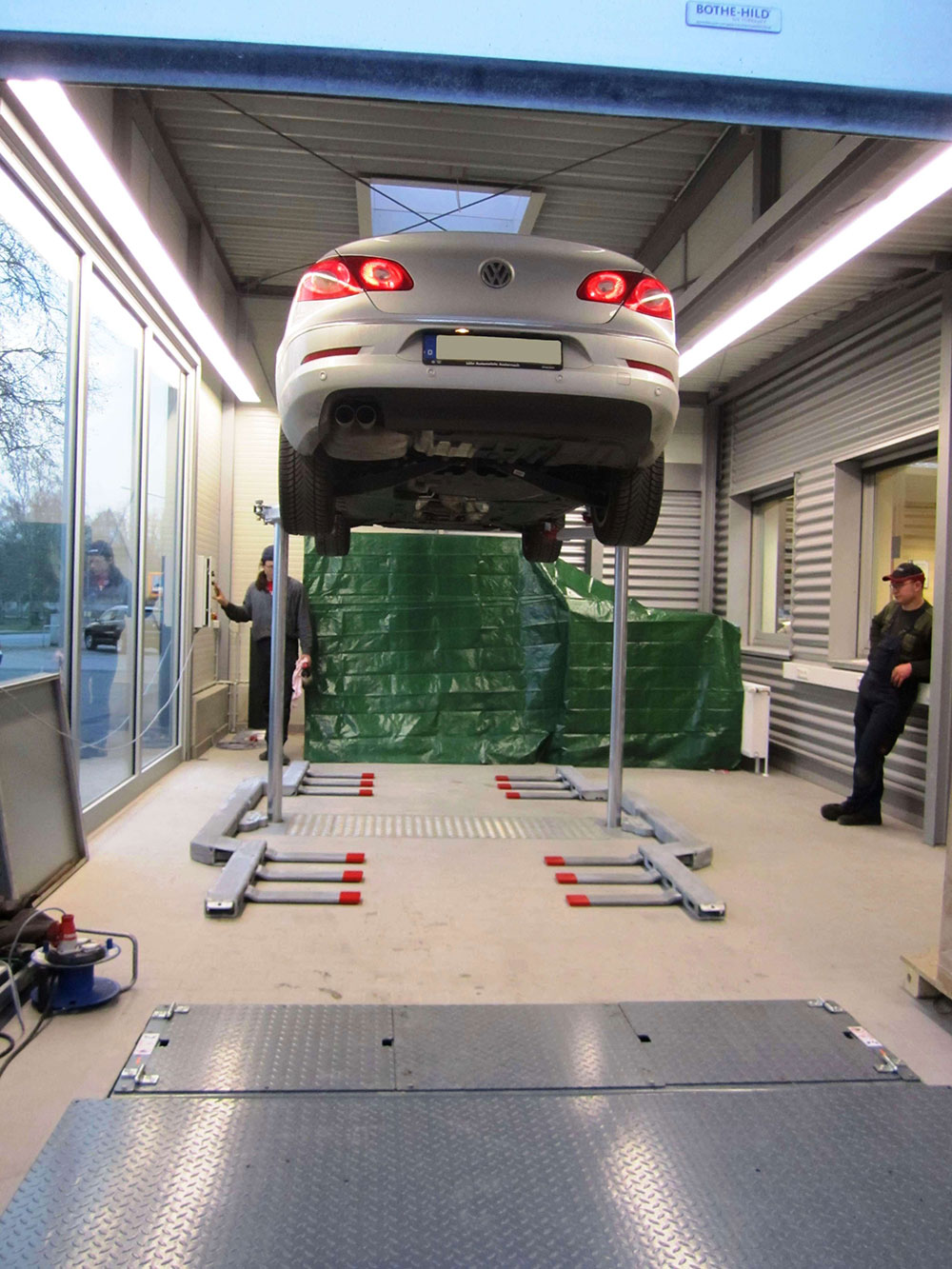

The J.A. Becker & Söhne TwinRam 35 AE-S2 A unique, two-function vehicle lifting system designed specifically for the needs of modern workshops. This model, supplemented with a full afterlift function, is exceptionally versatile by providing two lifting options at a single workstation. It is especially ideal for vehicle reception areas where fast and efficient work is required for both full lifting and for wheel or chassis work.
In the design of the TwinRam 35 AE-S2, the focus was on flexibility, safety, and user-friendly handling.

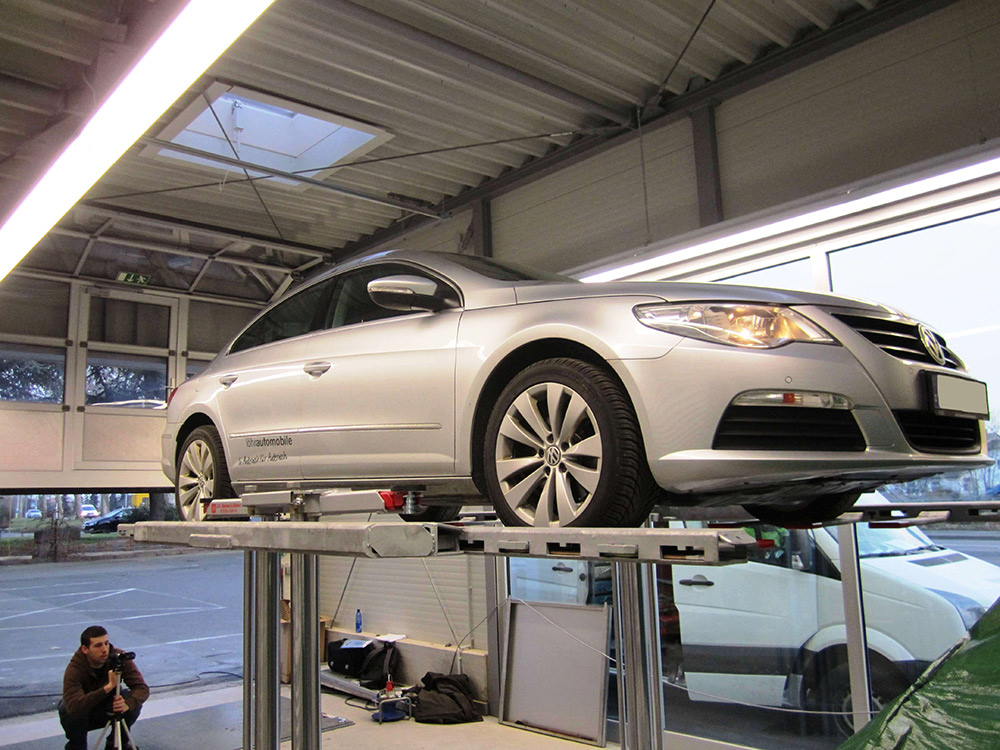

The system features two separate lifting platforms within one workstation, significantly increasing workshop efficiency. This design allows for simultaneous full lifting or specific subframe and wheel service operations.
The equipment is equipped with a unique, patented „Essmann” lifting ramp which is specifically suitable for lifting at the vehicle's wheels.

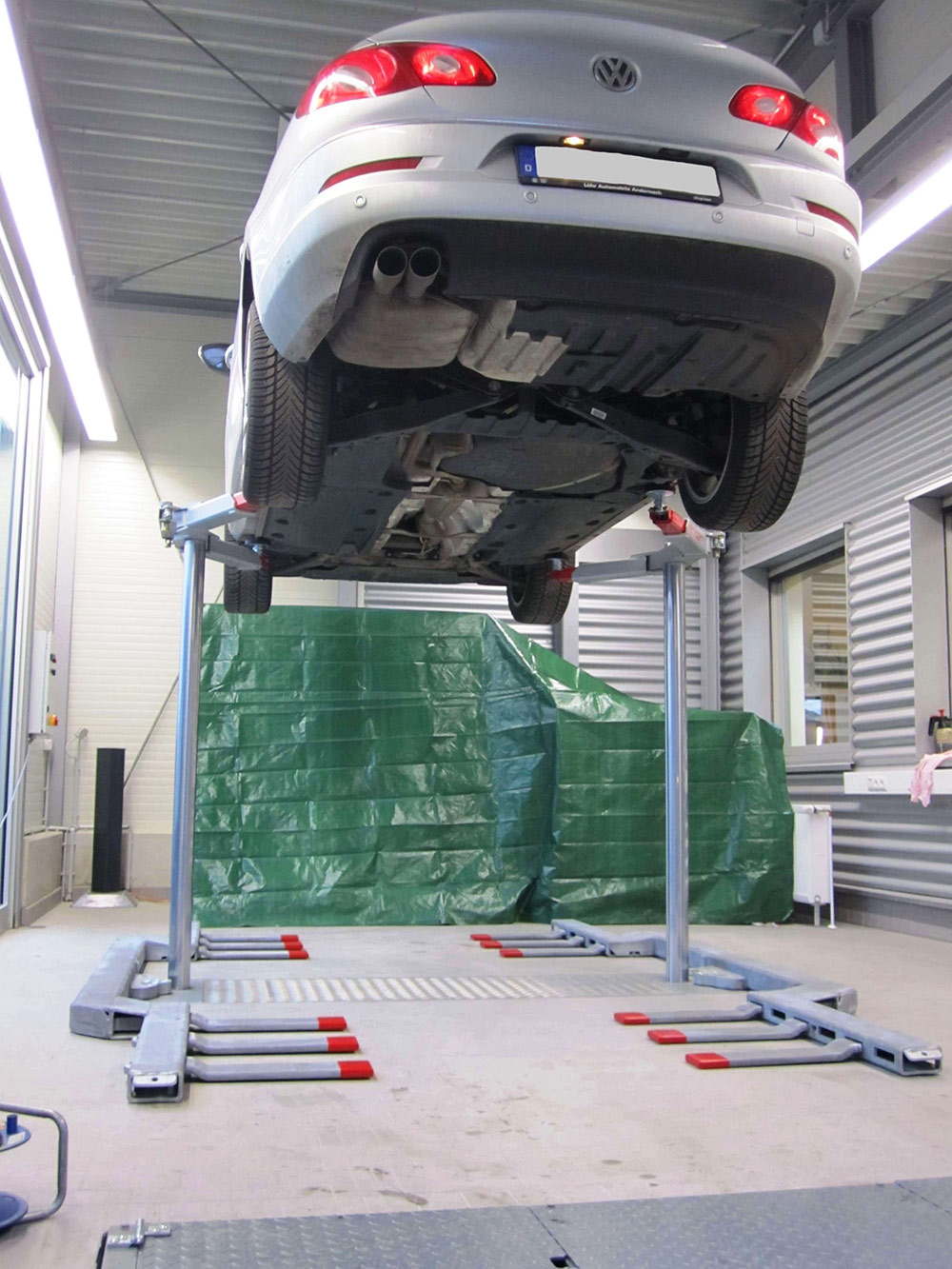

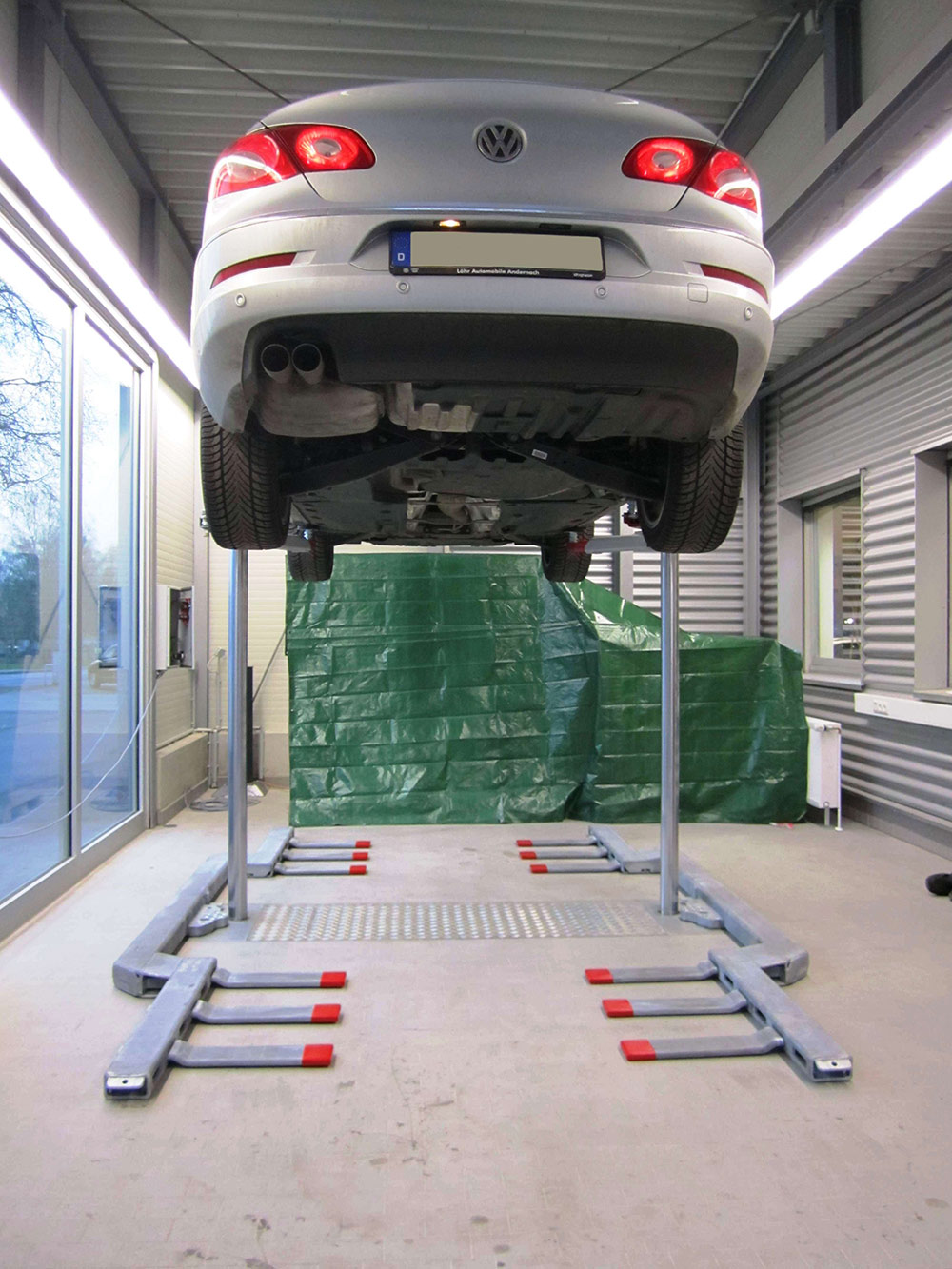

Extremely Low Profile: Thanks to the extremely flat design of the spring plates (only 20 mm lifting height), sunken installation is not strictly necessary. This means the TwinRam 35 AE-S2 is also capable of easily lifting low-profile vehicles equipped with sports chassis.
Automatic Wheel Centering: Automatic wheel centering between the spring plates eliminates the need for anti-slip protection, thereby simplifying positioning and increasing safety.

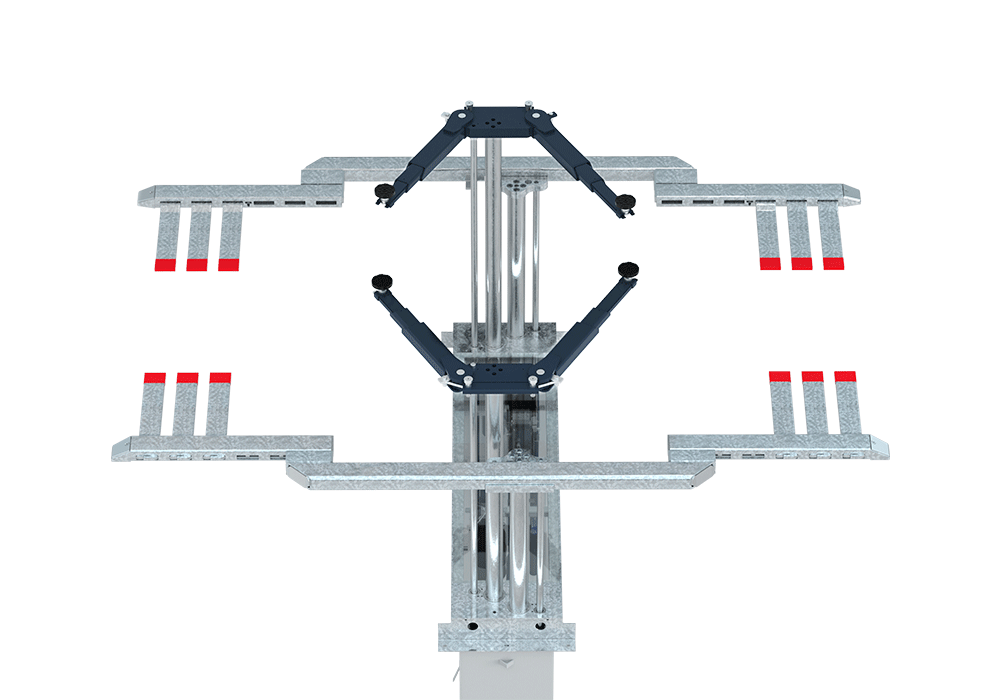

The system is equipped with dual telescopic swivel arms, allowing for the free lifting of both axles simultaneously. This feature makes the machine a preferred solution for quick inspection and diagnostic work.
In line with JAB products, the TwinRam 35 AE-S2 also meets the highest safety standards:
Full Stroke Anti-Rotation System: The anti-rotation mechanism secured along the entire lifting path guarantees vehicle stability.
Base Frame Force Absorption: Every load force is absorbed by the robust base frame, which minimizes the load on the floor and increases the service life of the structure.
The drive unit and all critical components are easily accessible, simplifying regular maintenance and quick servicing.
The precise engineering solutions of the TwinRam 35 AE-S2 are summarized in the following table:
| Parameter | Value | Note |
|---|---|---|
| Load Capacity | 3,500 kg | Maximum permissible load |
| Hole Spacing (Punch Spacing) | 2,500 / 2,300 mm | Variations in the distance between the two lifting platforms |
| Underswing Height (Height below floor level) | 98 mm | Depth Below Floor Level |
| Installation Depth | 2,350 mm | The required minimum installation depth |
| Hydraulic Oil Capacity | 20 liter | The volume of oil required for the system to operate |
| Connection Power | 2 x 2 kw | Performance of two separate drive units |
The TwinRam 35 AE-S2 is not an „08/15” (average) product. It reflects the engineering philosophy of J.A. Becker & Söhne, which prioritizes durability and functionality.
Two Separate Lifting Platforms: Maximum flexibility in one place.
Essmann Lifting Ramps: Ideal for low vehicles, with a lifting height of 20 mm.
Comprehensive Safety: The anti-tilting system and the load transfer of the base frame guarantee safe operation.
Easy Access: The drive units and hydraulics are easily accessible for quick servicing.
This lifting system is the ideal choice for workshops looking for a high degree of flexibility in lifting passenger vehicles without compromising on safety or maintainability. The TwinRam 35 AE-S2 is a first-class solution in every respect.
