This detailed product description applies to the WS Wieländer+Schill HLT-17o pneumatic vehicle lift, which is excellently suited for professional workshop environments for flexible and efficient vehicle servicing. This lift belongs to the category of Wieländer+Schill quality service and workshop equipment and meets the highest safety and operational standards.
Product Identifier: 851051
As part of the HLT lift series, the HLT-17o model offers exceptional versatility in lifting vehicles. The load can be lifted in two main ways: with the vehicle on its wheels, or using the pivoting support arms in „wheel-free” mode. The latter enables precise work on the running gear, brake system, and chassis.
The wheel support surfaces are equipped with grids, which ensure stability and drainage of contaminants. A particularly important feature is that the central section can be folded down, which provides access for working on the sills and the lower parts of the chassis.
The support arms are pivotable, have a built-in locking mechanism, and can even be removed if necessary, maximizing the working area. For „wheel-free” lifting, the frame in the lower position is disconnected from the platform body using an easily accessible sliding mechanism.
In both lifting options, the load capacity is uniformly 3.5 tons (3500 kg).
The base frame, grating, and entry protection of every lift are galvanized as standard equipment, guaranteeing excellent corrosion protection and a long service life even under intensive use.
Important safety requirement: To prevent movement, the base frame of the lift must be secured to the floor (by bolting). The installation process involves lifting and lowering the platform base, positioning the platform, and then securing it to the floor.
Flexible Lifting Modes: Lifting is possible either on wheels or wheel-free using the pivoting support arms.
Easy Access: The foldable central section allows for working on the sills and the lower parts of the chassis.
High Capacity: Reliable 3.5-ton load capacity in both lifting configurations.
Durability: The base frame, grates, and entry protection are standard galvanized for maximum durability.
Pneumatic Operation: Quiet and efficient operation with compressed air.
Safety: The support arms are equipped with a locking mechanism.
The table below summarizes the critical technical parameters of the HLT-17o lift:
| Property | Value | Note |
|---|---|---|
| Part number | 851051 | |
| Maximum Load Capacity | 3500 kg (3.5 t) | In both lifting modes |
| Maximum lifting height | 1350 mm (135.5 cm) | |
| Operating pressure | 5 bar | |
| Pneumatics (P max.) | 8 bar | According to ISO 8573-1 standard |
| Length x Width x Height (Base Frame) | 3980 x 2100 x 154 mm | |
| Weight | 1200 kg | |
| Sound pressure level | < 70 dB(A) | Quiet Operation |
| Materials | Metal, Plastic, Rubber | |
| Mark of conformity | According to Directive 2006/42/EC | CE Conformity |

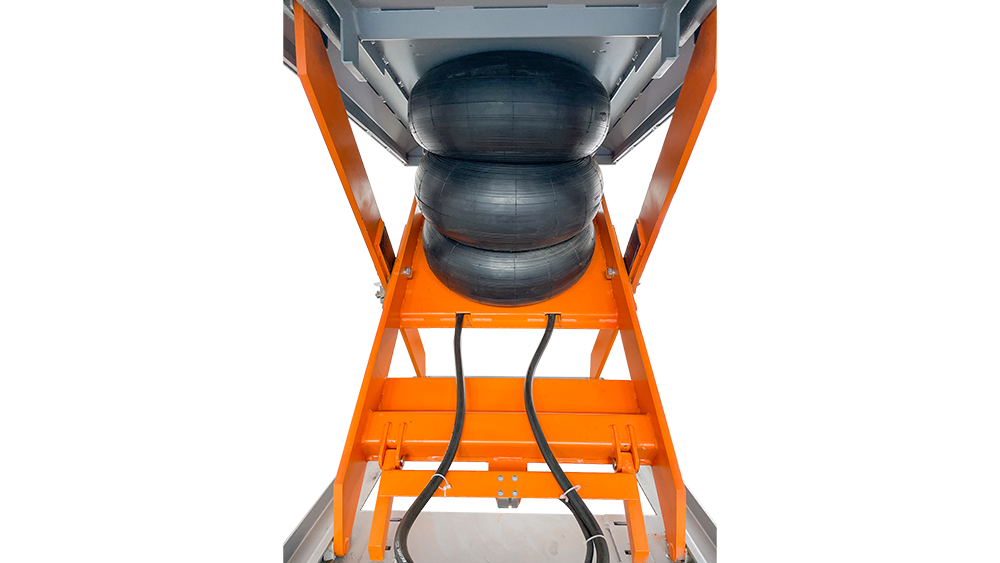

The lift operates with a pneumatic system, requiring an operating pressure of 5 bar for optimal performance, usable up to a maximum pressure of 8 bar. Regarding air quality, the lift complies with the ISO 8573-1 standard. Thanks to the pneumatic drive, the operating noise level remains low, below 70 dB(A), which contributes to a more pleasant workshop environment.
For durability, key components of the lift (base frame, gratings, walkway protection) have a galvanized surface, making them resistant to corrosion and the stresses of the workshop environment.
Proper installation is essential for safe and long-term operation:
This vehicle lift is the ideal choice for professionals seeking a reliable, high-capacity, and extremely flexible lifting system for daily repair and maintenance tasks.
